Supmea P300G High Temperature Compact Pressure Transmitter

Supmea P300G High Temperature Compact Pressure Transmitter

US$195.00
US$195.00
Sale Sold out
Prices Shown Include Delivery.

Low stock: 10 left • Lead Time: 2-4 Weeks
View full details

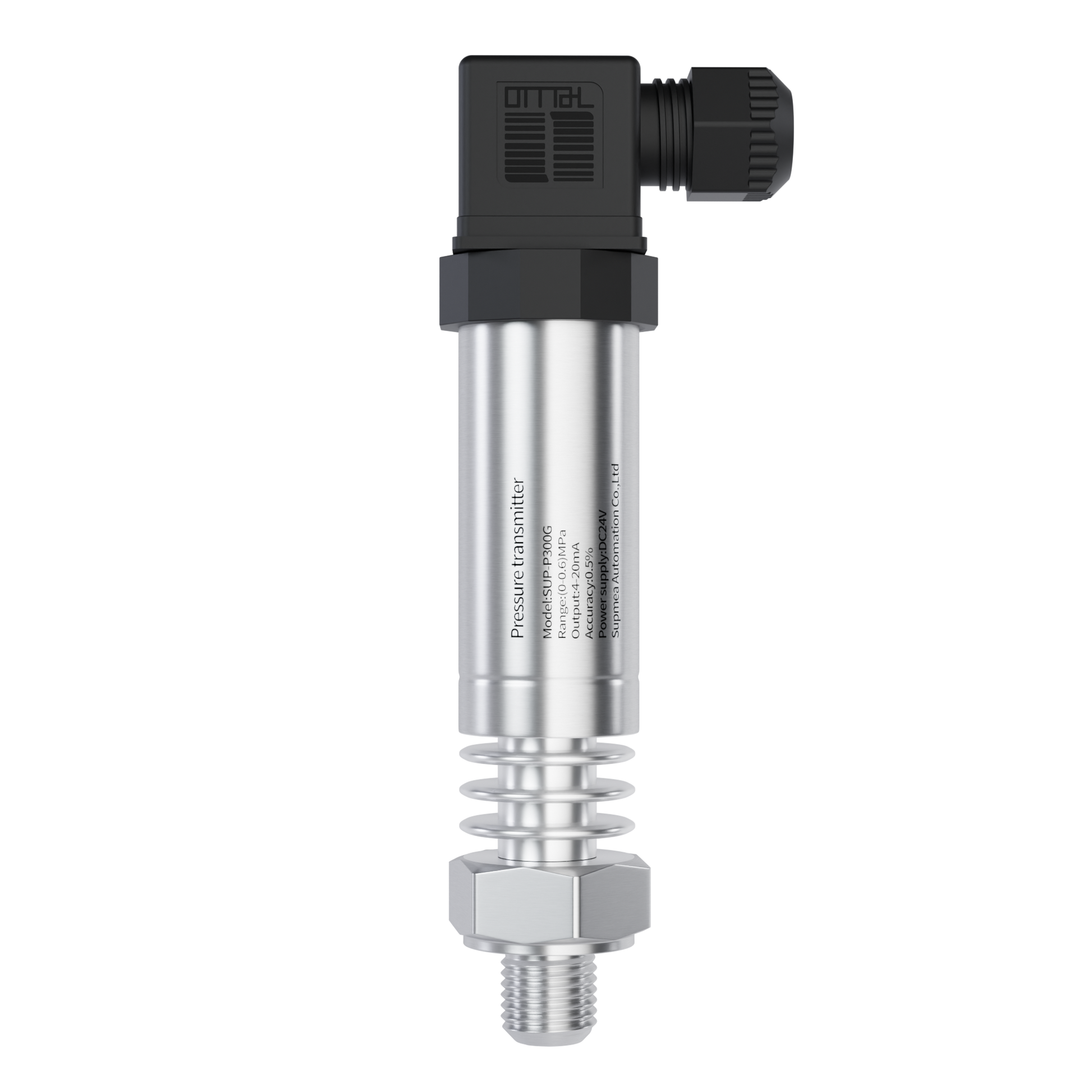

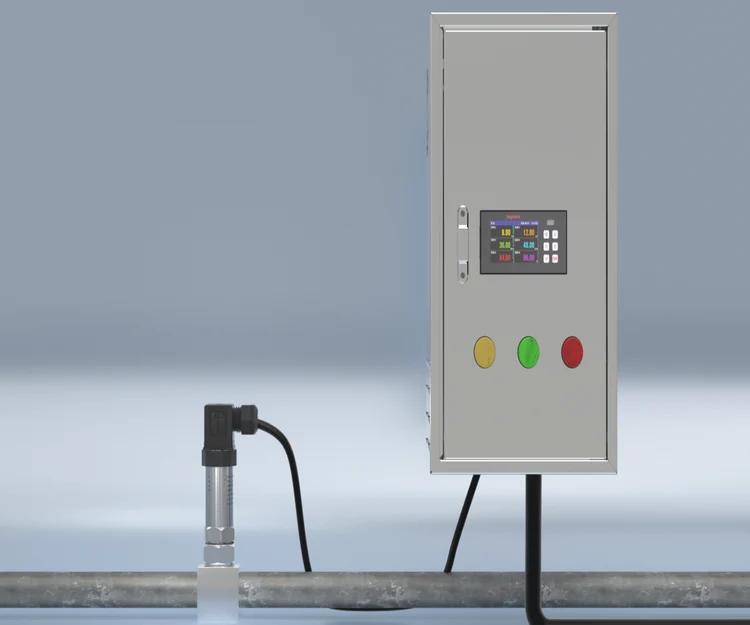

Product Overview

The SUP-P300G is a high-temperature pressure transmitter featuring a diffused silicon pressure sensor and heat sink design for reliable pressure measurement under elevated temperature conditions. With excellent stability, anti-interference capability, and multiple output options, it is suitable for industrial process control applications including chemical processing, thermal systems, and harsh industrial environments.

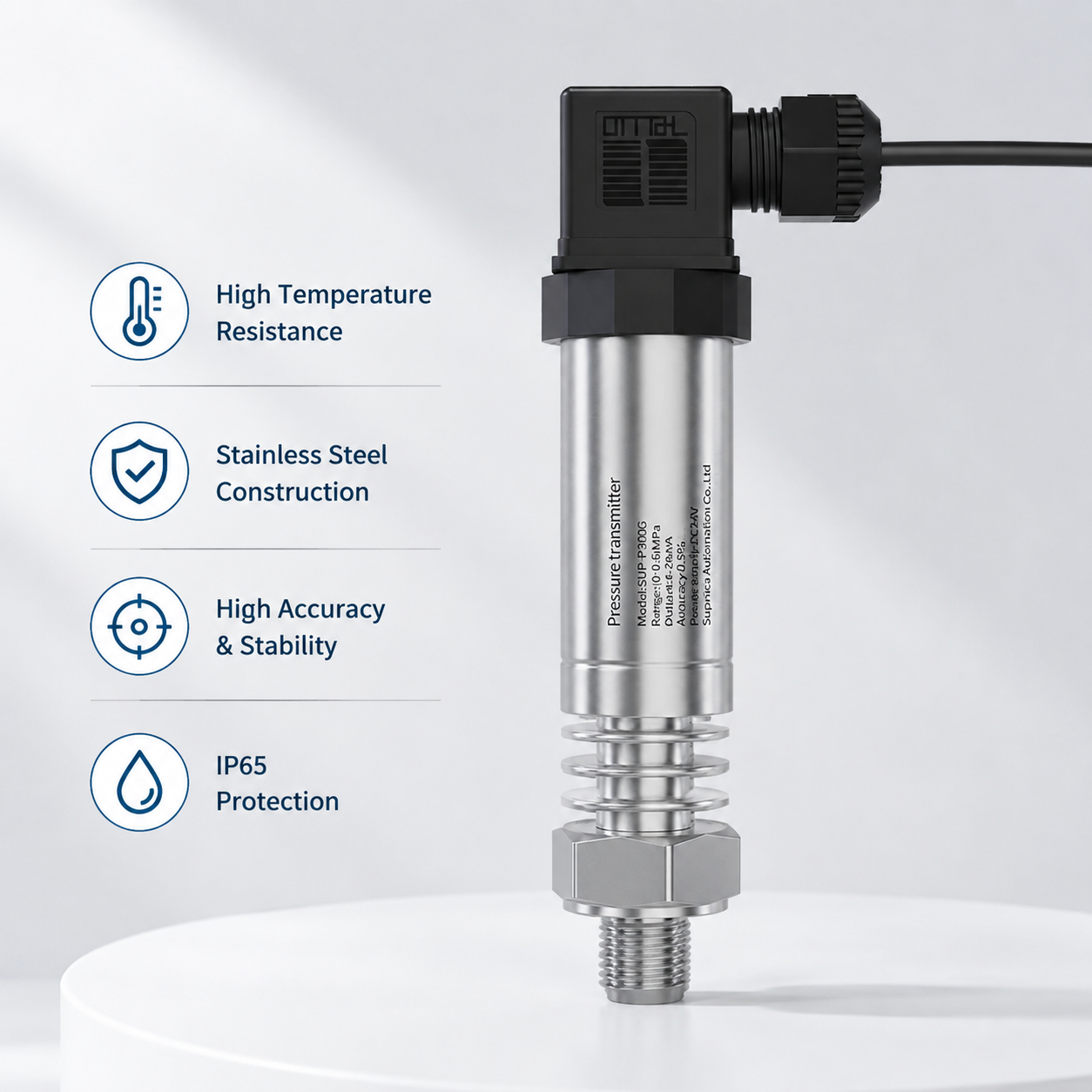

Key Features

  • Designed with heat sink structure to improve performance in high-temperature process applications.
  • Provides reliable pressure measurement with excellent long-term stability and anti-interference capability.
  • Supports pressure measurement from -0.1 MPa to 60 MPa for various industrial processes.
  • Supports 4–20 mA, voltage output, and RS485 communication options.
  • Features 316L stainless steel diaphragm construction for compatibility with industrial media.
  • Designed for stable operation in demanding industrial environments.

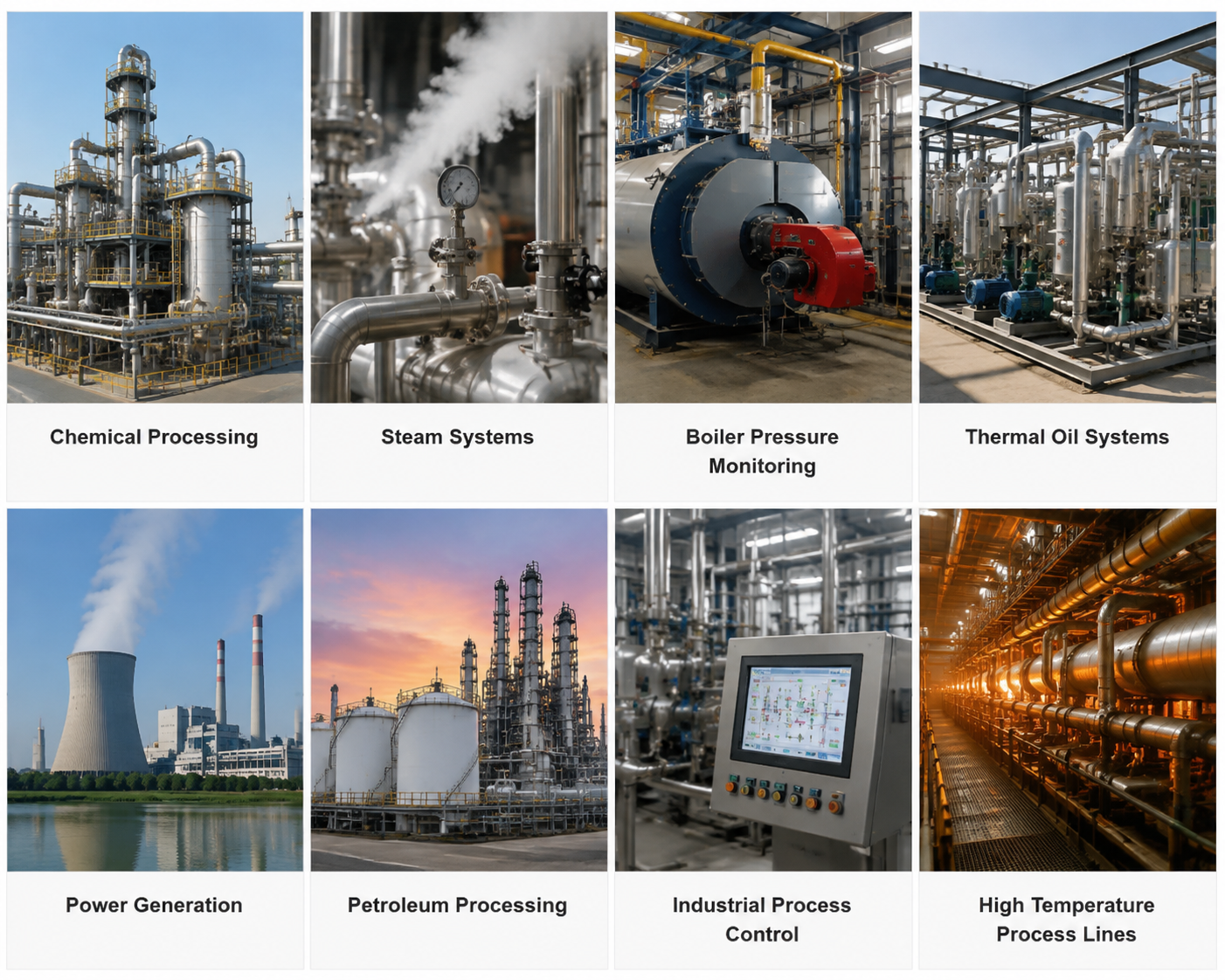

Applications

Technical Specifications

Model SUP-P300
Measuring Range -14.5 ~ 8,702 psi (-0.1 ~ 60 MPa)
Accuracy 0.25% FS / 0.2% FS / 0.5% FS
Output Signal 4–20 mA / 1–5 V / 0–10 V / 0–20 mA / 0–5 V / RS485
Power Supply 24 VDC
Pressure Type Gauge Pressure / Absolute Pressure / Sealed Pressure
Process Connection NPT 1/4 (1/4" National Pipe Thread)
Wetted Material SS304 Body, SS316L Diaphragm
Protection Rating IP65
Operating Temperature -4 to 185°F (-20 to 85°C)

Downloads

User Manual
Datasheet

FAQ

What is the SUP-P300G used for?

The SUP-P300G is designed for pressure measurement in high-temperature industrial applications, including chemical processing, steam systems, power generation, and thermal processes.

How do I choose the right pressure range?

Choose a pressure range slightly higher than your maximum operating pressure to ensure accurate measurement and long-term stability. If you're unsure which range is suitable for your application, our technical team can help you select the appropriate model.

Can the transmitter be used outdoors?

Yes. The transmitter features an IP65 protection rating, making it suitable for most industrial environments. For outdoor installations, additional protection is recommended in areas exposed to heavy rain or direct sunlight.

Do you provide technical support?

Yes. BayMeters provides technical support for product selection, installation, configuration, and troubleshooting. If you need assistance, please contact our technical support team.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
