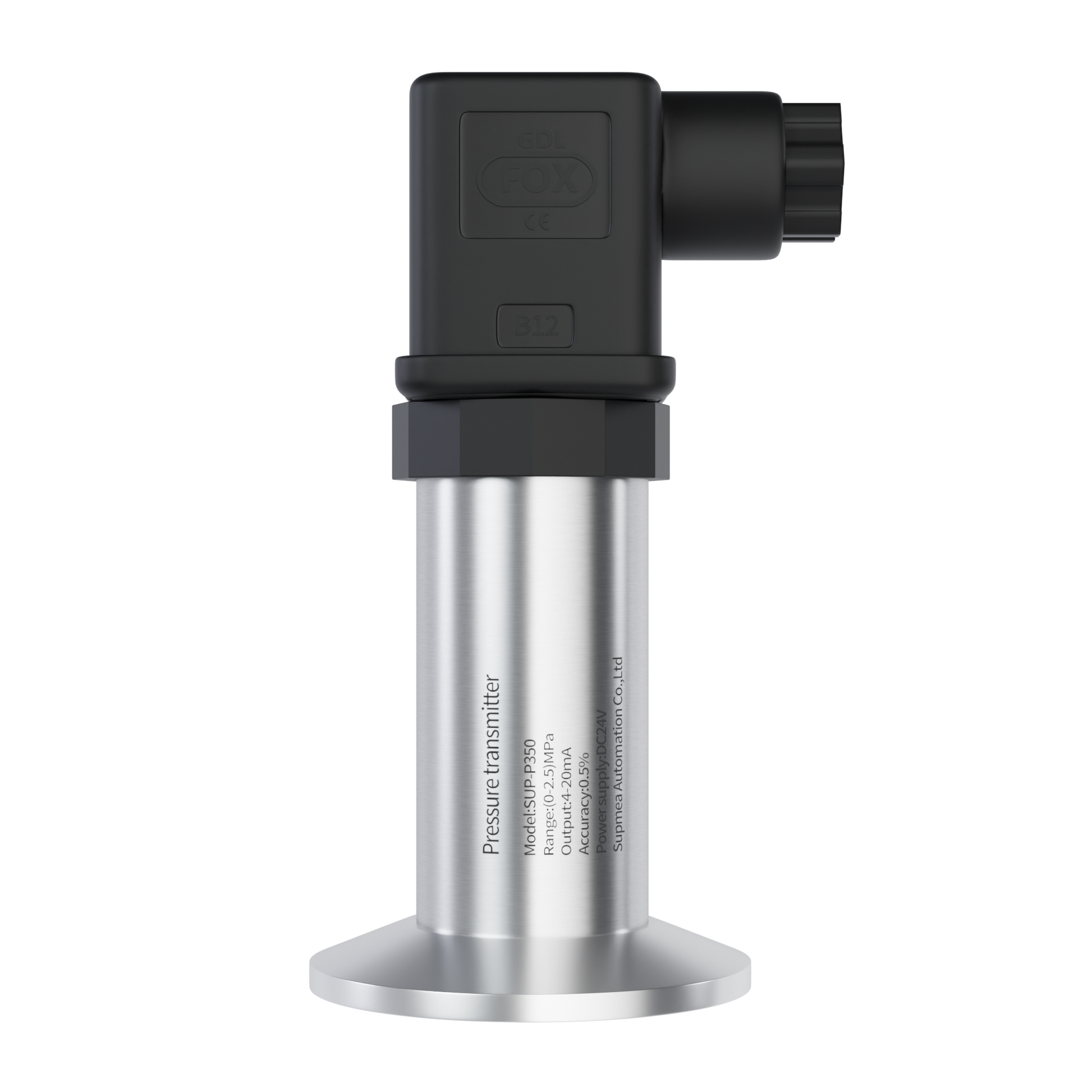

Supmea P350 Hygienic Pressure Transmitter

Supmea P350 Hygienic Pressure Transmitter

US$319.00
US$319.00
Sale Sold out
Prices Shown Include Delivery.

Low stock: 10 left • Lead Time: 2-4 Weeks
View full details

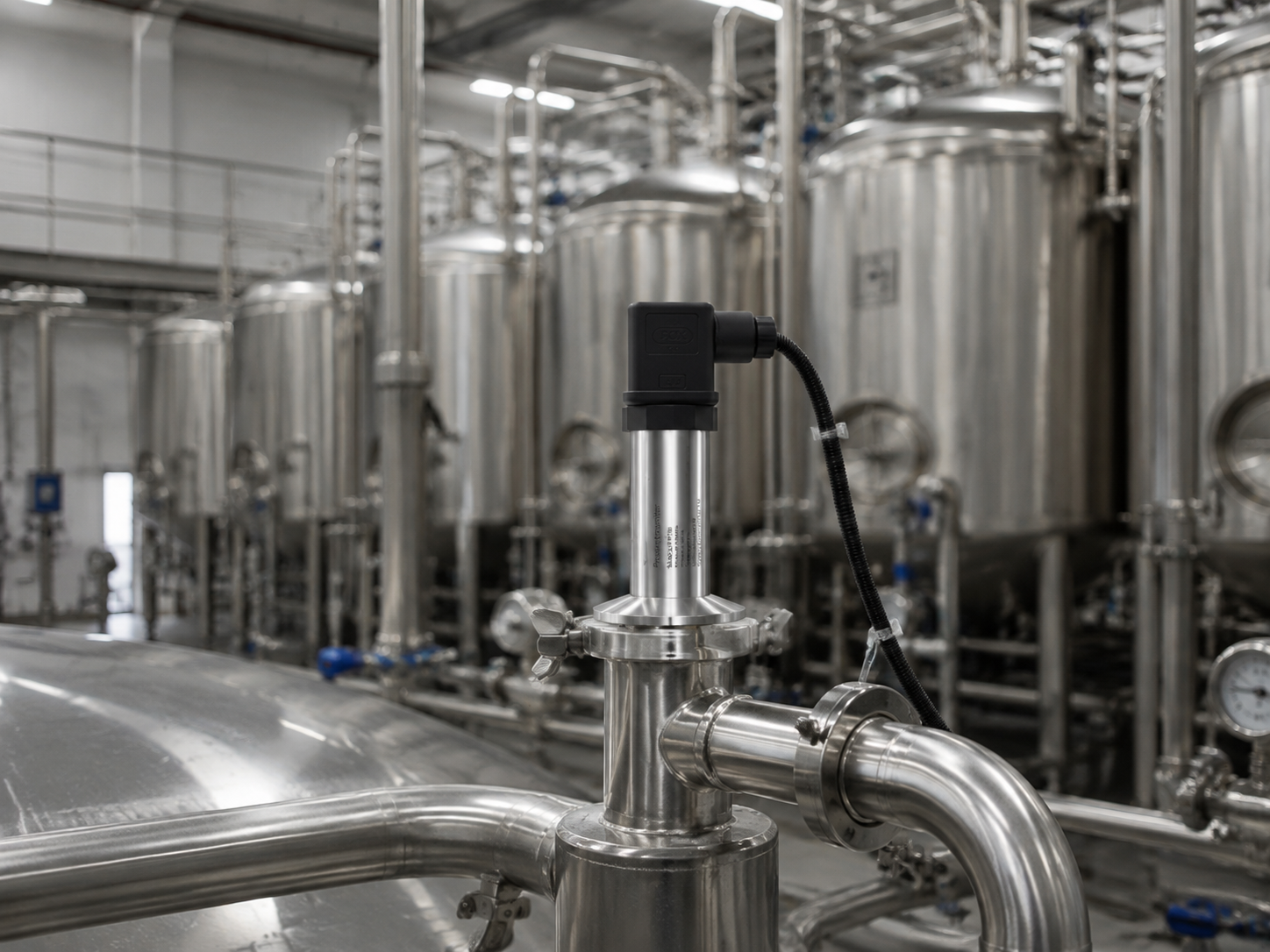

Product Overview

The SUP-P350 flat membrane pressure transmitter adopts a corrugated flat diaphragm structure to directly sense pressure, preventing clogging, fouling, and contamination caused by viscous or sanitary media. With a compact stainless steel design, high stability, and multiple output options including 4–20 mA, voltage, and RS485, it is suitable for pressure measurement in food, pharmaceutical, chemical, brewing, and other demanding process applications.

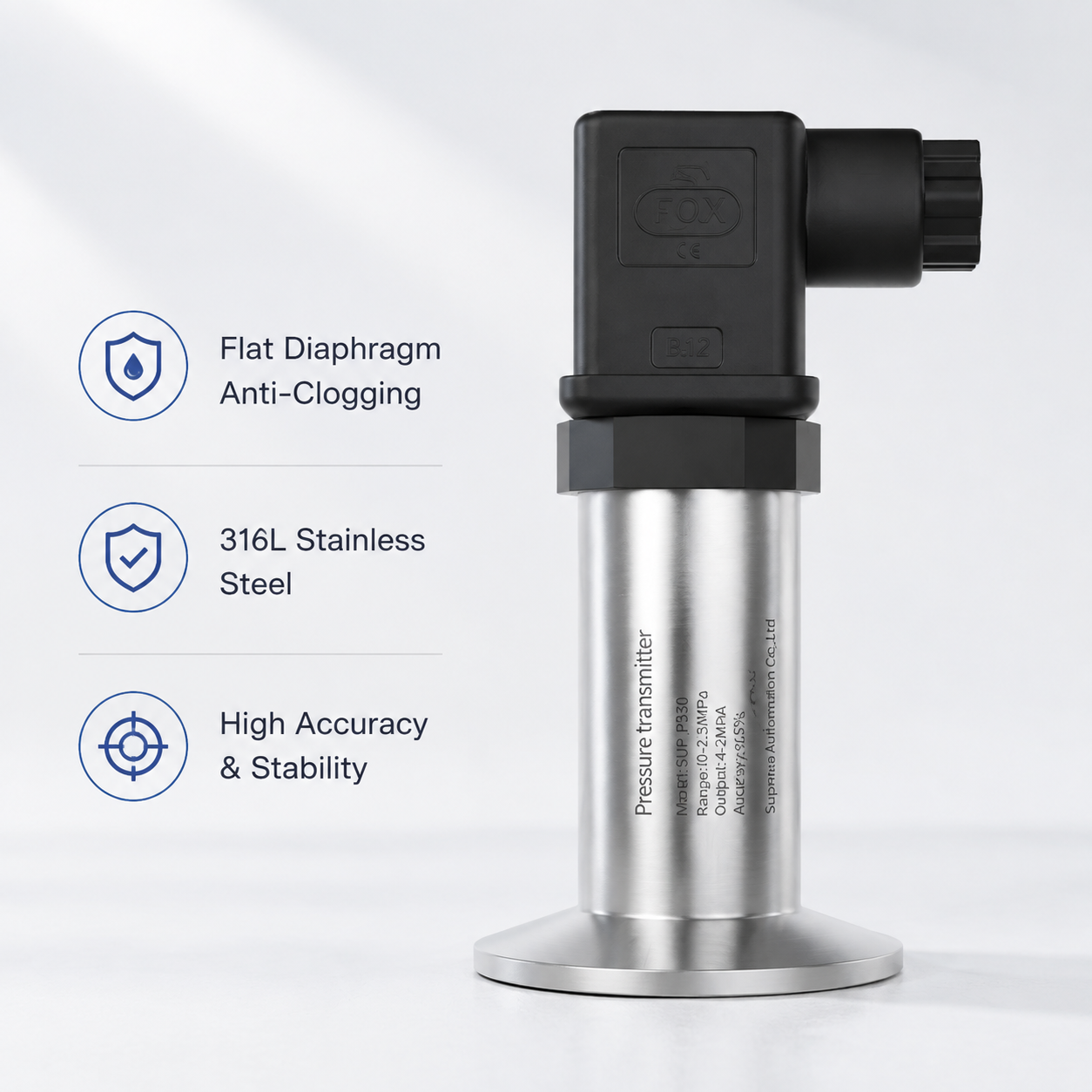

Key Features

  • Uses a flush flat membrane structure to prevent clogging and buildup when measuring viscous, contaminated, or sanitary media.
  • The flat diaphragm design helps avoid dead zones and contamination risks in food, pharmaceutical, and beverage applications.
  • Features a 316L stainless steel isolation diaphragm for corrosion resistance and reliable long-term operation.
  • Provides stable pressure measurement with strong anti-interference and long-term stability performance.
  • Supports 4–20 mA, voltage output, and RS485 communication for flexible system integration.
  • Supports gauge pressure and sealed pressure measurement with ranges from vacuum pressure up to 10 MPa.

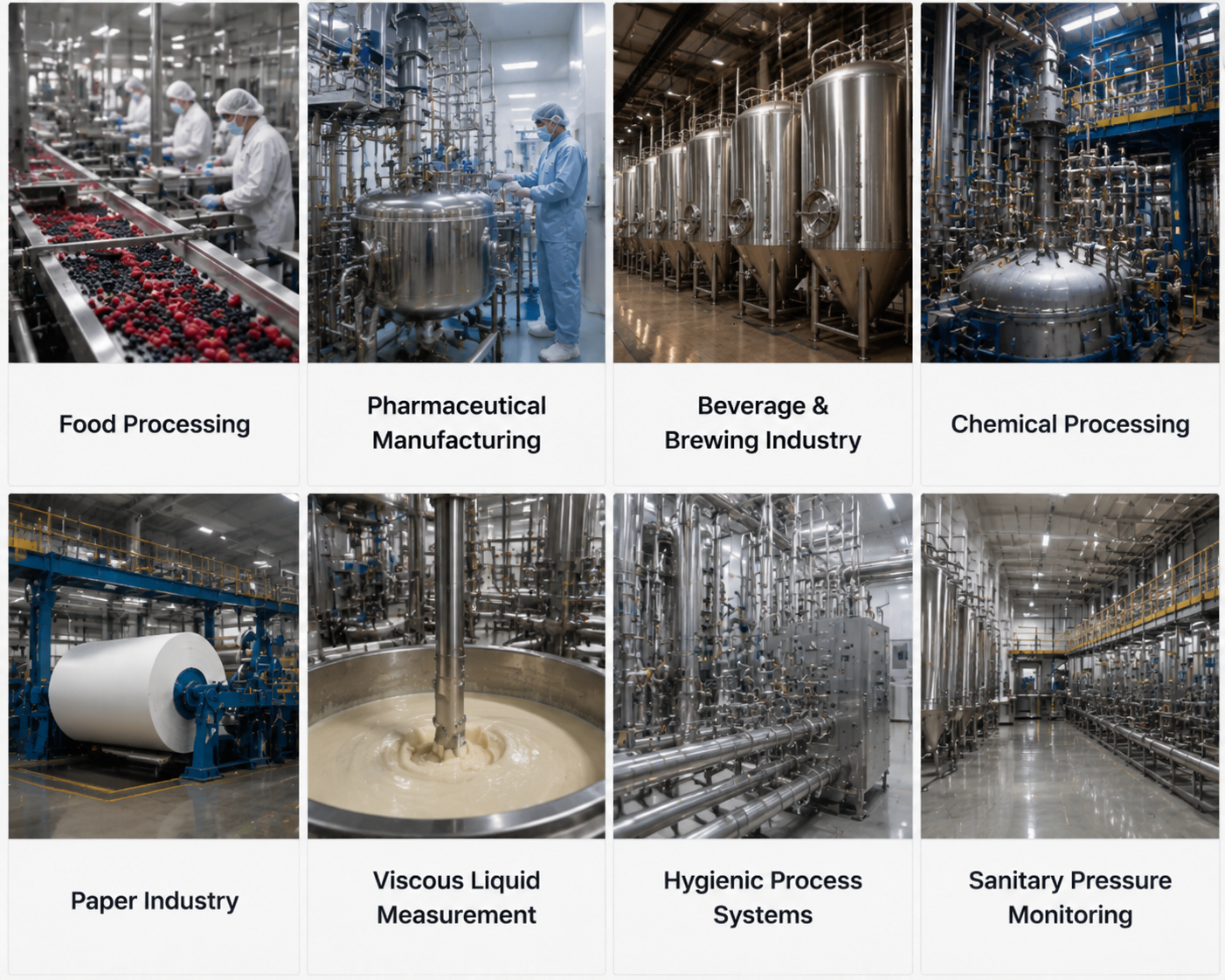

Applications

Technical Specifications

Pressure Type Gauge Pressure / Sealed Pressure
Measuring Range -14.5 to 1450 psi (-0.1 to 10 MPa)
Clamp Connection Range -14.5 to 508 psi (-0.1 to 3.5 MPa)
Accuracy ±0.2% FS / ±0.25% FS / ±0.5% FS
Output Signal 4–20 mA, 1–5V, 0–10V, 0–5V, RS485
Power Supply 10–32 VDC (4–20 mA) 8–32 VDC (Voltage) 12–32 VDC (RS485)
Process Connection M20×1.5, G1/2, 2" Clamp
Wetted Material 316L Stainless Steel Diaphragm
Operating Temperature -4 to 185°F (-20 to 85°C)
Temperature Compensation -14 to 158°F (-10 to 70°C)
Temperature Drift ±0.3% FS / 10°C
Protection Rating IP65

Downloads

User Manual
Datasheet

FAQ

What is the SUP-P350 used for?

The SUP-P350 is designed for pressure measurement in applications where traditional pressure ports may clog, including food, pharmaceutical, brewing, chemical, and viscous media processes.

What is the advantage of a flat membrane design?

The flat diaphragm directly contacts the process medium and helps prevent fouling, clogging, and contamination caused by viscous or particulate materials.

Can the SUP-P350 measure sanitary applications?

Yes. The flat membrane structure and 316L stainless steel diaphragm make it suitable for hygienic applications such as food, beverage, and pharmaceutical processes.

Can it be used for high-temperature media?

The standard model supports medium temperatures up to 185°F (85°C). For higher-temperature applications, special configurations are available.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
