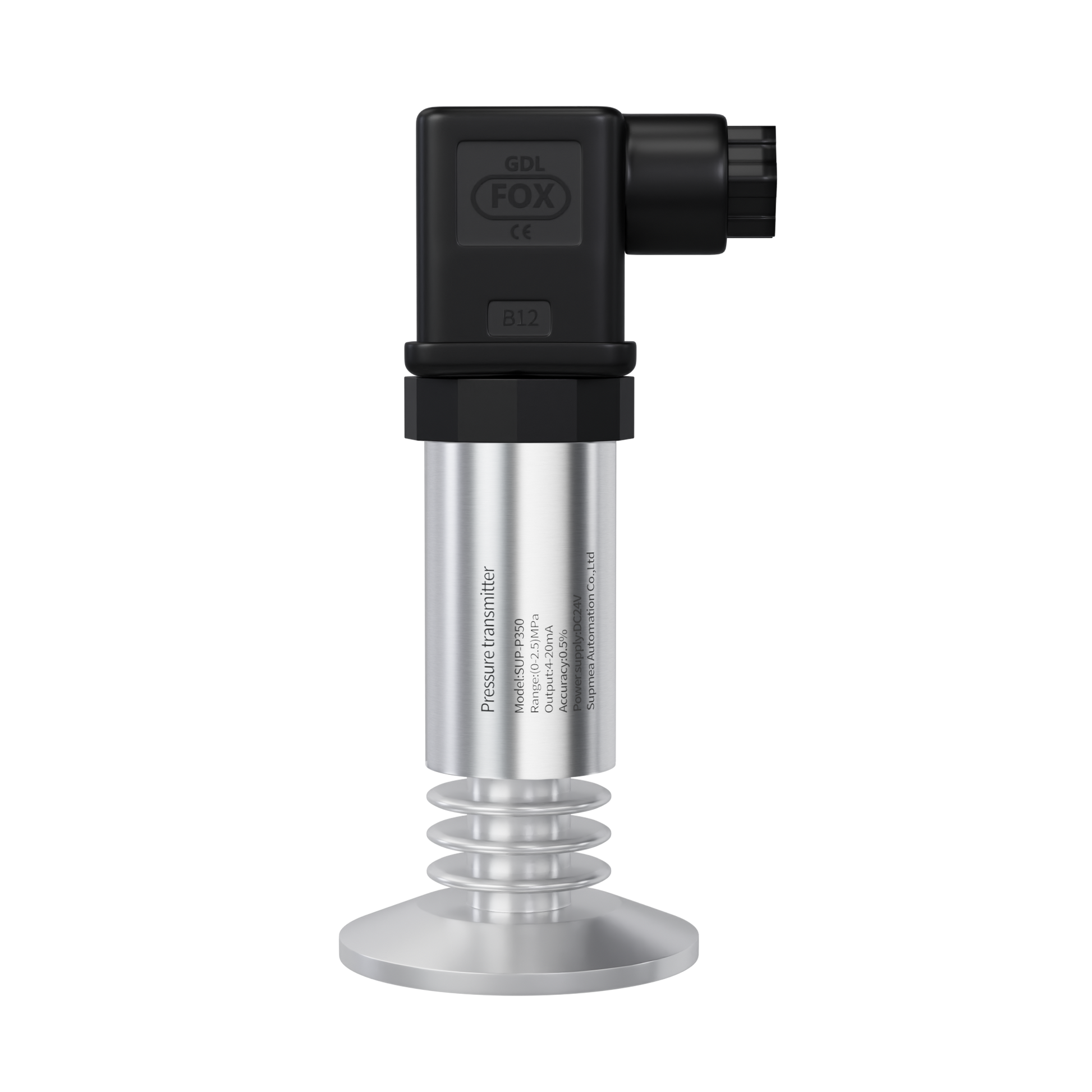

Supmea P350G Flat Membrane High Temperature Pressure Transmitter

Supmea P350G Flat Membrane High Temperature Pressure Transmitter

US$320.00
US$320.00
Sale Sold out
Prices Shown Include Delivery.

Low stock: 10 left • Lead Time: 2-4 Weeks
View full details

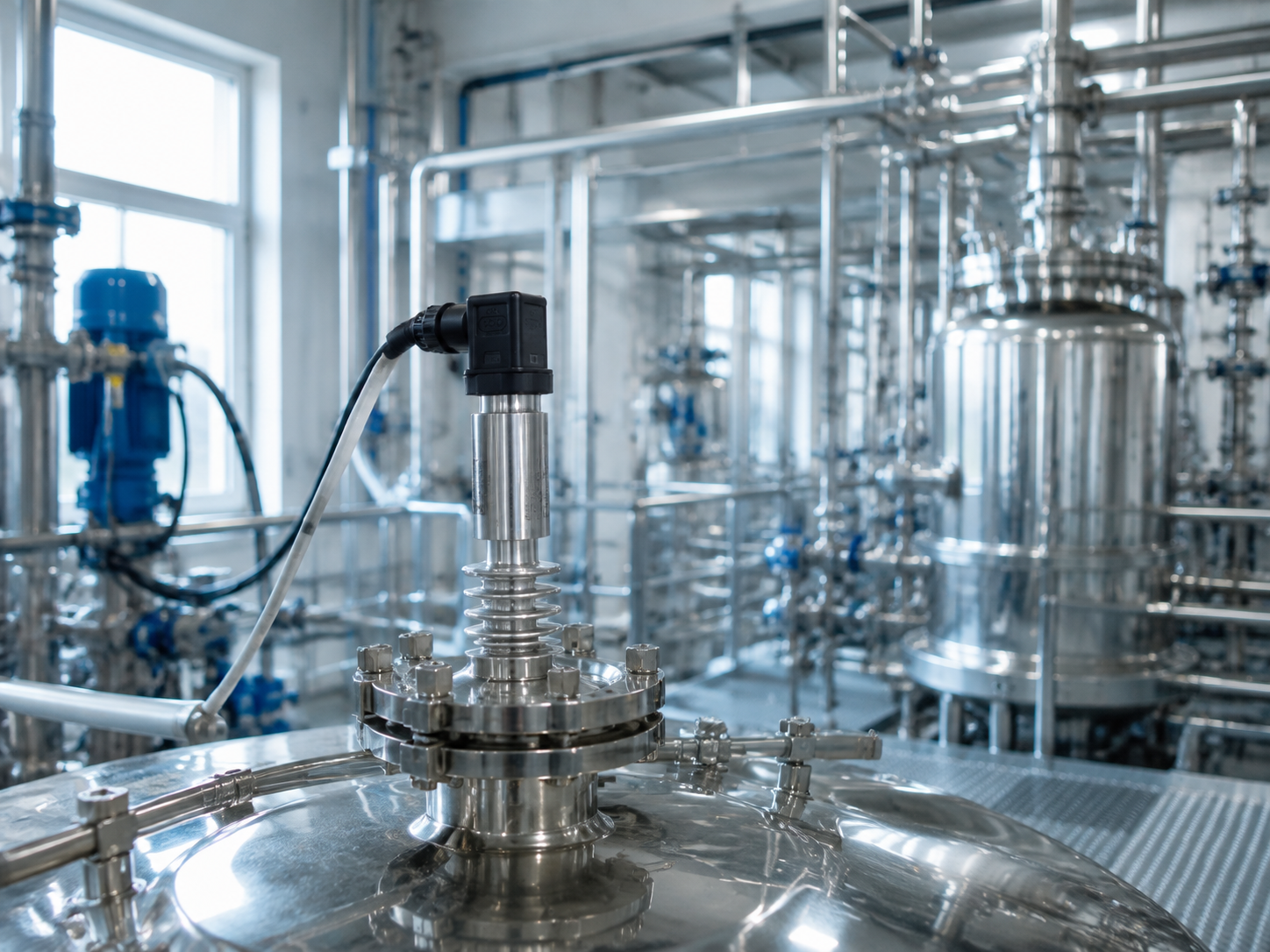

Product Overview

The SUP-P350G is a high-temperature flat membrane pressure transmitter featuring a corrugated diaphragm structure for direct pressure measurement. The flat diaphragm design prevents clogging and contamination from viscous media, while the high-temperature structure improves reliability in demanding industrial applications. It is widely used in food, chemical, paper, oil, and other process industries.

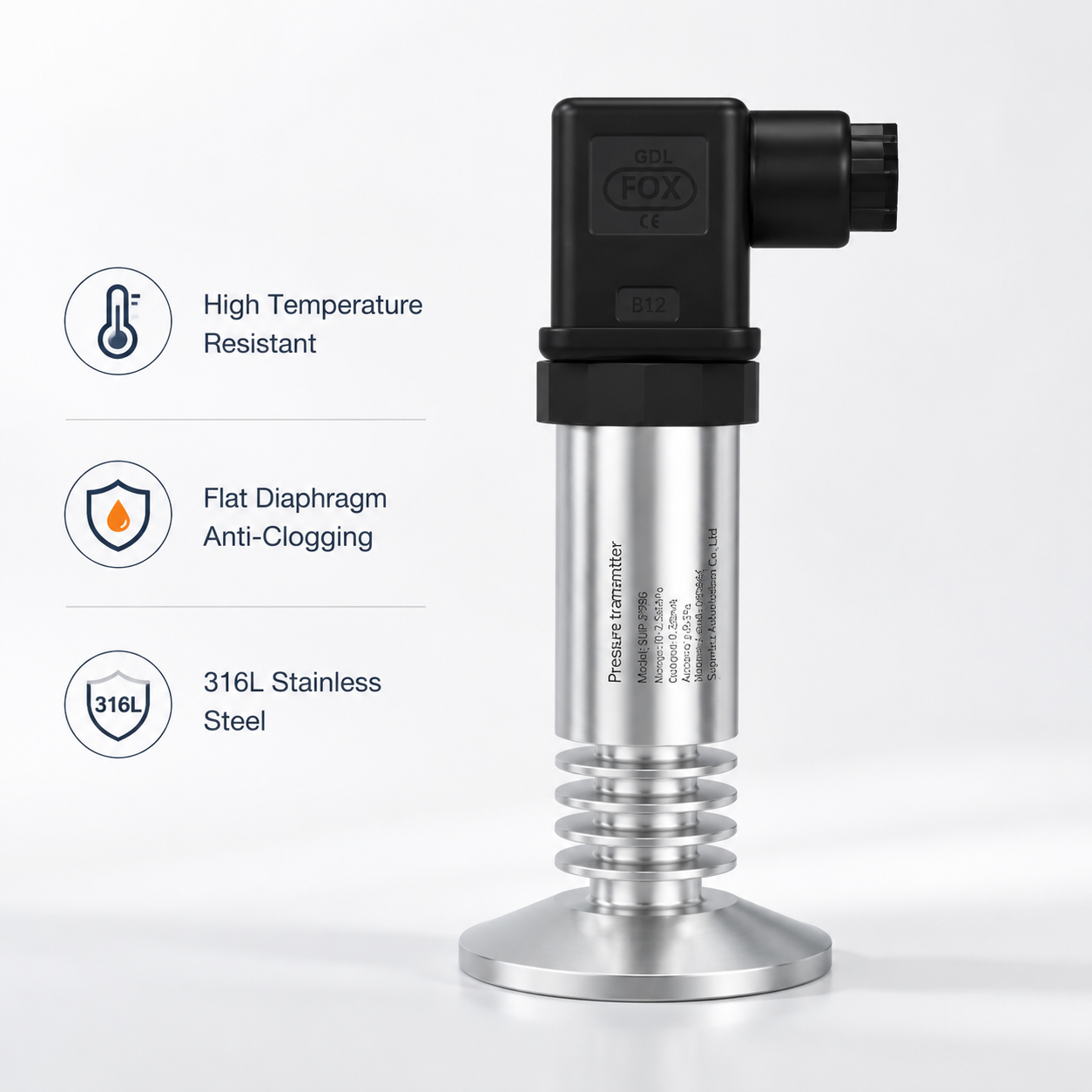

Key Features

  • Uses a flush flat membrane structure to prevent clogging and buildup when measuring viscous, contaminated, or sanitary media.
  • Designed with a high-temperature structure to maintain stable pressure measurement performance under elevated temperature conditions.
  • Features a 316L stainless steel isolation diaphragm for corrosion resistance and reliable long-term operation.
  • Provides stable pressure measurement with strong anti-interference and long-term stability performance.
  • Supports 4–20 mA, voltage output, and RS485 communication for flexible system integration.
  • Features an extended heat-resistant design to reduce the impact of high-temperature media on the transmitter.

Applications

Technical Specifications

Pressure Type Gauge Pressure / Sealed Pressure
Measuring Range -14.5 to 1450 psi (-0.1 to 10 MPa)
Clamp Connection Range -14.5 to 508 psi (-0.1 to 3.5 MPa)
Accuracy ±0.2% FS / ±0.25% FS / ±0.5% FS
Output Signal 4–20 mA, 1–5V, 0–10V, 0–5V, RS485
Power Supply 10–32 VDC (4–20 mA) 8–32 VDC (Voltage) 12–32 VDC (RS485)
Process Connection M20×1.5, G1/2, 2" Clamp
Wetted Material 316L Stainless Steel Diaphragm
Operating Temperature -4 to 185°F (-20 to 85°C)
Temperature Compensation -14 to 158°F (-10 to 70°C)
Temperature Drift ±0.3% FS / 10°C
Protection Rating IP65

Downloads

User Manual
Datasheet

FAQ

What is the difference between SUP-P350 and SUP-P350G?

The SUP-P350G is the high-temperature version of the SUP-P350. It keeps the flat membrane anti-clogging design while adding a high-temperature structure for more demanding process applications.

What is the advantage of a flat membrane design?

The flat diaphragm directly contacts the process medium and helps prevent fouling, clogging, and contamination caused by viscous or particulate materials.

Can the SUP-P350 measure sanitary applications?

Yes. The flat membrane structure and 316L stainless steel diaphragm make it suitable for hygienic applications such as food, beverage, and pharmaceutical processes.

Can it be used for high-temperature media?

The standard model supports medium temperatures up to 185°F (85°C). For higher-temperature applications, special configurations are available.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
