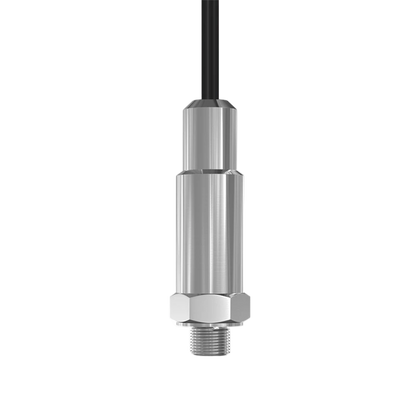

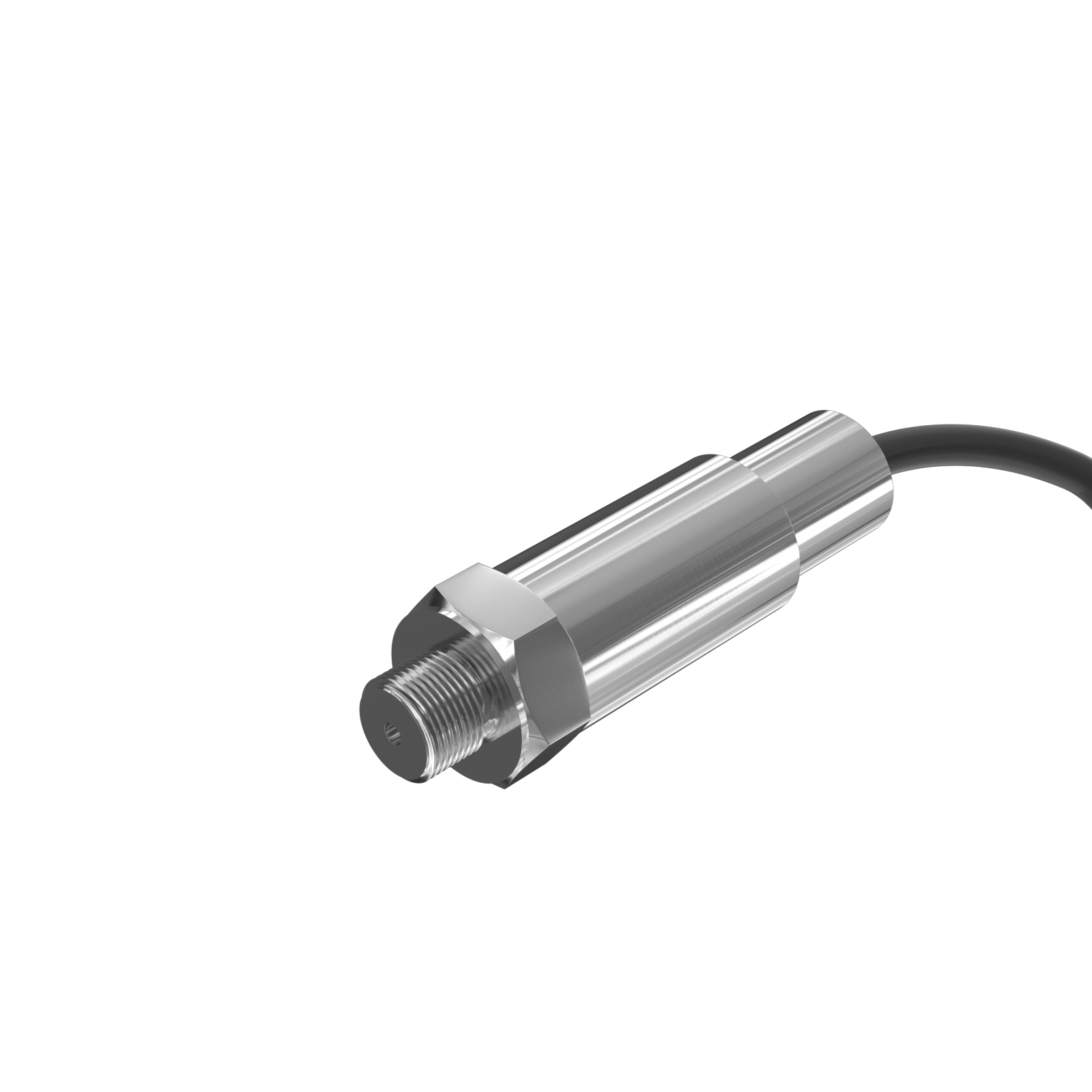

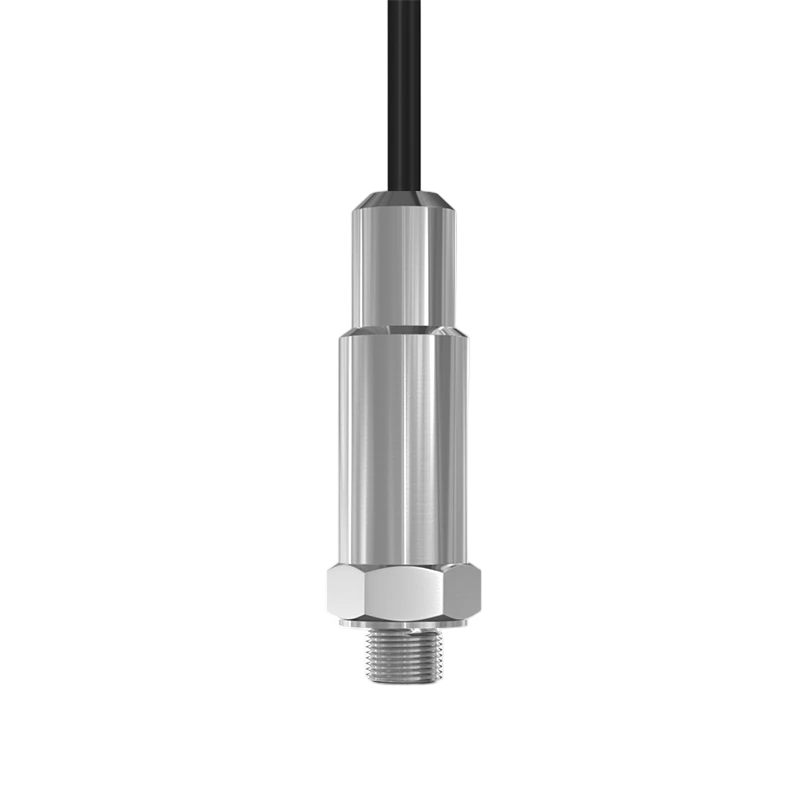

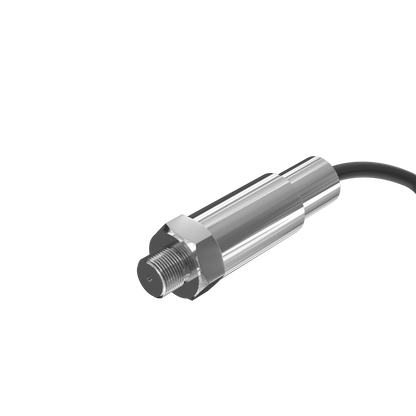

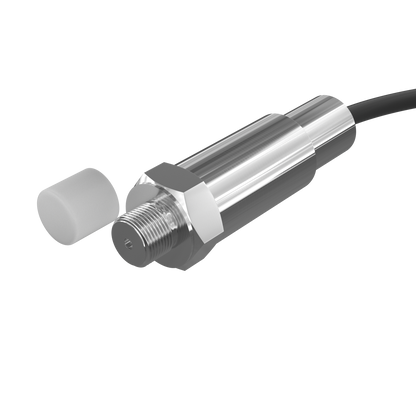

Supmrea PD500 Pressure and Temperature Transmitter

Supmrea PD500 Pressure and Temperature Transmitter

US$415.00
US$415.00
Sale Sold out
Prices Shown Include Delivery.

Low stock: 10 left • Lead Time: 2-4 Weeks
View full details

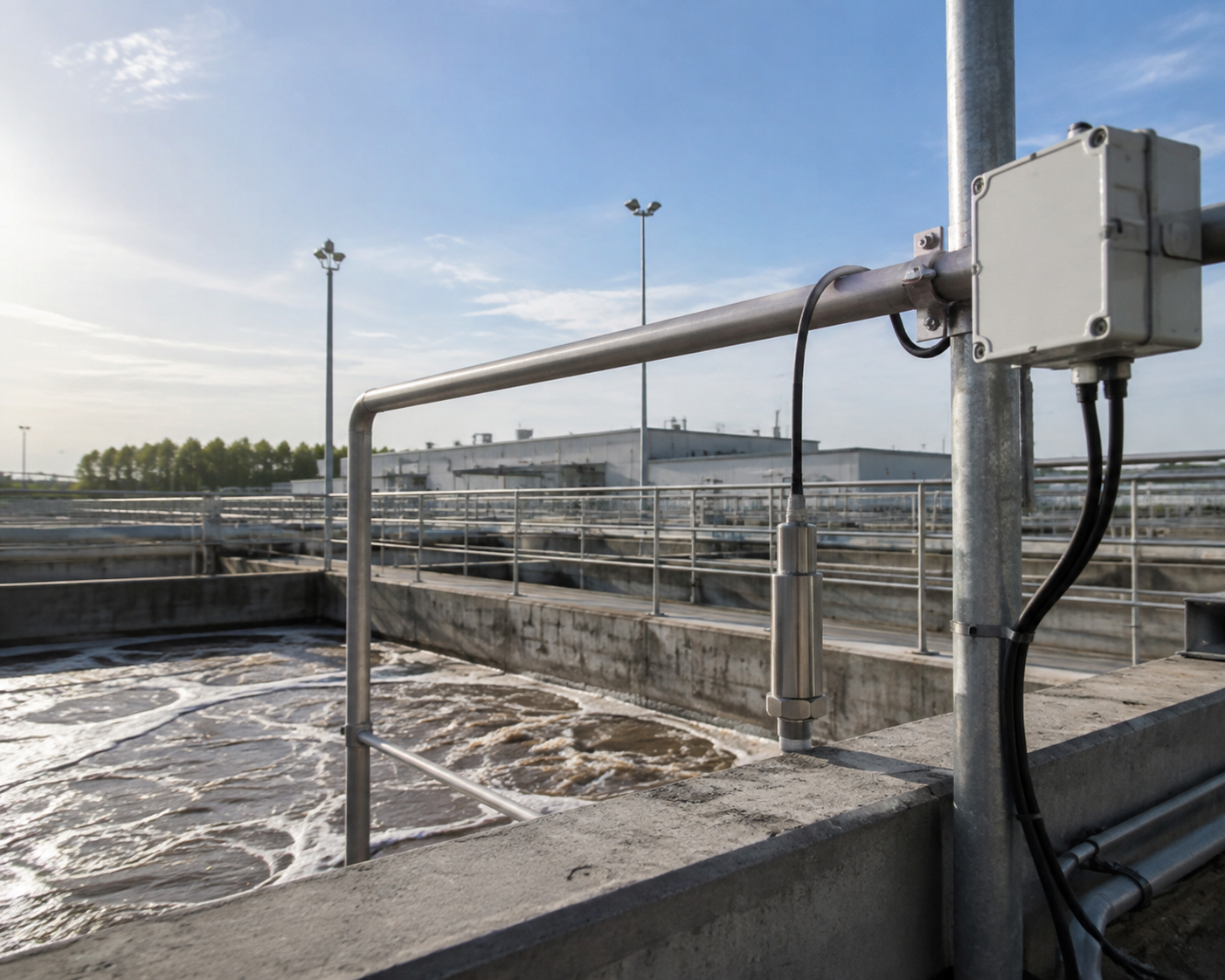

Product Overview

The SUP-PD500 integrates pressure and temperature measurement in a single compact transmitter. It uses a high-reliability silicon piezoresistive pressure sensor and thermal resistance technology, combined with temperature compensation, digital correction, and signal conditioning to provide stable and reliable industrial measurement signals. With high stability, low offset, and IP68 protection, it is suitable for various pressure monitoring applications in demanding industrial environments.

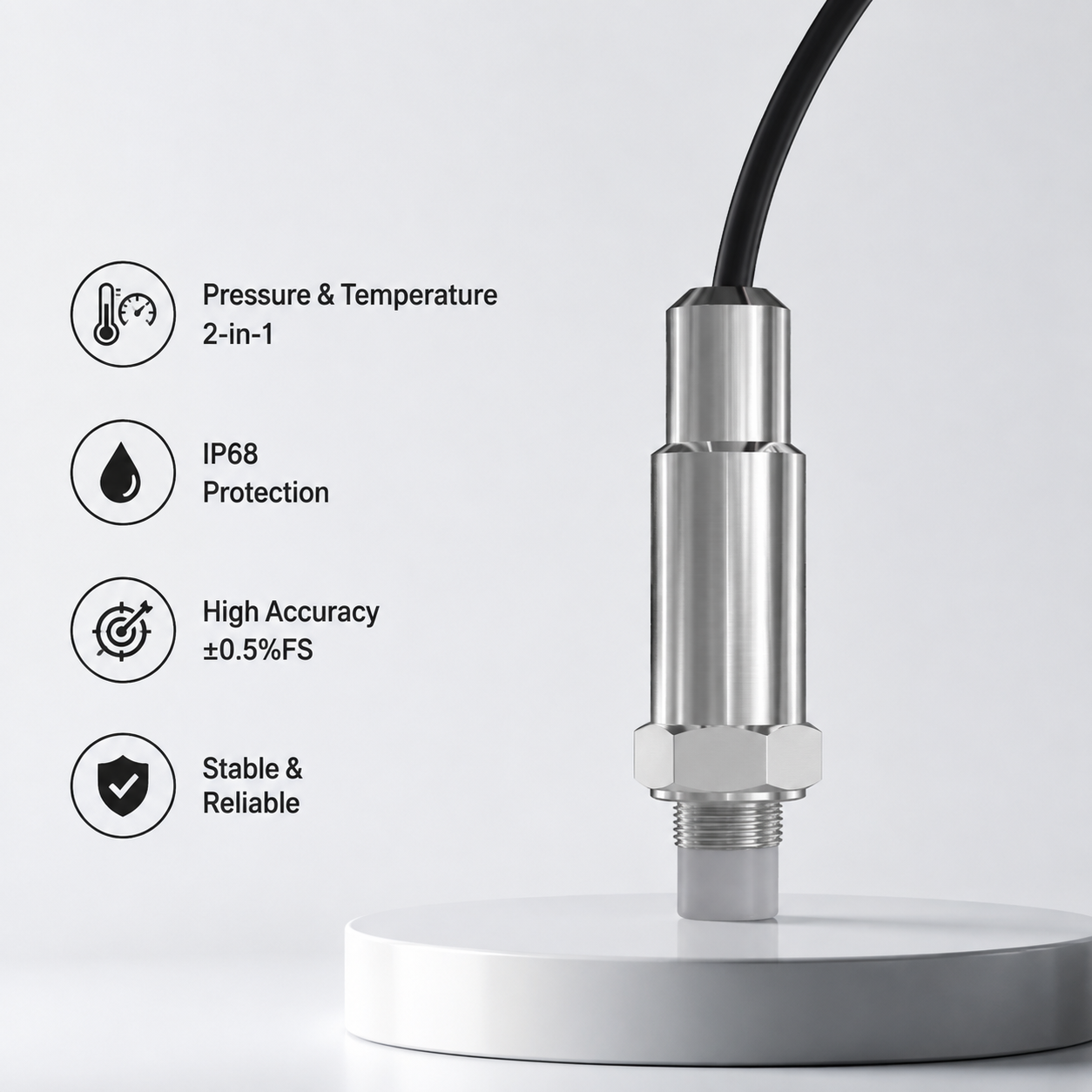

Key Features

  • Measures both pressure and temperature simultaneously, reducing installation complexity and saving space.
  • Provides reliable measurement performance with long-term stability of ±0.2% FS/year.
  • Supports pressure ranges from 0–600 kPa to 60 MPa for different industrial applications.
  • The sealed structure provides strong protection against dust and water ingress for harsh environments.
  • Available with multiple pressure ranges, output signals, thread types, materials, electrical interfaces, and cable lengths.
  • Supports standard 4–20 mA output with optional voltage and RS485 communication interfaces for flexible system integration.

Applications

Technical Specifications

Measurement Range Pressure: 0–600 kPa to 60 MPa (0–87 psi to 8,700 psi) Temperature: 32–149°F
Pressure Type Gauge Pressure
Overload Pressure ≤150% FS
Accuracy Pressure: ±0.5% FS Temperature: ±2.5% FS
Long-Term Stability ±0.2% FS/year
Sensitivity Drift ±0.03% FS/°C
Medium Temperature -22–149°F
Power Supply 12–30 VDC
Output Signal 4–20 mA
Protection Rating IP68

Downloads

User Manual
Datasheet

FAQ

What does the SUP-PD500 measure?

The SUP-PD500 measures both pressure and temperature using a single integrated transmitter, providing two measurement outputs from one device.

What output signals are available?

The standard output is 4–20 mA, with optional voltage and RS485 communication versions available.

Can it be used in outdoor or wet environments?

Yes. The transmitter features IP68 protection, making it suitable for applications requiring high moisture resistance.

What industries can use this transmitter?

It is commonly used in oil fields, chemical plants, water systems, mining, environmental monitoring, and other industrial pressure measurement applications.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
