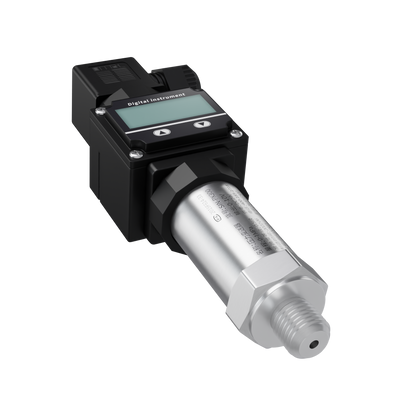

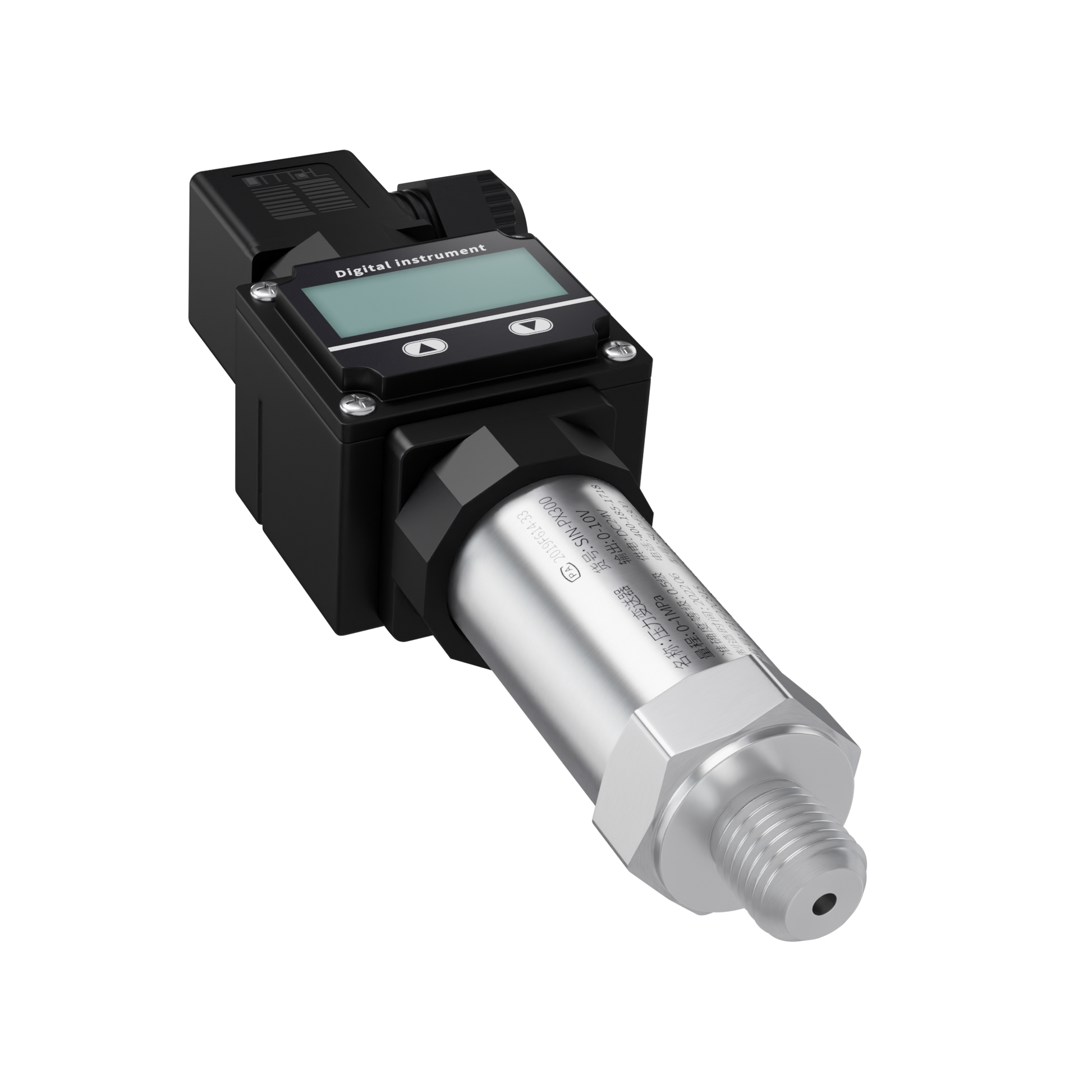

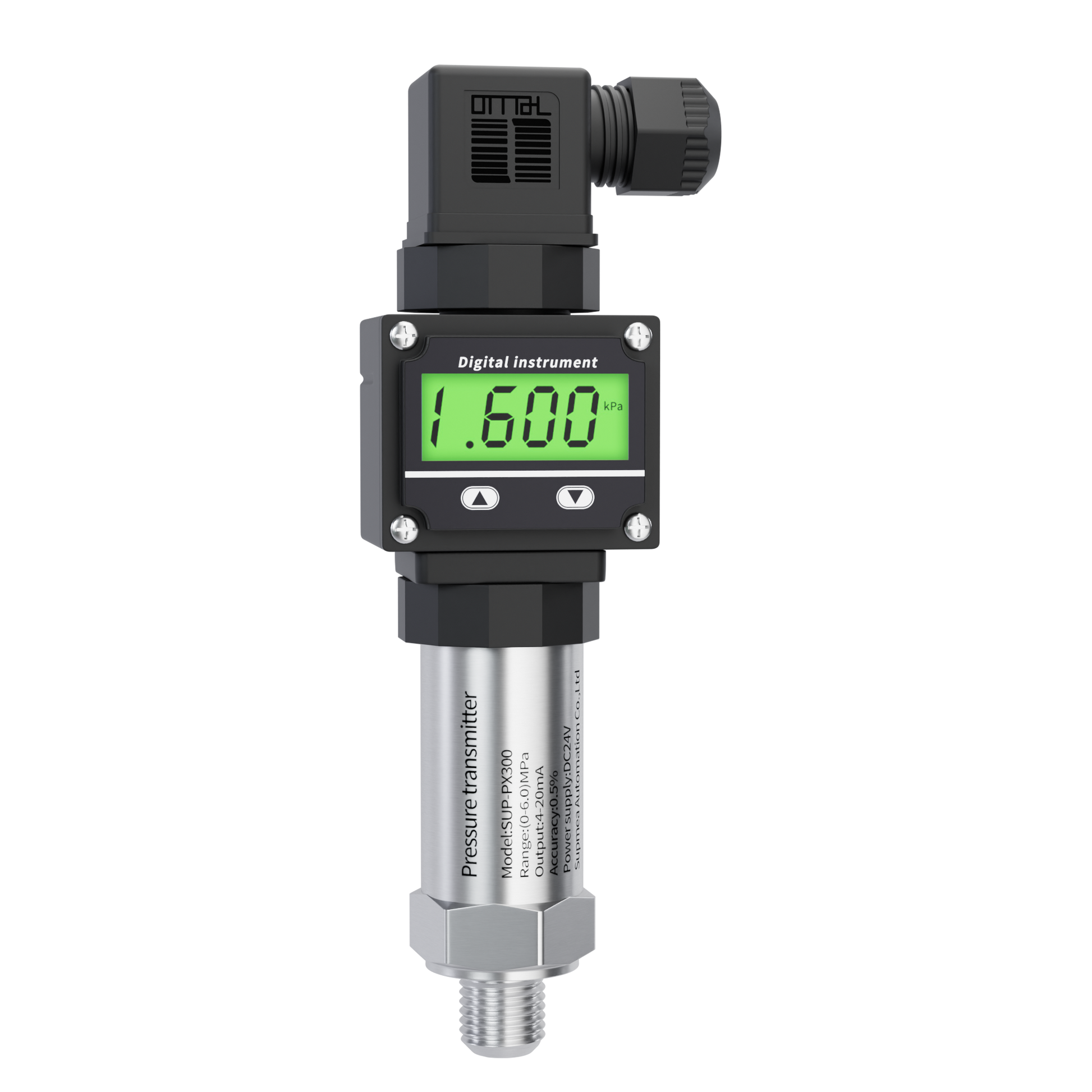

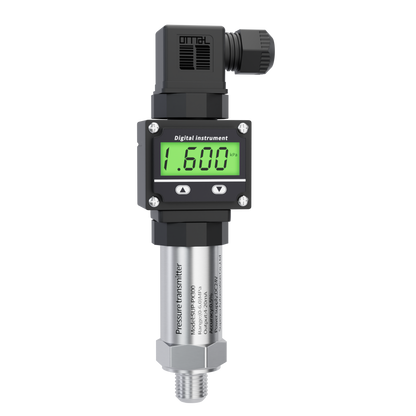

Supmea PX300 Compact Pressure Transmitter With Display

Supmea PX300 Compact Pressure Transmitter With Display

US$224.00
US$224.00
Sale Sold out
Prices Shown Include Delivery.

Low stock: 10 left • Lead Time: 2-4 Weeks
View full details

Product Overview

The SUP-PX300 is a digital display pressure transmitter with an integrated circuit that converts sensor signals into standard output signals. Equipped with a local digital display, it allows convenient pressure monitoring and configuration while supporting connection with PLCs, control instruments, and industrial automation systems.

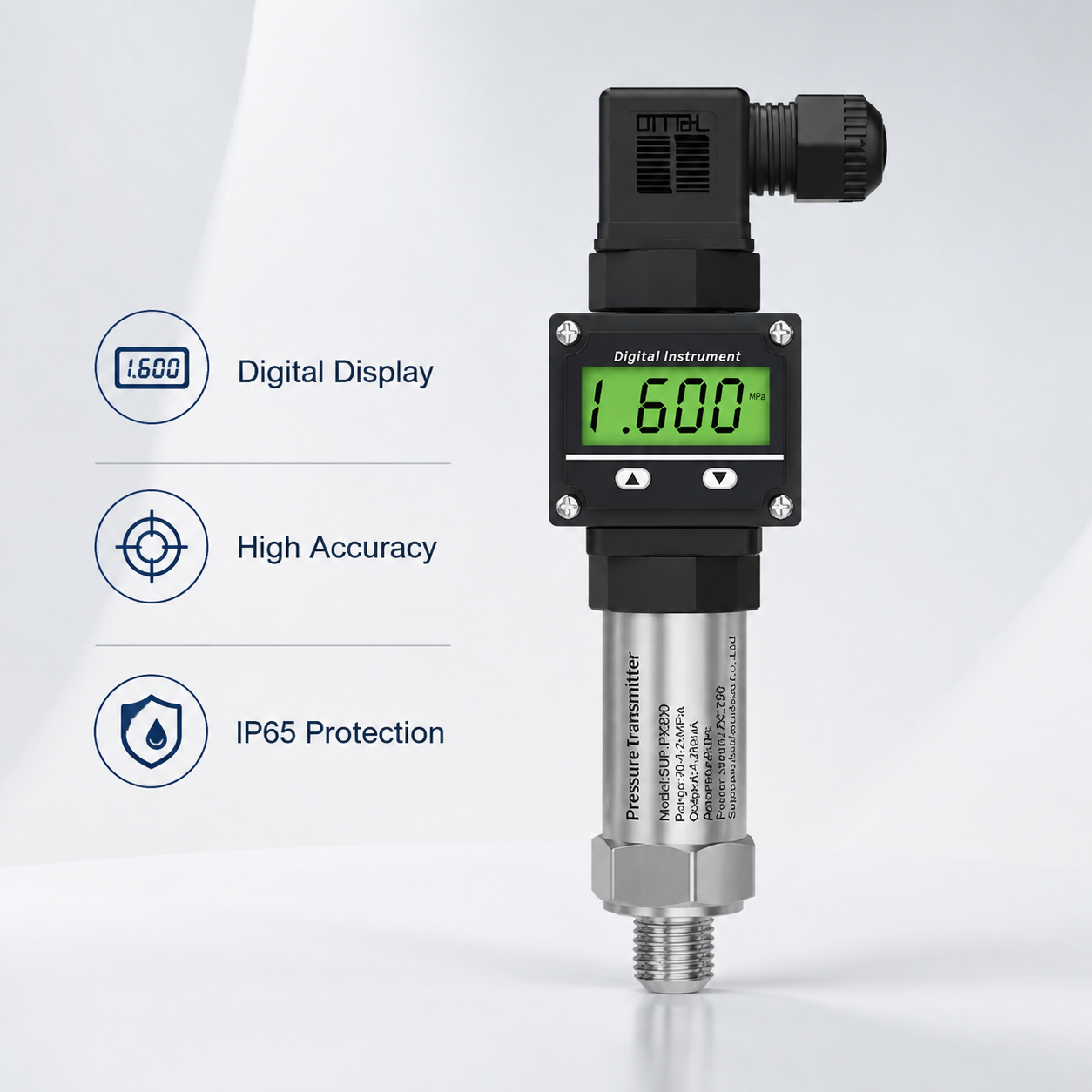

Key Features

  • Designed with heat sink structure to improve performance in high-temperature process applications.
  • Provides reliable pressure measurement with excellent long-term stability and anti-interference capability.
  • Supports pressure measurement from -0.1 MPa to 60 MPa for various industrial processes.
  • Supports local parameter adjustment through the display interface.
  • Integrated LCD display enables real-time pressure monitoring without additional instruments.
  • Designed for stable operation in demanding industrial environments.

Applications

Technical Specifications

Model SUP-P300
Measuring Range -14.5 ~ 8,702 psi (-0.1 ~ 60 MPa)
Accuracy 0.25% FS / 0.2% FS / 0.5% FS
Power Supply 24 VDC
Pressure Type Gauge Pressure / Absolute Pressure / Sealed Pressure
Wetted Material SS304 Body, SS316L Diaphragm
Output Signal 4–20 mA / 1–5 V / 0–10 V / 0–20 mA / 0–5 V / RS485
Process Connection NPT 1/4 (1/4" National Pipe Thread)
Medium Temperature -4 ~ 185°F (-20 ~ 85°C)
Display 4-digit LCD Display

Downloads

User Manual
Datasheet

FAQ

Does the PX300 have a local display?

Yes. The PX300 is equipped with a digital display that allows users to monitor pressure values directly on site without additional display instruments.

What is the SUP-P300 used for?

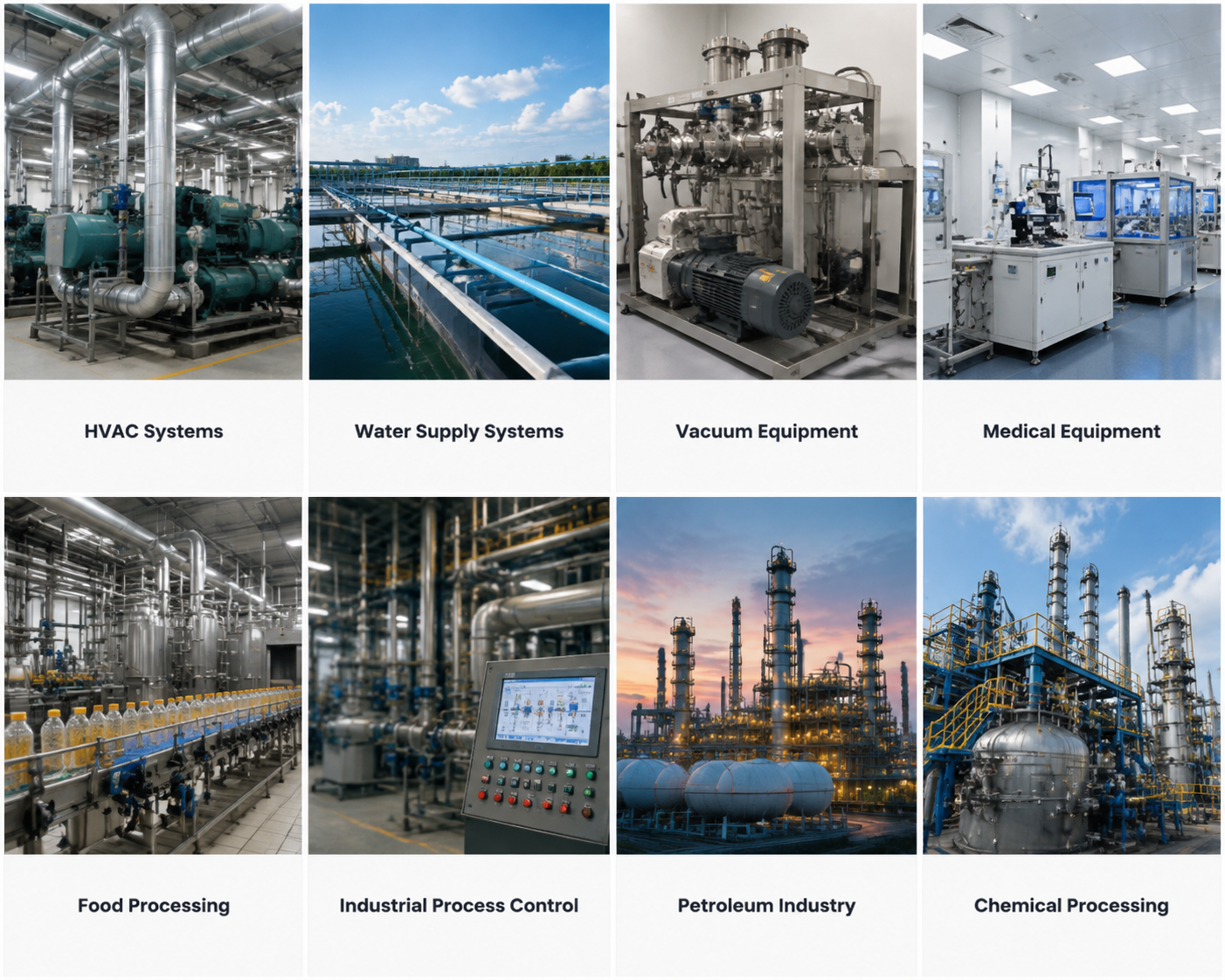

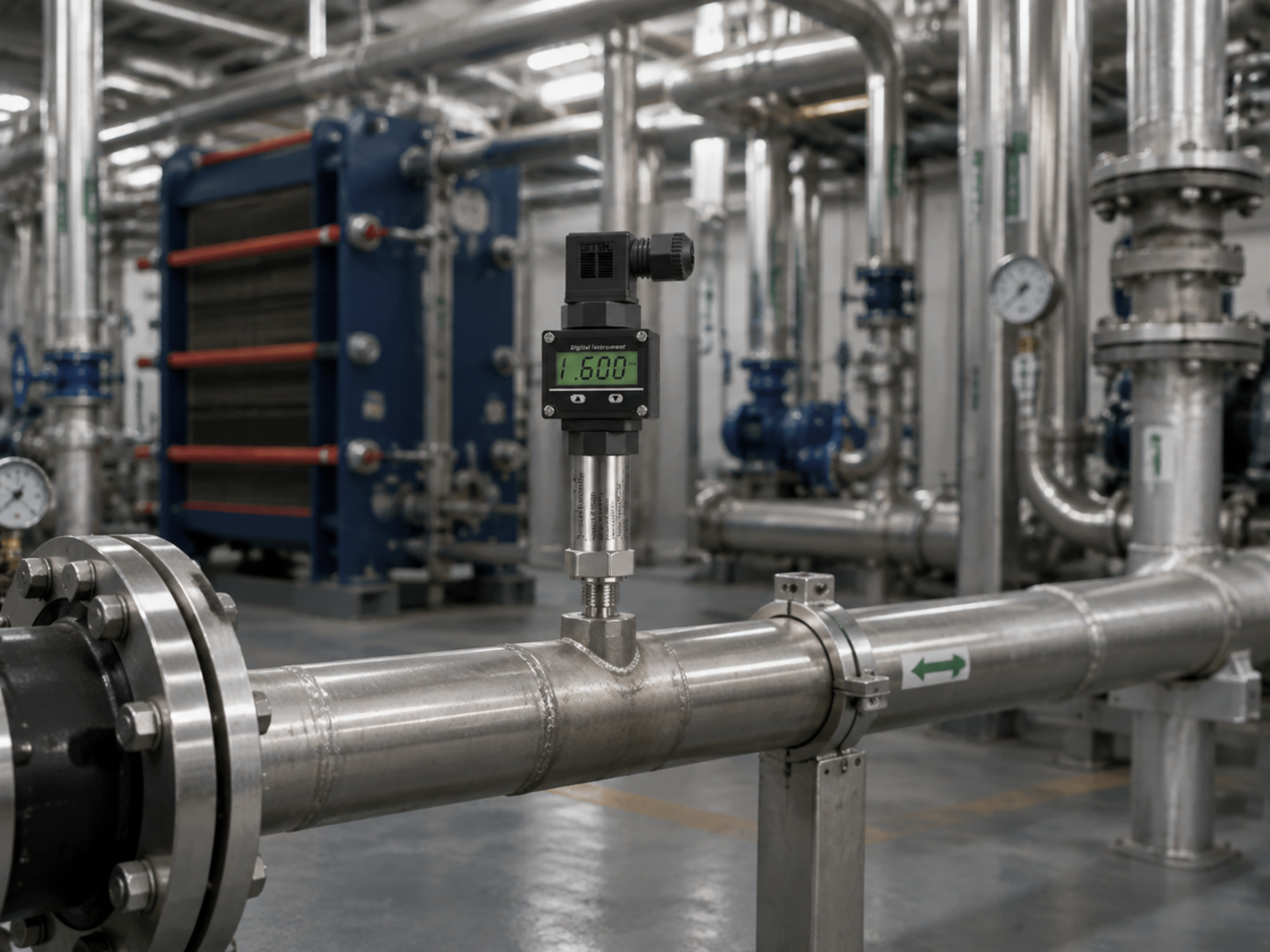

The SUP-P300 is designed for pressure measurement in industrial automation, water treatment, HVAC, manufacturing, medical equipment and other process control applications.

How do I choose the right pressure range?

Choose a pressure range slightly higher than your maximum operating pressure to ensure accurate measurement and long-term stability. If you're unsure which range is suitable for your application, our technical team can help you select the appropriate model.

Can the transmitter be used outdoors?

Yes. The transmitter features an IP65 protection rating, making it suitable for most industrial environments. For outdoor installations, additional protection is recommended in areas exposed to heavy rain or direct sunlight.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
