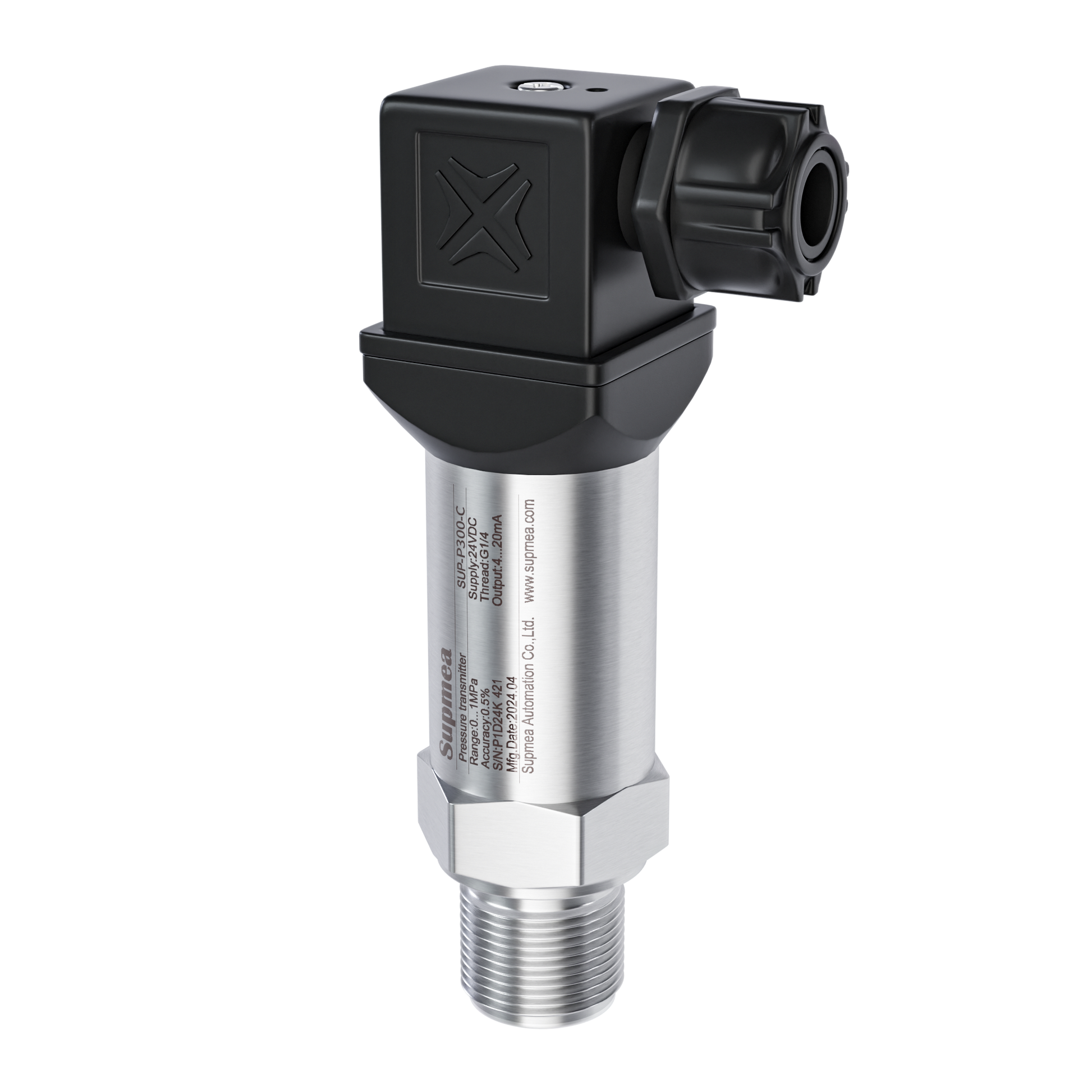

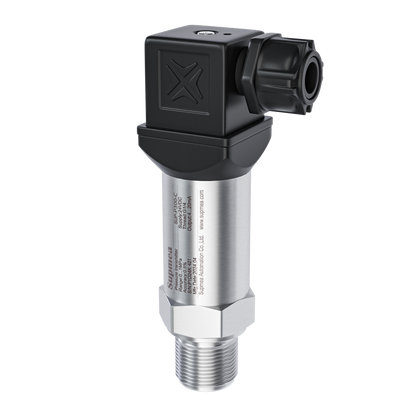

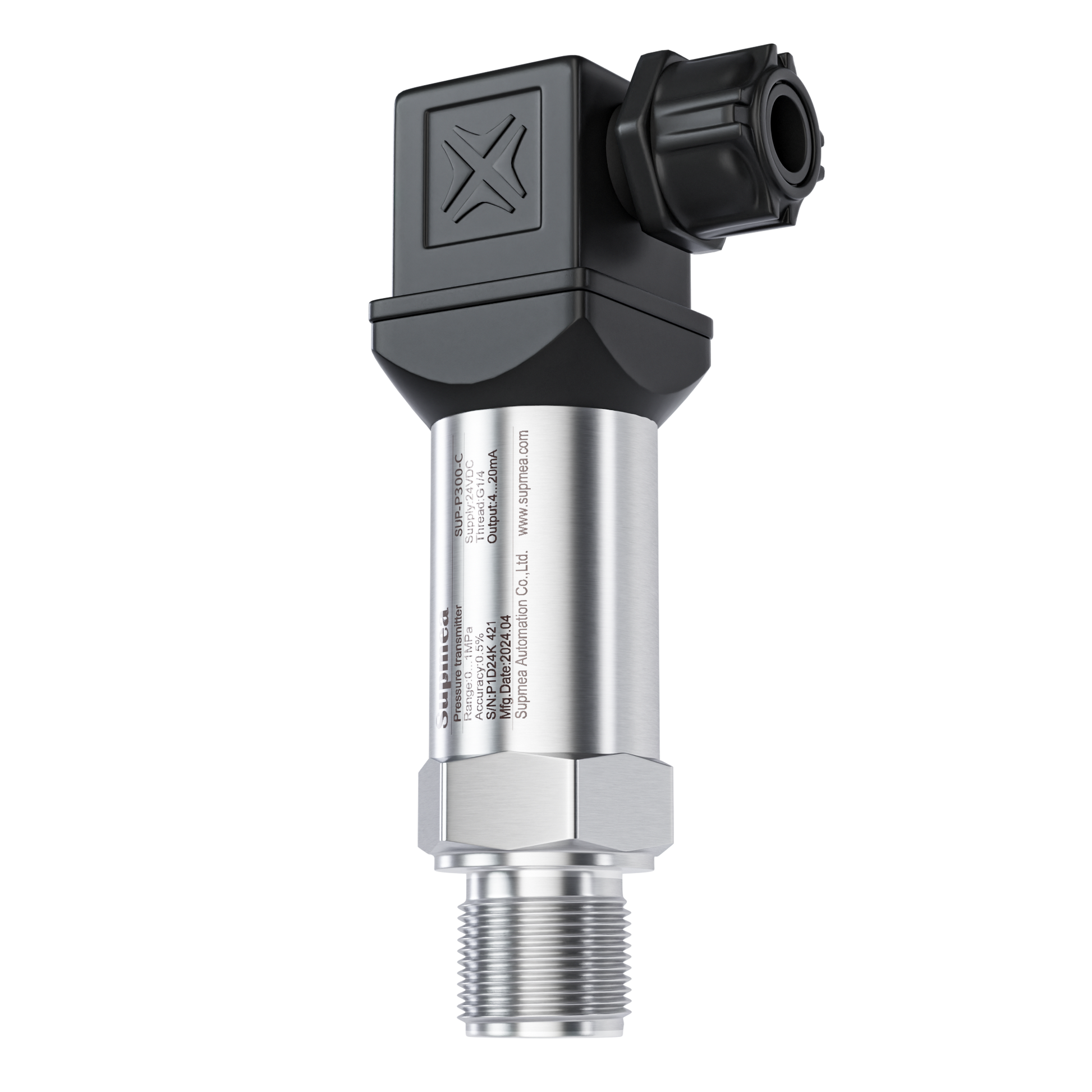

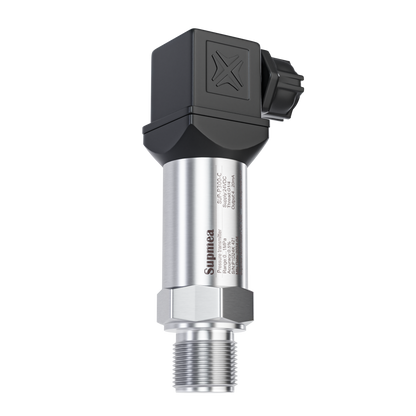

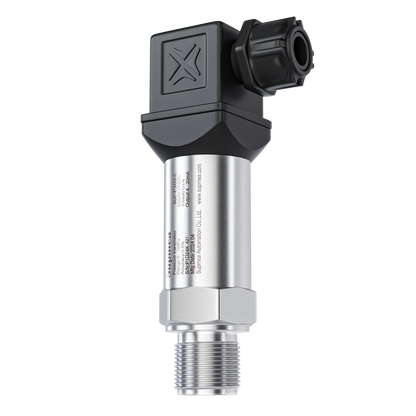

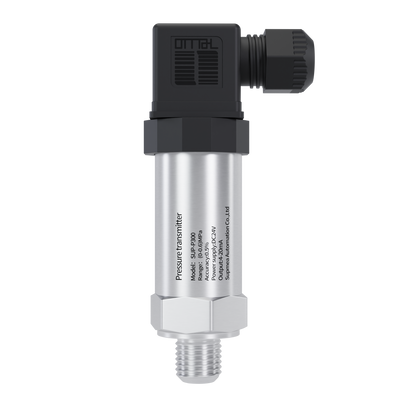

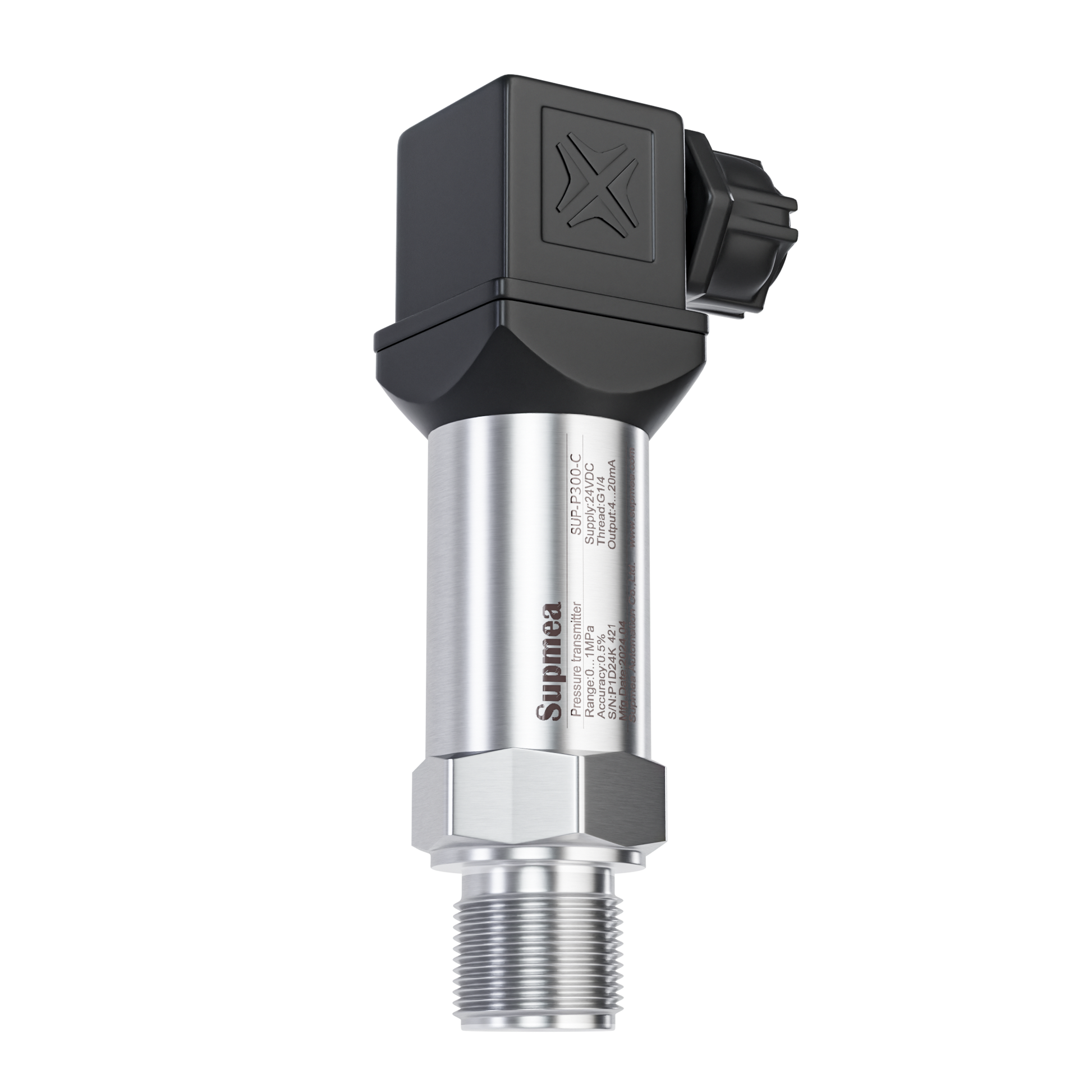

Pressure transmitter with compact size for universal use SUP-P300

$119.00 USD

Sale Sold out

Shipping calculated at checkout.

3-Year-Limited-Warranty

Ships in 1-3 weeks

View full details

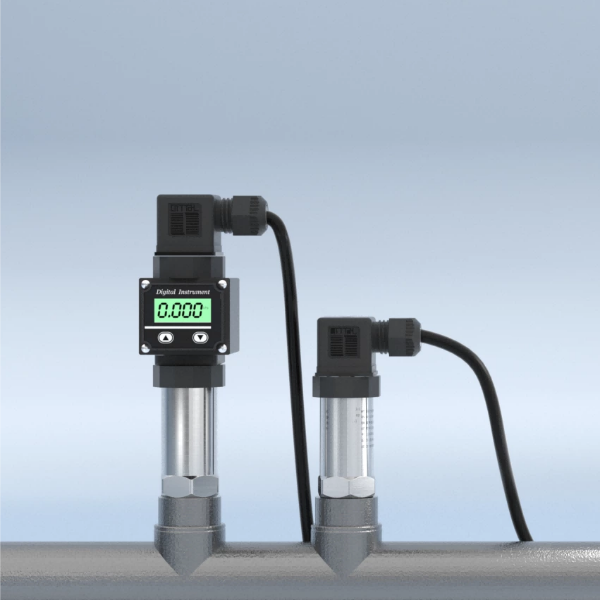

Product Overview

The SUP-P300 adopts a diffused silicon pressure sensor with a built-in processing circuit that converts the millivolt output of the sensor into standard voltage, current, or frequency signals. It can be directly connected to computers, controllers, PLCs, and display instruments for industrial automation.
Designed with excellent anti-interference capability and high mechanical stability, the SUP-P300 is suitable for pressure measurement in a wide range of industrial environments including water treatment, manufacturing, HVAC, chemical processing, and automation systems.

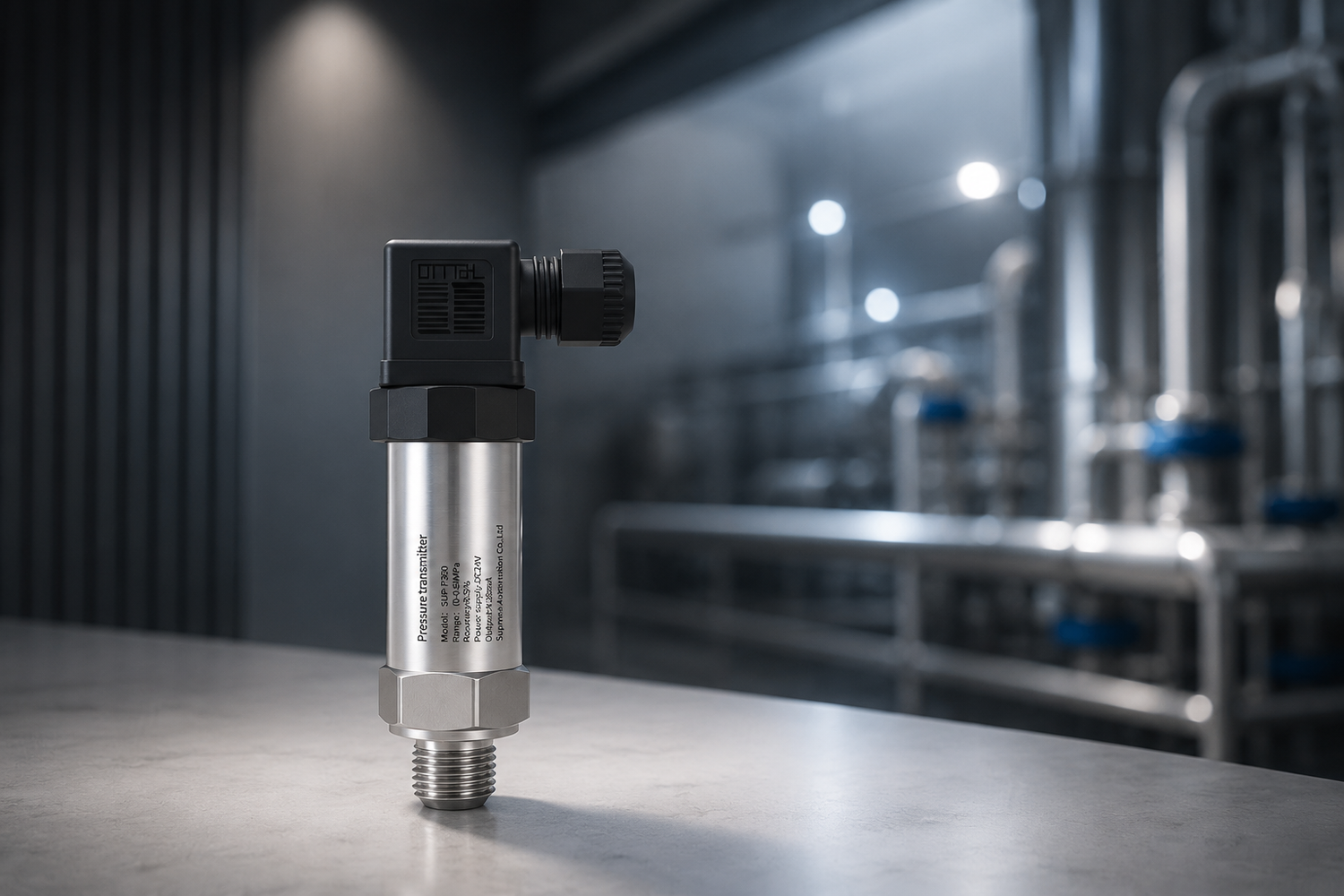

Key Features

Built-in protection against over-voltage and over-current.
Strong anti-overload, anti-shock and anti-interference performance.
Multiple pressure ranges available for different applications.
Suitable for harsh industrial environments.
Laser-trimmed temperature compensation for stable performance.
Built-in surge voltage and reverse polarity protection.

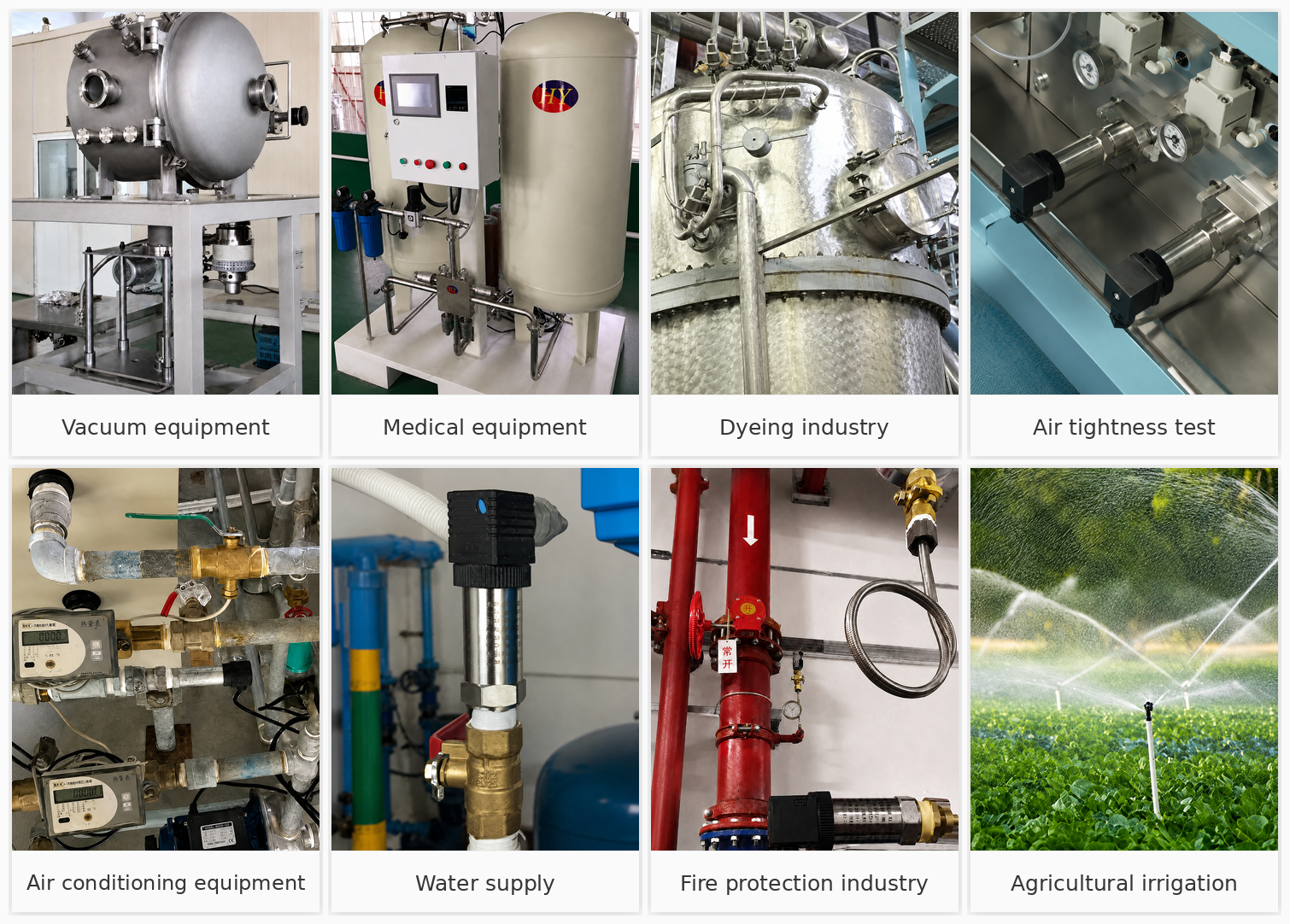

Applications

Technical Specifications

Model	SUP-P300
Measuring Range	-14.5 ~ 8,702 psi (-0.1 ~ 60 MPa)
Accuracy	0.25% FS / 0.2% FS / 0.5% FS
Output Signal	4–20 mA / 1–5 V / 0–10 V / 0–20 mA / 0–5 V / RS485
Power Supply	24 VDC
Pressure Type	Gauge Pressure / Absolute Pressure / Sealed Pressure
Process Connection	NPT 1/4 (1/4" National Pipe Thread)
Wetted Material	SS304 Body, SS316L Diaphragm
Medium Temperature	-4 ~ 185°F (-20 ~ 85°C)
Protection Rating	IP65

Downloads

User Manual

Datasheet

FAQ

What is the SUP-P300 used for?

The SUP-P300 is designed for pressure measurement in industrial automation, water treatment, HVAC, manufacturing, medical equipment and other process control applications.

How do I choose the right pressure range?

Choose a pressure range slightly higher than your maximum operating pressure to ensure accurate measurement and long-term stability. If you're unsure which range is suitable for your application, our technical team can help you select the appropriate model.

Can the transmitter be used outdoors?

Yes. The transmitter features an IP65 protection rating, making it suitable for most industrial environments. For outdoor installations, additional protection is recommended in areas exposed to heavy rain or direct sunlight.

Do you provide technical support?

Yes. BayMeters provides technical support for product selection, installation, configuration, and troubleshooting. If you need assistance, please contact our technical support team.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
