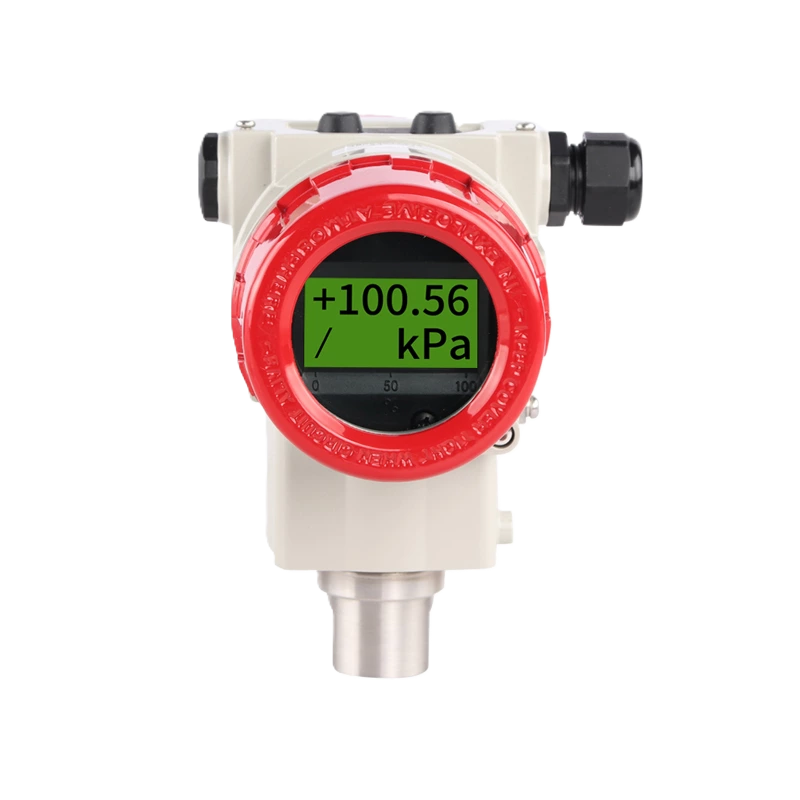

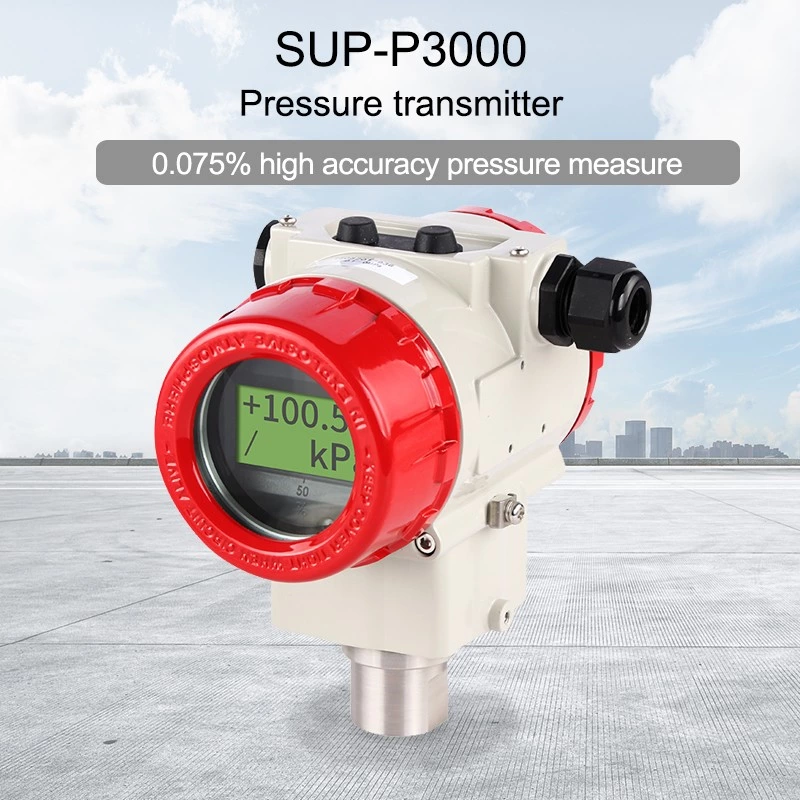

Pressure transmitter with silicon sensor P3000

Pressure transmitter with silicon sensor P3000

$788.00 USD
$788.00 USD
Sale Sold out
This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.
Measuring Range
Diaphragm and process connection material
View full details

Introduction

The pressure transmitter uses the unique and proven silicon sensor with state-of-the-art digital processing to provide exceptional performance in terms of accuracy, long term stability and functionalities. -0.1MPa~40MPa full detection range.

Specification

Measure range 0～0.6kPa...60MPa (Gauge pressure); 0～2kPa... 3MPa (Adiabatic pressure)

Indication  resolution ±0.075%FS; ±0.1%FS

Ambient temperature -40 ~ 85 ℃

Medium temperature -40~100℃

Storage temperature -50~85℃

Output signal 4-20mA analog output / with HART communication

Diaphragm material 316L stainless steel Hastelloy C (custom)

Process connection 316L stainless steel

Fill oil Silicone oil

Power supply 24VDC

Long-term stability ±0.1%FS/3 years

Inpress protection IP67

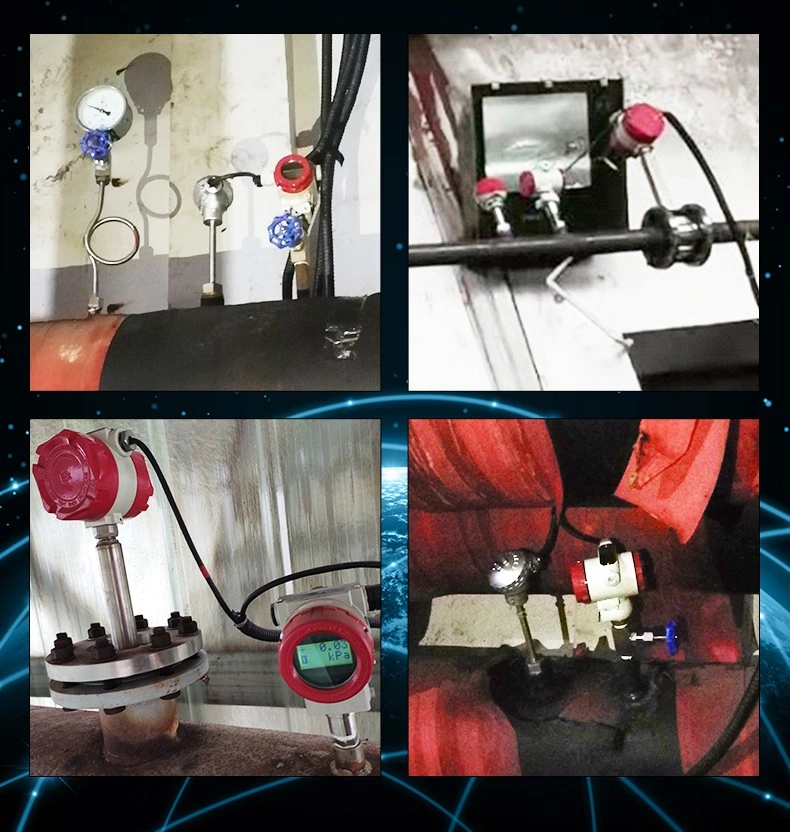

Application
