BayMeters

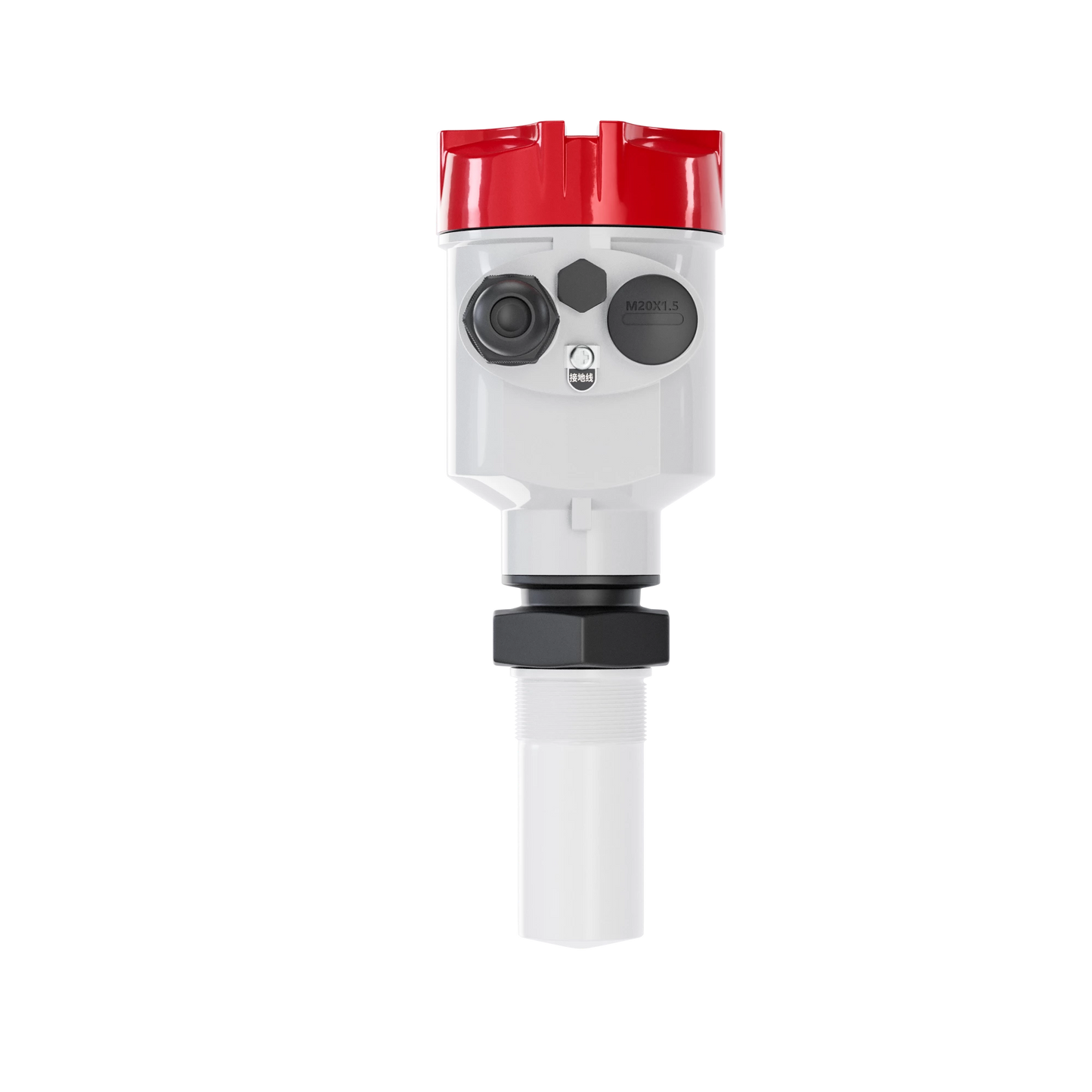

Radar level transmitter for corrosive liquid RD901

Radar level transmitter for corrosive liquid RD901

Regular price $2,775.00 USD
Regular price Sale price $2,775.00 USD
Sale Sold out
Shipping calculated at checkout.
Antenna Type
Process Connection
View full details

Introduction

Non-contact radar with simple commissioning, trouble-free operation saves time and money. PTFE sensor material, for usage in a wide range of applications - be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.

Specification

  • Accuracy ±5mm (range 5m) ±0.2" (range 16.4 ft) ±10mm (range 10m) ±0.4" (range 32.8 ft)
  • Application Corrosive liquid
  • Process Connection Thread, Flange
  • Medium Temperature -40℃~130℃ (-40°F~266°F)
  • Process Pressure -0.1~0.3 MPa (-14.5 psi~43.5 psi)
  • Protection Grade IP67
  • Frequency Range 26GHz
  • Signal Output 4-20mA, RS485/Modbus
  • Power supply DC (6~24V) / Four-wireDC 24V / Two-wire

Dimension
