BayMeters

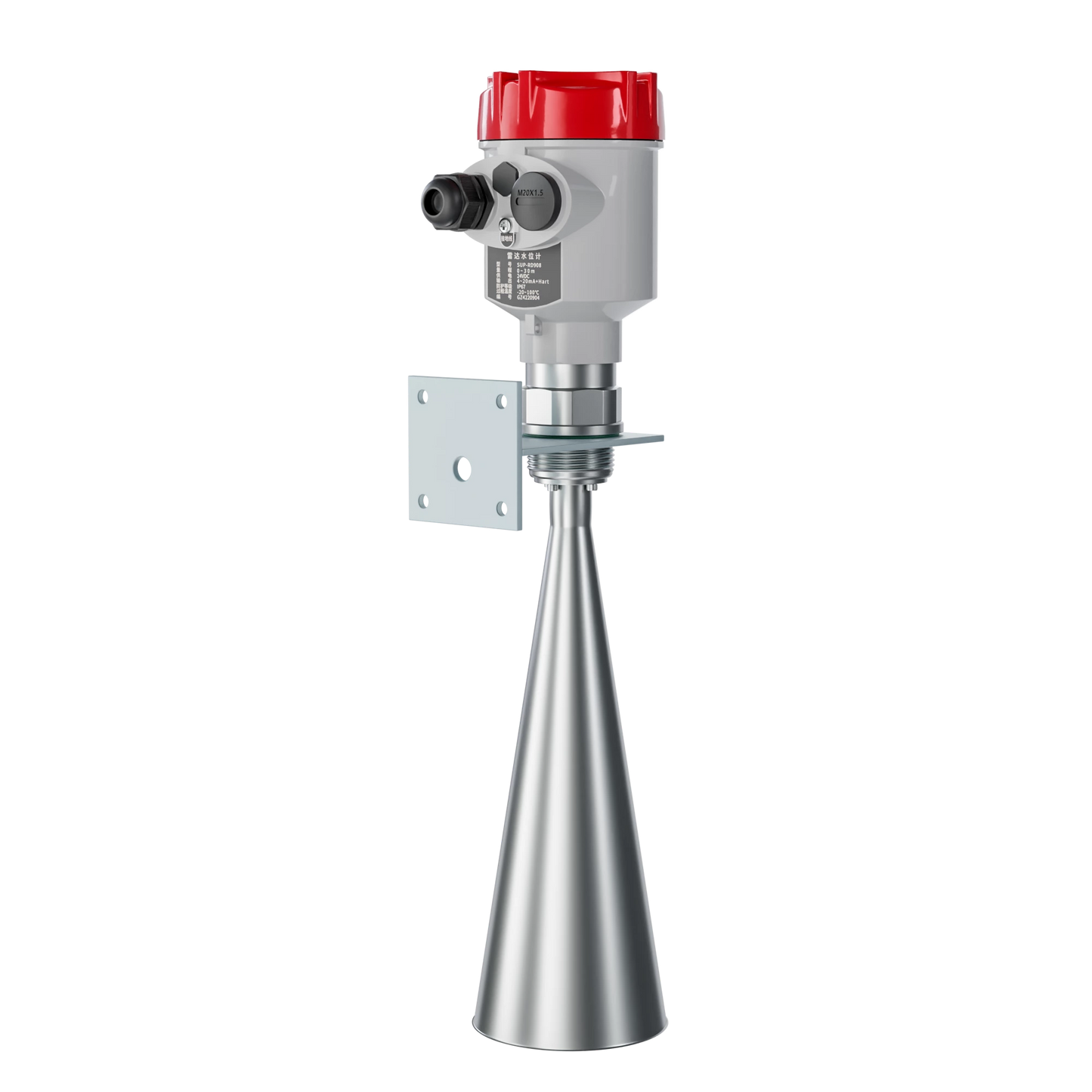

Radar level transmitter for river RD908

Radar level transmitter for river RD908

Regular price $2,299.00 USD
Regular price Sale price $2,299.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Introduction

Radar level meter with top-down installation of a Micropilot sensor offers perfect application fit in all industries. Non-contact radar with simple commissioning, trouble-free operation saves time and money. For usage in a wide range of applications - be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.

Specification

  • Accuracy ±5mm (range 10m) ±0.2" (range 32.8 ft) ±10mm (range 30m) ±0.4" (range 98.4 ft)
  • Application Rivers, Lakes, Shoal
  • Process Connection Thread G1½ A" / frame / flange
  • Medium Temperature -40℃~100℃ (-40°F~212°F)
  • Process Pressure Normal pressure
  • Ingress protection IP67
  • Frequency Range 26GHz
  • Signal Output 4-20mA, RS485/Modbus
  • Power supply DC (6~24V) / Four-wireDC 24V / Two-wire
