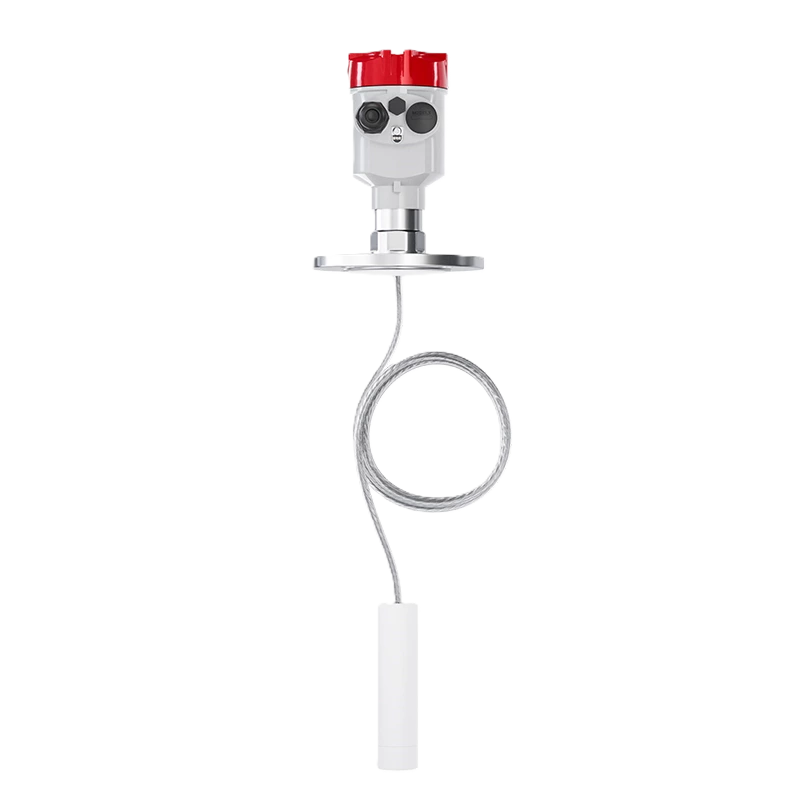

Guided wave radar level transmitter RD702

Guided wave radar level transmitter RD702

$2,229.00 USD
$2,229.00 USD
Sale Sold out
Shipping calculated at checkout.
Antenna Length
View full details

Introduction

Guided wave radar for level measurement in liquids and bulk solids. In level measurement with guided wave radar, microwave pulses are conducted along a cable or rod probe and reflected by the product surface. PTFE antenna, suitable for corrosive medium measurement.

Specification

  • Accuracy ±5mm (range 2m) ±10mm (range 10m) ±0.2" (range 6.56 ft) ±0.4" (range 32.8 ft)
  • Application Acid, Alkali, Other corrosive media
  • Process connection Thread/Flange (optional)
  • Medium temperature -40℃~200℃ (-40°F~392°F)
  • Process pressure -0.1 ~ 0.3 MPa (-14.5 psi ~ 43.5 psi)
  • Ingress protection IP67
  • Frequency range 500MHz-1.8GHz
  • Signal output 4-20mA/HART, RS485/Modbus
  • Power supply (24V DC) / Two-wire (24VDC/220VAC) / Four-wire

Dimension
