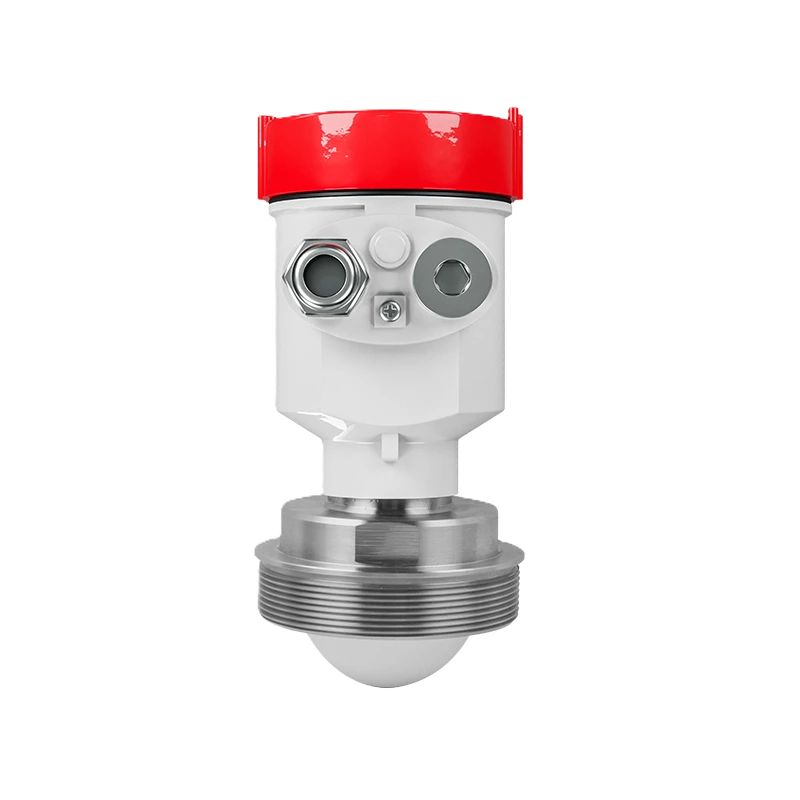

80G Radar level transmitter WSR550

80G Radar level transmitter WSR550

Regular price $2,499.00 USD
Regular price Sale price $2,499.00 USD
Sale Sold out
Shipping calculated at checkout.
Range
View full details

Introduction

The radar level transmitter supports four-wire and two-wire applications, the product has multiple models, the range can reach 60m. Equipped with a 76-81GHz frequency band, the WSR550 provides superior performance in challenging environments where other level measurement technologies may fail. Its high-frequency signal allows for better penetration through dust, vapor, and foam, ensuring accurate readings even in harsh conditions.

Specification

  • Measure range 0.08~30m, 0.3~60m, others 0.26~98.4 ft, 0.98~196.8 ft, others
  • Beam angle 3°/8°
  • Installation Thread, Flange
  • Medium Temperature (-40~80)℃ (-40°F~176°F);(-40~150)℃ (-40°F~302°F) (high temperature customized)
  • Process Pressure -0.1-2MPa (-14.5 psi~290 psi)
  • Accuracy ±1mm (±0.04")
  • Ingress protection IP67
  • Frequency Range 76GHz~81GHz, 5GHz FMCW bandwidth
  • Signal Output 4-20mA, RS485
  • Power supply 15~28VDC
  • Communication Modbus/HART
  • Humidity ≤95%RH
  • Enclosure Aluminum alloy, stainless steel
  • Fault output 3.8mA, 4mA, 20mA, 21mA, hold
  • Size Ø100*270mm (Ø3.94"*10.63")
  • Weight 2.480Kg/2.995Kg (5.47 lbs/6.60 lbs)
  • Cable entry M20*1.5
  • Antenna type Lens antenna/anti-corrosive antenna / flange isolated by quartz
  • Recommended cables AWG18 or 0.75mm²
  • Minimum measured dielectric constant ≥2

Product details

The products refer to frequency modulated continuous wave (FMCW) radar products operating at 76-81GHz, supporting four-wire and two-wire applications. The product has multiple models, the range can reach 120m, and the blind zone can reach 8 cm. Because of its higher operating frequency and shorter wavelength, it is especially suitable for solid applications. The working method of transmitting and receiving electromagnetic waves through the lens has unique advantages in high dust and harsh temperature environments (+150℃). The instrument provides flange or thread connection, which makes installation convenient and easy.
