Radar Level Transmitter SUP-WSR201
Radar Level Transmitter SUP-WSR201
Regular price
$389.00 USD
Regular price
Sale price
$389.00 USD
This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.
Share

Introduction
The 60G radar level meter uses high-frequency microwave radar technology to achieve real-time monitoring and accurate measurement of
hydrological information. Compared with traditional hydrological monitoring methods, radar technology has advantages such as high measurement accuracy, strong real-time performance, and wide applicability. The product has low beam energy, which is harmless to humans and the environment, and also has the benefits of being unaffected by the density of the medium, unaffected by changes in dielectric constant, and requiring no on-site calibration. It is widely used in natural water hydrological monitoring applications such as rivers, reservoirs, lakes, irrigation canals, and river channels.
Specification
Product Specifications
- Measuring Range: 5m / 10m / 15m (16.4ft / 32.8ft / 49.2ft)
- Blocking Distance: ≤0.15m (≤0.49ft)
- Modulation / Frequency: PCR, 57–64GHz
- Accuracy: ±5mm (≤10m) / ±0.1% FS (15m)
- Resolution / Refresh Rate: 1mm (0.003ft), ≥500ms
Output & Communication
- Analog Output: 4–20mA (0.2% FS)
- Load: 2-Wire: (U–18V)/0.021A; 4-Wire: (U–9V)/0.021A
- Digital: RS485 (Modbus-RTU)
- Wireless: Bluetooth
Power Supply
- 2-Wire: 18–36V DC, ≤25mA, ≤1W
- 4-Wire: 9–36V DC, ≤80mA, ≤1.9W
Process Conditions
- Dielectric Constant: ≥3
- Process Pressure: –0.1~0.3 MPa (–14.5~43.5 psi)
- Process Temperature: –40~85°C (–40~185°F)

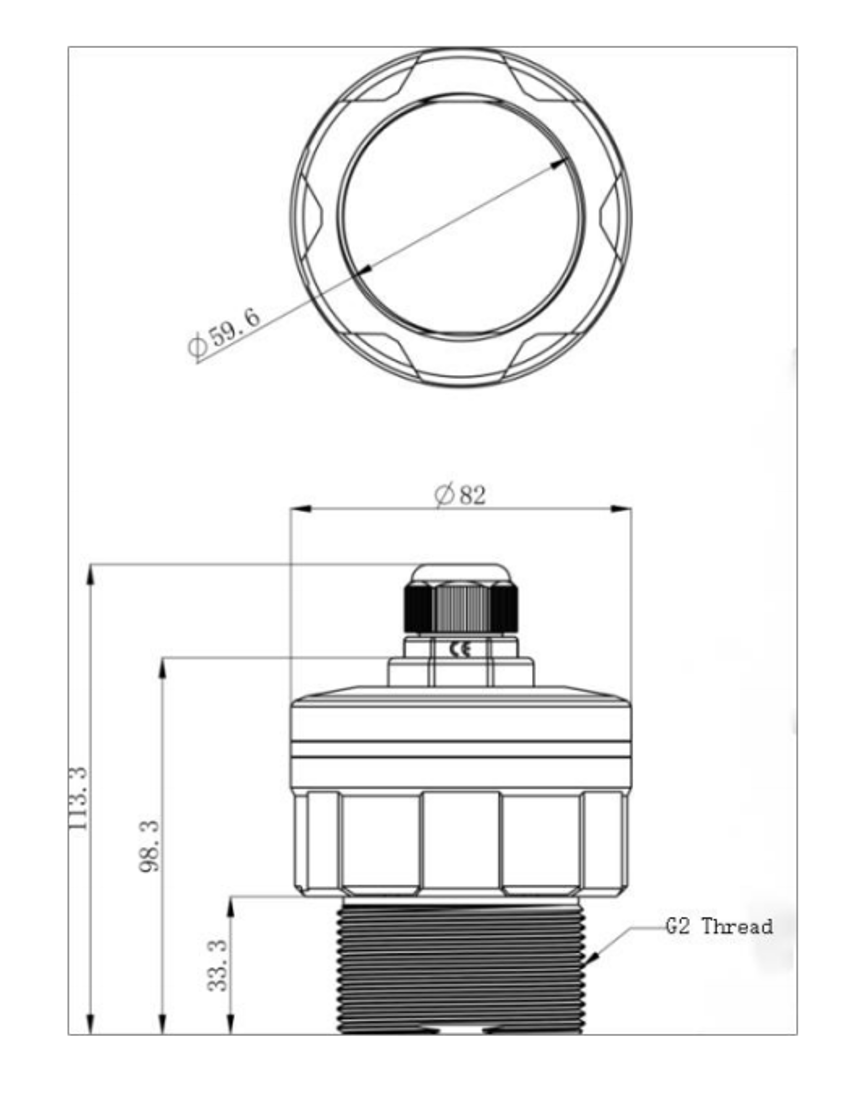

Dimension
