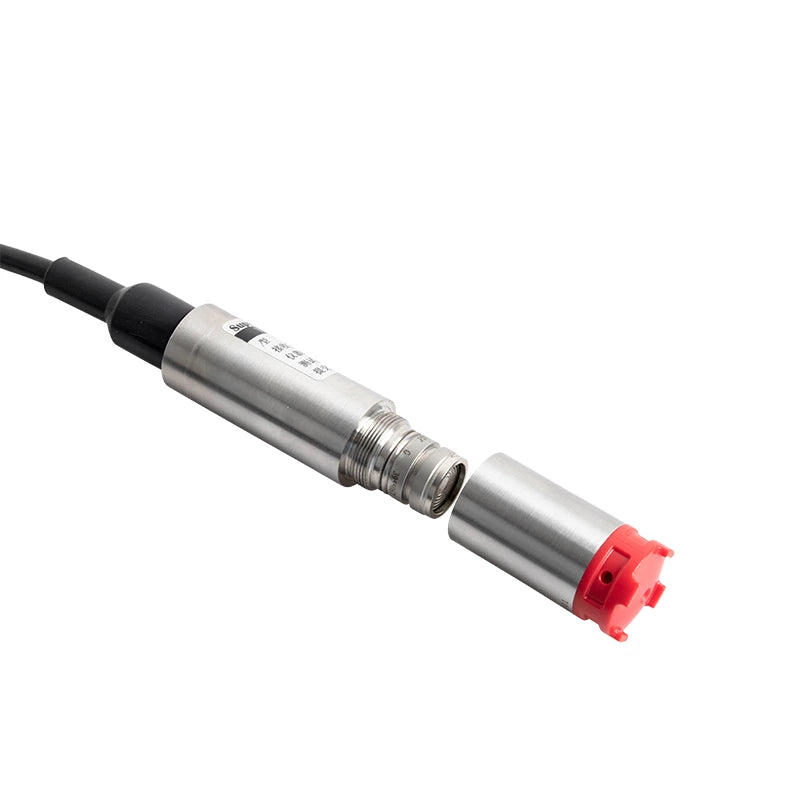

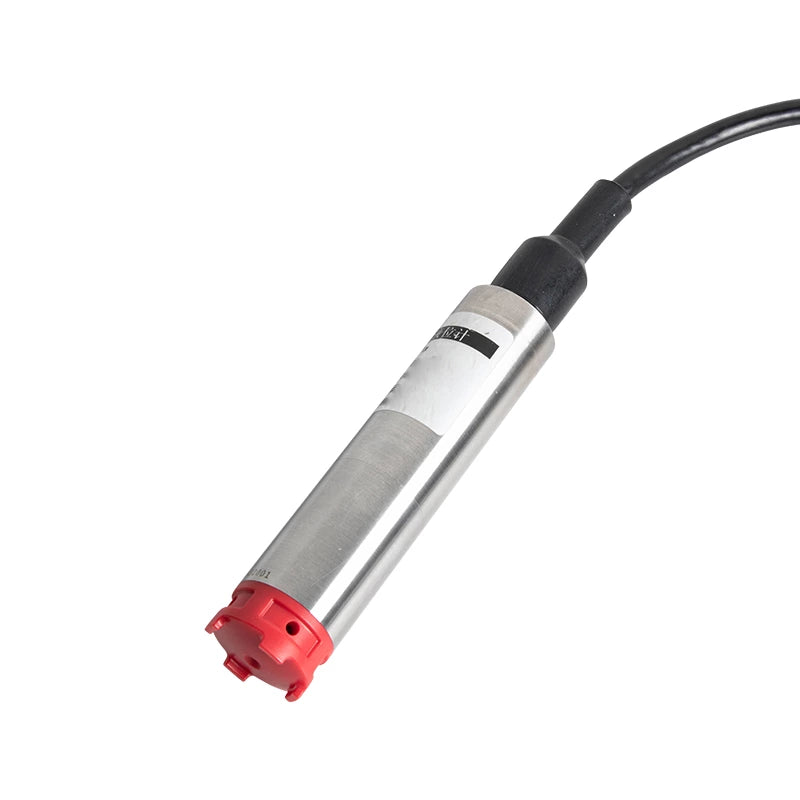

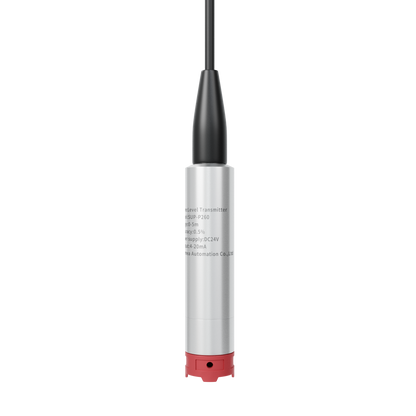

Submersible level transmitter SUP-P260-B

Submersible level transmitter SUP-P260-B

$166.00 USD
$166.00 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left • Ships in 3-5 business days
View full details

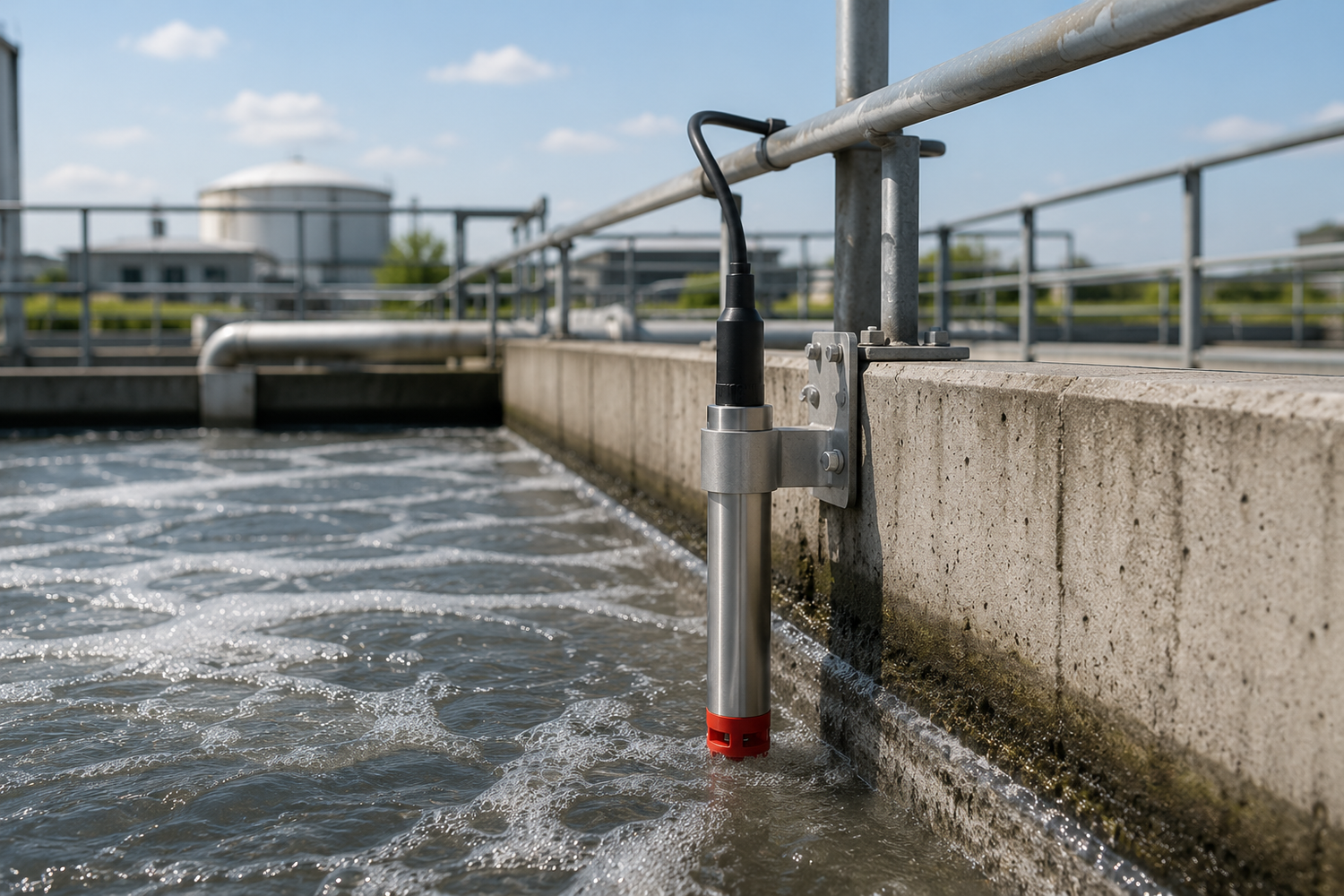

Product Overview

The SUP-P260 Submersible Level Transmitter is a hydrostatic level sensor designed for continuous liquid level measurement in wells, tanks, rivers, reservoirs, wastewater facilities, and industrial process applications. It utilizes a high-performance diffused silicon pressure sensor to convert hydrostatic pressure into a precise electrical signal.
After temperature compensation and signal correction, the transmitter outputs a stable 4–20 mA signal for seamless integration with PLC, DCS, and SCADA systems. Its corrosion-resistant stainless steel construction and fully sealed design ensure reliable operation in harsh industrial and environmental conditions.

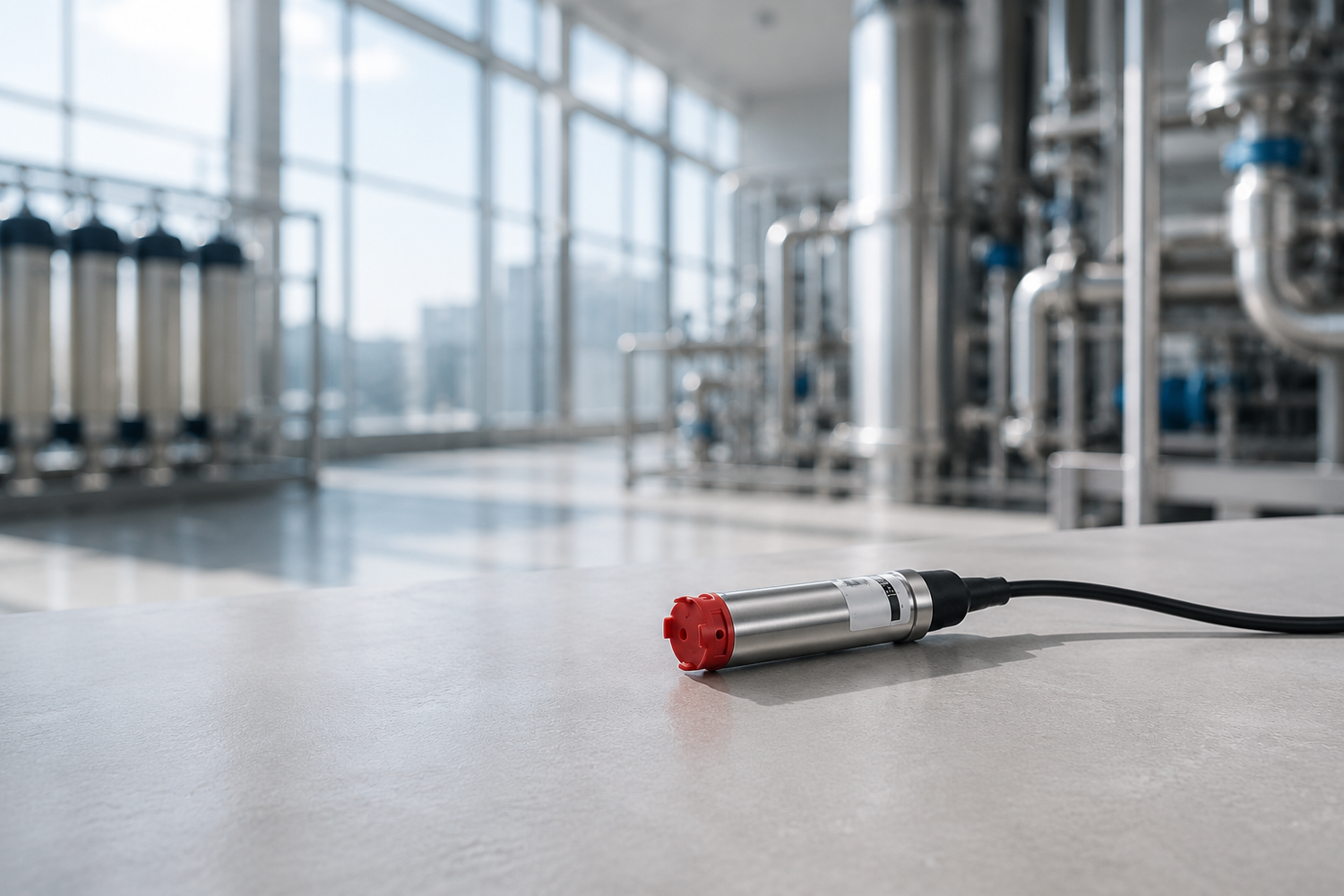

Key Features

  • Compact design allows quick installation and simple operation.
  • Stainless steel sensing probe is suitable for long-term immersion in various liquids.
  • Stable performance with excellent long-term measurement accuracy.

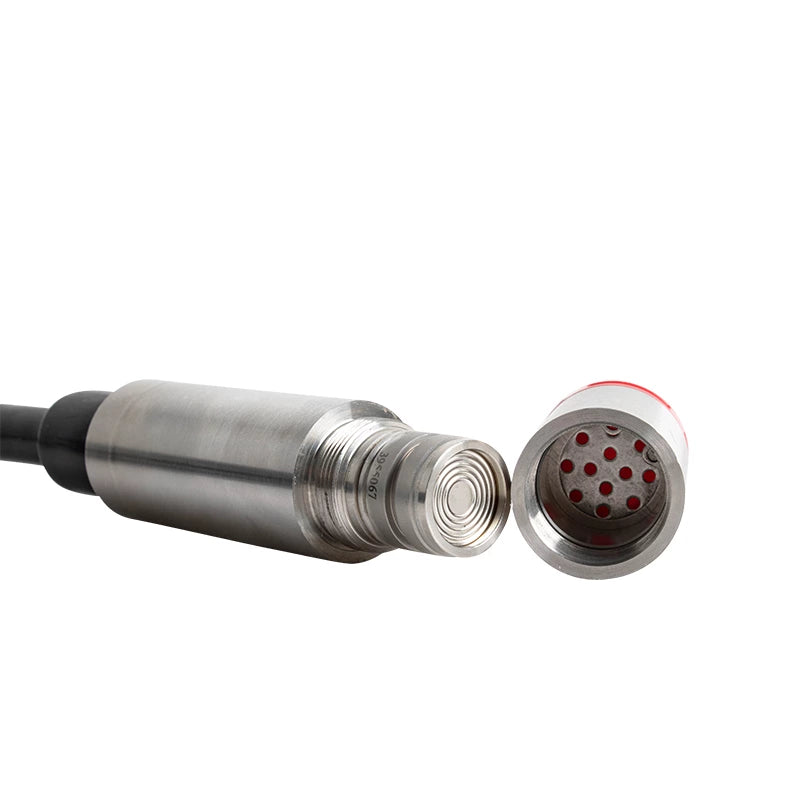

  • Uses a high-quality diffused silicon sensing element for precise level measurement.
  • Suitable for tanks, wells, reservoirs, rivers, and various liquid storage applications.
  • IP68-rated sensing probe ensures reliable long-term submerged operation.

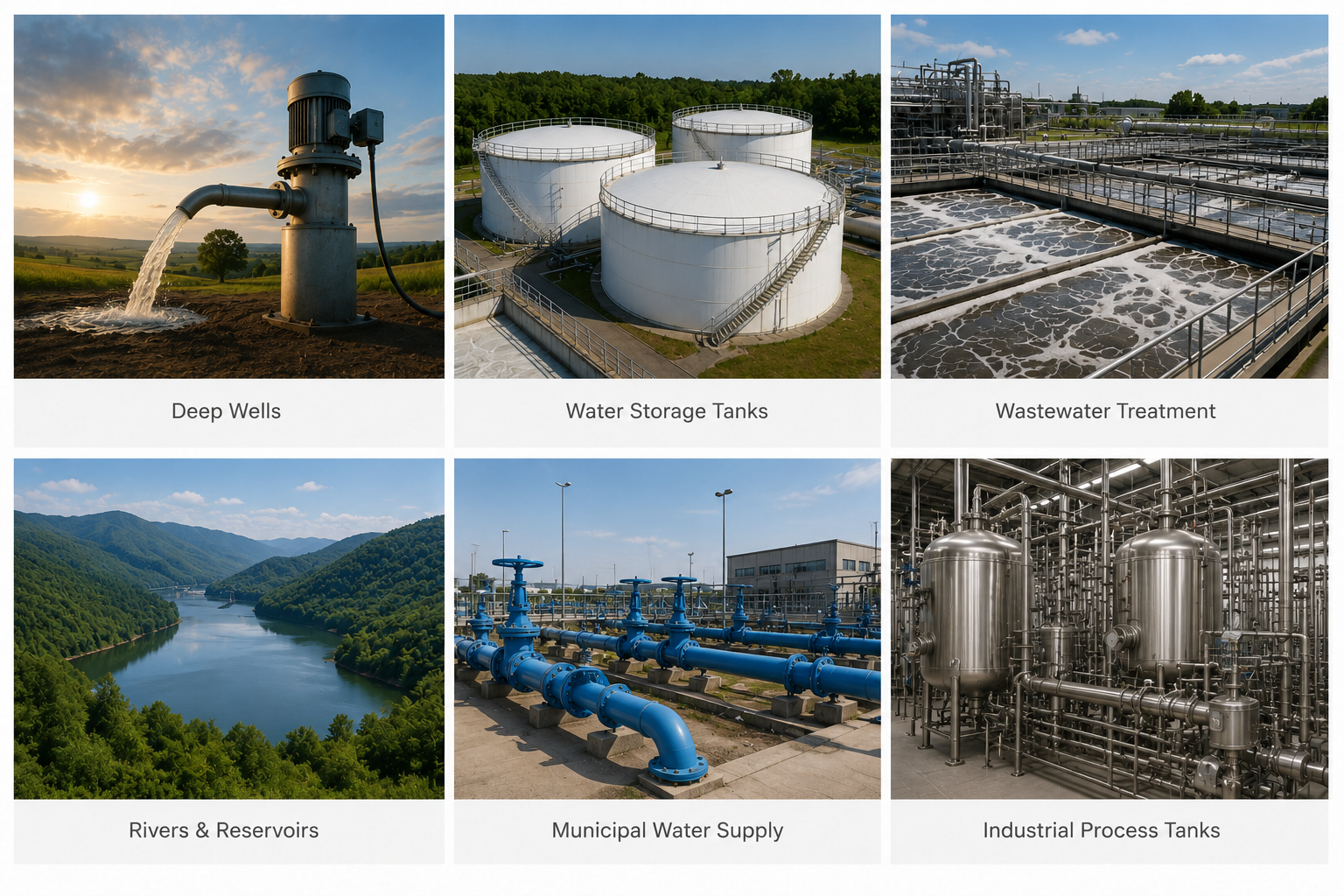

Applications

Technical Specifications

    Model SUP-P260
    Measuring Range 3.3–656 ft (1–200 m)
    Accuracy ±0.5% FS(±0.25% FS Optional for ≥10 m Range)
    Output Signal 4–20 mA/1–5 V/ 0–10 V/0–5 V/RS485
    Power Supply 10–32 VDC (4–20 mA) 12–32 VDC (Voltage Output) 8–32 VDC (RS485)
    Protection Rating Sensor: IP68
    Operating Temperature -4 to 185°F (-20 to 85°C)
    Communication RS485 (Optional)
    Measuring Medium Water, Wastewater and Compatible Liquids
    Cable Length Standard 16.4 ft (5 m), Customizable
    Probe Material 304 SS / 316L SS

    Downloads

    User Manual
    Datasheet

    FAQ

    What is the SUP-P260 used for?

    The SUP-P260 is designed for continuous liquid level measurement in wells, reservoirs, tanks, rivers, groundwater monitoring, wastewater treatment plants, and industrial liquid storage applications.

    When should I choose a submersible level transmitter?

    Submersible level transmitters are recommended when the sensor can be directly immersed in the liquid and continuous hydrostatic level measurement is required.

    Can the transmitter remain underwater permanently?

    Yes. The sensing probe is designed for long-term submerged operation with an IP68 protection rating.

    Does it support PLC or SCADA systems?

    Yes. The transmitter supports 4–20 mA analog output and optional RS485 communication, making it compatible with most industrial automation systems.

    What warranty do you provide?

    Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

    How long does shipping take?

    Products in the US warehouse typically ship within 3–5 business days
