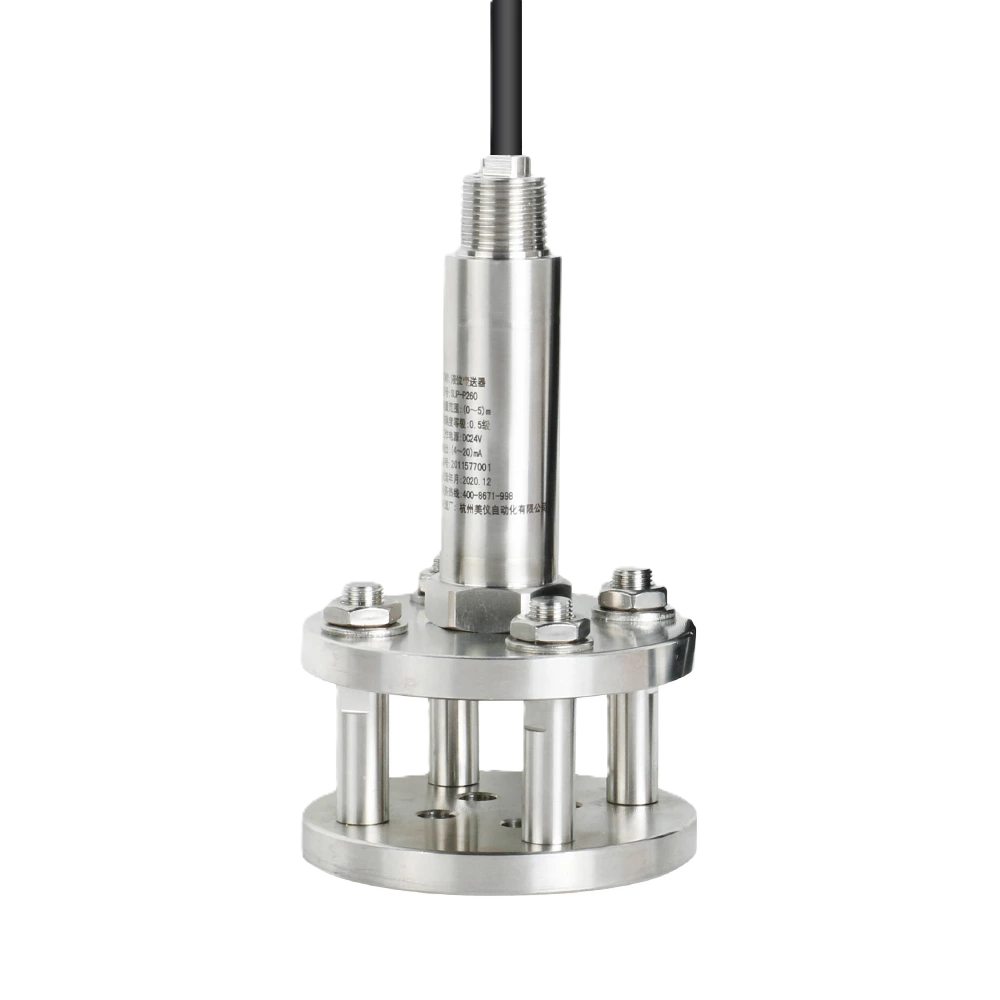

Slurry submersible level transmitter P260-M2
Slurry submersible level transmitter P260-M2
Regular price
$358.00 USD
Regular price
Sale price
$358.00 USD
Quantity
Introduction
Submersible level transmitters are fully sealed for liquid submersion. They can measure water levels, well depths, groundwater levels, etc. Commonly, their accuracy is 0.5%FS, and they provide output signals such as voltage or 4-20mA.
Specification
- Range: 0~1m...200m (0~3.28ft...656.2ft)
- Signal output: 4-20mA
- Supply: 24VDCCable:5m (16.4ft)
- Material: Body SS304 and SS316L diaphragm
- Temperature range: -10~65℃ (14°F~149°F)
Features
- Non-clogging and damage resistant to floating solids
- Durable 316 SS construction for reliable, long life in harsh environments
- 1/2 inch NPT threaded connection, allows the unit to be installed in a pipe/conduit
- Diaphragm is protected from physical damage and turbulence
- Added weight helps hold transmitter in place
- Excellent chemical compatibility for wide application use
Application
