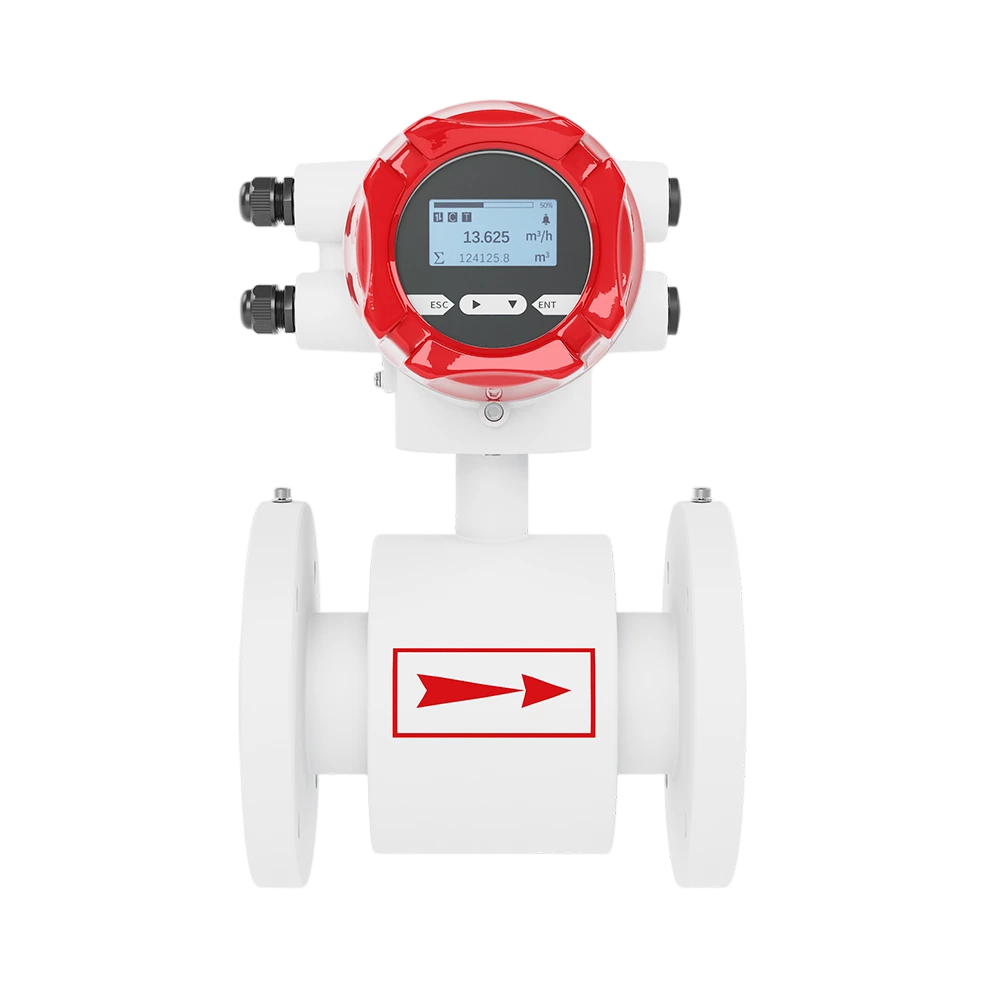

SUP-A100 Electromagnetic Flowmeter

SUP-A100 Electromagnetic Flowmeter

$1,050.00 USD
$1,050.00 USD
Sale Sold out
This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.
Diameter
Lining metarial
Probe Material
View full details

Introduction

Electromagnetic meters are a leading choice to deliver the performance and precision your applications require. These meters are applicable for all conductive liquids, such as water, acids, alkalis, slurries and many others. Typical applications are monitoring of liquids, filling, dosing and precise measurement in custody transfer.

Datasheet

Specification

Measured variable:

  • Direct measured: Flow velocity
  • Calculated value: Volume flow, mass flow.

Flow velocity range:

  • Typically range of flow velocity: 0.5m/s~5m/s

Nominal diameter:

  • DN10~DN1000

Communications:

  • RS485; MODBUS-RTU; Hart communication (optional)

Relay (Remote type optional ):

  • 2 channels SPST; 250VAC; 3A

Supply voltage:

  • 100VAC~240VAC, 50/60Hz;20VDC~28VDC

Power consumption:

  • ≤15W

Reference operating conditions:

  • Medium: water
  • Temperature: 20℃
  • Pressure: 0.1MPaInstallation requirements: Inlet run≥10DN, Outlet run≥5DN

Accuracy:

  • ±0.5% of measured value;
  • ±0.3% of measured value (available for selected pipe sizes)
  • Note: Applicable to flow velocity range of 0.5 m/s to 5 m/s

Repetitiveness:

  • 0.16%

Medium temperature range:

  • CR liner: -10℃~70℃
  • PU liner: -10℃~60℃
  • PTFE/F46 liner-10℃~120℃

Rated pressure(Customizable for high-pressure applications):

  • DN10~DN250: PN<1.6MPa
  • DN300~DN1000: PN<1.0MPa
  • Note: For certain specifications, actual values may vary; refer to the nameplate for exact information. High-pressure versions are available upon request.

Conductivity:

  • ≥50μS/cm

Ambient temperature:

  • Integrated type:10℃~55℃
  • Remote type:Converter:-20℃~55℃ Sensor: -10℃~55℃

Storage temperature:

  • 20℃~55℃

Protection level:

  • Integrated type:Standard: IP65 High protection: IP66/IP67
  • Remote typeSensor: IP65 Converter: IP68

Measuring principle

Mag meter works based on Faraday's law, when the liquid goes through the pipe at the flow rate of v with a diameter D, within which a magnetic flux density of B is created by an exciting coil, the following electromotive E is generated in proportion to flow speed v:

E=K×B×V×D

Where:
E－Induced electromotive force
K－Meter constant
B－Magnetic induction density
V－Average flow speed in cross-section of measuring tube
D－Inner diameter of measuring tube
