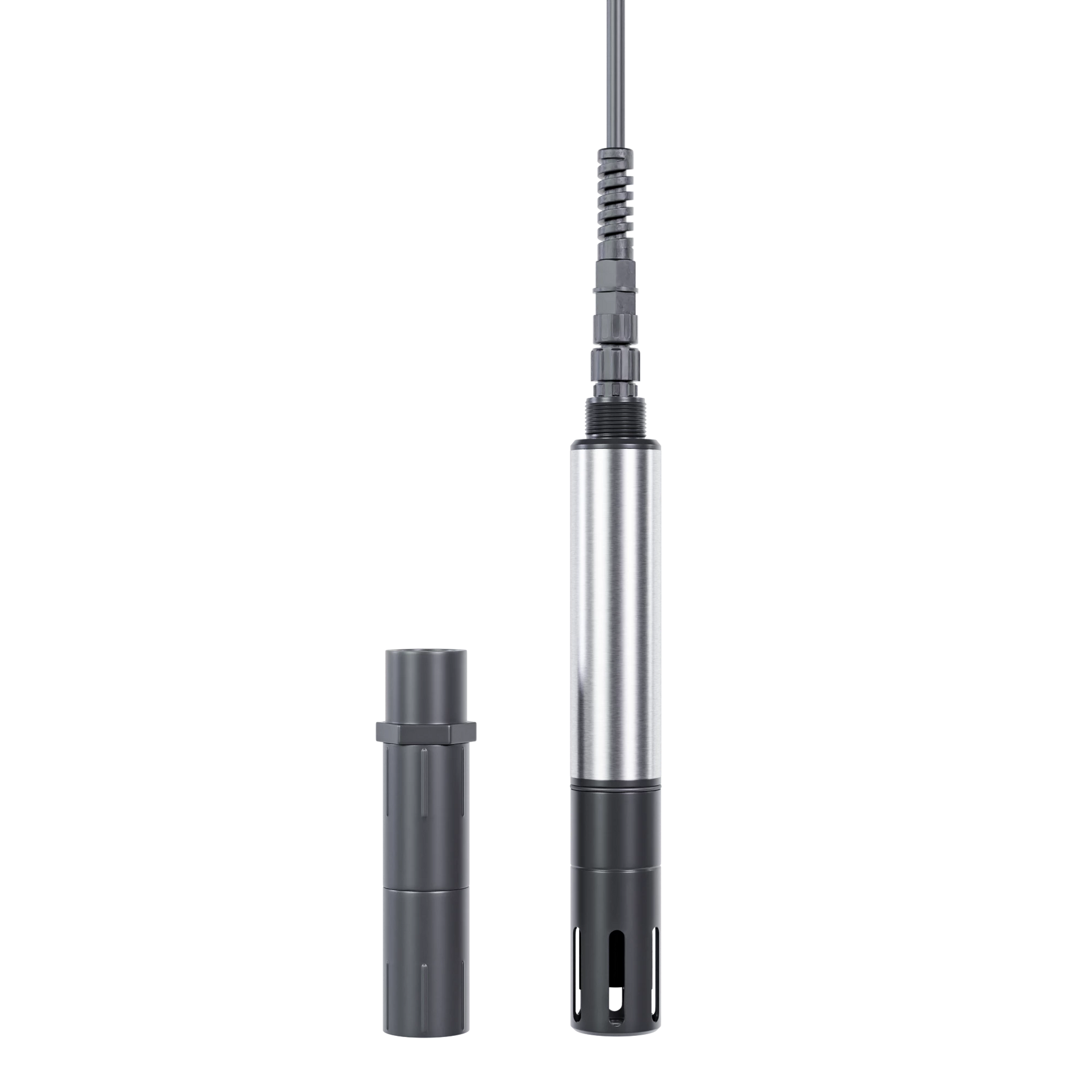

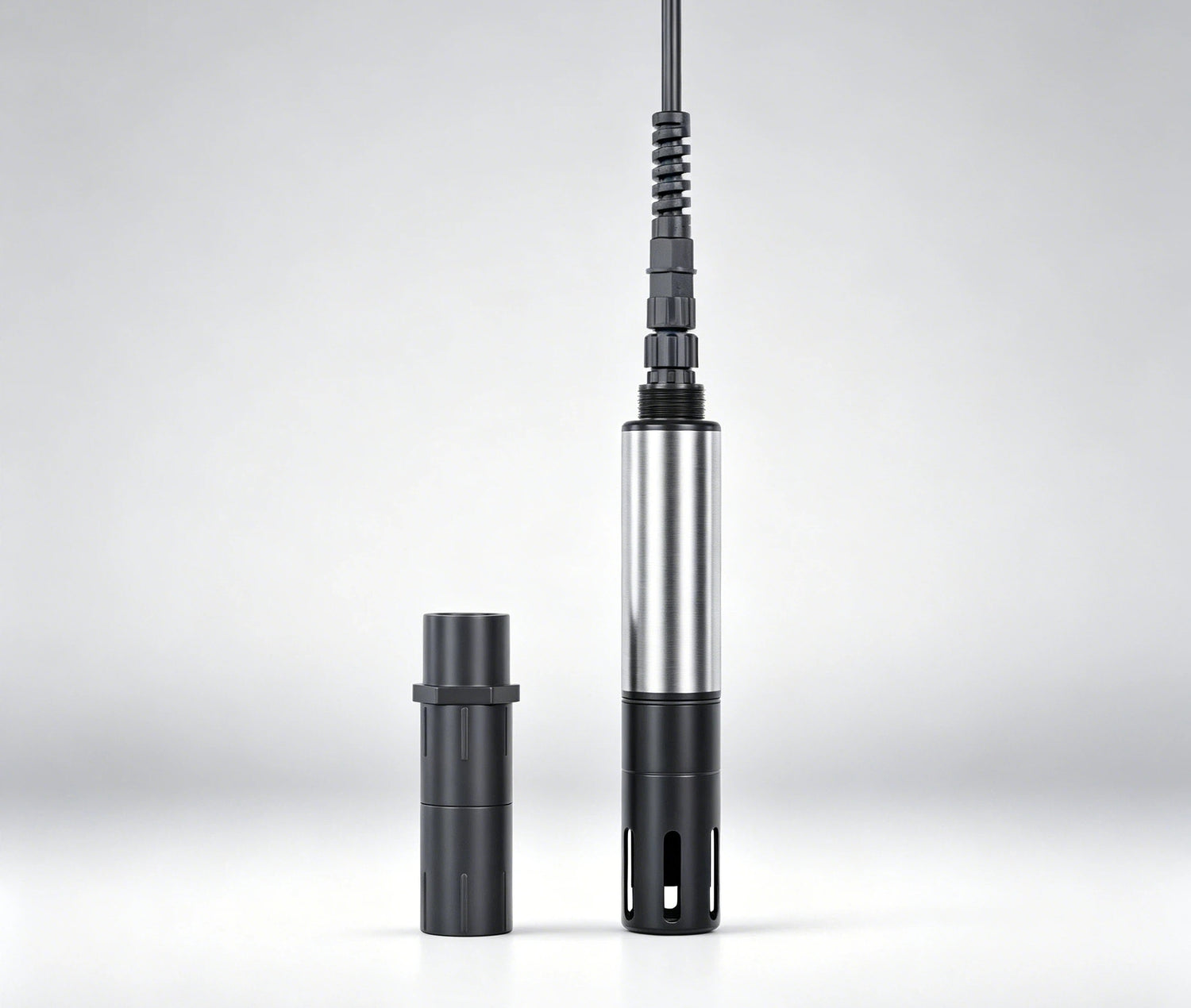

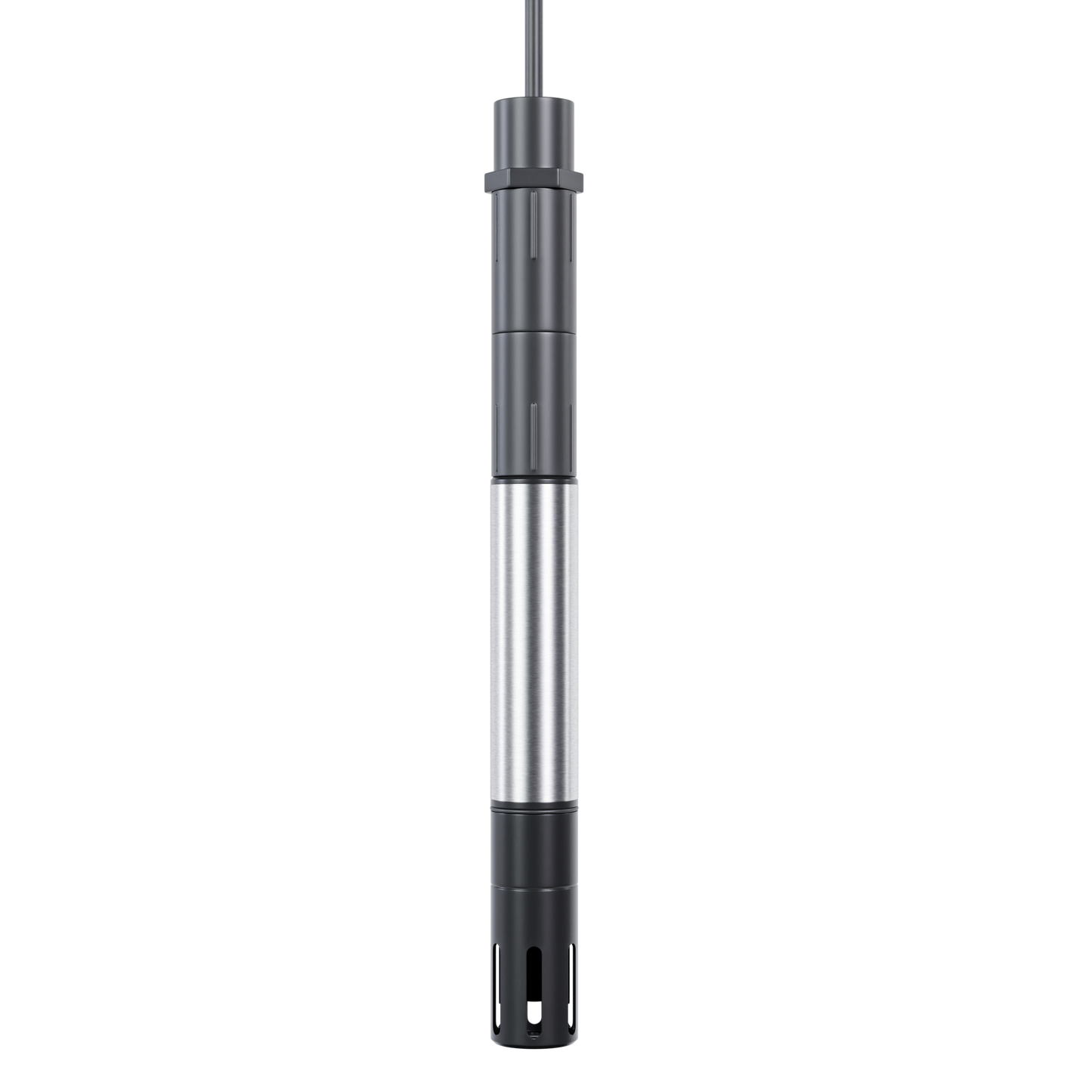

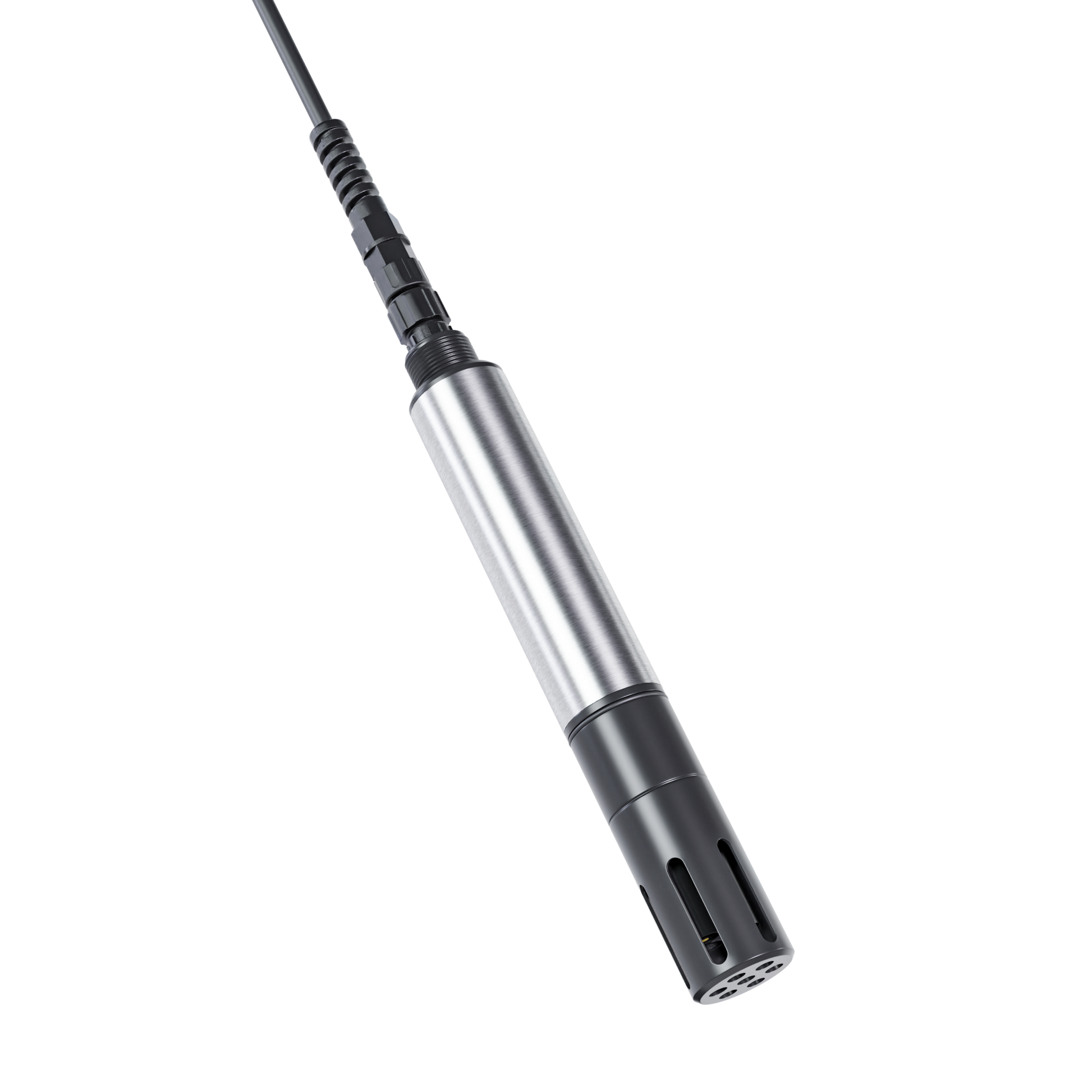

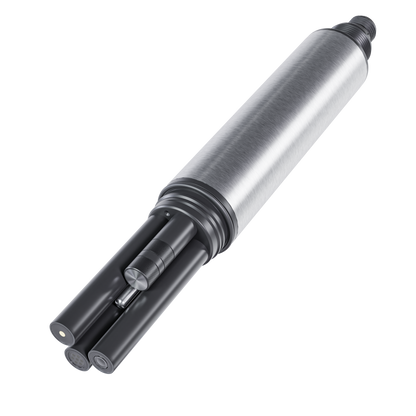

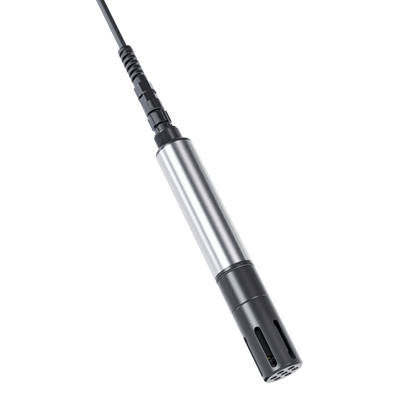

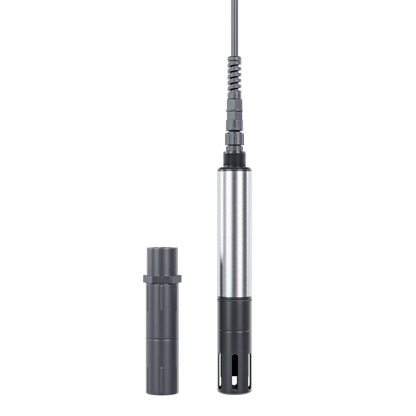

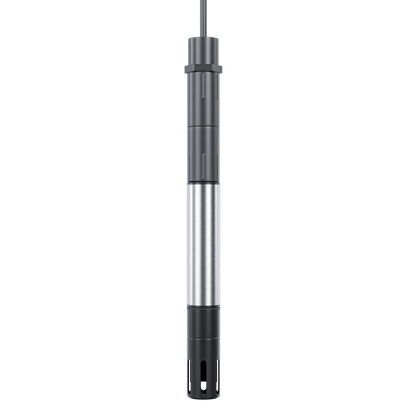

SUP-ADI3050 Ammonia Nitrogen Electrode

SUP-ADI3050 Ammonia Nitrogen Electrode

$3,730.00 USD
$3,730.00 USD
Sale Sold out
This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.

Ships in 1-3 weeks
View full details

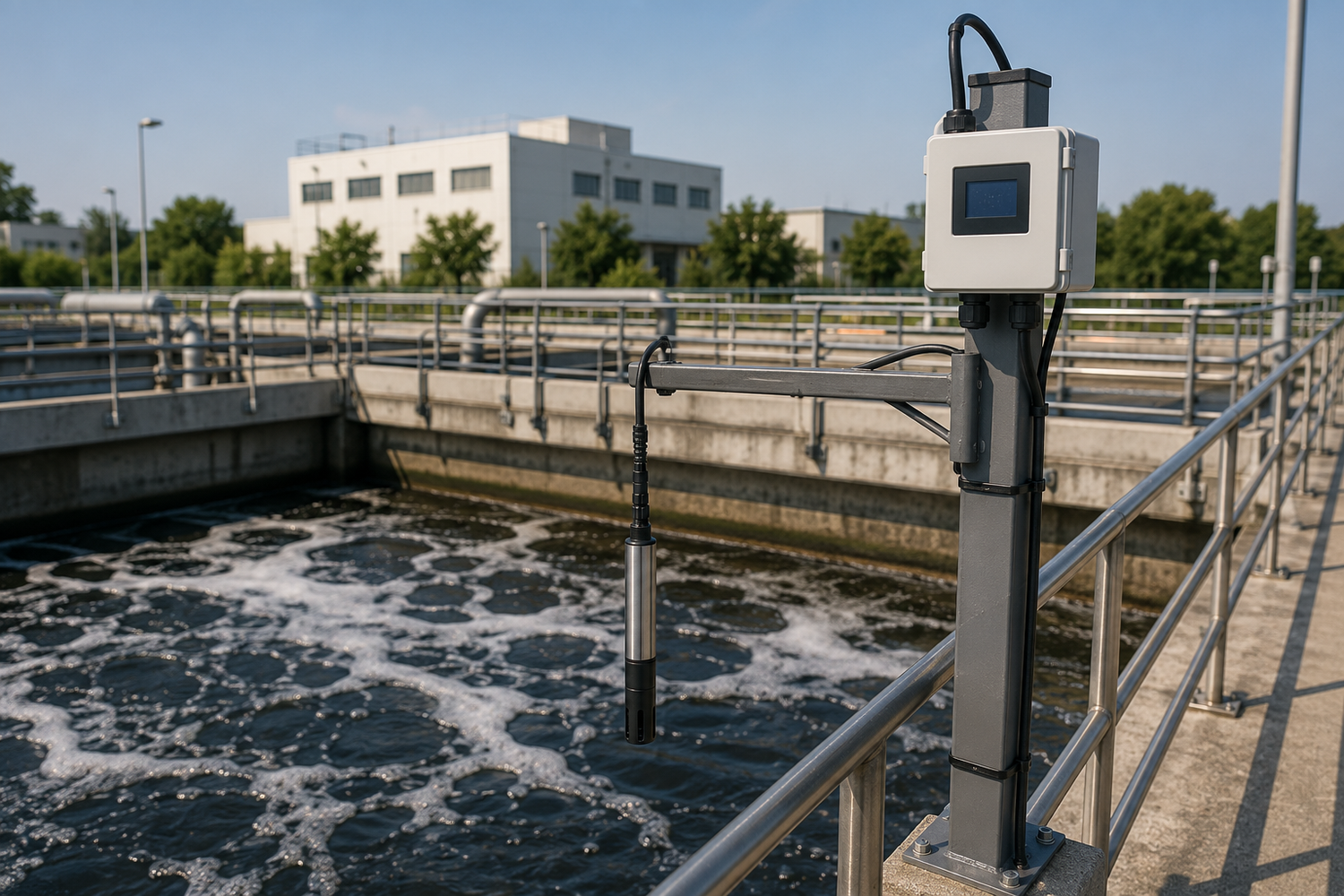

Product Overview

The SUP-ADI3050 Ammonia Nitrogen Electrode is a digital ion-selective sensor designed for continuous online ammonia nitrogen monitoring in water treatment applications. Featuring reagent-free measurement with automatic pH and temperature compensation, it delivers stable and reliable results while reducing operating costs. With RS485 Modbus communication and direct immersion installation, it integrates easily into modern water quality monitoring systems.

Key Features

  • Measures ammonia nitrogen directly without chemical reagents, reducing maintenance costs and eliminating secondary pollution.
  • Built-in pH and temperature compensation improves measurement stability under varying water conditions.
  • Supports Modbus RTU communication for seamless integration with PLCs, SCADA, and online controllers.

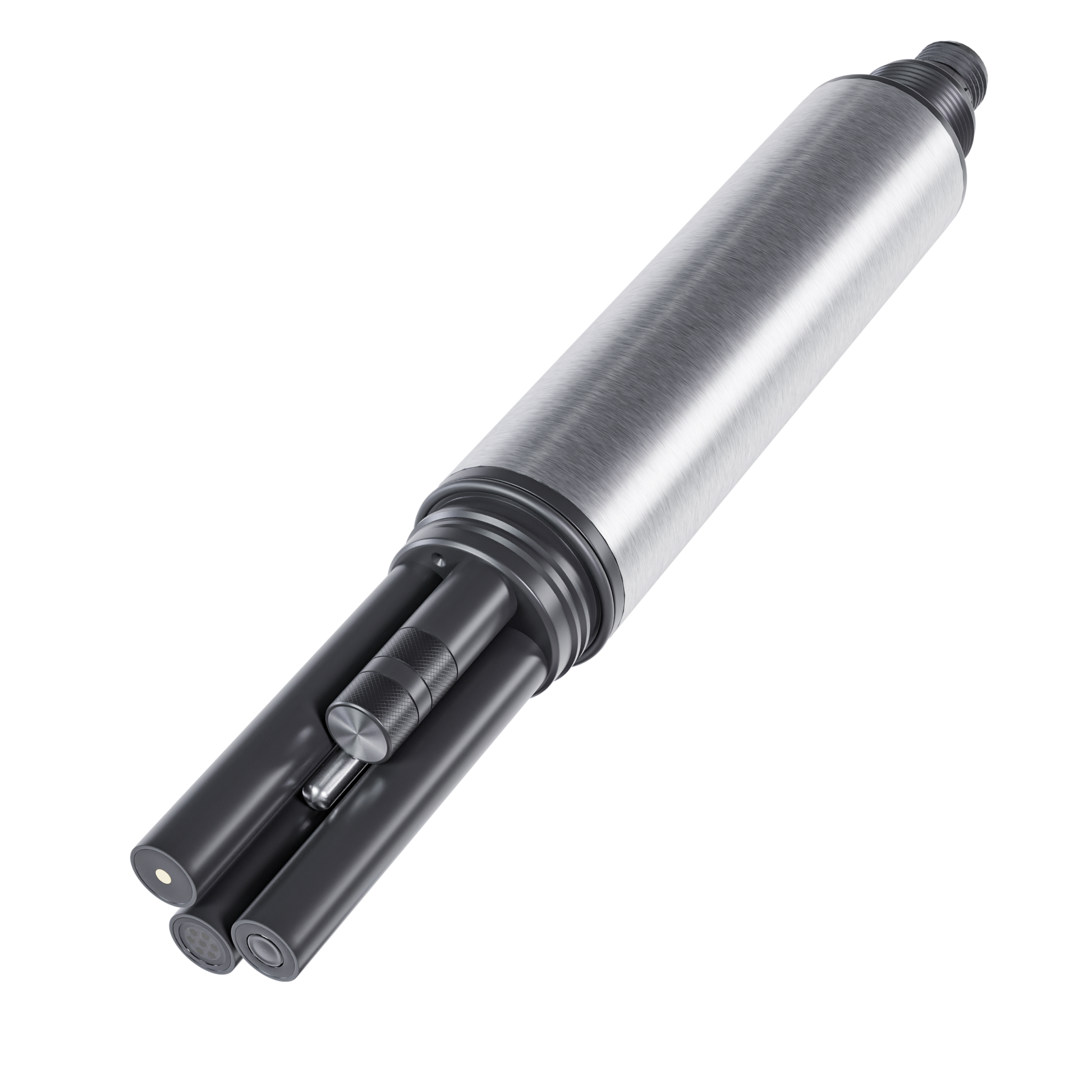

  • The ammonia, pH, and reference electrodes can be serviced or replaced independently for lower maintenance costs.

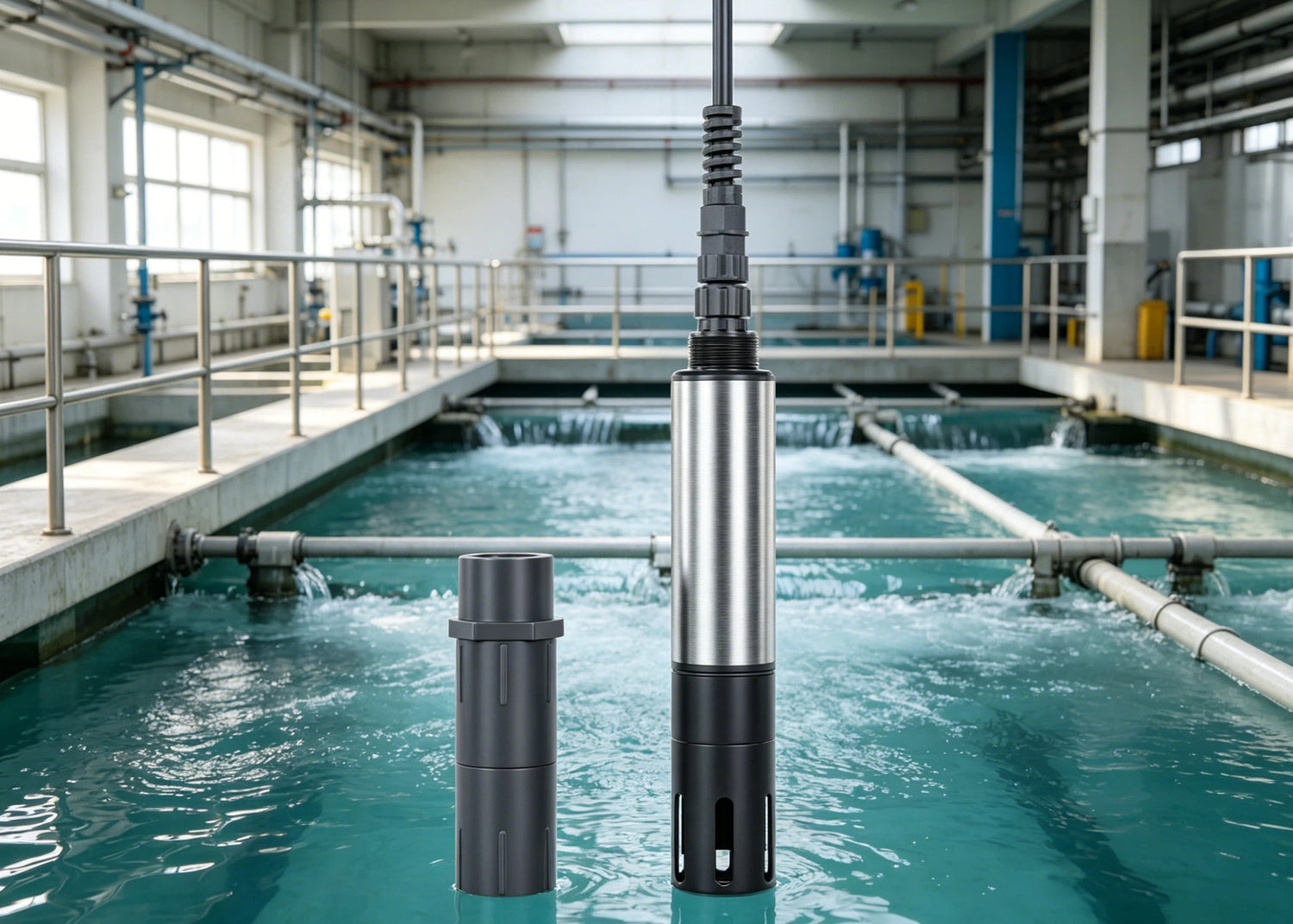

  • Designed for direct installation in tanks, channels, and pipelines without sample pretreatment.
  • Durable construction with IP68 protection ensures reliable long-term operation in demanding environments.

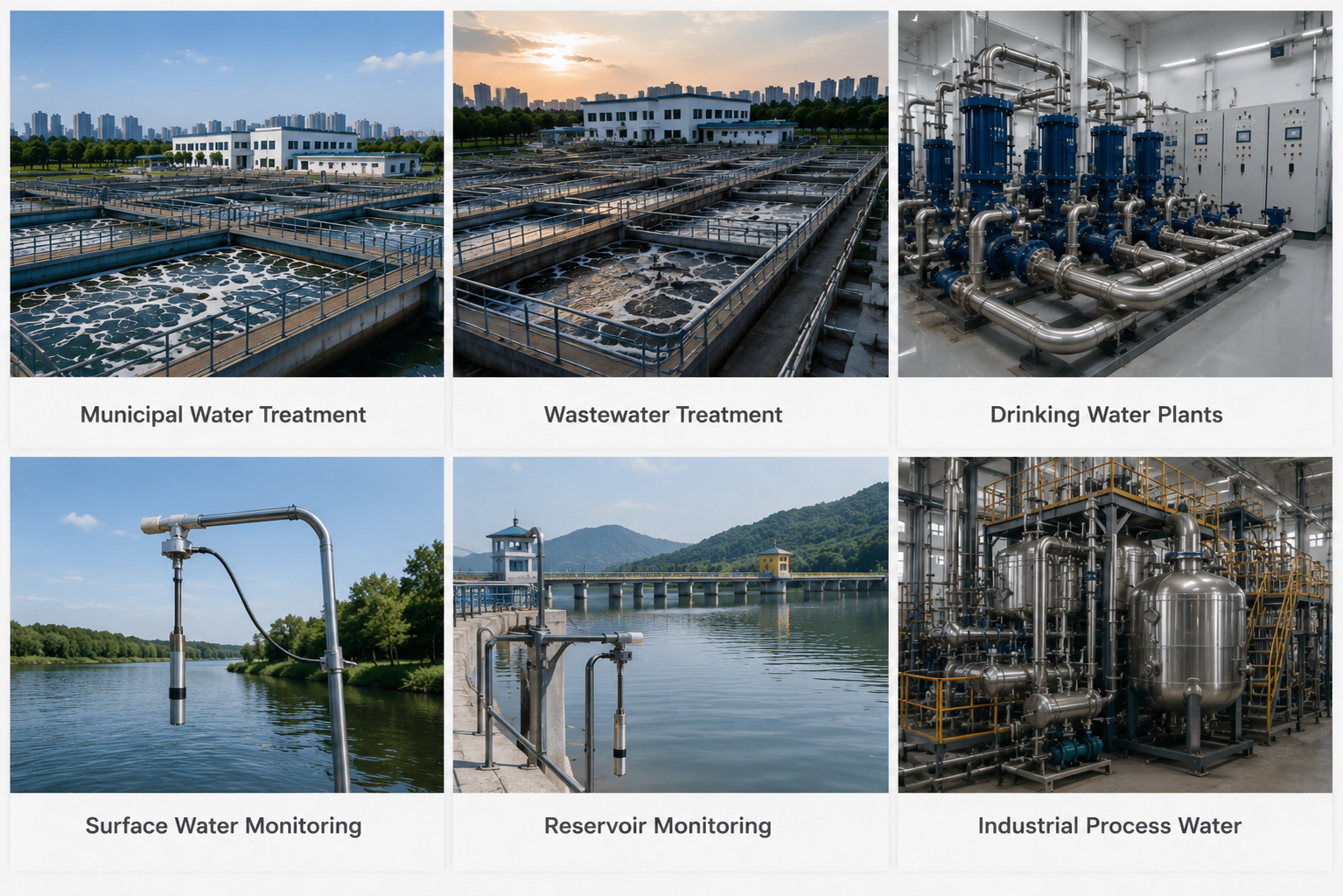

Applications

Technical Specifications

Range Ammonia：0–100 mg/L or 0–1000 mg/L PH:4-10pH
Accuracy Ammonia: ±10% of reading or ±0.5 mg/L PH: ±0.1 pH
Resolution 0.01 mg/L / 0.01 pH
Response Time ≤2 min
Communication RS485, Modbus RTU
Power Supply 9–24 VDC
Pressure Rating ≤29 psi (≤2 bar)
Operating Temperature 32–122°F (0–50°C)
Protection Rating IP68
Installation Immersion
Process Connection NPT 3/4" Thread

Downloads

User Manual
Datasheet

FAQ

Where can this sensor be installed?

The sensor is designed for immersion installation and is suitable for municipal wastewater, drinking water plants, surface water, reservoirs, and industrial water monitoring applications.

Does the sensor automatically compensate for pH and temperature?

Yes. It features automatic pH and temperature compensation to improve measurement accuracy under changing process conditions.

Can individual electrodes be replaced?

Yes. The ammonia, pH, and reference electrodes are replaceable individually, helping reduce maintenance costs and extending service life.

Is sample pretreatment required?

No. The sensor can be immersed directly into the process water without sample preparation or sample transfer equipment.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
