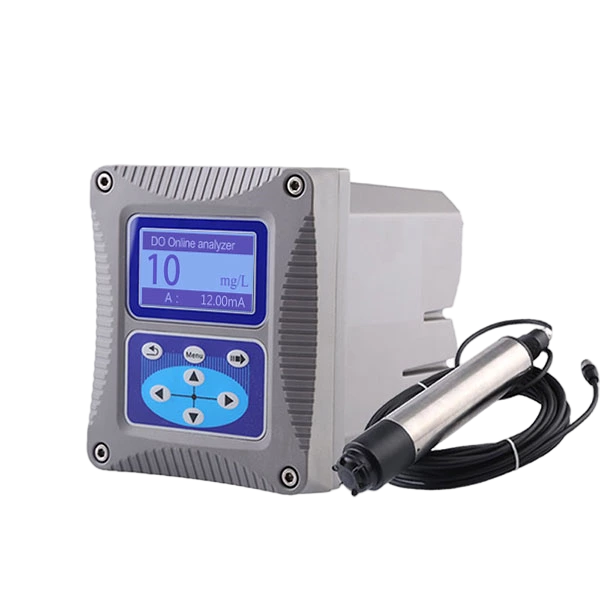

SUP-DO700 Optical dissolved oxygen meter

SUP-DO700 Optical dissolved oxygen meter

$1,104.00 USD
$1,104.00 USD
Sale Sold out
This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.

Ships in 1-3 weeks
View full details

Product Overview

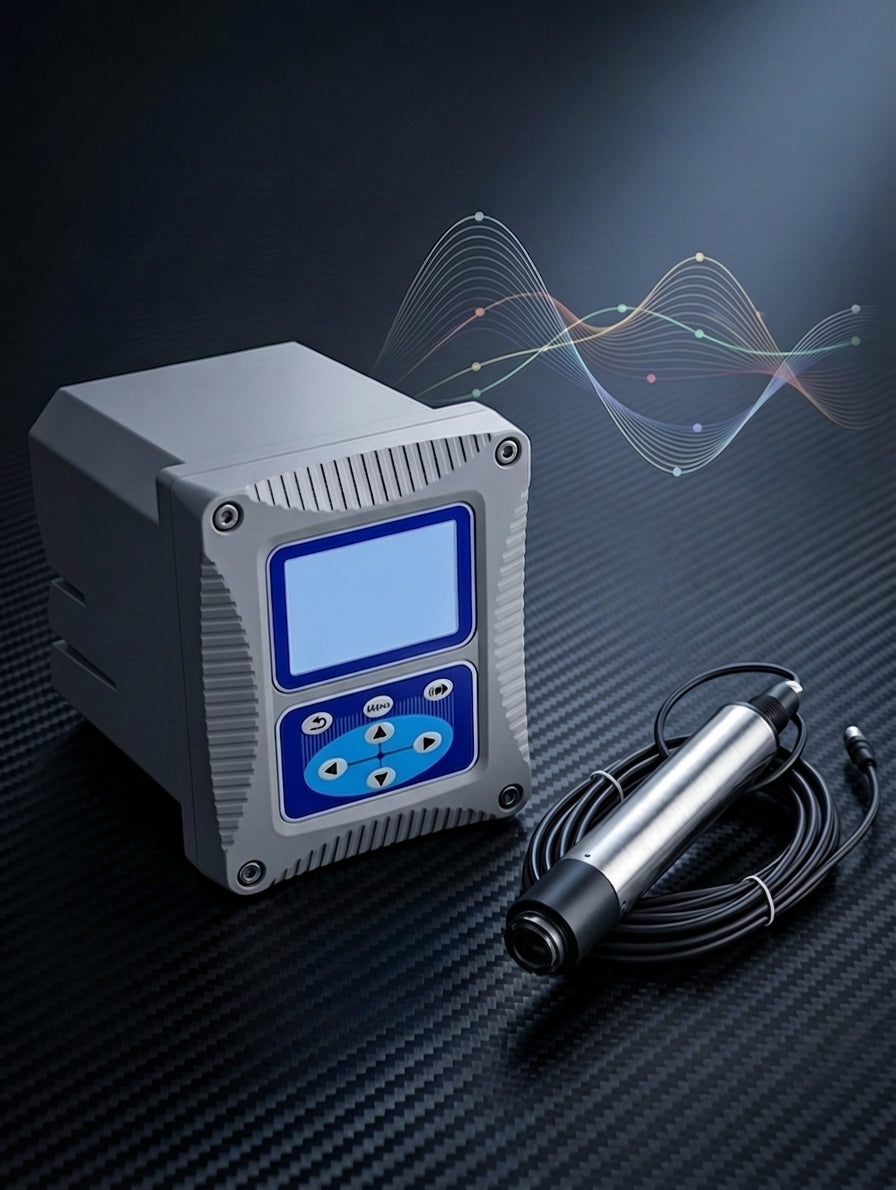

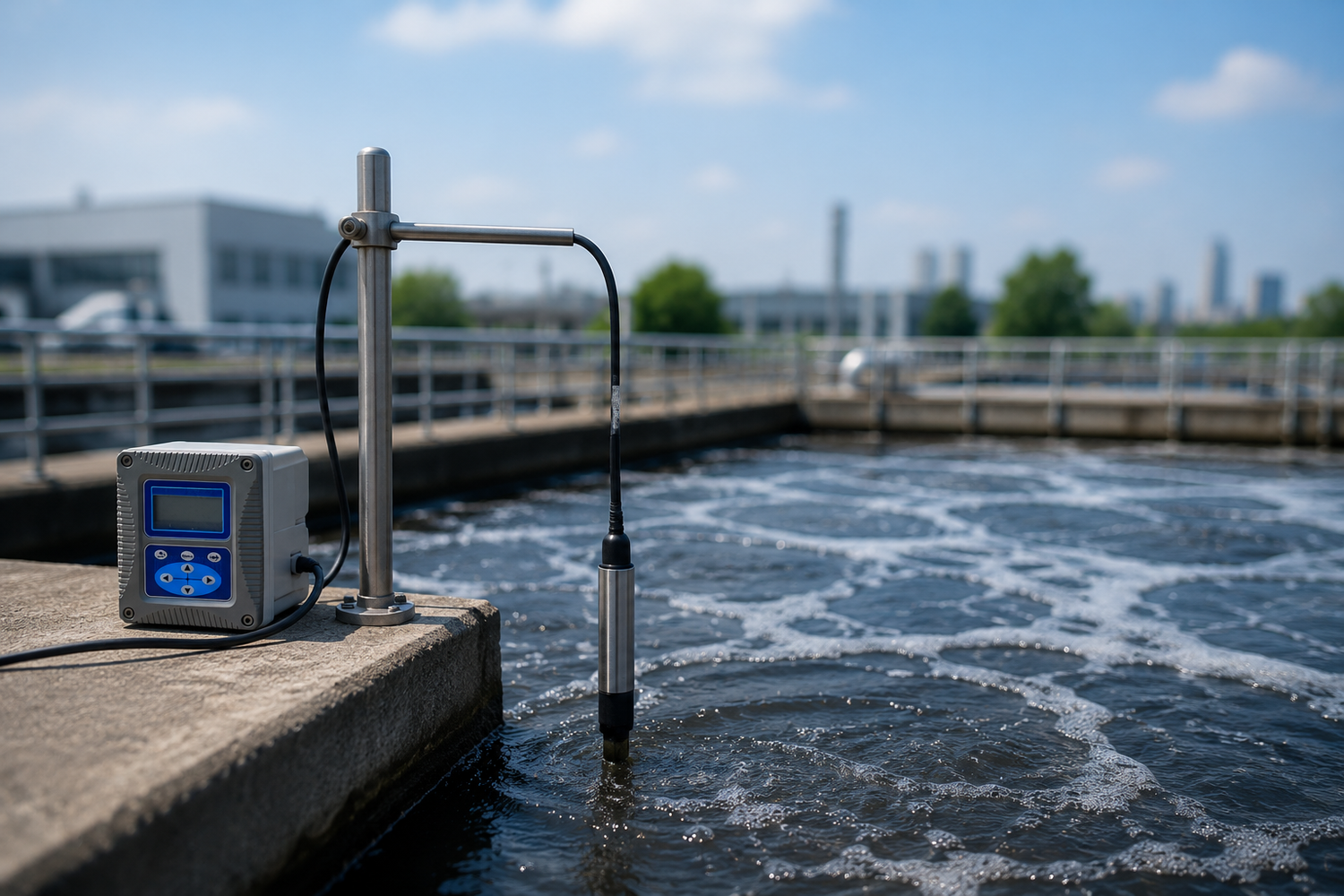

The SUP-DO700 Optical Dissolved Oxygen Meter uses advanced fluorescence technology to provide accurate, stable dissolved oxygen measurement without consuming oxygen during testing. Unlike traditional electrochemical sensors, it requires minimal maintenance, offers excellent long-term stability, and is ideal for continuous monitoring in water treatment, aquaculture, and industrial process applications.

Key Features

  • Provides accurate dissolved oxygen measurement without oxygen consumption during testing.
  • No electrolyte replacement or membrane maintenance, reducing operating costs.
  • Factory calibrated with stable performance and typically requires calibration only once per year.
  • Built-in NTC temperature compensation improves measurement accuracy across varying conditions.
  • Supports MODBUS RS485 communication and dual 4–20 mA analog outputs for PLC/DCS integration.
  • IP68 optical sensor and IP65 transmitter designed for demanding industrial environments.

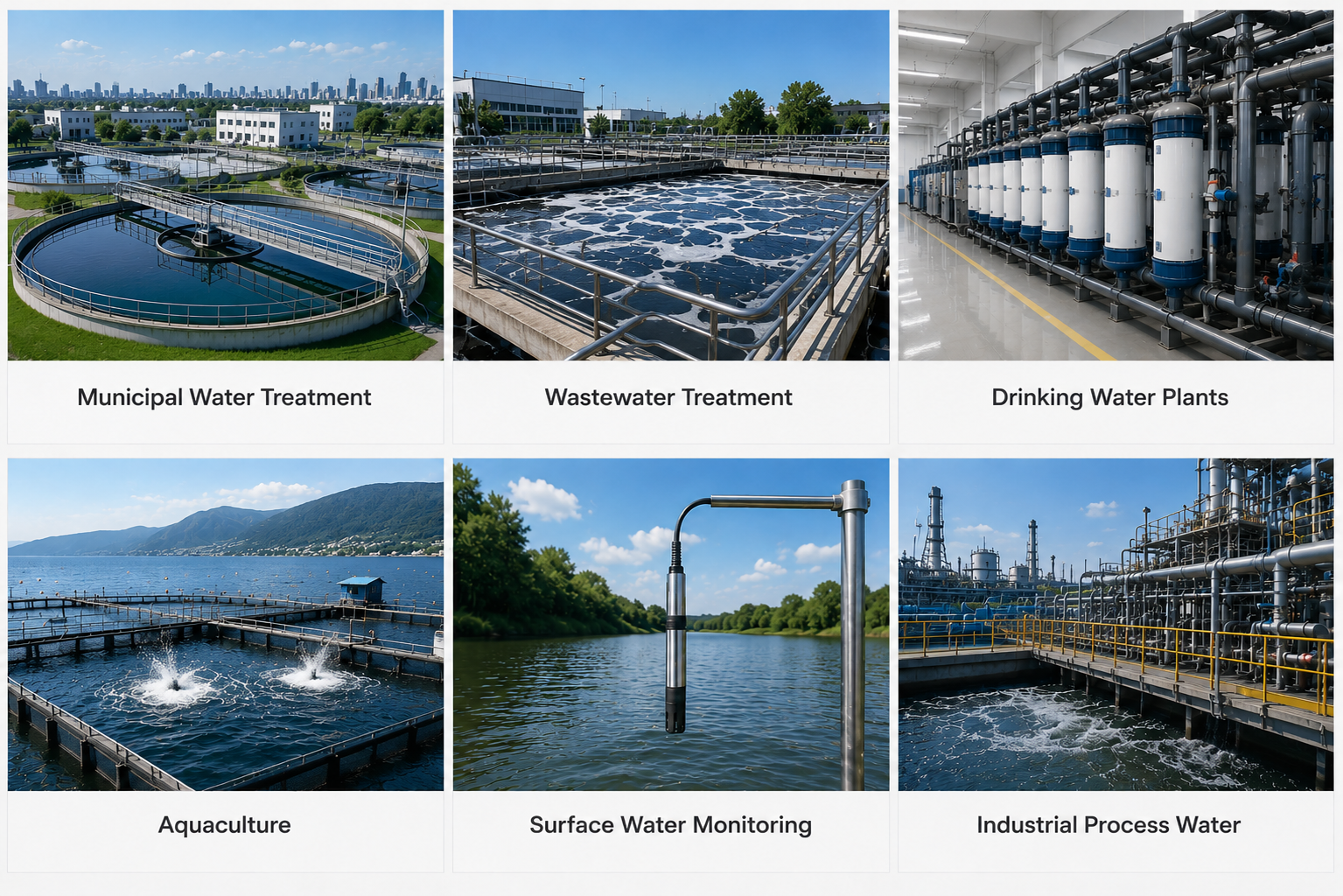

Applications

Technical Specifications

Range DO:0–20 mg/L (0–20 ppm) Temperature:32–113°F (0–45°C)
Accuracy DO:±3% of Reading Temperature:±0.9°F (±0.5°C)
Calibration Air Calibration / Sample Calibration
Output 2 × 4–20 mA
Communication MODBUS RS485
Power Supply 100–240 VAC (50/60 Hz) 9–36 VDC
Pressure Range ≤43.5 psi (≤0.3 MPa)
Protection Rating Sensor: IP68 / Transmitter: IP65
Cable Length Standard 32.8 ft (10 m), Extendable to 328 ft (100 m)

Downloads

User Manual
Datasheet

FAQ

What applications is the SUP-DO700 designed for?

The analyzer is widely used in municipal water treatment, wastewater treatment, aquaculture, drinking water production, industrial process water, and surface water monitoring.

Is the analyzer suitable for continuous online monitoring?

Yes. The SUP-DO700 is designed for 24/7 continuous operation in water treatment plants, aquaculture facilities, industrial processes, and environmental monitoring stations.

Can the analyzer be connected to a PLC or SCADA system?

Yes. The analyzer supports RS485 Modbus RTU communication and dual 4–20 mA outputs, making it easy to integrate with PLC, DCS, or SCADA systems.

Does the analyzer support alarm outputs?

Yes. The analyzer provides configurable relay outputs for high/low dissolved oxygen alarms and process control applications.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
