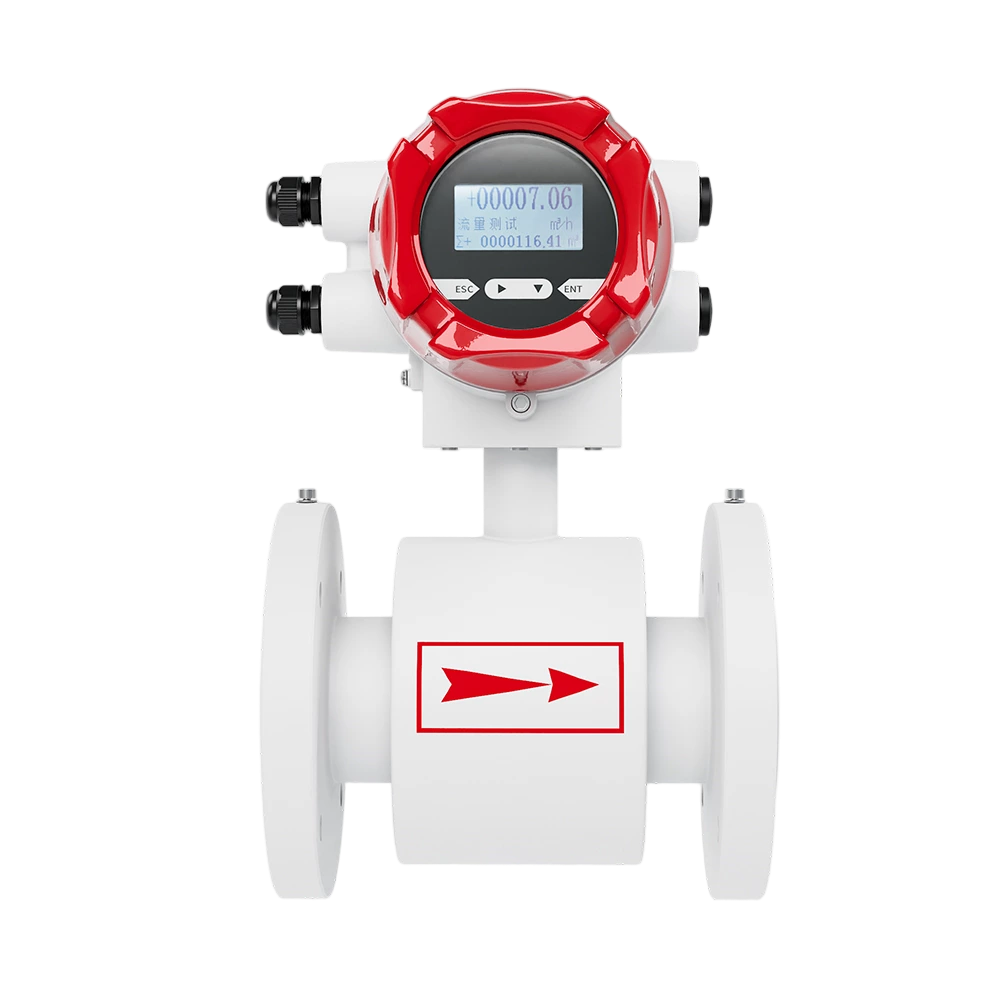

SUP-FMC400 Low Conductivity Electromagnetic flow meter
SUP-FMC400 Low Conductivity Electromagnetic flow meter
Regular price
$1,481.00 USD
Regular price
Sale price
$1,481.00 USD
Quantity
Introduction
Electromagnetic meters are a leading choice to deliver the performance and precision your applications require. These meters are applicable for all conductive liquids, such as water, acids, alkalis, slurries and many others. Typical applications are monitoring of liquids, filling, dosing and precise measurement in custody transfer.
Specification
Diameter nominal:
- DN10~DN1000
Nominal pressure:
- DN15 - DN250, PN ≤1.6MPa
- DN300 - DN1000, PN ≤1.0MPa
Accuracy:
- Measurement Value:±0.5%(Flow velocity 0.5m/s~5m/s)
Repetitiveness:
- 0.16%
Liner material:
- CR,UR,PTFE(F4),FEP(F46),and PTFE(PTA)
Electrode material:
- 316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt
Medium temperature:
- Polyurethane: -10…+60℃ ;
- PTFE/FEP: -10…+120℃;
- Chloroprene: -10…+70℃；
- PFA: -10…+120℃
Power supply:
- AC：85V~264V，50Hz~60Hz;
- DC:18V~28V
Communications:
- RS485,MODBUS-RTU
Ingress protection:
- IP65
Measuring principle
Mag meter works based on Faraday's law, when the liquid goes through the pipe at the flow rate of v with a diameter D, within which a magnetic flux density of B is created by an exciting coil, the following electromotive E is generated in proportion to flow speed v:
E=K×B×V×D
Where:
E－Induced electromotive force
K－Meter constant
B－Magnetic induction density
V－Average flow speed in cross-section of measuring tube
D－Inner diameter of measuring tube
