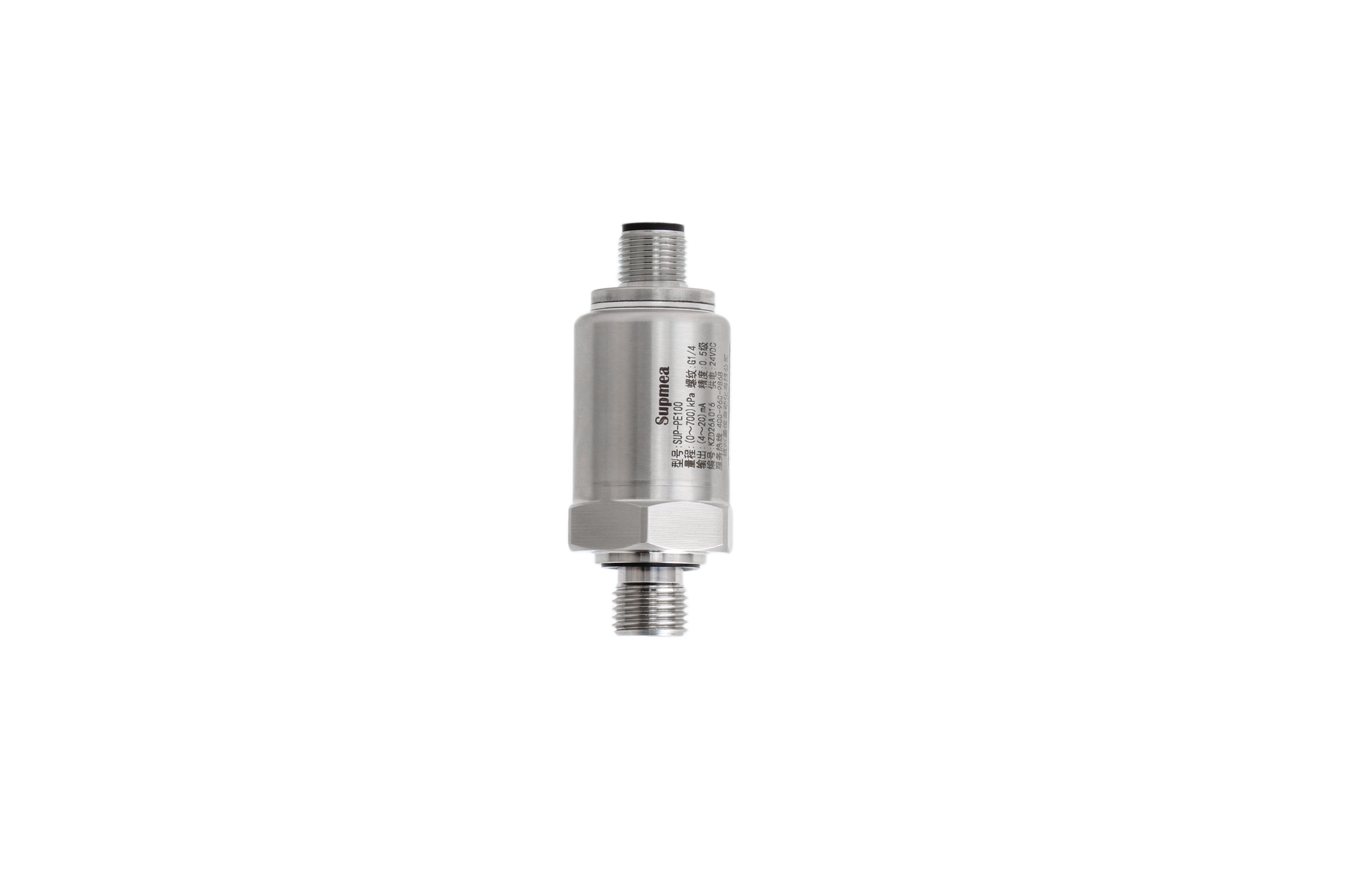

SUP-PE100 Compact Pressure Transmitter

SUP-PE100 Compact Pressure Transmitter

$103.00 USD
$103.00 USD
Sale Sold out
Shipping calculated at checkout.

Lead Time: 2-4 Weeks
View full details

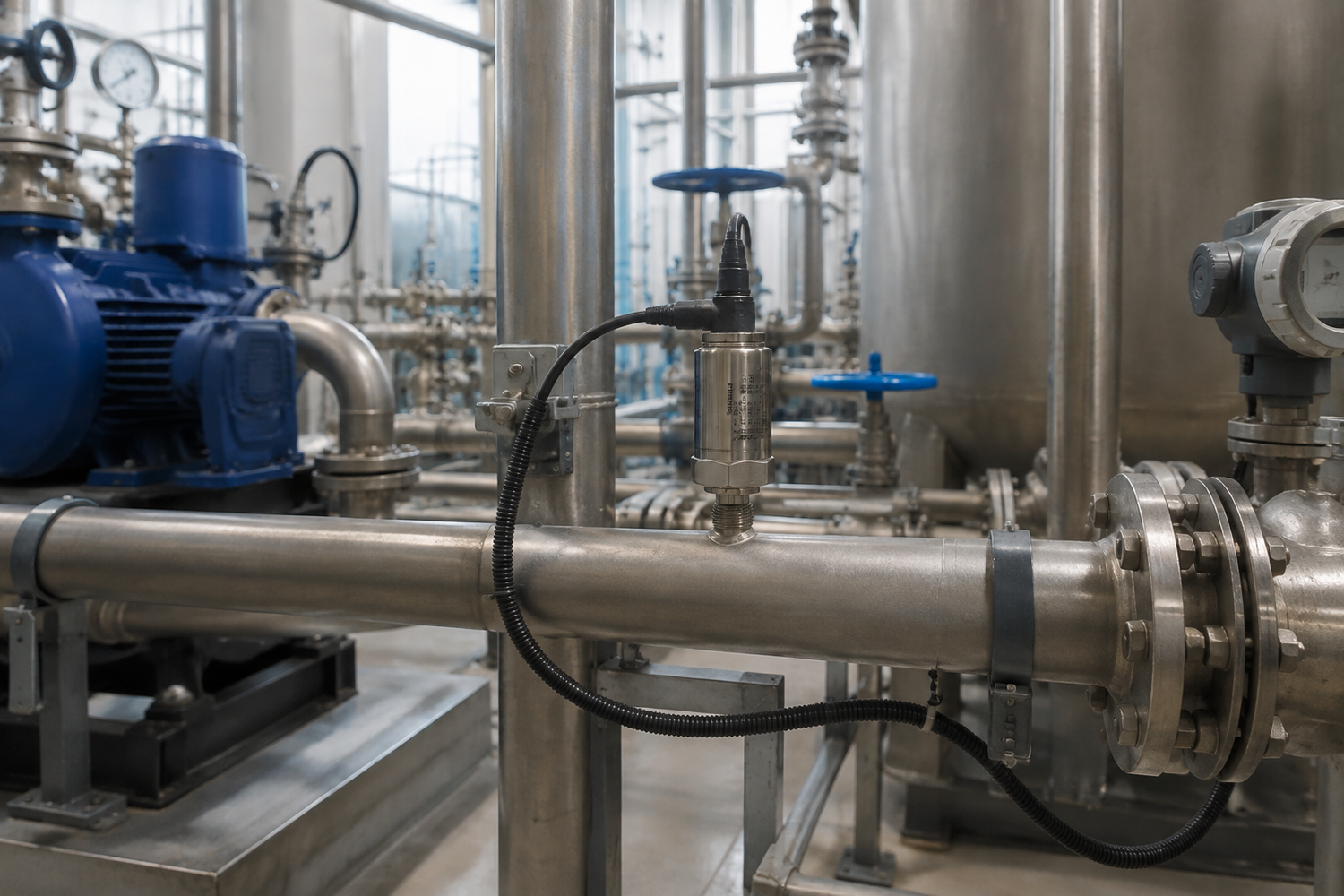

Product Overview

The SUP-PE100 compact pressure transmitter adopts a high-stability diffused silicon sensing element with advanced diaphragm and oil-filled isolation technology. It converts measured pressure signals into standard current, voltage, or RS485 communication outputs. With a compact stainless-steel design, excellent anti-interference capability, and reliable long-term stability, it is suitable for measuring gauge pressure, absolute pressure, and sealed reference pressure in various industrial applications.

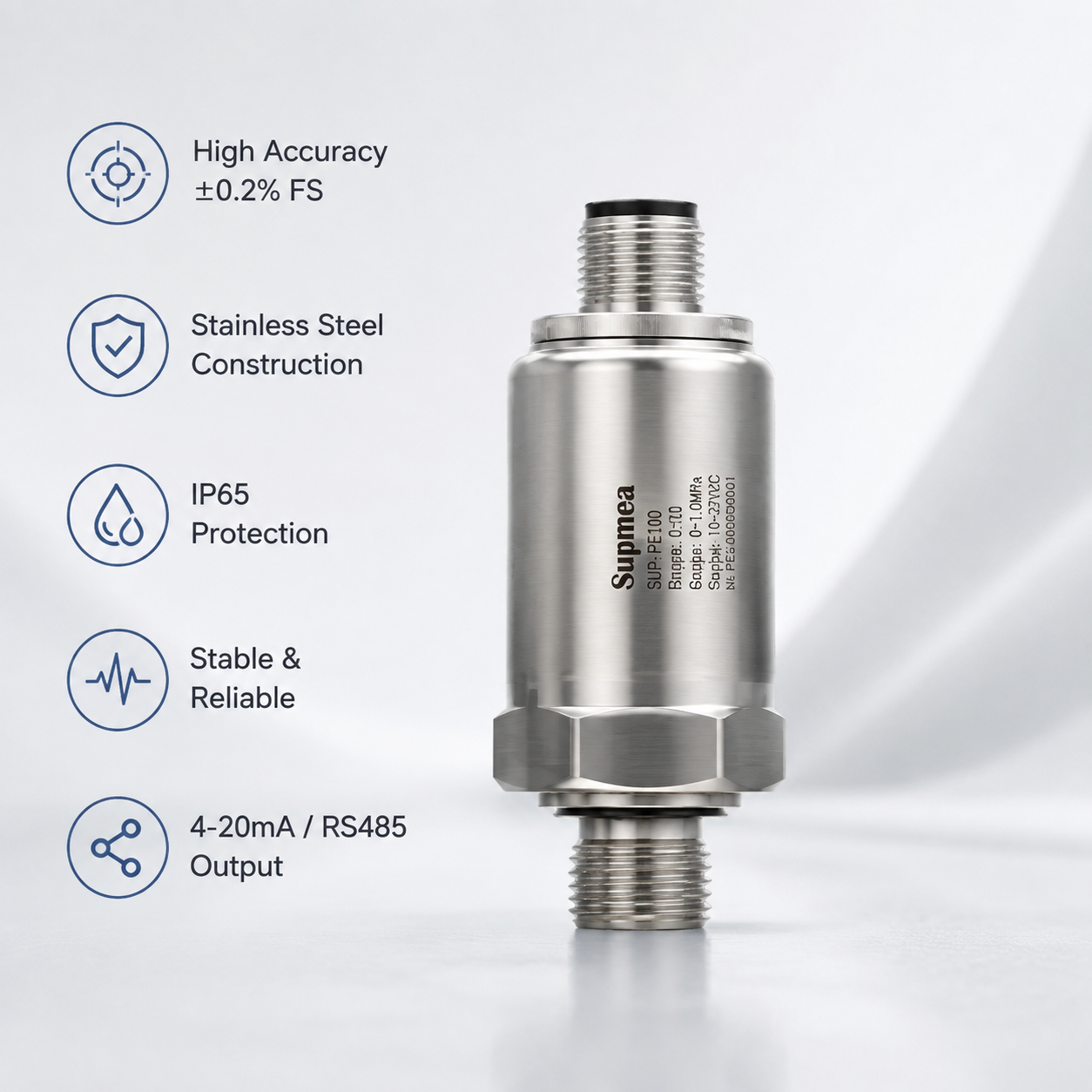

Key Features

  • Compact stainless-steel construction with a small and aesthetic design, suitable for space-limited installation environments.
  • Uses an imported diffused silicon sensing element to provide reliable pressure measurement performance and long-term stability.
  • Supports gauge pressure, absolute pressure, and sealed reference pressure measurement for different industrial requirements.
  • Supports 4–20 mA, voltage outputs, and RS485 Modbus communication options for easy integration with control systems.
  • Designed with vibration resistance and radio-frequency interference protection for stable operation in industrial environments.
  • Features a 316L stainless steel isolation diaphragm and all-stainless-steel construction for enhanced durability.

Applications

Technical Specifications

Measuring Range 0–5 mg/L; 0–20 mg/L
Detection Limit ≤0.030 mg/L
Accuracy ±3% of Reading
Resolution 0.001 mg/L
Response Time T90 ≤90 seconds
Output Signal Isolated 4–20 mA
Communication RS485 Modbus-RTU
Alarm Output 2-channel SPDT Relay, 250 VAC 3A
Power Supply 220 VAC / Optional 24 VDC
Pressure Resistance ≤72.5 psi
Operating Temperature 32–113°F (0–45°C)
Protection Rating IP54
Dimensions 12.6 × 11.8 × 7.9 in
Weight 16.5 lb

Downloads

User Manual
Datasheet

FAQ

What pressure types can the PE100 measure?

The PE100 supports gauge pressure, absolute pressure, and sealed reference pressure measurement.

Can the PE100 communicate with a control system?

Yes. The RS485 Modbus option allows direct communication with industrial control systems.

Is the PE100 suitable for harsh industrial environments?

Yes. The transmitter features stainless-steel construction, vibration resistance, and strong anti-interference capability for industrial applications.

What output signals are available?

It supports 4–20 mA, voltage outputs, and RS485 Modbus communication.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
