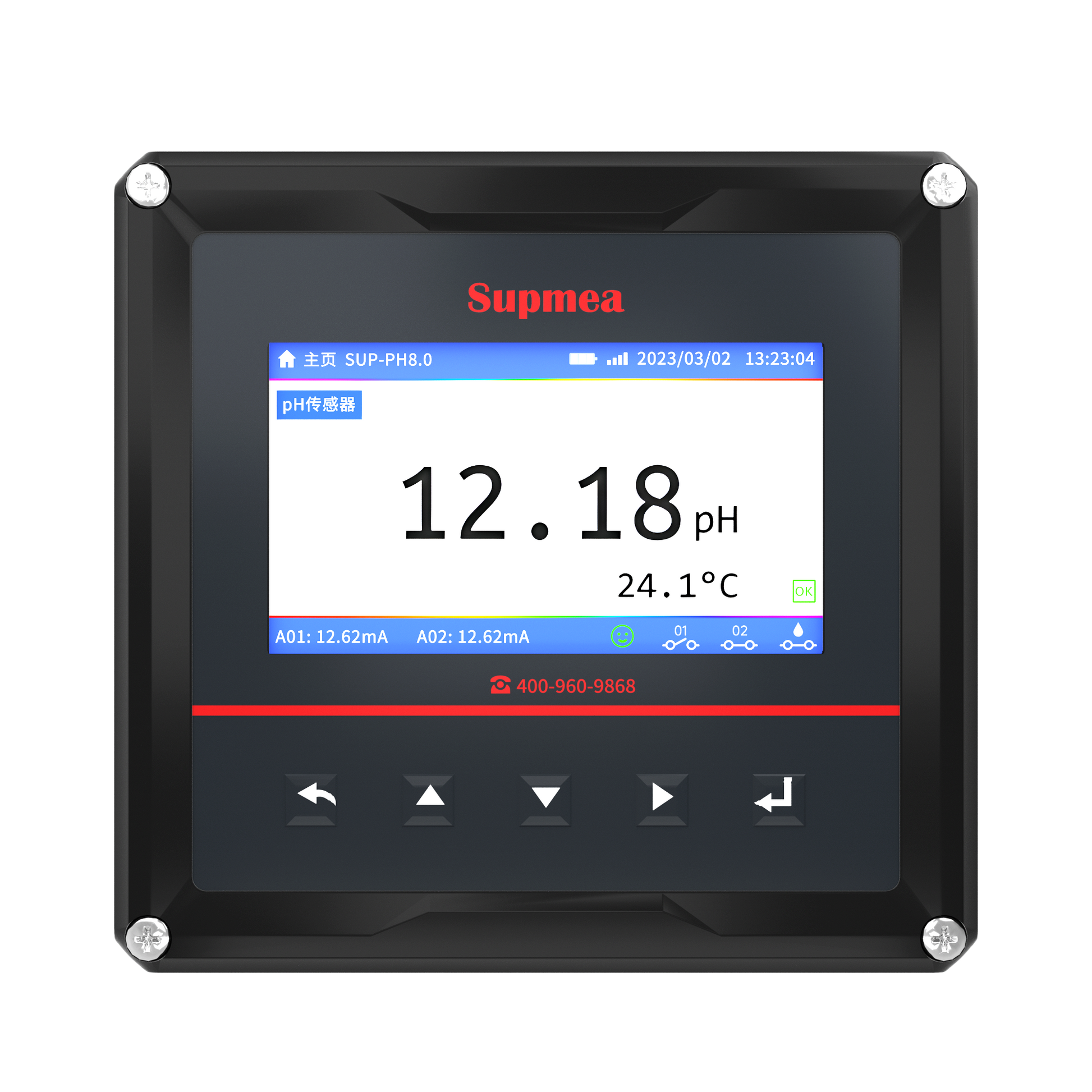

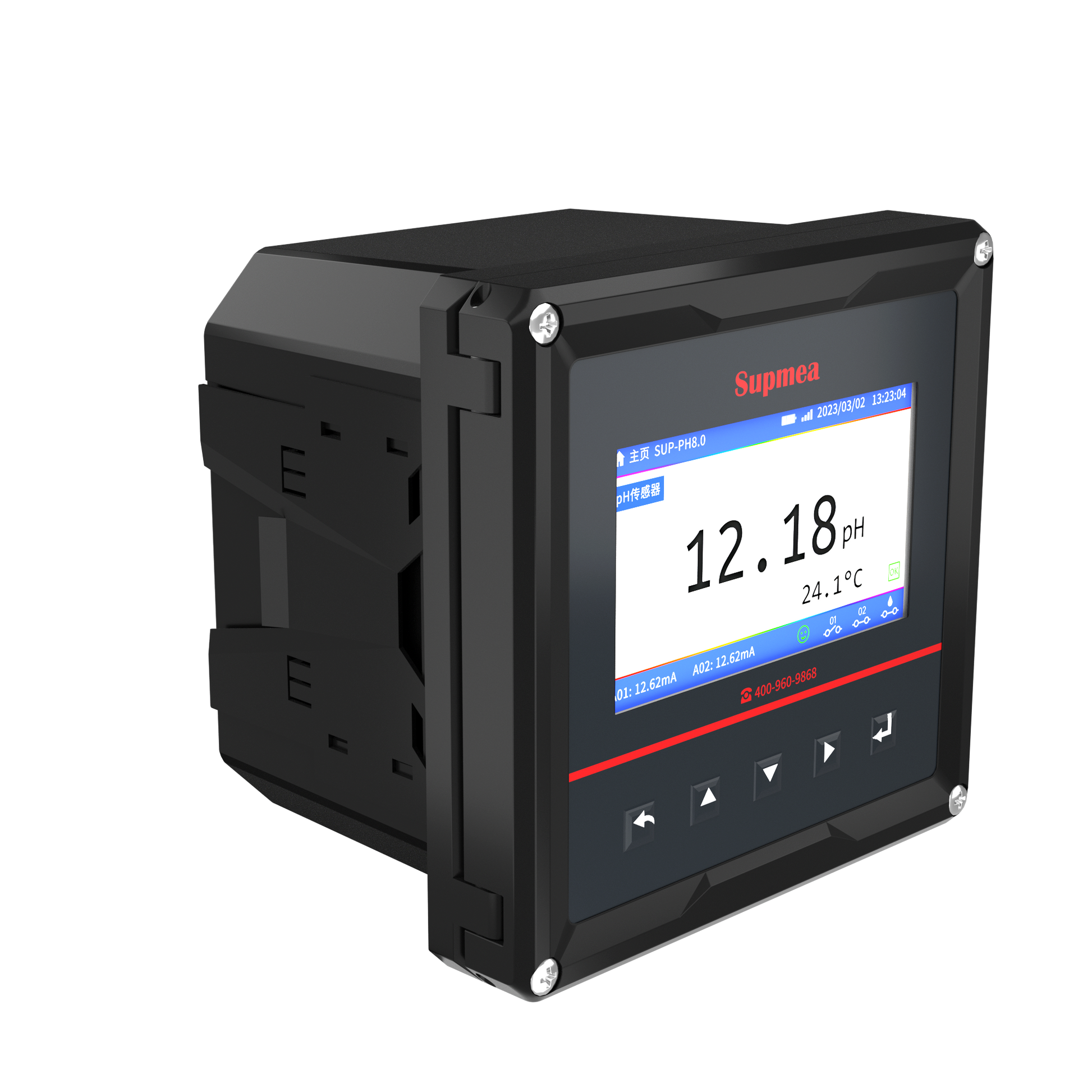

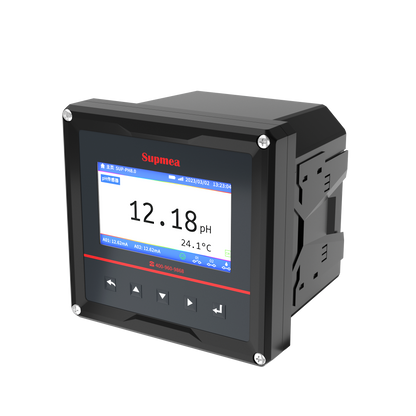

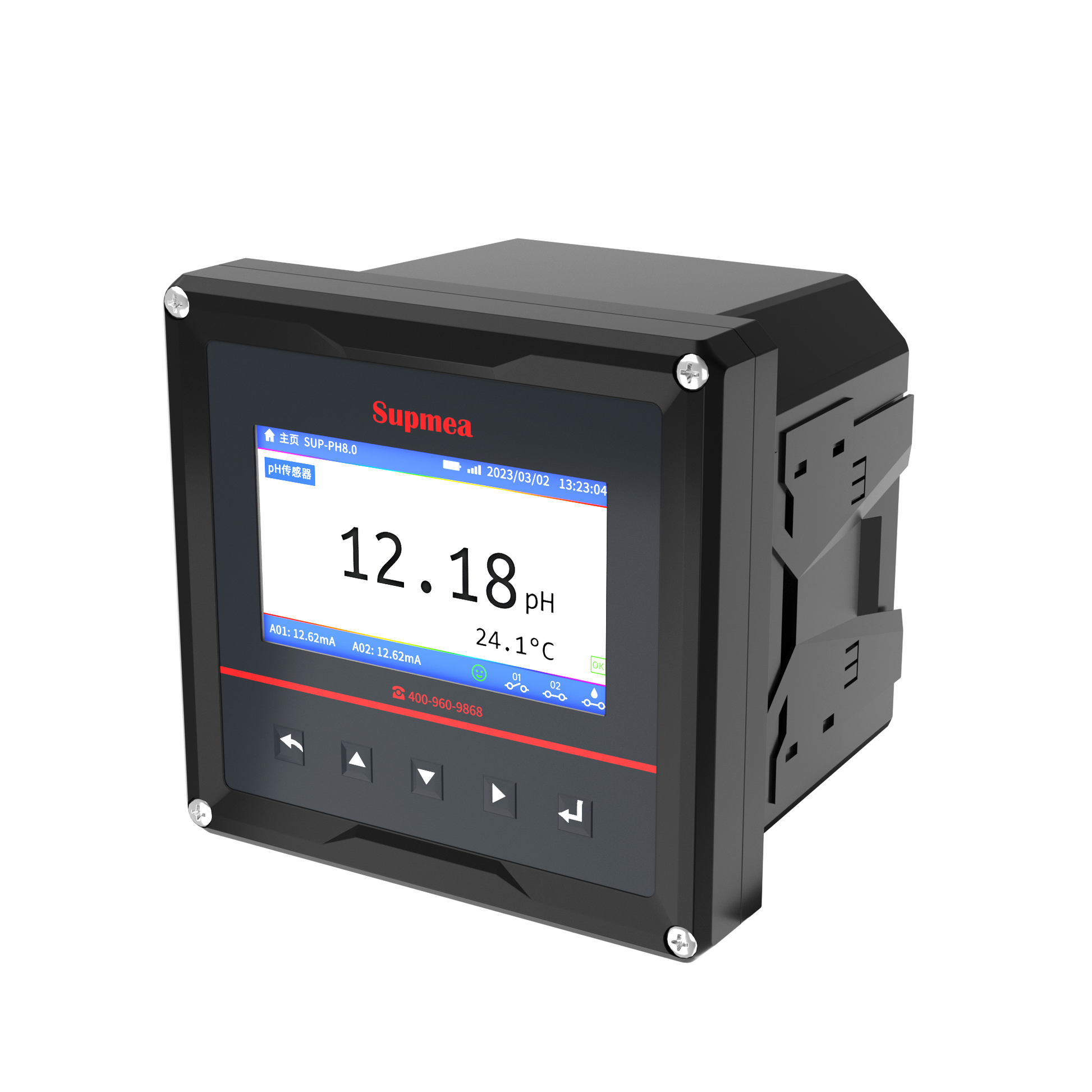

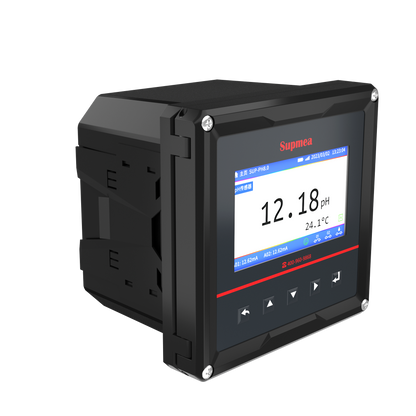

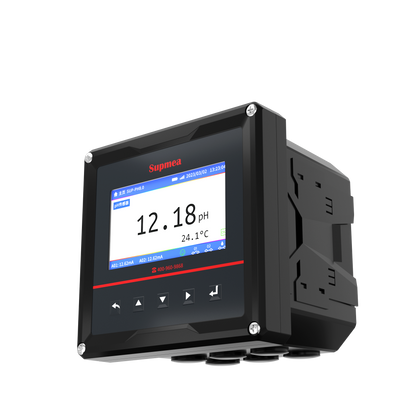

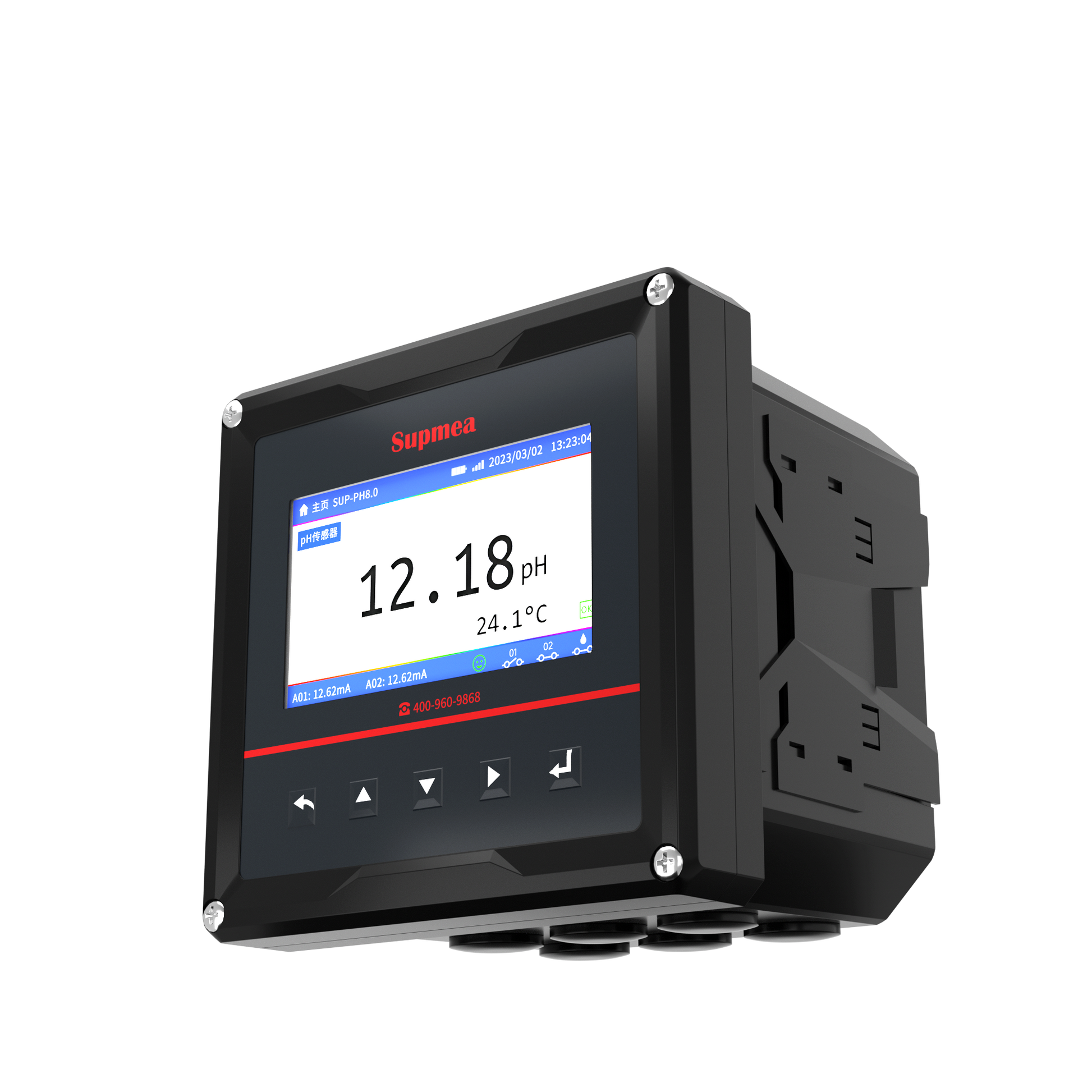

SUP-MDC-PH pH/ORP Controller

SUP-MDC-PH pH/ORP Controller

$1,429.00 USD
$1,429.00 USD
Sale Sold out
Shipping calculated at checkout.

Lead Time: 2-4 Weeks
View full details

Product Overview

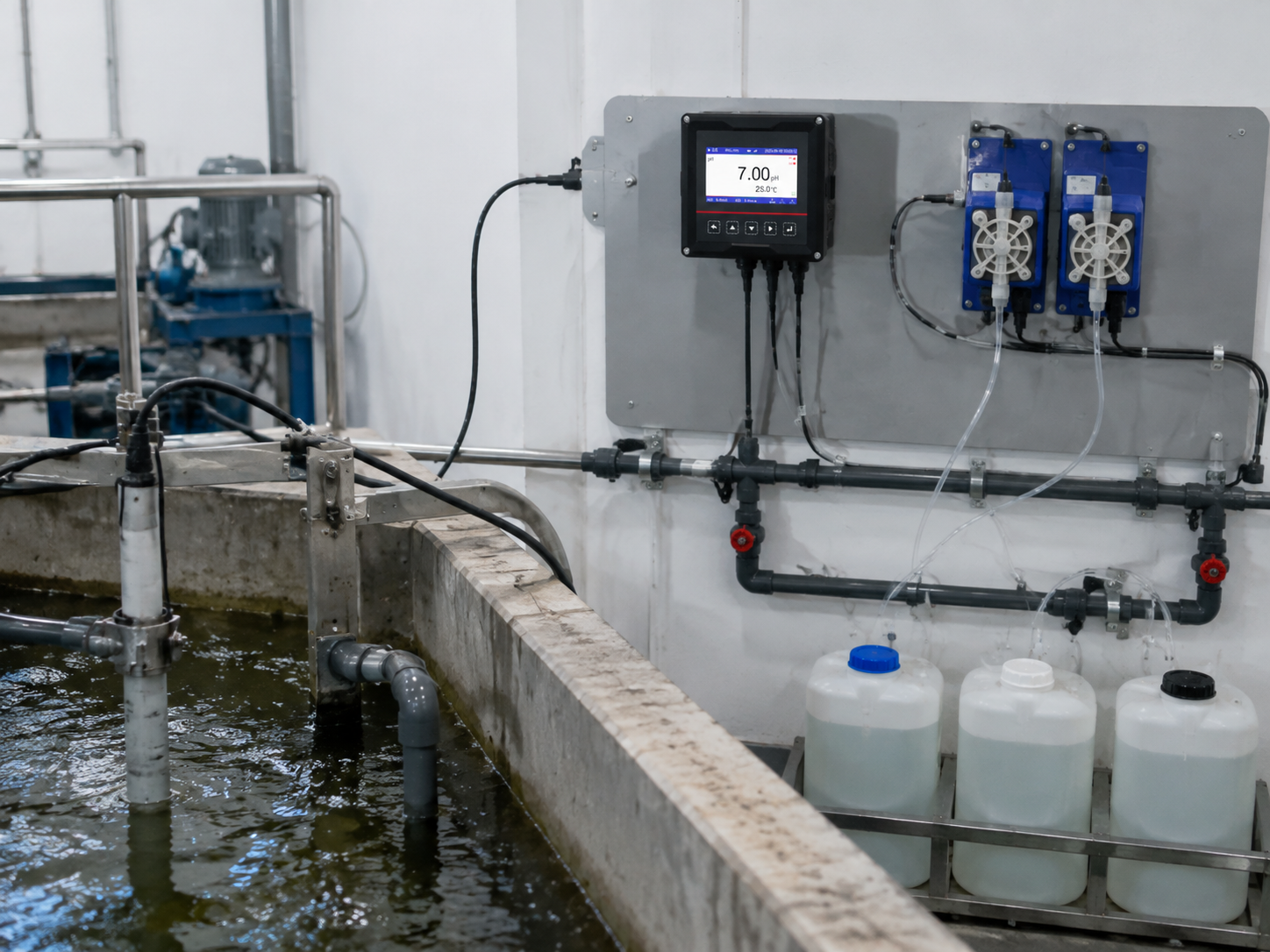

The SUP-MDC-PH is an intelligent online pH/ORP controller designed for continuous monitoring and process control applications. It supports both analog and digital sensors, providing accurate pH and ORP measurement with flexible communication and output options. The controller can transmit measurement data through isolated 4–20 mA outputs or RS485 Modbus RTU communication for integration with DCS, PLC, and industrial monitoring systems. It is widely used in wastewater treatment, chemical processing, pharmaceuticals, food & beverage, environmental monitoring, and other industrial water quality applications.

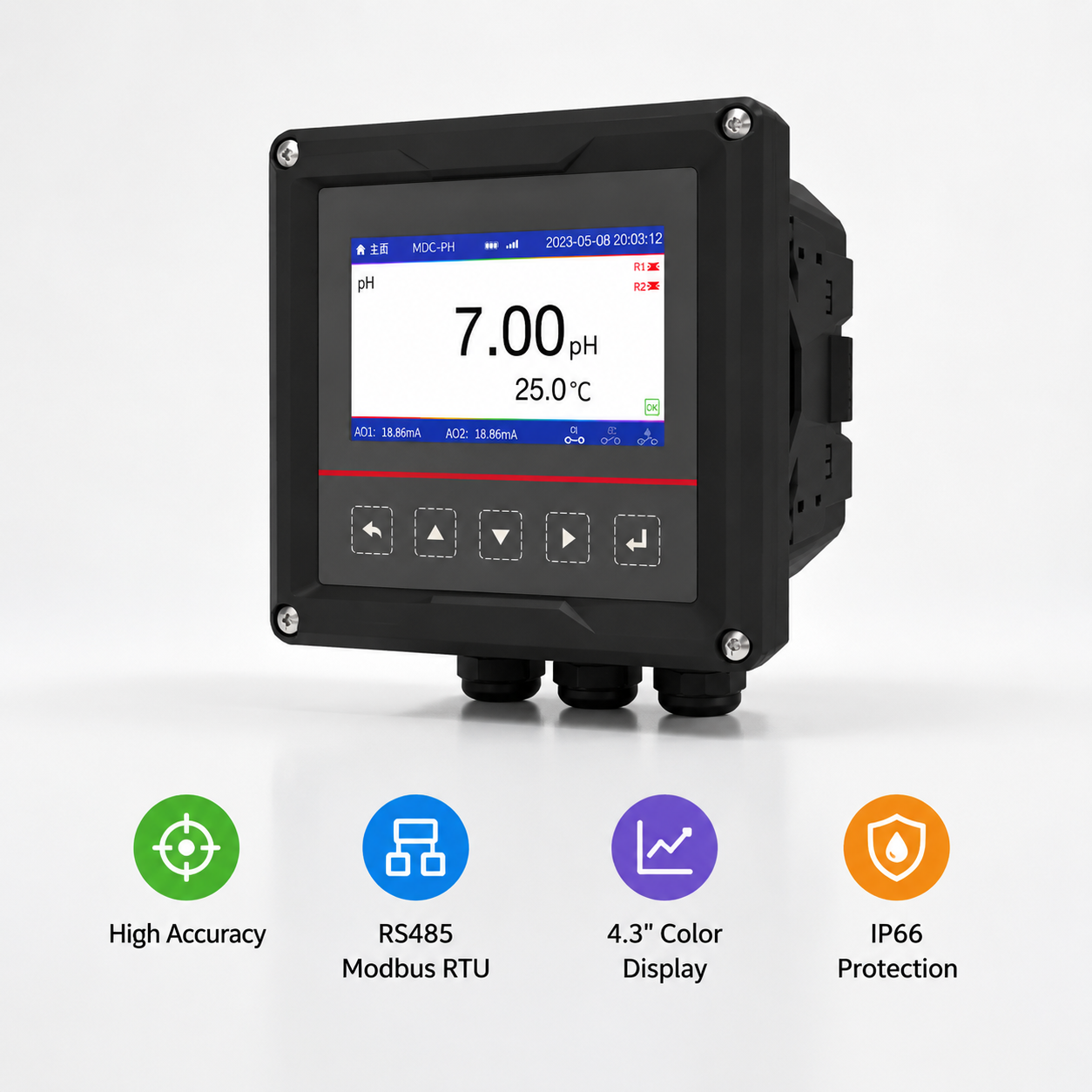

Key Features

  • Supports both analog and digital pH/ORP sensors, allowing flexible sensor selection and easier maintenance.
  • Provides reliable measurement of pH, ORP, and antimony electrode signals with high stability for industrial process monitoring.
  • Features a 4.3-inch full-view color display with digital display and real-time curve modes, supporting up to 1,000,000 data records.
  • Supports manual and automatic temperature compensation modes including linear, acid, base, and pure water compensation.
  • Supports high/low alarm settings with adjustable hysteresis and delay functions for process control applications.
  • IP66 protection rating with flame-retardant housing suitable for harsh industrial environments.

Applications

Technical Specifications

Measured Variables pH / ORP / Antimony
Measuring Range PH: -2.00 to 16.00 pH ORP: -2000 to 2000 mV
Accuracy PH: ±0.02 pH ORP: ±2 mV
Resolution 0.01 pH / 1 mV
Input Impedance ≥10¹² Ω
Temperature Range 14 to 266°F (-10 to 130°C)
Current Output 2 isolated channels, 0/4–20 mA
Communication RS485 Modbus RTU
Alarm Output 3-channel SPST relay (2 alarms + 1 cleaning)
Power Supply 85–265 VAC, 50/60 Hz or 21.6–26.4 VDC
Power Consumption ≤28 W
Protection Rating IP66
Operating Temperature 32 to 140°F (0 to 60°C)

Downloads

User Manual
Datasheet

FAQ

What parameters can the SUP-MDC-PH measure?

The controller can measure pH, ORP, and antimony electrode signals, depending on the connected sensor type.

Can this controller work with both analog and digital sensors?

Yes. The SUP-MDC-PH supports both analog and digital sensor connections for flexible system configuration.

How does the controller handle temperature compensation?

It supports manual compensation and automatic compensation modes including linear, acid, base, and pure water compensation.

Is the controller suitable for outdoor or harsh environments?

Yes. With an IP66 enclosure and industrial-grade design, it is suitable for demanding process environments.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
