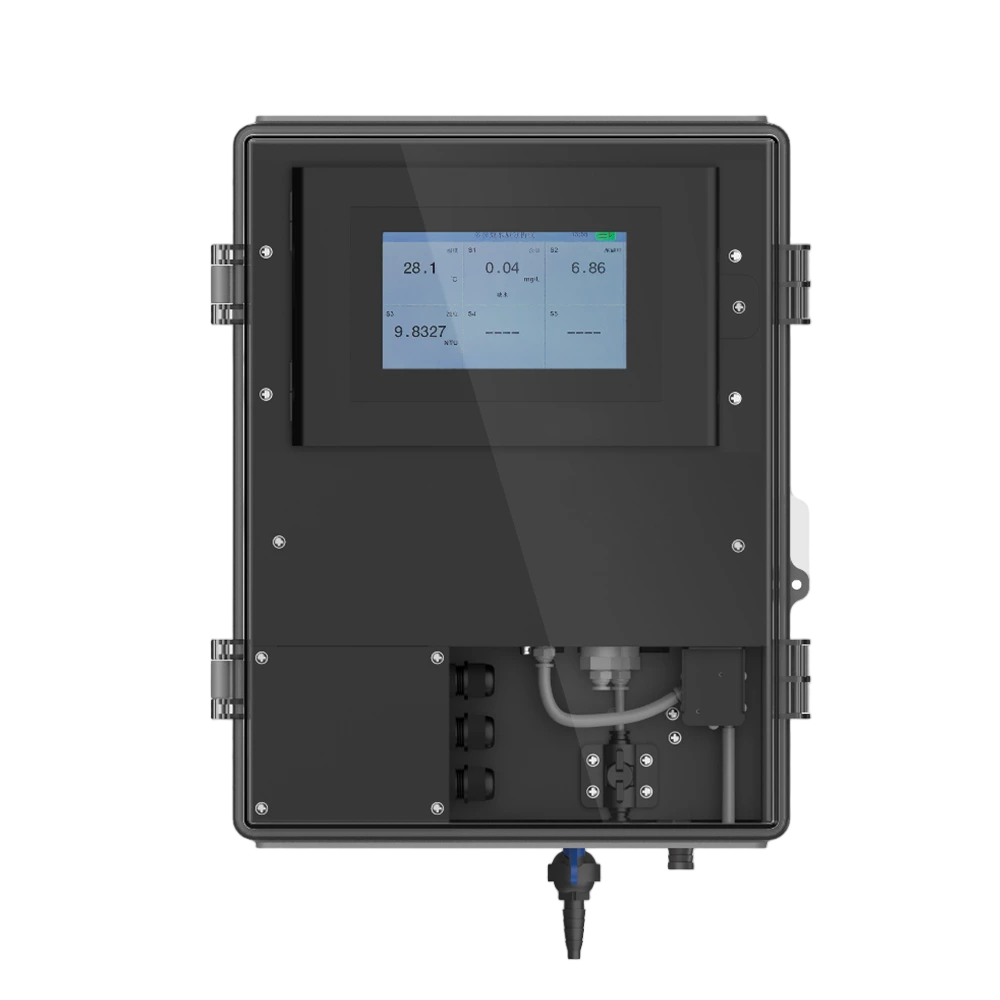

SUP-MDX100 Multi-parameter Water Quality Analyzer

SUP-MDX100 Multi-parameter Water Quality Analyzer

$2,581.00 USD
$2,581.00 USD
Sale Sold out
This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.
View full details

Introduction

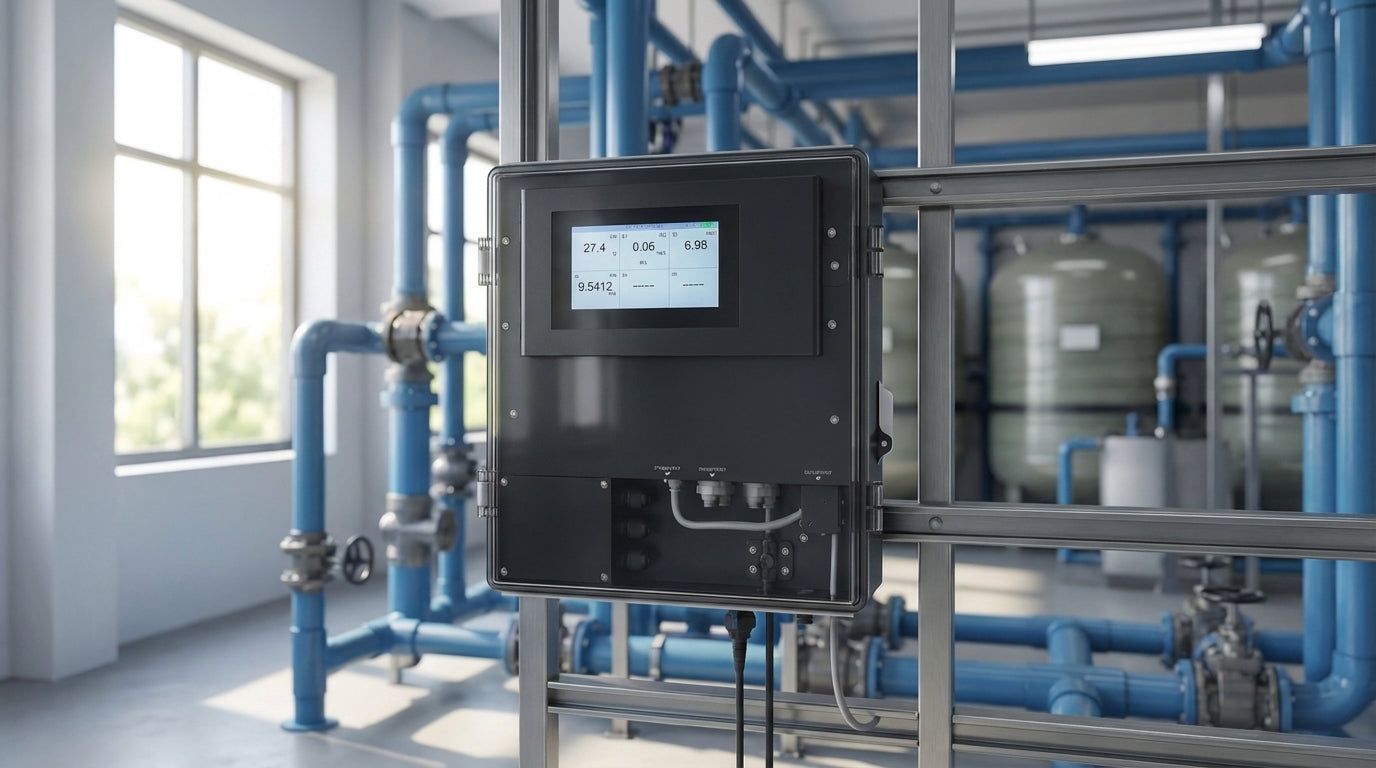

The Multi-Parameter Water Quality Online Analyzer is a reliable solution for continuous water quality monitoring across a wide range of applications. It is commonly used in urban and rural water treatment plants, municipal water supply networks, secondary water supply systems, end-user outlets, swimming pools, large-scale purification facilities, and drinking water distribution. By delivering real-time, accurate data, it plays a key role in process control, water resource management, and public health supervision.

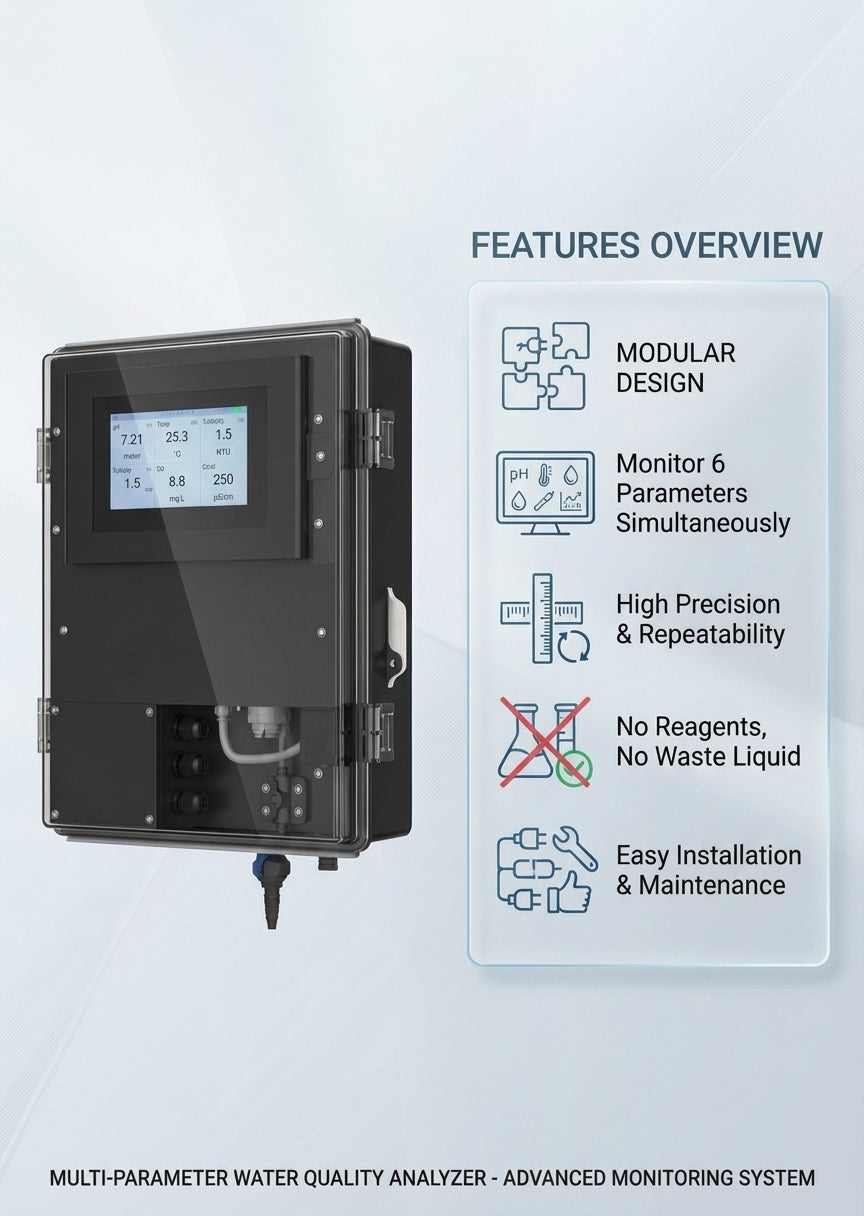

This analyzer can measure multiple parameters simultaneously, including pH, turbidity, residual chlorine (chlorine dioxide, ozone), temperature, conductivity (TDS, salinity), and ORP. Monitoring options can be tailored to specific project needs, allowing users to add or remove parameters as required.

Specification

System

Cabinet dimensions：

  • 380mm × 541mm × 200mm

Power supply：

  • 220VAC, <20W24VDC, operating current <260 mA (when not cleaning),operating current <1150 mA (when cleaning)

Transmitter output：

  • (4–20) mA, adjustable, supports up to 4 simultaneous outputs

Communication output：

  • RS-485 interface, Modbus RTU communication protocol

Response time：

  • ≤30s (residual chlorine < 2.5 min)

Operating temperature：

  • (0–55)°C

Storage temperature：

  • Instrument: (-25–55)°C

Inlet flow rate：

  • (0.6–1.5) L/min

Installation method：

  • Wall-mounted installation

Material：

  • Overall Housing: ABS

Temperature

Measurement method

  • Thermoresistance method

Measurement range：

  • (0~75)℃

Accuracy：

  • ±0.5℃

Resolution：

  • 0.1 ℃

Repeatability：

  • ±0.5℃

pH

Measurement method：

  • Electrochemical method

Measurement range：

  • (0~14) pH

Accuracy：

  • ±0.1 pH

Resolution：

  • 0.01 pH

Repeatability：

  • ±0.1 pH

ORP

Measurement method：

  • Electrochemical method

Measurement range：

  • (-1500 ~ 1500) mV

Accuracy：

  • ±20 mV

Resolution：

  • 1 mV

Repeatability：

  • ±10 mV

Conductivity

Measurement method：

  • Two-pole graphite electrode method, four-pole graphite electrode method

Measurement range：

  • (0 ~ 20,000) μS/cm

Accuracy：

  • ±2% F.S.

Resolution：

  • 0.1 μS/cm

Repeatability：

  • ±5%

Turbidity

Measurement method:

  • 90° infrared light scattering method

Measurement range:

  • (0 ~ 100) NTU

Accuracy:

  • ±5% or ±0.1 NTU (whichever is greater)

Resolution:

  • 0.001 NTU (≥10 NTU)/0.0001 NTU (<10 NTU)

Repeatability:

  • ±5% or ±0.1 NTU (whichever is greater)

Residual chlorine (chlorine dioxide, ozone)

Measurement method:

  • Three-electrode constant potential method

Measurement range:

  • (0 ~ 5) mg/L

Accuracy:

  • ±0.1 mg/L or ±10% (whichever is greater)

Resolution:

  • 0.001 mg/L

Repeatability:

  • ±0.1 mg/L or ±10% (whichever is greater)
