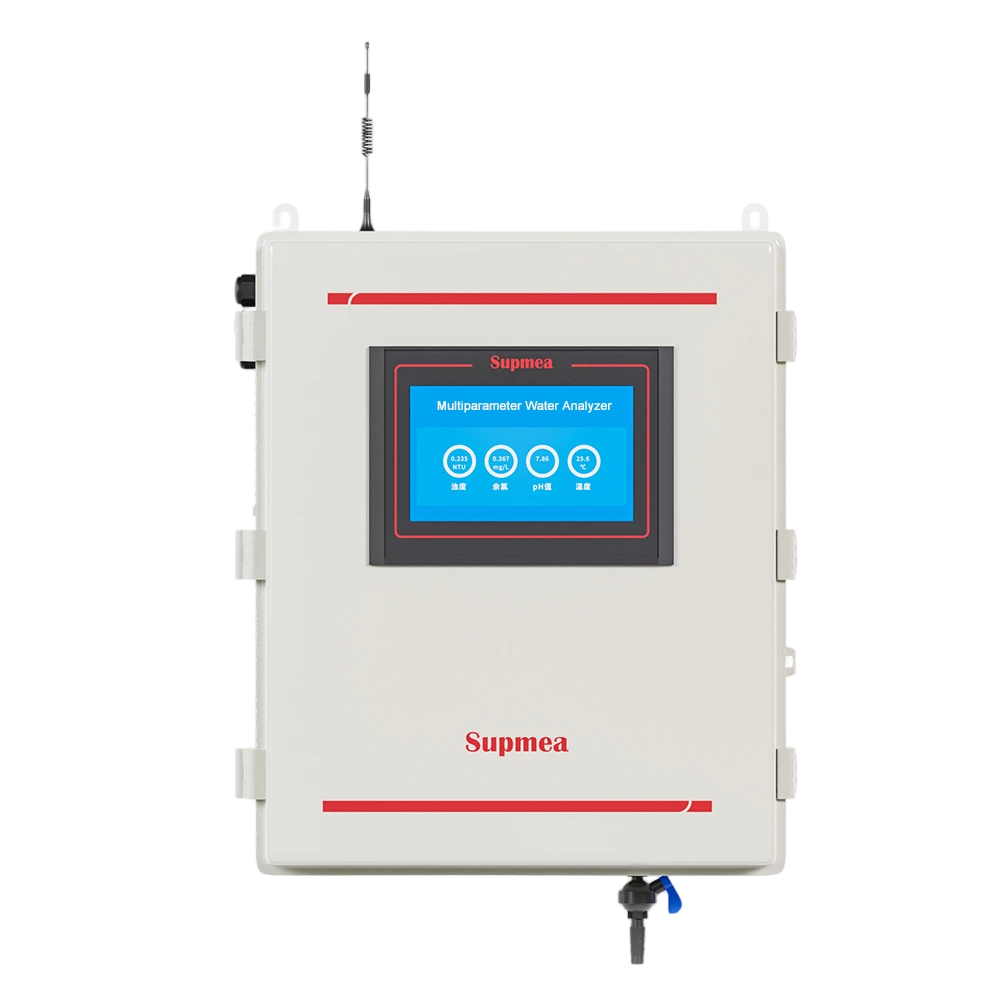

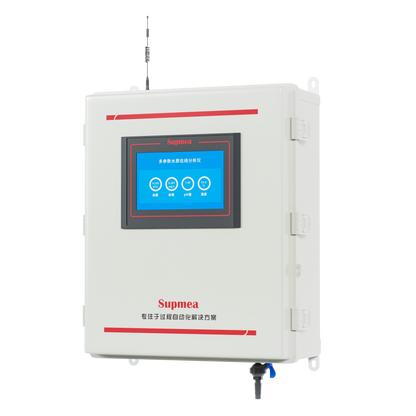

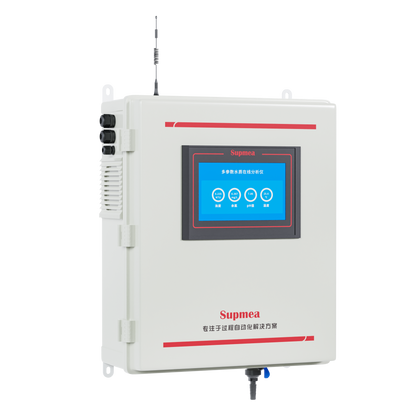

SUP-MPP500 Economy Multi-parameter Water Analyzer

SUP-MPP500 Economy Multi-parameter Water Analyzer

$4,086.00 USD
$4,086.00 USD
Sale Sold out
This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.
Measurement parameter
View full details

Introduction

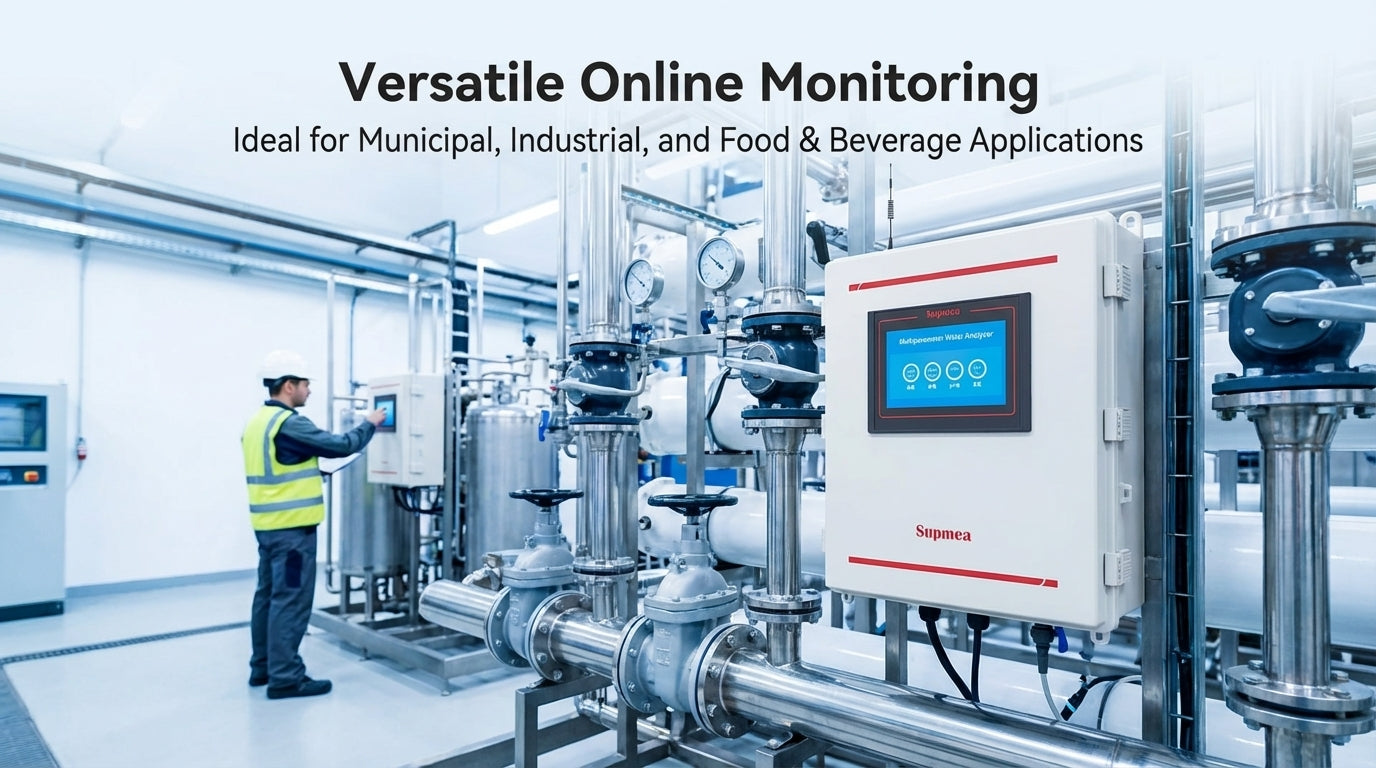

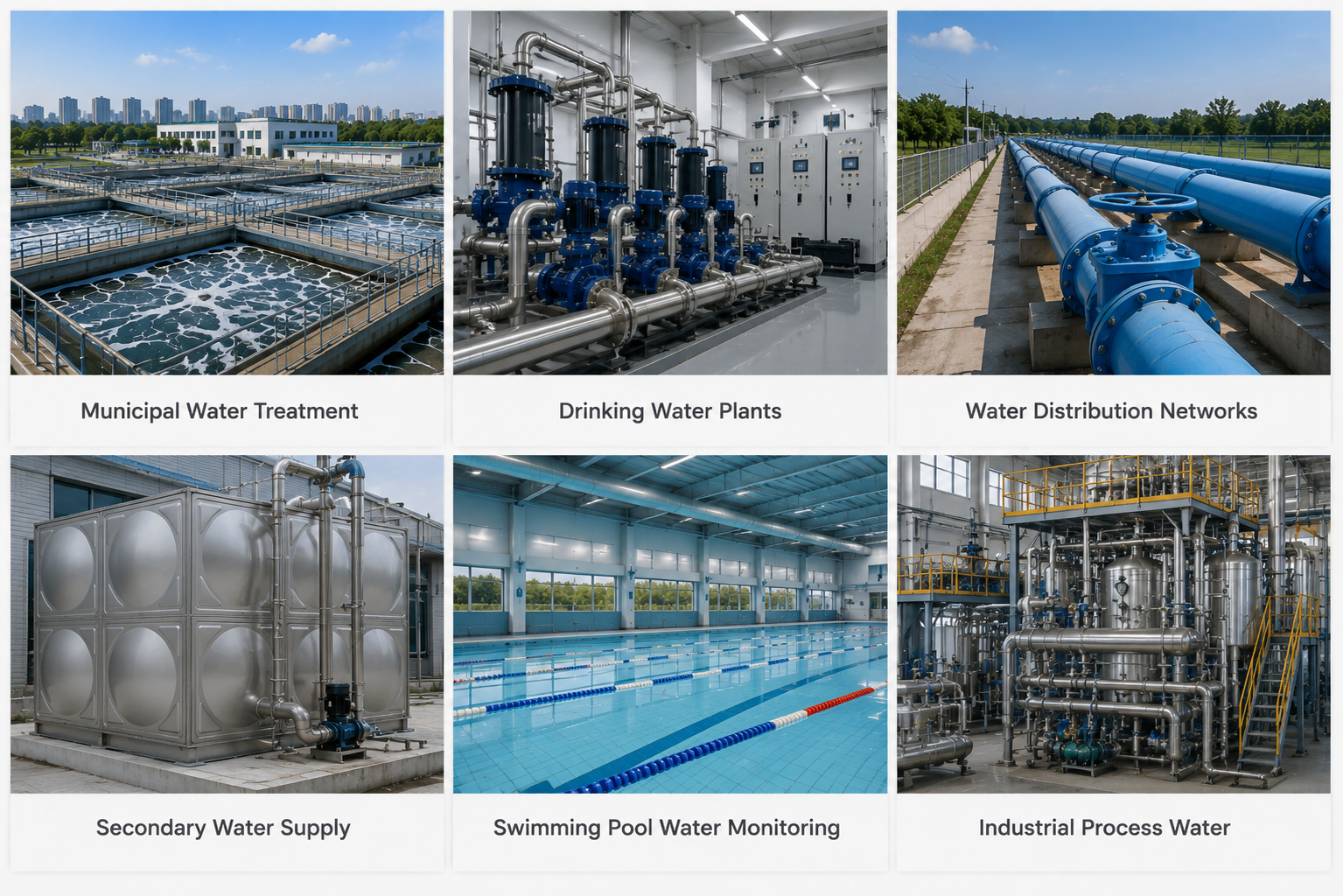

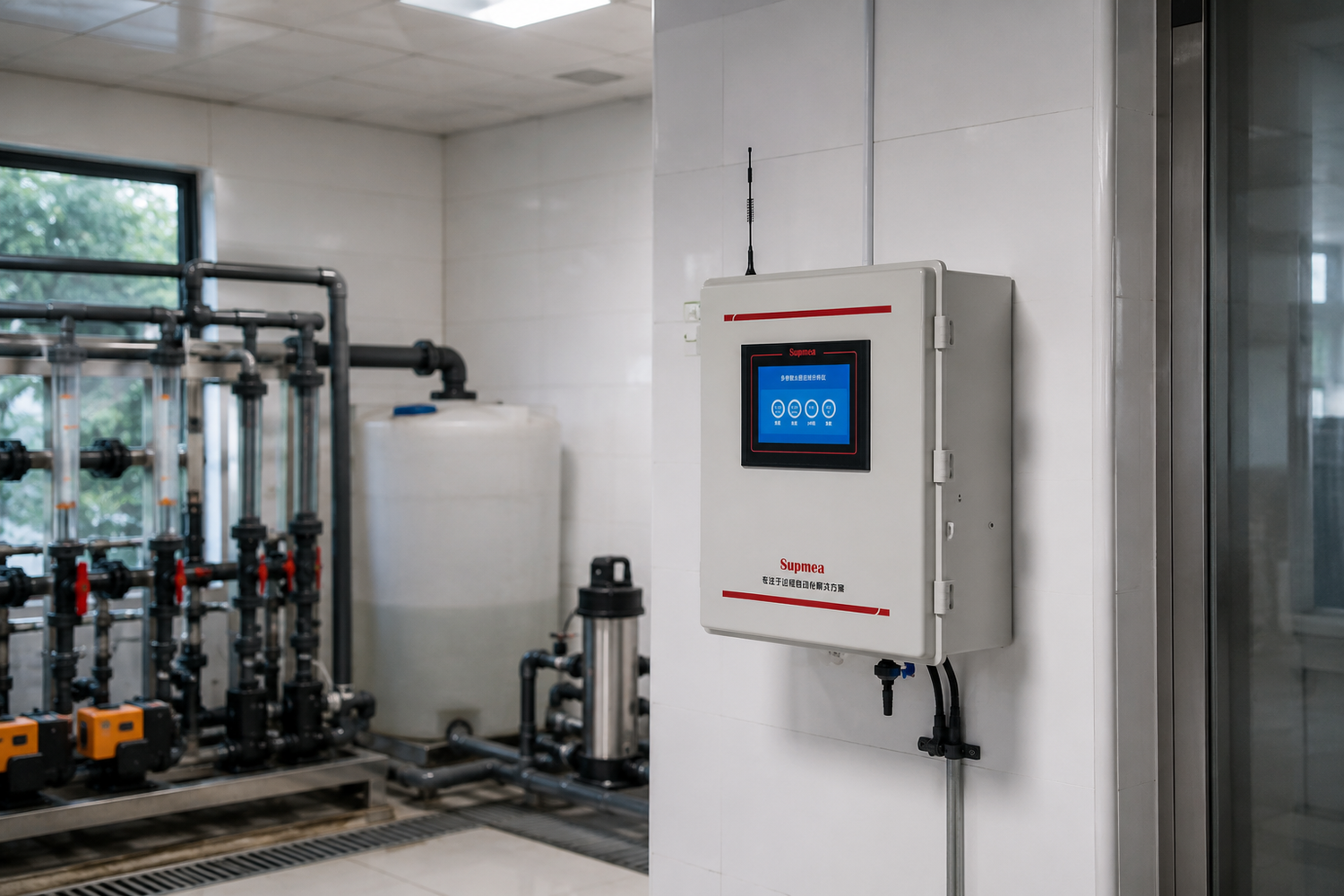

The Multi-Parameter Online Water Quality Analyzer is a new generation of drinking water quality monitoring equipment independently developed and manufactured by our company. This equipment can be widely used for online water quality monitoring in urban or rural water treatment plants, water transmission pipelines, secondary water supply systems, user terminals, indoor swimming pools, large water purification equipment, and direct drinking water systems. It is an indispensable online analysis device in the fields of water plant production process control, water conservancy and water affairs management, and hygiene supervision.

The Multi-Parameter Online Water Quality Analyzer is available in both standard and custom versions. The standard version monitors parameters such as turbidity, residual chlorine/chlorine dioxide/ozone, pH,temperature, conductivity/TDS, and ORP. Meanwhile, the custom version allows for the deletion of parameters and customization of the instrument's appearance, logos, system names, and other items based on customer needs.

Specification

System

Power supply:

  • (220±22)VAC, (50±1)Hz

Power consumption:

  • ≤30W

Cabinet size;

  • 500mm*400mm*200mm

Weight:

  • about 12Kg

Storage temperature:

  • 4℃~+50℃

Operating temperature:

  • 0℃~+50℃

Working humidity:

  • ≤95%RH (no condensation)

Inlet water flow:

  • 0.03~0.06m³/h

Inlet pressure:

  • < 0.3MPa

Display:

  • Color Touch Screen

Communication interface:

  • RS-485 Modbus RTU communication protocol + wireless interface

Turbidity

Range:

  • 0-1NTU / 0-20NTU / 0-100NTU / 0-2000NTU

Resolution:

  • 0-1NTU / 0-20NTU / 0-100NTU:0.001NTU0-2000NTU:0.01NTU

Detection limit:

  • 0.005 NTU

Zero drift:

  • ≤1.5%

Indication stability:

  • ≤1.5%

Accuracy:

  • 2% or ±0.02NTU; 10% or 0.5NTU (0-2000NTU)

Repeatability:

  • ≤1%

Response time:

  • T90≤120s

Recommended:

maintenance period:

  • 3-12 months (depending on the water quality on site)

Residual chlorine/chlorine dioxide/ozone

Range:

  • 0-5mg/L / 0-20mg/L

Resolution:

  • 0.01mg/L

Detection limit:

  • 0.05mg/L

Accuracy:

  • ±0.05mg/L or ±5% (DPD comparison error ±10%)

Response time:

  • ≤120 seconds

Recommended maintenance period:

  • 1-3 months or weekly calibration, 3-6 months to replace consumables

pH /ORP(optional)

Range:

  • 0-14 pH, ±2000 mV (ORP)

Resolution:

  • 0.01 pH, ±1 mV (ORP)

Accuracy:

  • ±0.1 pH, ±20 mV (ORP) or ±2%

Repeatability:

  • ±0.1 pH, ±10 mV (ORP)
  • Response time:
    ≤60 seconds

Recommended maintenance period:

  • 1-3 months

Temperature

Range:

  • 0℃ - 50℃

Resolution:

  • 0.1℃

Accuracy:

  • ±0.5℃

Repeatability:

  • ≤0.5℃

Response time:

  • ≤25 seconds

Recommended maintenance period:

  • 12 months

Conductivity (Optional)

Range:

  • 0-20000uS/cm；  0-20uS/cm（Pure water sensor

Accuracy:

  • ±0.8%F.S； ±3%F.S（Pure water sensor）

Resolution:

  • 0.01uS/cm

Repeatability:
≤0.4%FS

  • Response time:
    ≤30 seconds

Recommended maintenance period:

  • 3-6 months
