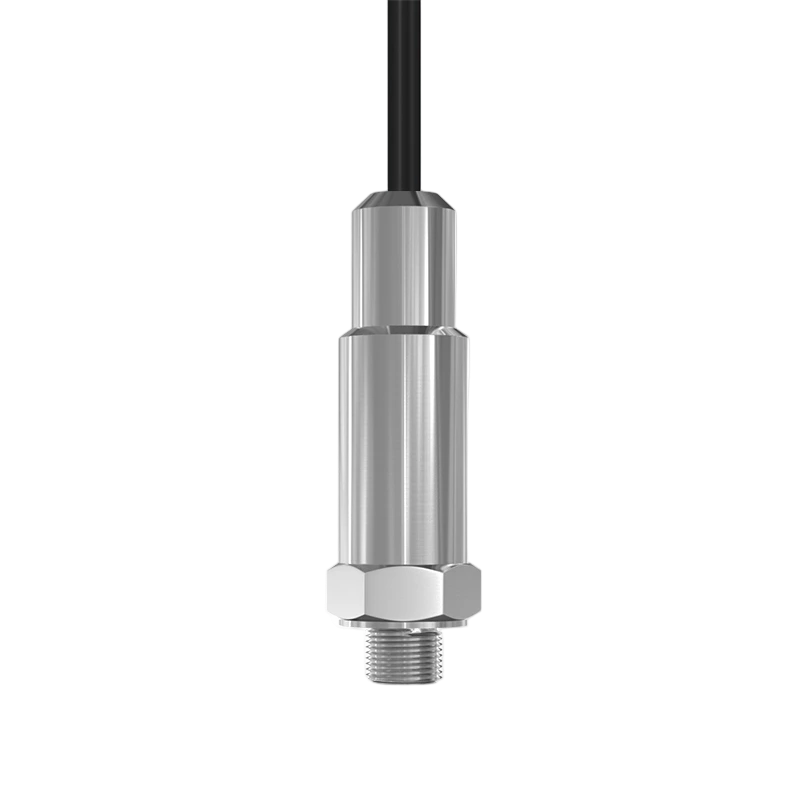

SUP-PD500 Pressure and temperature transmitter

SUP-PD500 Pressure and temperature transmitter

$415.00 USD
$415.00 USD
Sale Sold out
This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.
View full details

Introduction

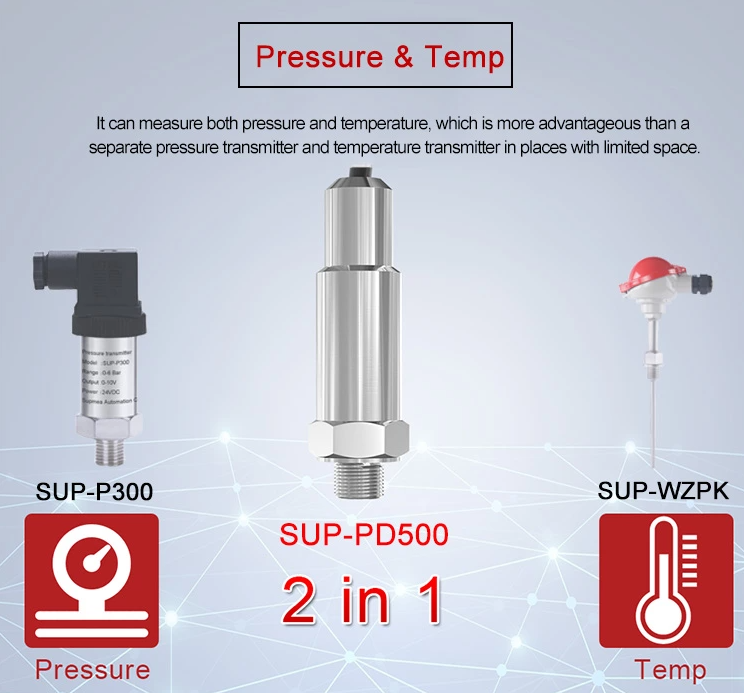

SUP-PD500 is a high performance range of combination pressure and temperature transmitters. Dual 4-20mA outputs make it very powerful and efficient transmitters especially where space is at a premium or it is essential to measure both parameters in the exact same location.

Datasheet

Specification

Measure range:

  • 0～600 kPa… 60MPa0～+80 ℃

Pressure type:

  • Gauge pressure

Accuracy:

  • Pressure: 0.5% F.S; Temp: 2.5% F.S

Output signal:

  • 4...20mA; 1...5V; 0...10V; 0...5V; RS485

Temperature compensation:

  • -10...60 ℃

Medium temperature:

  • -30...65 ℃

Overload pressure:

  • 150%FS

Long-term stability:

  • ± 0.2%FS/year

Power supply:

  • 12-30V

Ingress protection:

  • IP68

Why Choose SUP-PD500?

  • Integrated Pressure & Temperature Measurement
    Dual-parameter measurement in one device reduces installation cost and simplifies system design.
  • Efficient Dual Output
    Simultaneous 4–20 mA outputs for pressure and temperature improve data acquisition efficiency.
  • High Accuracy & Long-Term Stability
    Engineered for precise and consistent performance, ensuring reliable operation over time.
  • Wide Application Range
    Suitable for various industrial environments, including water treatment, oil & gas, and chemical processing.
  • Rugged & Reliable Design
    Robust construction with high protection rating for stable performance in harsh conditions.
  • Easy Integration
    Compatible with multiple output signals, enabling seamless connection to control systems.
