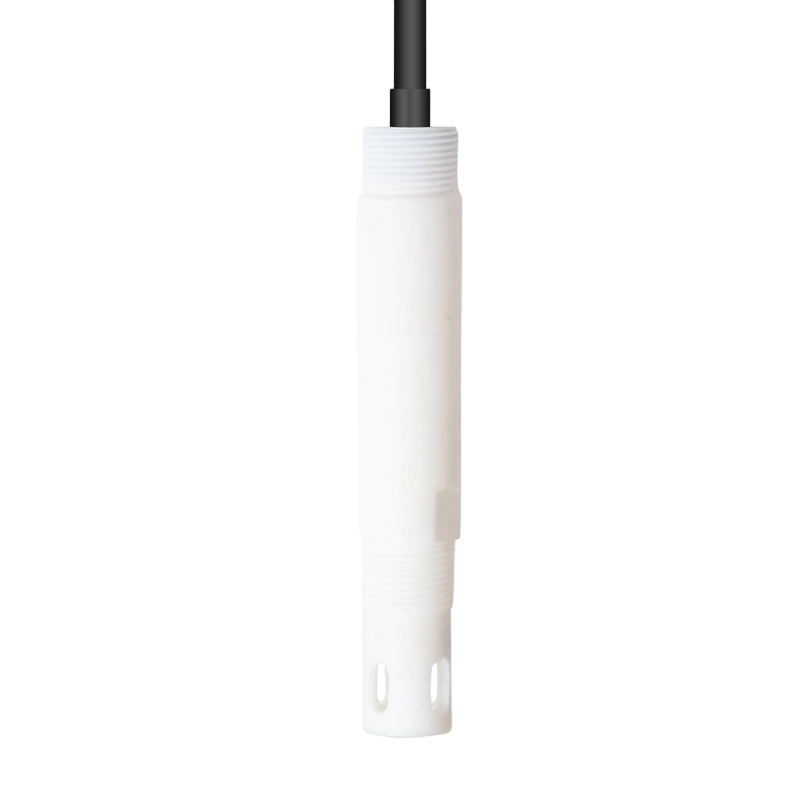

SUP-PH5013A PTFE pH sensor for corrosive medium

SUP-PH5013A PTFE pH sensor for corrosive medium

$272.00 USD
$272.00 USD
Sale Sold out
This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.
Temperature Compensation Type
Cable Length
View full details

Introduction

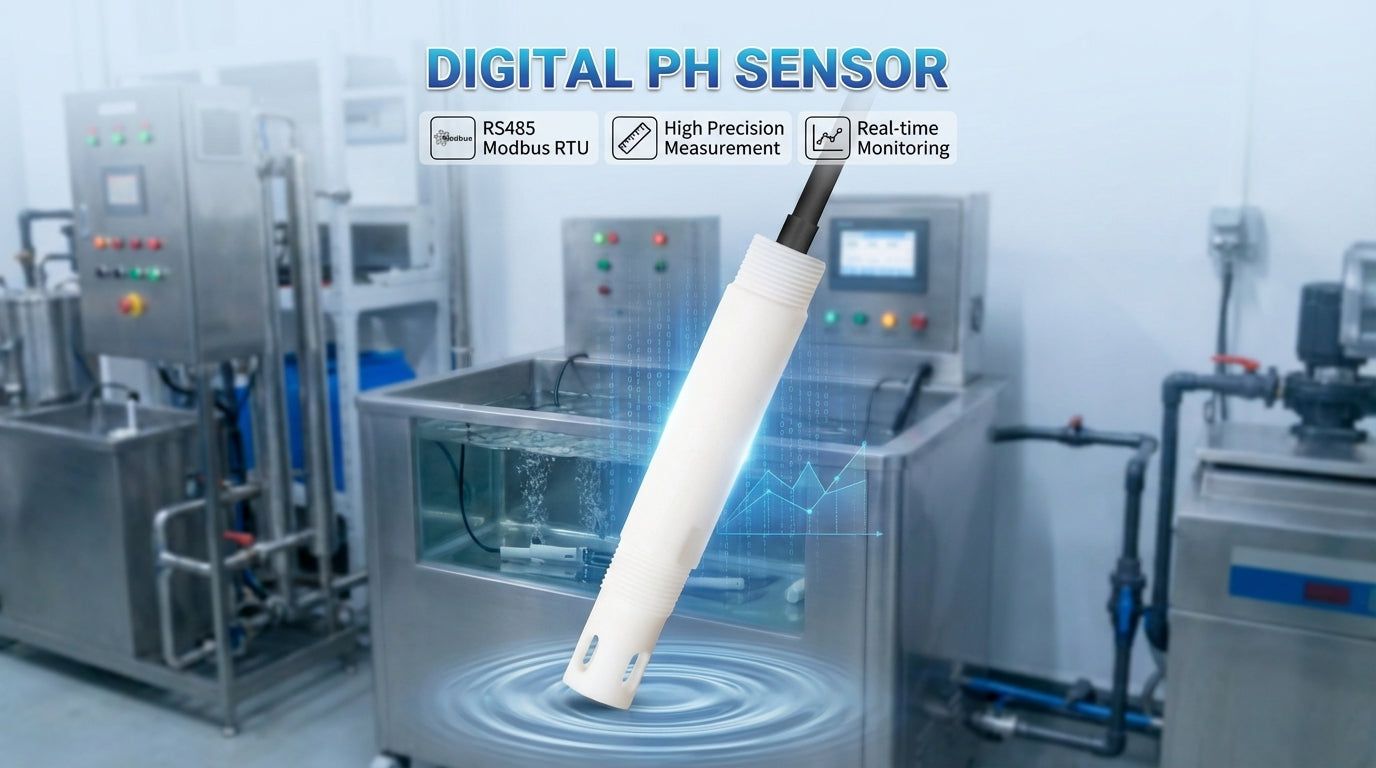

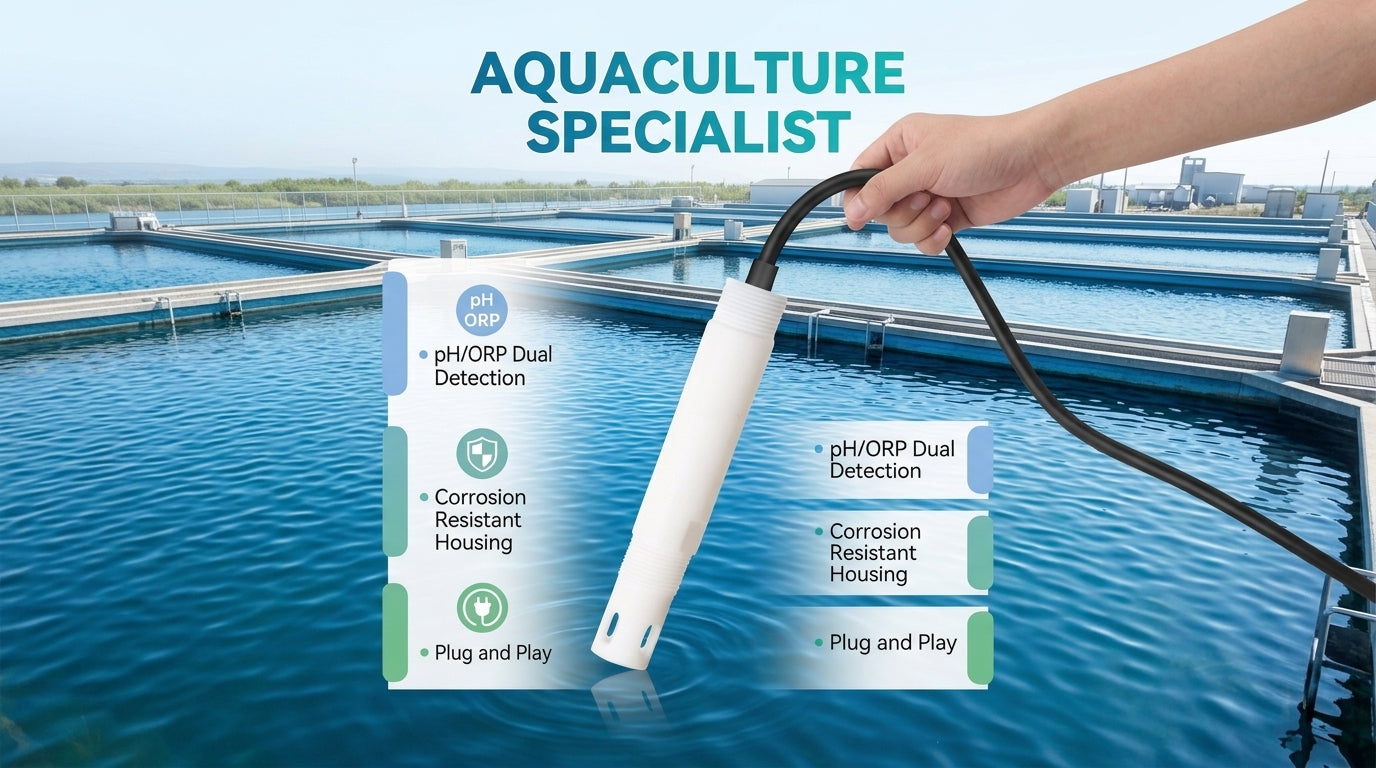

The pH digital sensor designed by our company for the aquaculture industry, with a digital interface (RS485*1), can be used to measure changes in the pH/ORP value of the aqueous system within the range

It has a standard RS485 Modbus RTU protocol interface function, which can communicate with the host computer remotely

Specification

Measurement range:

  • 0 ~ 14 pH

Zero potential point:

  • 7 ± 0.5 pH

Slope:

  •   > 95%

Internal impedance:

  • 150-250 MΩ(25℃)

Practical response time:

  • < 1 min

Installation size:

  • Upper and Lower 3/4NPT Pipe Thread

Temp compensation:

  • NTC 10 KΩ/Pt100/Pt1000

Heat resistance:

  • 0 ~ 60℃ for general cables

Pressure resistance:

  • 3 bar at 25 ℃

Connection：

  •  Low-noise cable
