SUP-RN5000/RN6000/RN6500 Industrial paperless recorder

$1,321.00 USD

Sale Sold out

This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.

Input Channel 8 16 24 48

View full details

Introduction

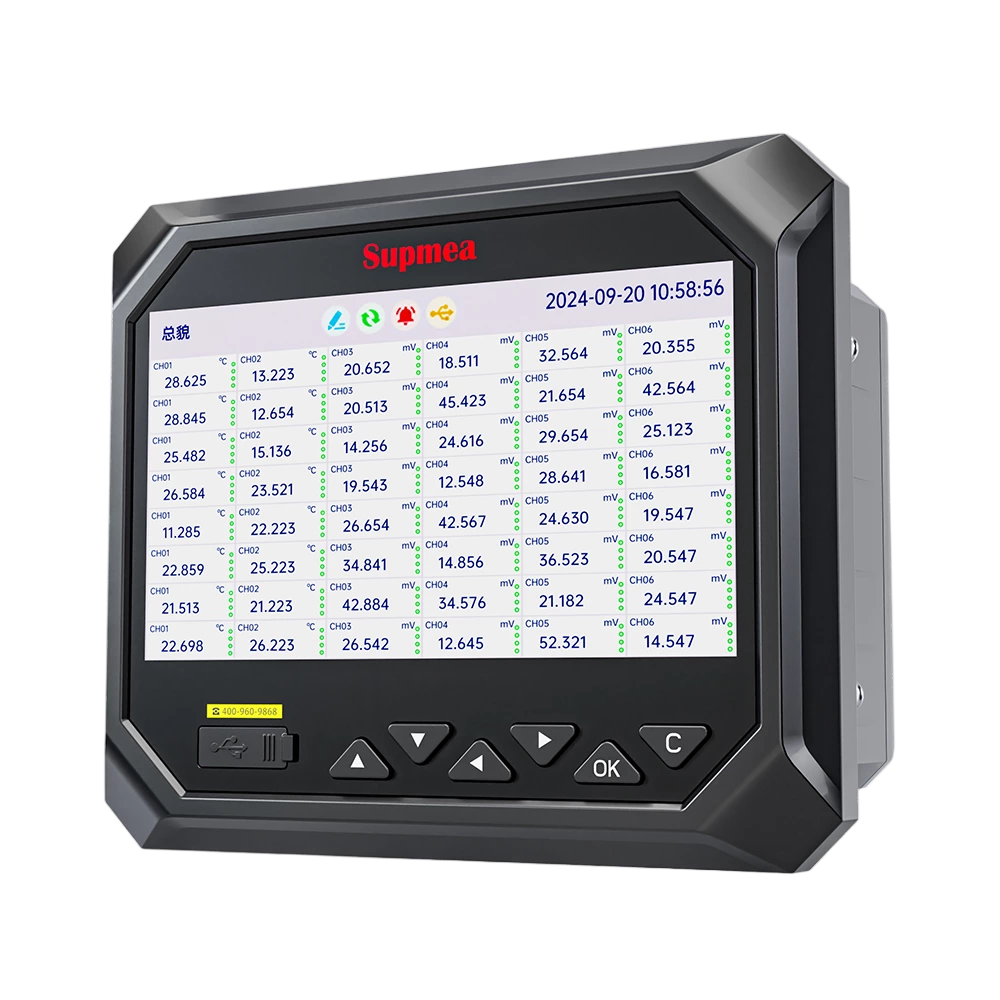

The SUP-RN5000 / RN6000 / RN6500 paperless recorder is designed for real-time monitoring and recording of multiple process variables.

Featuring a 7-inch TFT color display, it supports various input signals including current, voltage, thermocouples, RTDs, and frequency. It integrates data display, recording, alarm, and communication functions in one device.

With advanced functions such as flow totalization and temperature & pressure compensation, it ensures accurate and reliable performance across industries like water treatment, energy, and industrial automation.

Datasheet

Parameters

Feed type：

250mA, 24 VDC

Communication interface and communication protocol：

1-channel RS485 communication output interface, Modbus_RTU communication protocol 1-channel Ethernet communication output interface, Modbus_TCP communication protocol
Note: 1-channel RS485 communication input can be customized.

Power supply：

AC:（85~264）VAC ,50/60HzDC: 24VDC±10%

Power consumption：

≤20W

Working environment：

Temperature: 0℃-50℃Relative humidity: 10%-85% (No condensation); Avoid corrosive gases. Note: In case of poor working environment, it is necessary to specify it when ordering.

Storage environment：

Temperature: -20℃-60℃; Relative humidity: 5%-95% (No condensation)

Internal storage：

128M Byte

External storage：

Supports USB flash drive (standard USB 2.0 communication interface).

Sampling period：

Recording interval：

Adjustable at 1s, 2s, 5s, 10s, 15s, 30s, 1min, 2min, 5min, 10min, 15min, 30min, and 1h.

Key Advantages

All-in-One Solution
Combines data acquisition, display, recording, alarm, and communication in one compact device.
Wide Signal Compatibility
Supports multiple input types including current, voltage, thermocouples, RTDs, and frequency.
Clear & Intuitive Display
7-inch TFT color screen with real-time data and trend visualization.
High-Capacity Data Storage
Built-in memory with USB export for long-term data recording and easy retrieval.
Flexible Connectivity
Supports RS485 and Ethernet for seamless integration with industrial systems.
Advanced Process Functions
Includes flow totalization and temperature & pressure compensation for improved accuracy.
Stable & Reliable Performance
Designed for continuous operation in demanding industrial environments.
