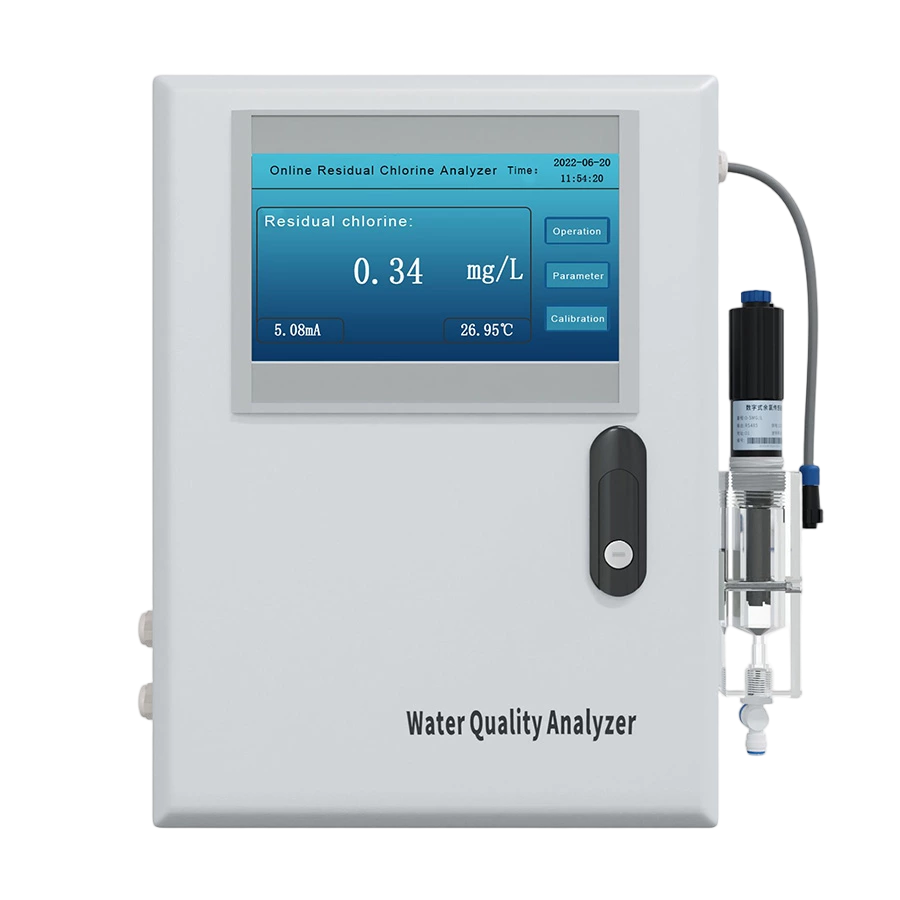

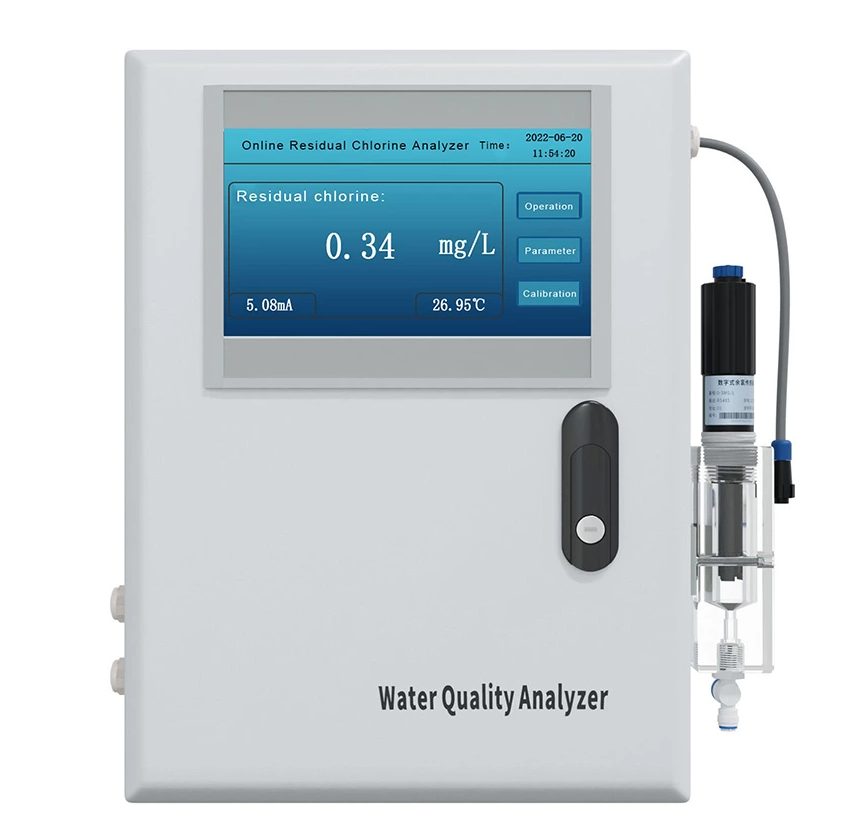

SUP-TRC400 Residual chlorine meter

SUP-TRC400 Residual chlorine meter

$3,834.00 USD
$3,834.00 USD
Sale Sold out
This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.
Output
View full details

Introduction

The residual chlorine meter has a built-in sensor, which has the characteristics of high measurement accuracy, fast response time and low maintenance cost. The residual chlorine meter outputs 4~20mA standard signal and RS485 signal, which can be connected to various regulators, and can be connected to two-position regulators, time proportional regulators, non-linear regulators and classic PID regulators according to requirements, which can be combined into various types. Residual chlorine control system.

Datasheet

Specification

Measure range：

  • Residual chlorine: (0~5) mg/L Temperature: (0.1~40.0)℃

Display：

  • 7 inch touch screen

Protective box size：

  •  Dimensions : 400mm×300mm×180mmVisual size : 155mm×87mm

Transmit output：

  •  (4~20)mA (optional)

Load resistance：

  •  ≤750Ω

Communication：

  • RS485, Modbus

Environmental humidity：

  •  ≤95% no condensate

Power supply：

  •  220VAC

Ingress protection：

  • IP43

Features

  1. The electrode measurement is accurate and the response speed is fast
  2. LCD with backlight, easy and intuitive operation
  3. With automatic temperature compensation, pH manual compensation function
  4. Restore factory function to avoid data loss by misoperation
  5. Isolated 4-20mA standard signal can realize signal remote transmission
  6. Range can be switched manually
  7. A variety of calibration methods are convenient for on-site adjustment
