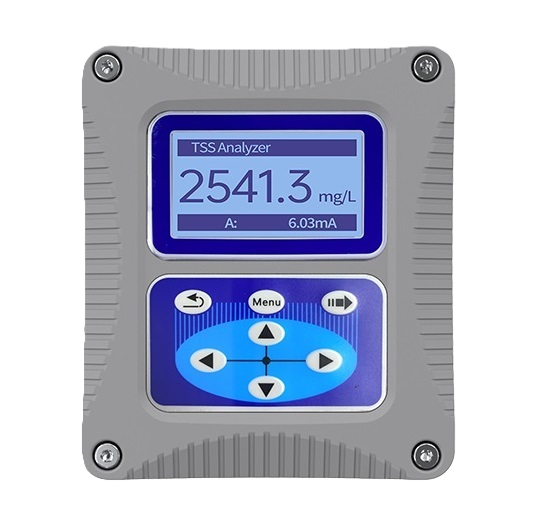

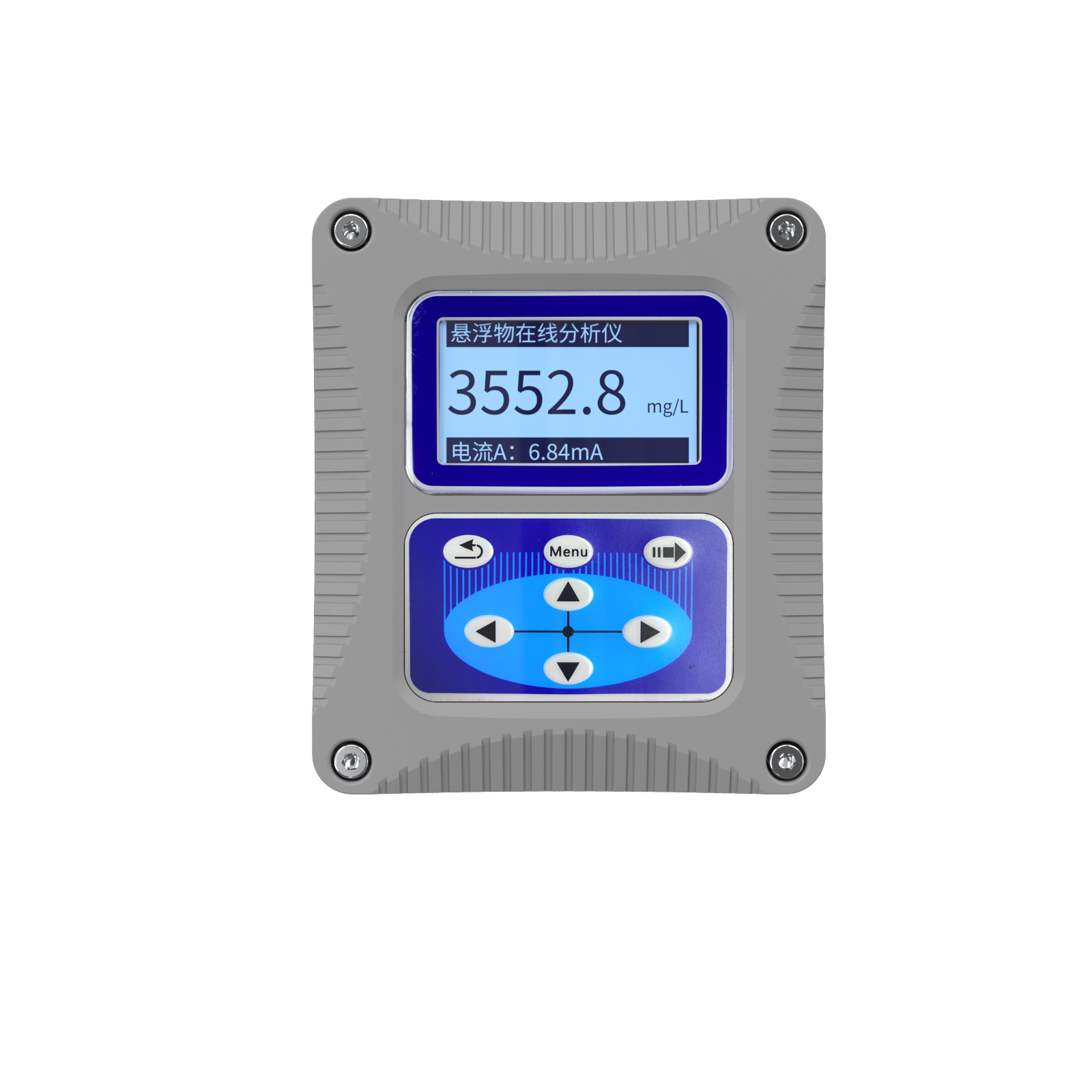

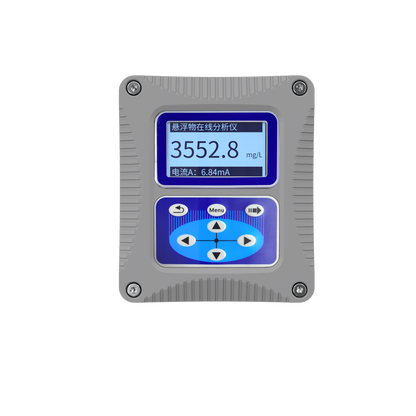

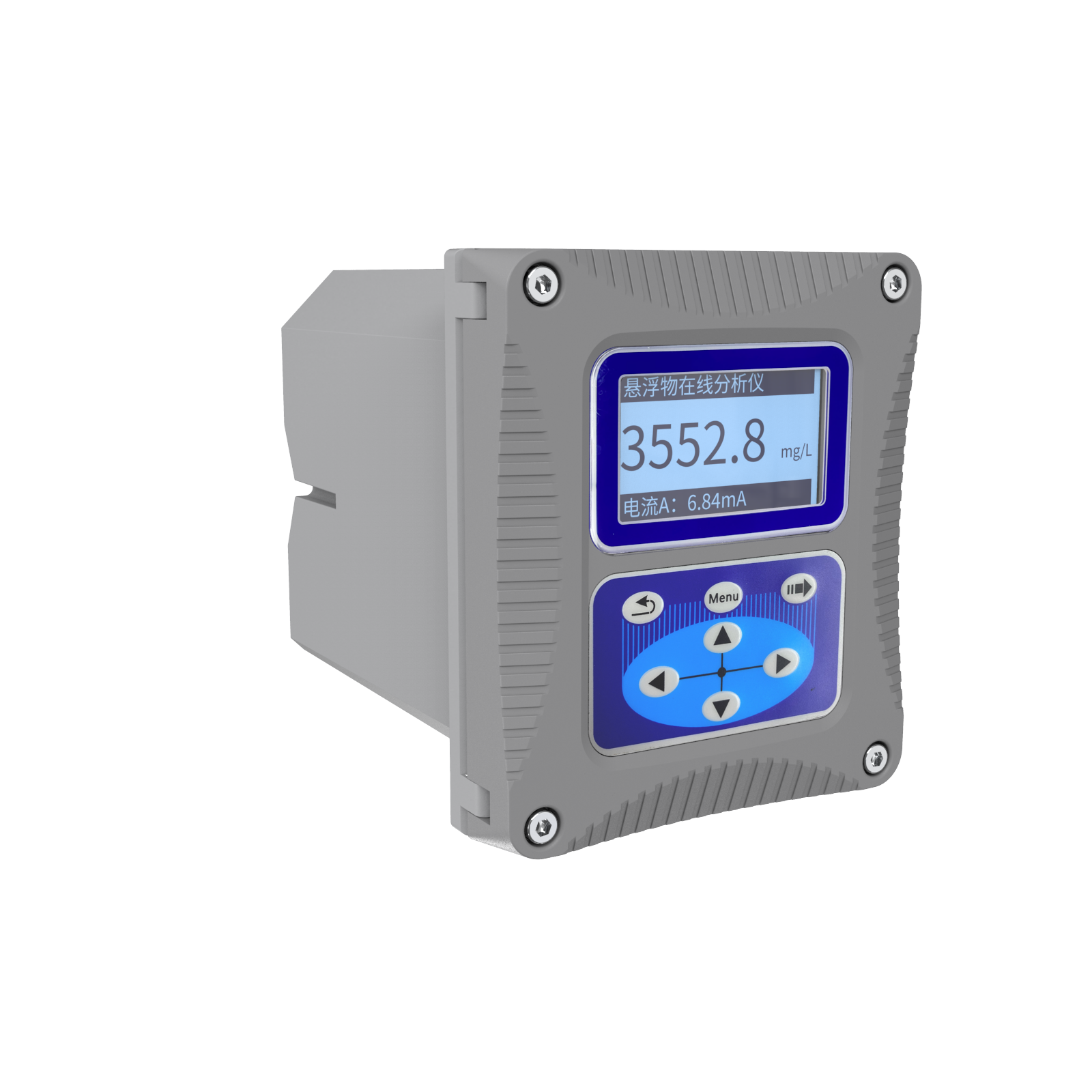

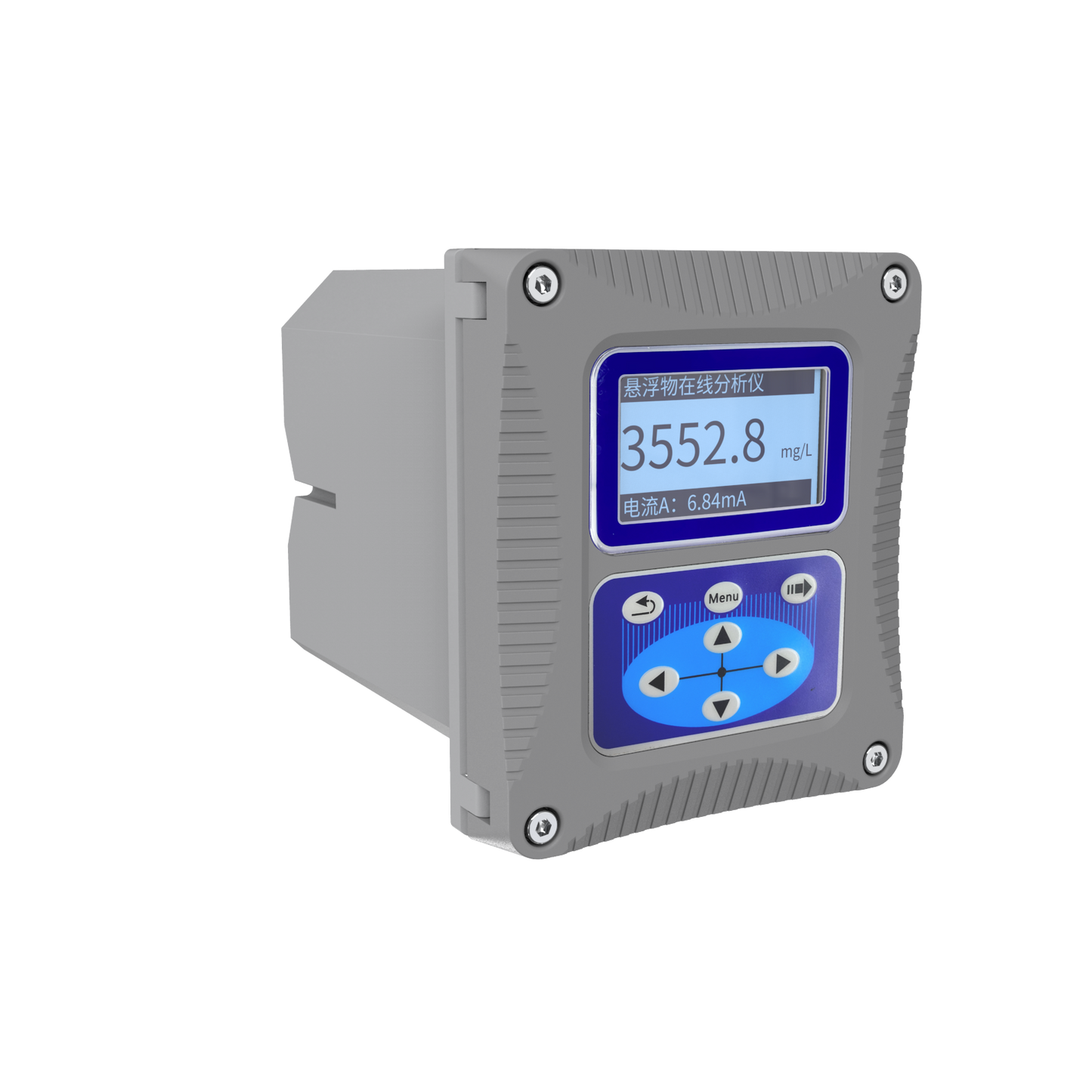

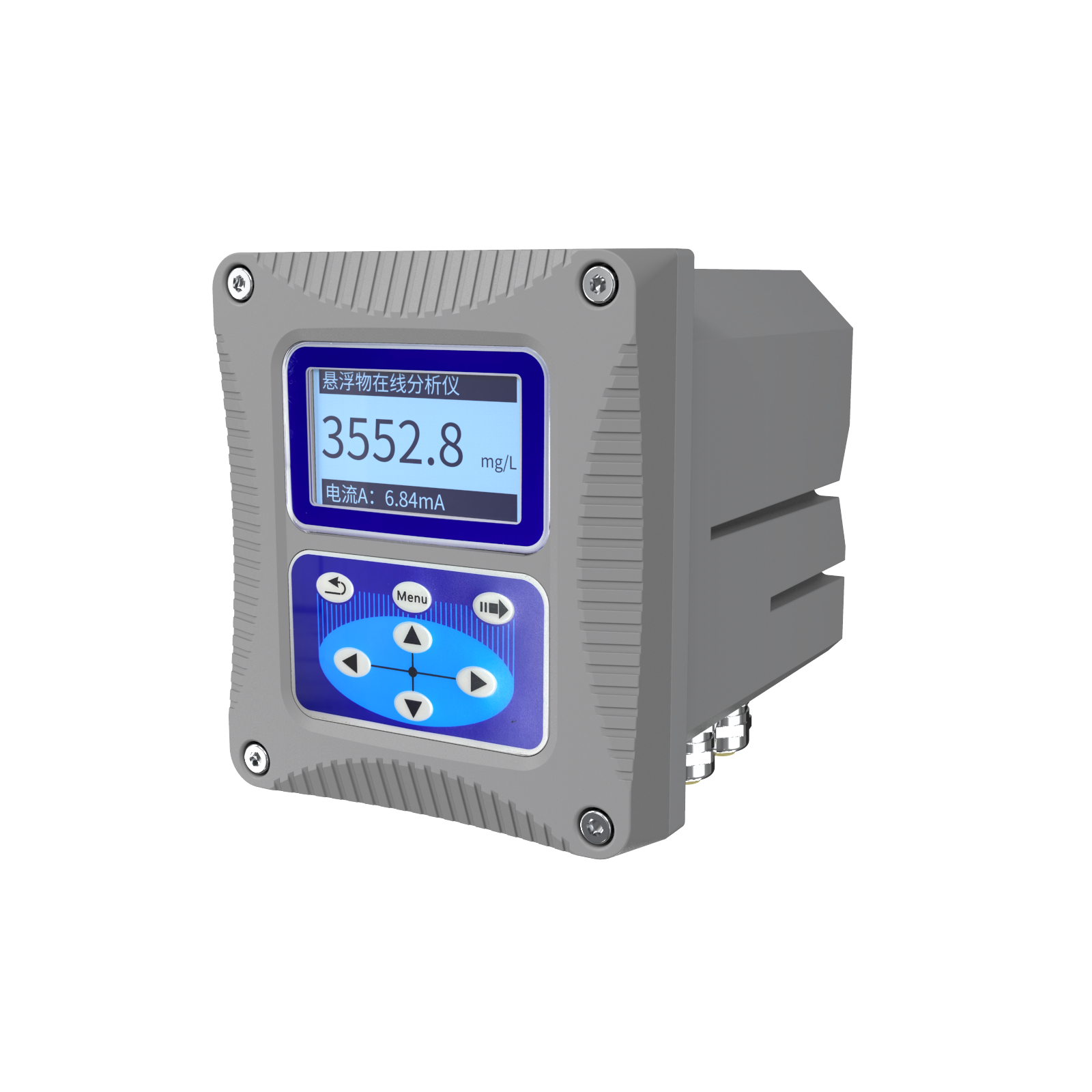

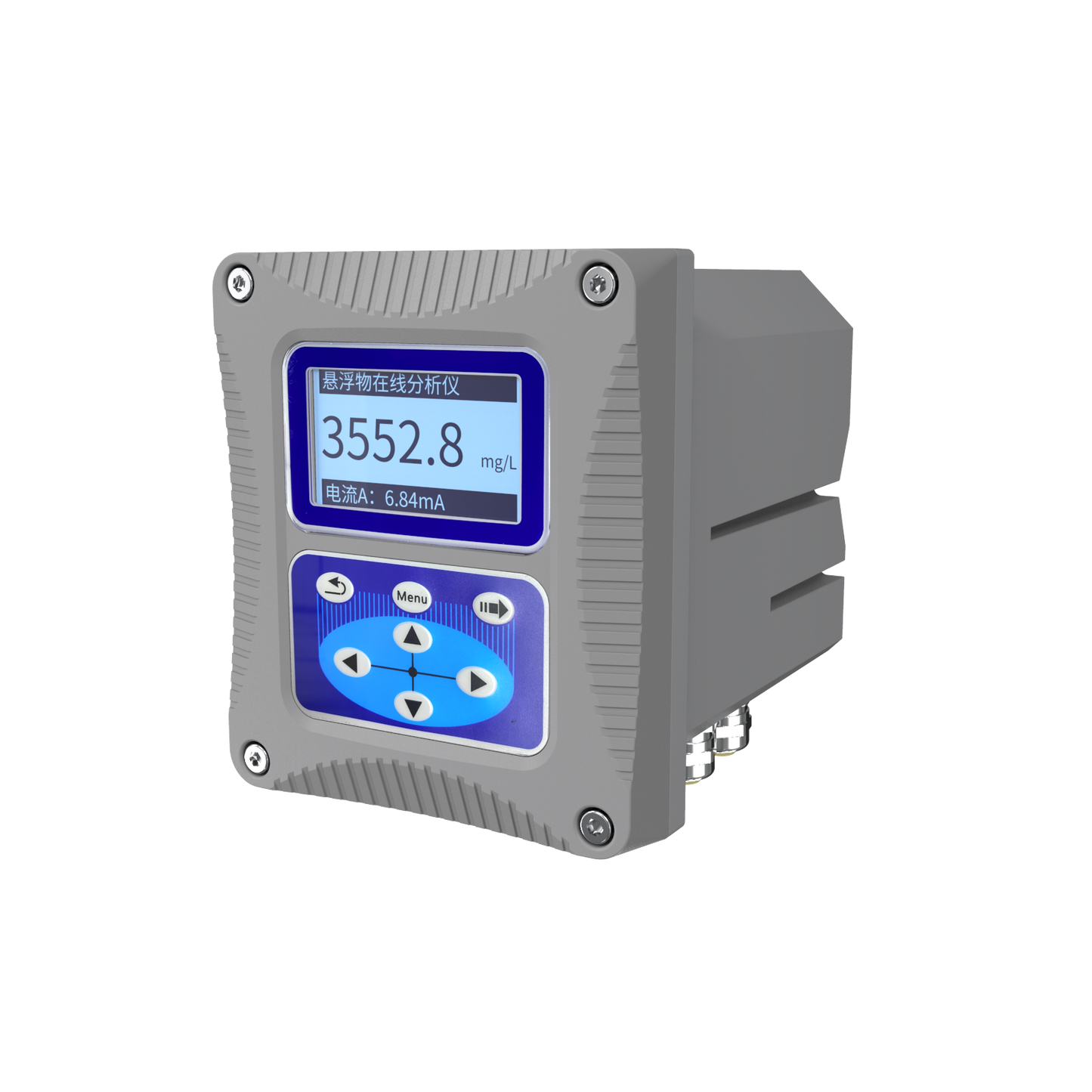

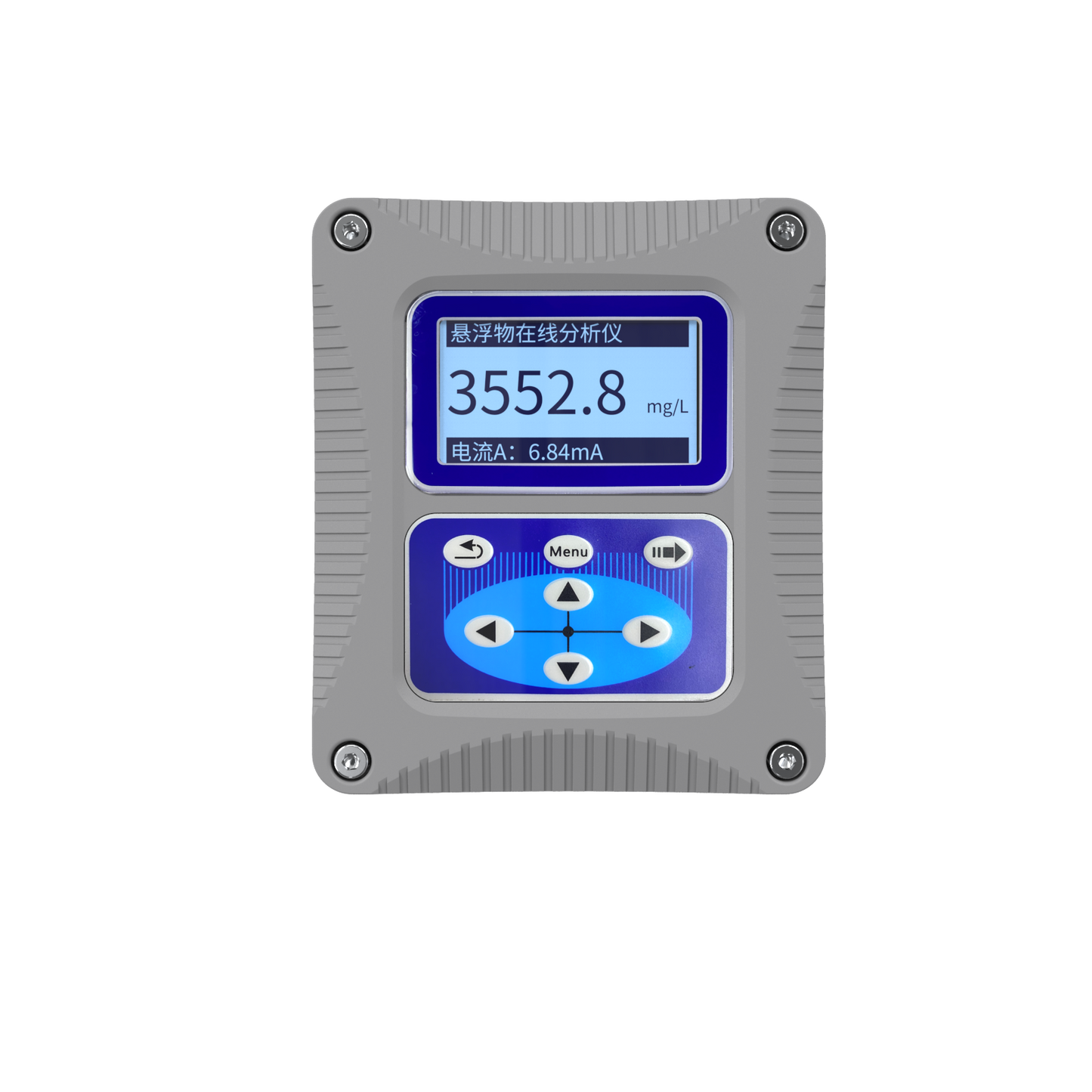

Suspended solids/ TSS/ MLSS meter SUP-PSS200

Suspended solids/ TSS/ MLSS meter SUP-PSS200

$1,442.00 USD
$1,442.00 USD
Sale Sold out
This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.

Low stock: 10 left • Ships in 3-5 business days
View full details

Product Overview

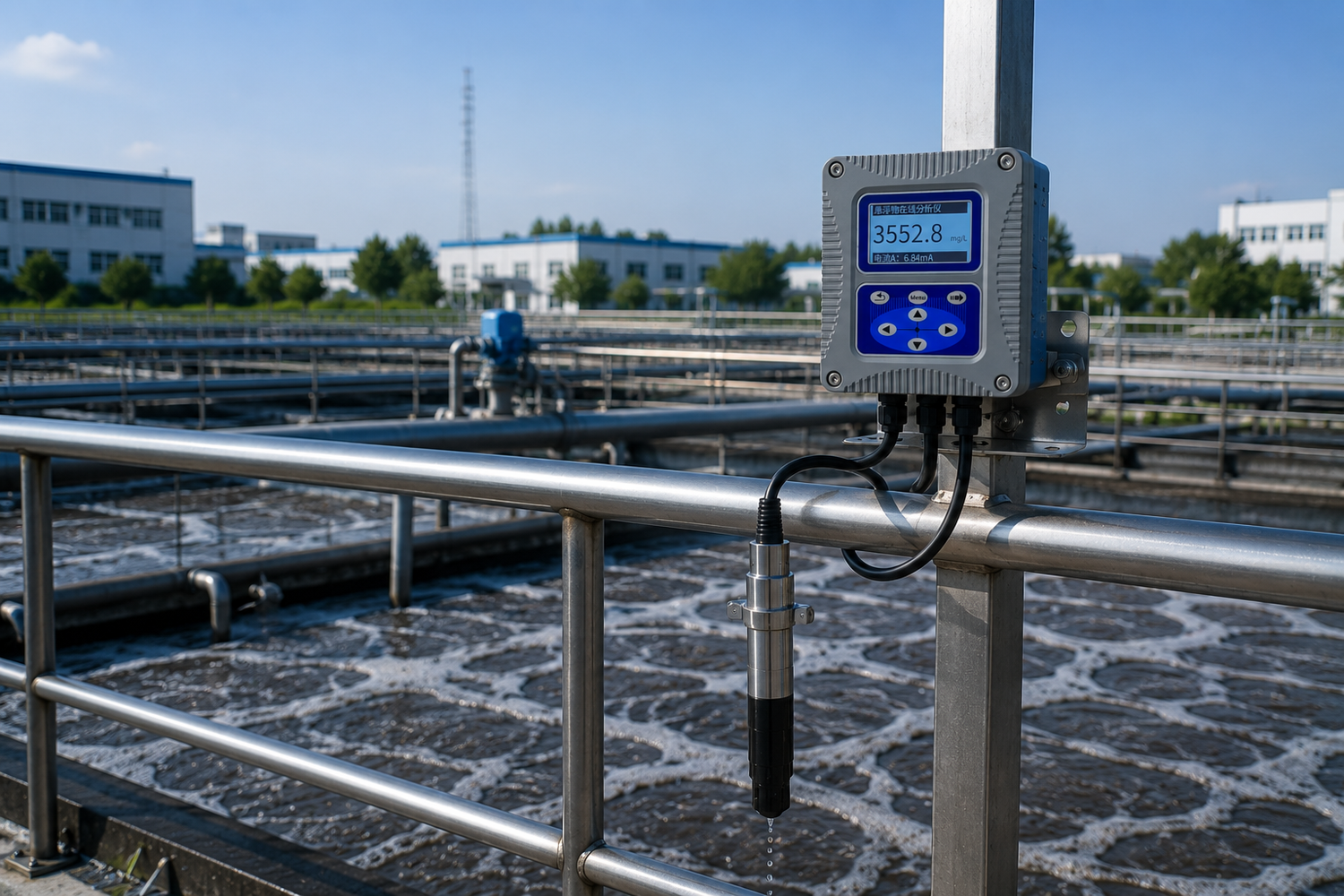

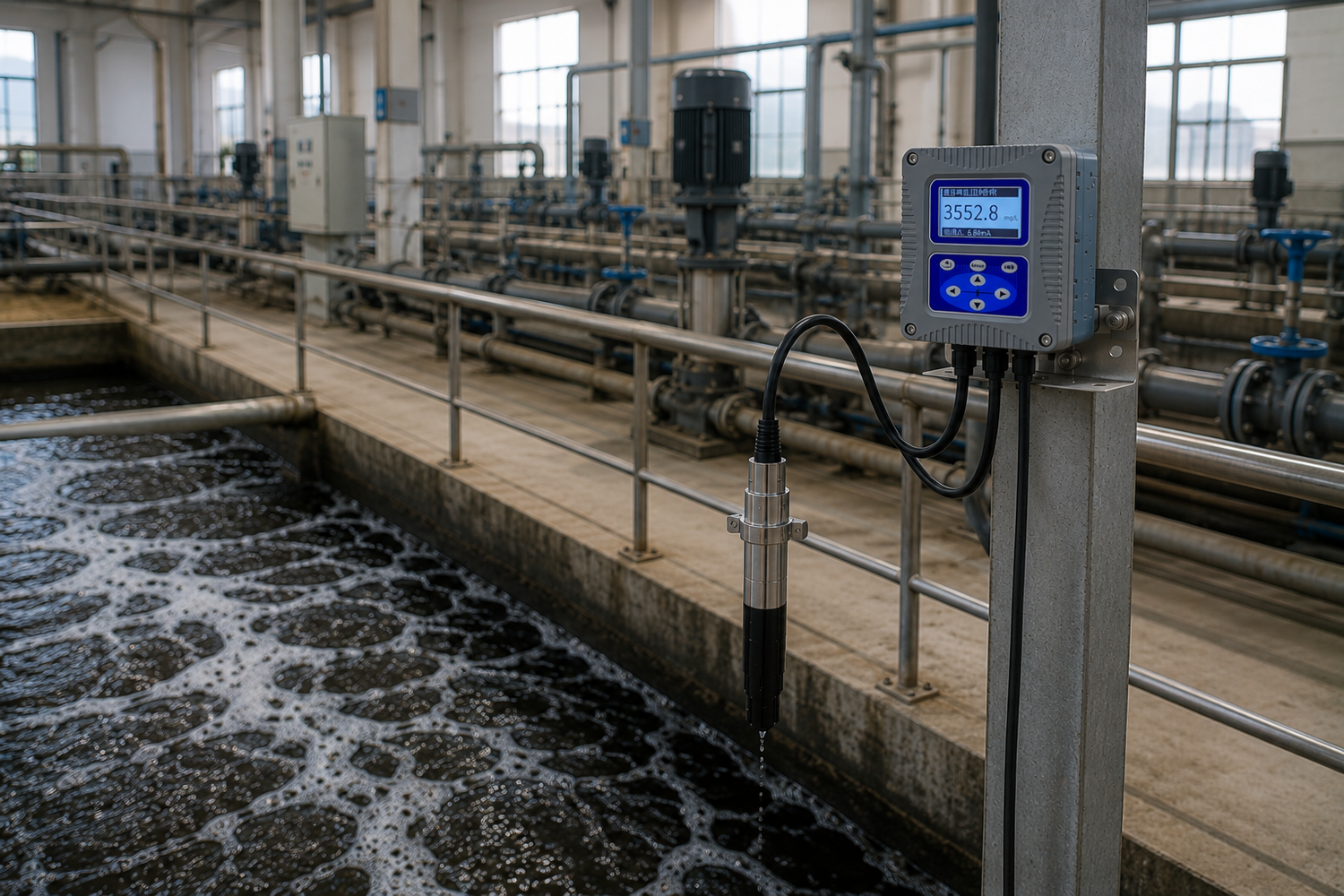

The SUP-PSS200 is an online suspended solids analyzer designed for continuous monitoring of sludge concentration and suspended solids in municipal and industrial water treatment processes.

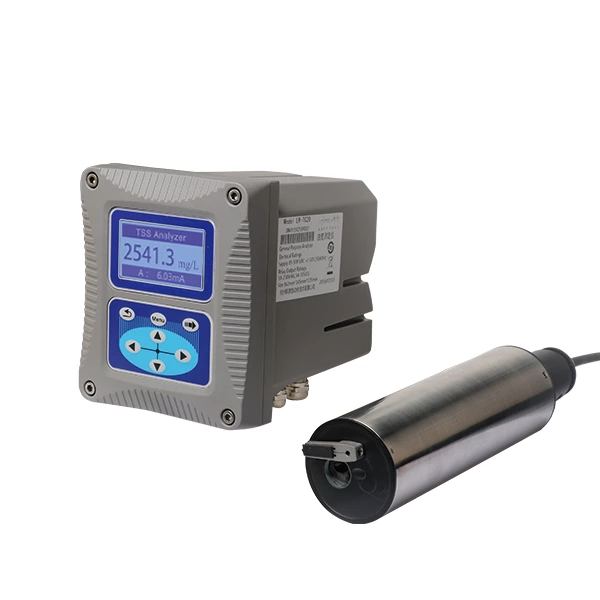

Utilizing ISO7027 infrared optical technology, the system delivers stable and accurate measurements with minimal interference from water color. The analyzer combines an industrial-grade controller with a rugged IP68 optical sensor, supporting programmable analog outputs, relay control, MODBUS RS485 communication, and optional automatic cleaning for reliable long-term operation.

Key Features

  • Provides reliable real-time monitoring of suspended solids and sludge concentration for continuous process control.
  • ISO7027 infrared optical technology ensures consistent performance with minimal interference from water color.
  • Optional automatic cleaning helps minimize fouling and extends maintenance intervals.
  • Supports seamless integration with PLCs, SCADA systems, and industrial automation platforms.
  • Programmable alarms and outputs help simplify process monitoring and operational management.
  • Designed for long-term operation in demanding municipal and industrial water treatment applications.

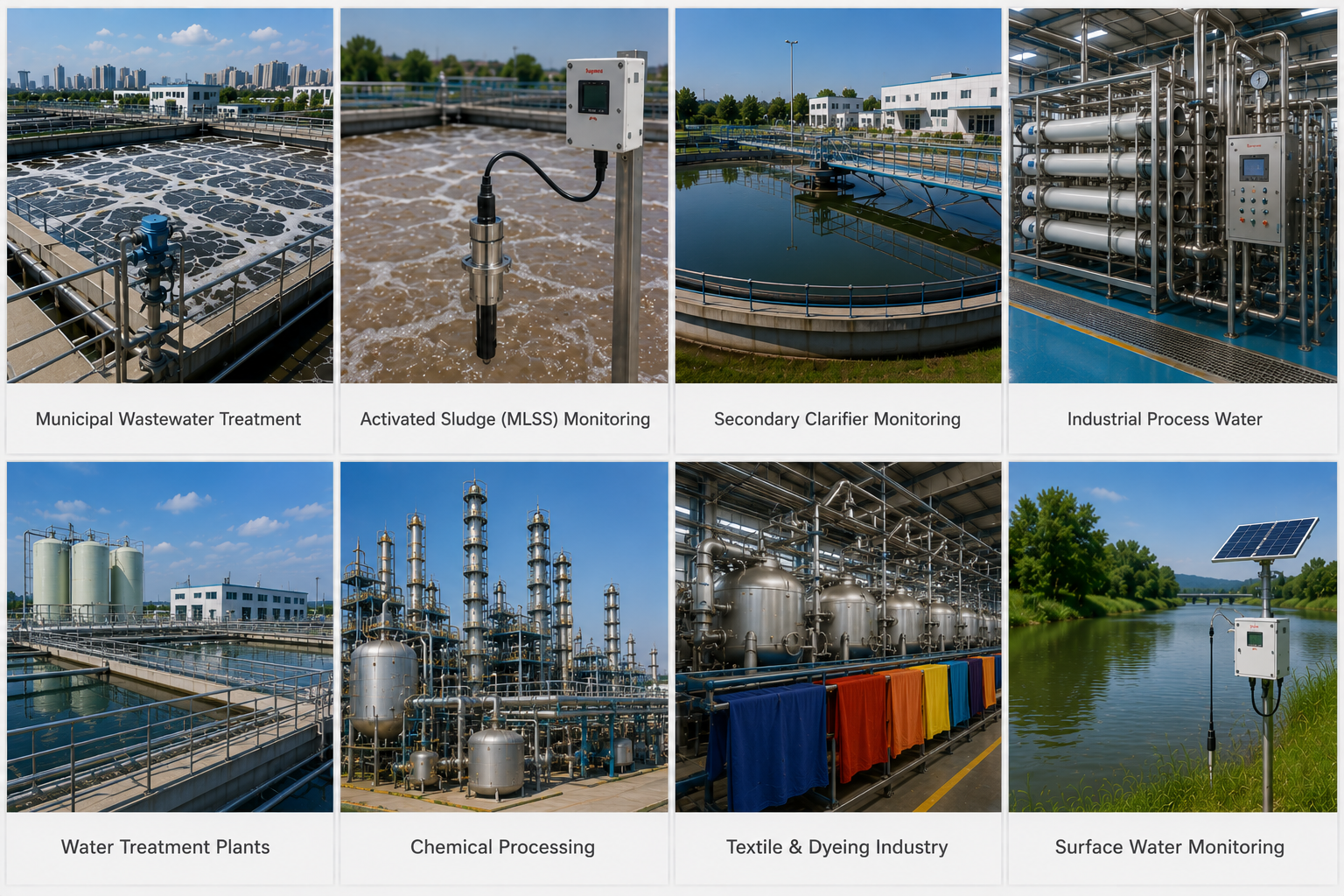

Applications

Technical Specifications

Model SUP-PSS200
Measuring Principle ISO7027 Infrared Absorption & Scattered Light
Measuring Range 0.01–20,000 / 45,000 / 120,000 mg/L
Accuracy ±5% of Reading (Depending on Sludge Homogeneity)
Power Supply AC110V DC24V
Analog Output 2 × Programmable 4–20 mA
Relay Output 3 × Programmable Relay Outputs
Communication MODBUS RS485
Sensor Material SUS316L (Standard) / Titanium Alloy (Optional)
Protection Rating Sensor: IP68 Transmitter: IP65
Operating Temperature Sensor: 32–113°F (0–45°C) Transmitter: 5–140°F (-15–60°C)
Maximum Working Pressure ≤58 psi (≤0.4 MPa)
Standard Cable Length 32.8 ft (10 m), Extendable to 328 ft (100 m)

Downloads

User Manual
Datasheet

FAQ

What does the SUP-PSS200 measure?

The SUP-PSS200 continuously measures suspended solids (SS), total suspended solids (TSS), and mixed liquor suspended solids (MLSS) in water and wastewater treatment processes.

Can the analyzer be integrated with PLC or SCADA systems?

Yes. The SUP-PSS200 supports programmable 4–20 mA outputs, relay outputs, and MODBUS RS485 communication for seamless integration with industrial automation systems.

Is the system suitable for continuous outdoor operation?

Yes. The analyzer features an IP65-rated transmitter and an IP68-rated sensor, making it suitable for continuous operation in demanding industrial environments. Outdoor installations should include appropriate weather protection for the transmitter.

Is automatic cleaning available?

Yes. The sensor can be equipped with an optional automatic cleaning device to reduce fouling and maintain long-term measurement stability.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
