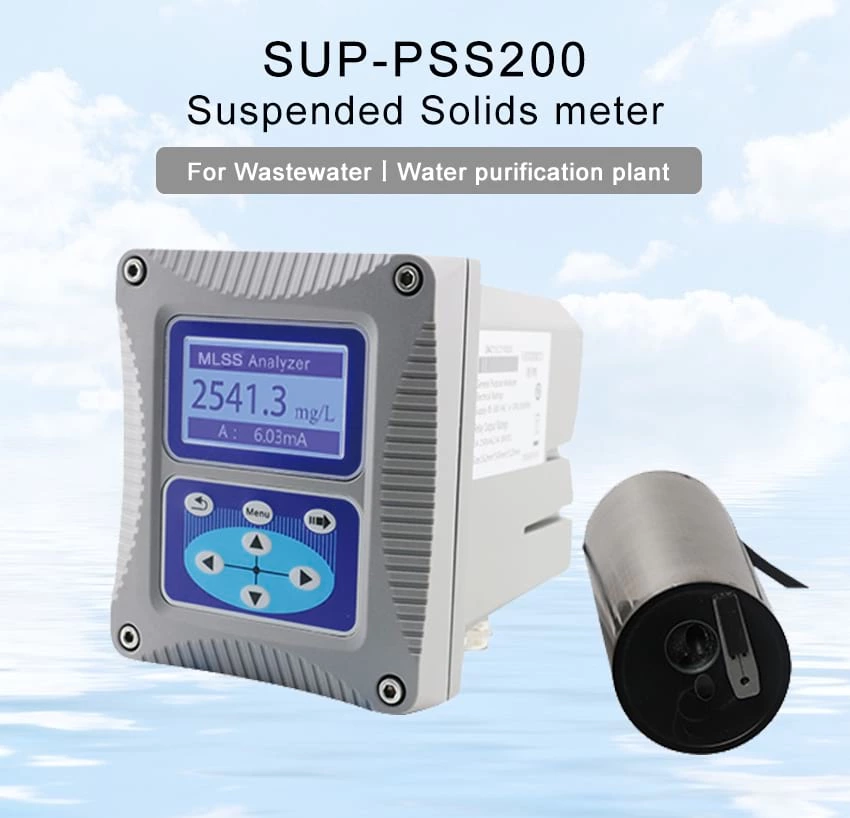

Suspended solids/ TSS/ MLSS meter SUP-PSS200

Suspended solids/ TSS/ MLSS meter SUP-PSS200

$1,455.00 USD
$2,079.00 USD $1,455.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Introduction

Suspended Solids Meter based on the infrared absorption scattered light method and combined with the application of ISO7027 method, can guarantee the continuous and accurate detection of suspended solids and sludge concentration. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of cuspended colids and cludge concentration value. According to the usage environment, self-cleaning function can be equipped with.

Specification

Main materials

  • Lower casing: Aluminum with powder covering
  • Cover: PA66+GF25+FR

Waterproof rate IP65

Storage temperature -20~70℃ (-4°F~158°F)

Operation Temperature -15~60℃ (5°F~140°F)

Output Three-way analog output 4-20mA, response parameters and corresponding scope can be programmed.Note: The maximum load is 500 ohms.

Relay Three-way relay can be set up, and response parameters and response values can be programmed.

Display 128 × 64 dot matrix LCD with LED backlight

Digital Communication MODBUS RS485 communication function, which can transmit real-time measurements

Power Supply

  • AC: 85-500V, 50/60Hz, 5W
  • DC: 9-36V

Size 145 × 125 × 162 mm (L × W × H)5.71" × 4.92" × 6.38" (L × W × H)

Weight 1.35 KG (2.98 lbs)

Application
