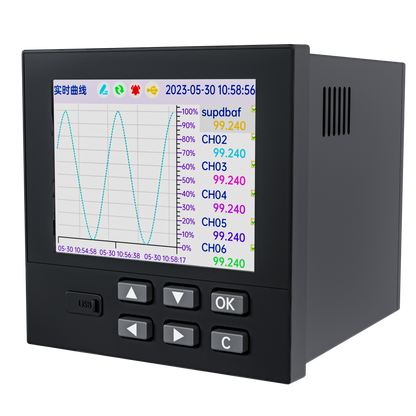

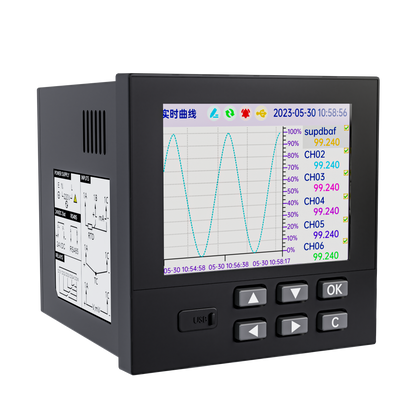

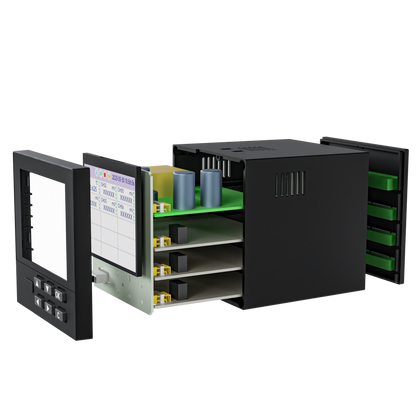

Supmea RN3000 18-Channel (Analog) Paperless Recorder

Supmea RN3000 18-Channel (Analog) Paperless Recorder

US$771.00
US$771.00
Sale Sold out
Prices Shown Include Delivery.

Low stock: 10 left • Lead Time: 2-4 Weeks
View full details

Product Overview

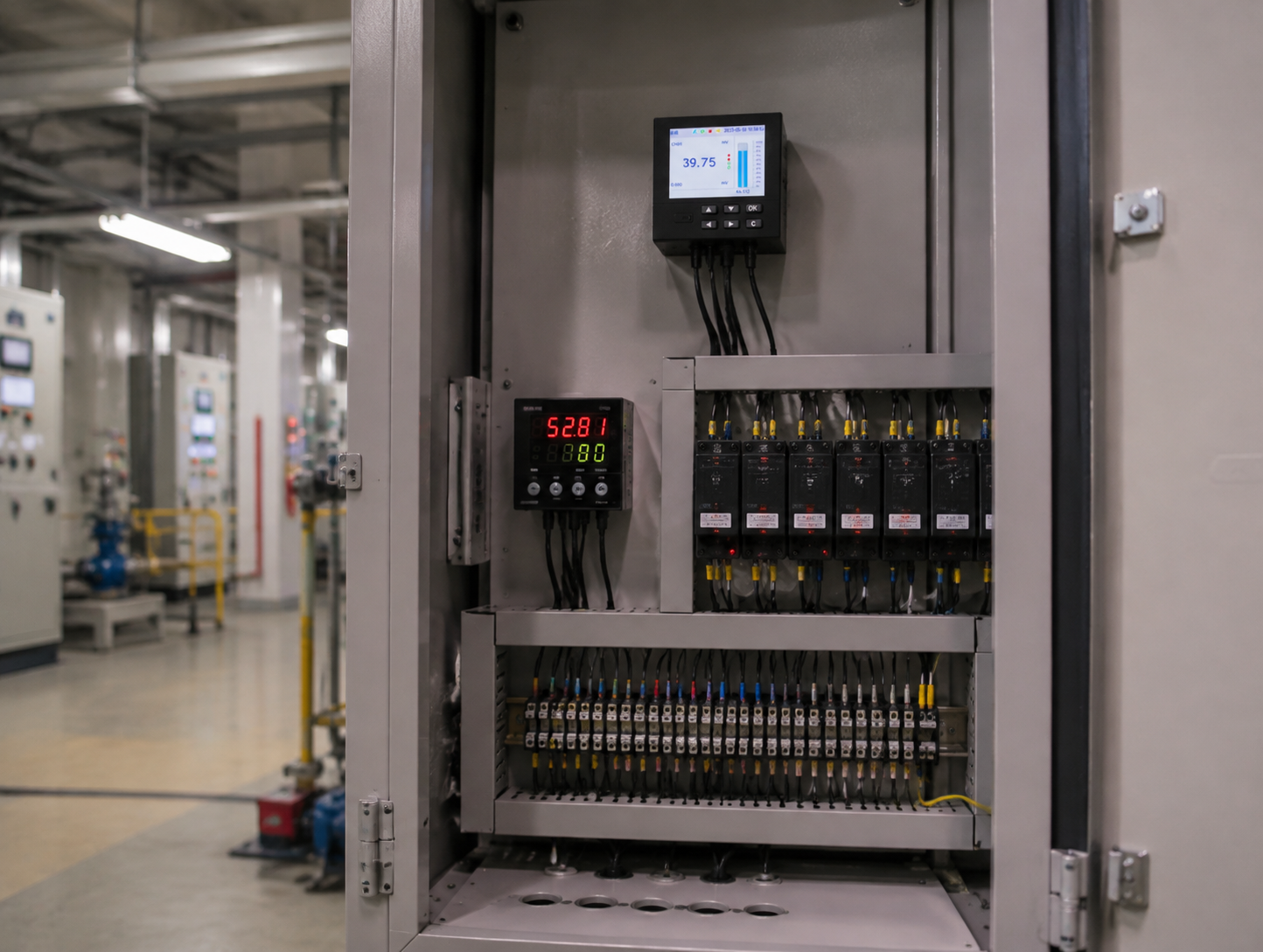

The RN3000 industrial paperless recorder is designed for multi-channel signal monitoring, data recording, alarm management, and industrial process measurement applications. It supports various industrial standard signals including current, voltage, thermocouples, and RTD inputs for monitoring temperature, humidity, pressure, level, and flow parameters.Equipped with a 3.5-inch TFT true-color LCD display, the recorder provides real-time measurement display, historical data storage, alarm monitoring, communication, and data export functions. It is widely used in industries such as chemical processing, petroleum, power generation, food & beverage, pharmaceuticals, and industrial water treatment.

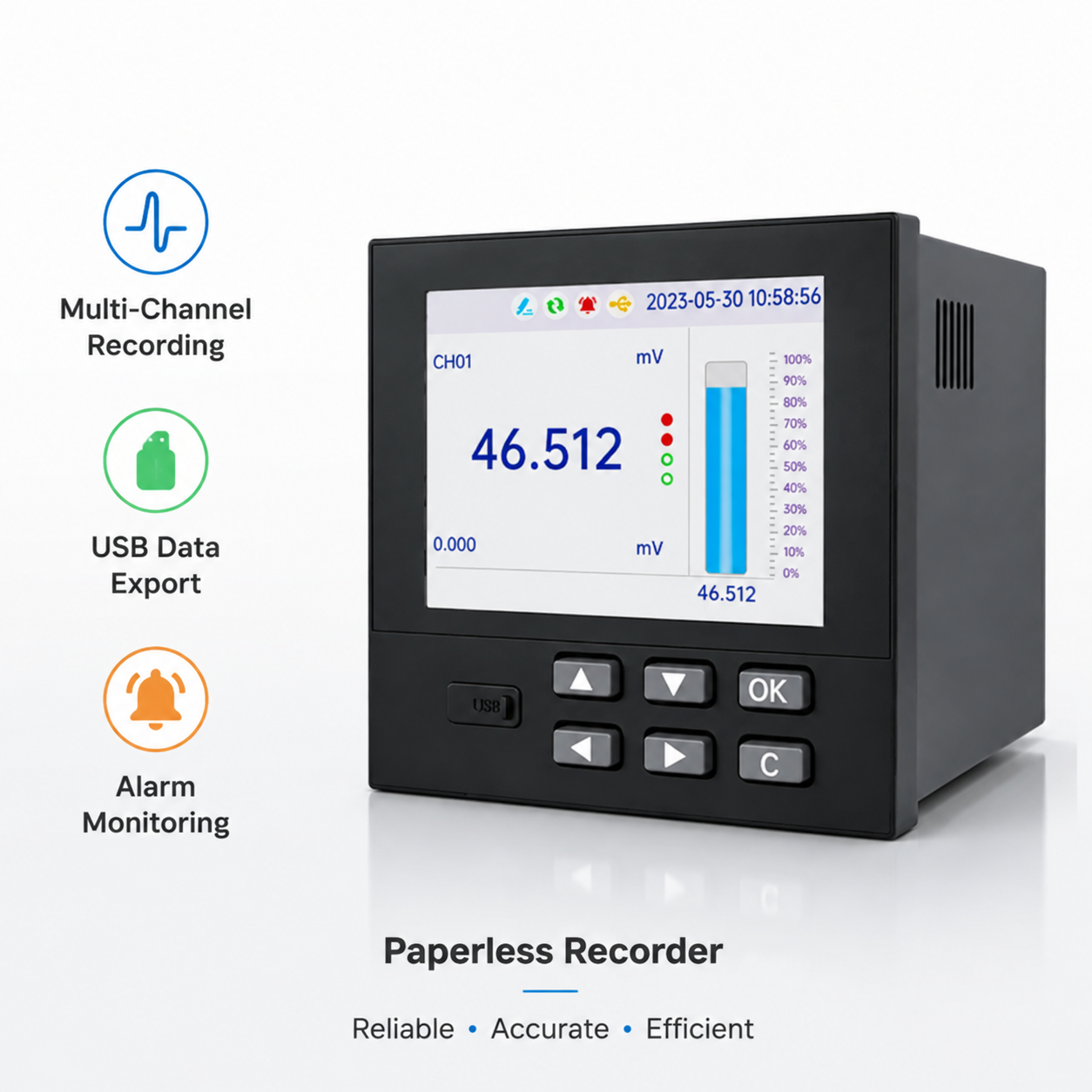

Key Features

  • Supports multiple industrial input signals including current, voltage, thermocouples, and RTD signals for comprehensive process monitoring.
  • Records process data continuously with internal Flash storage to prevent data loss during power failure.

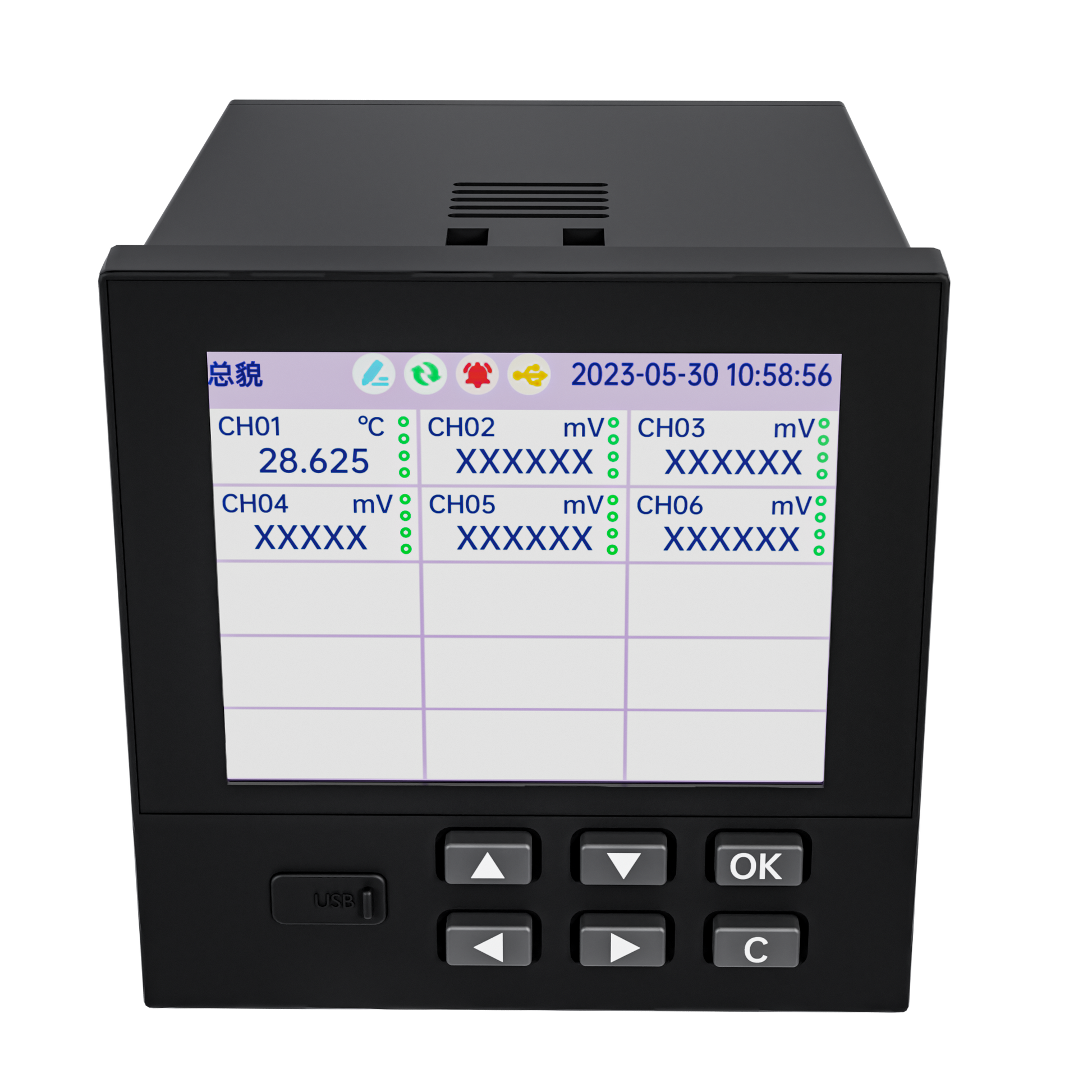

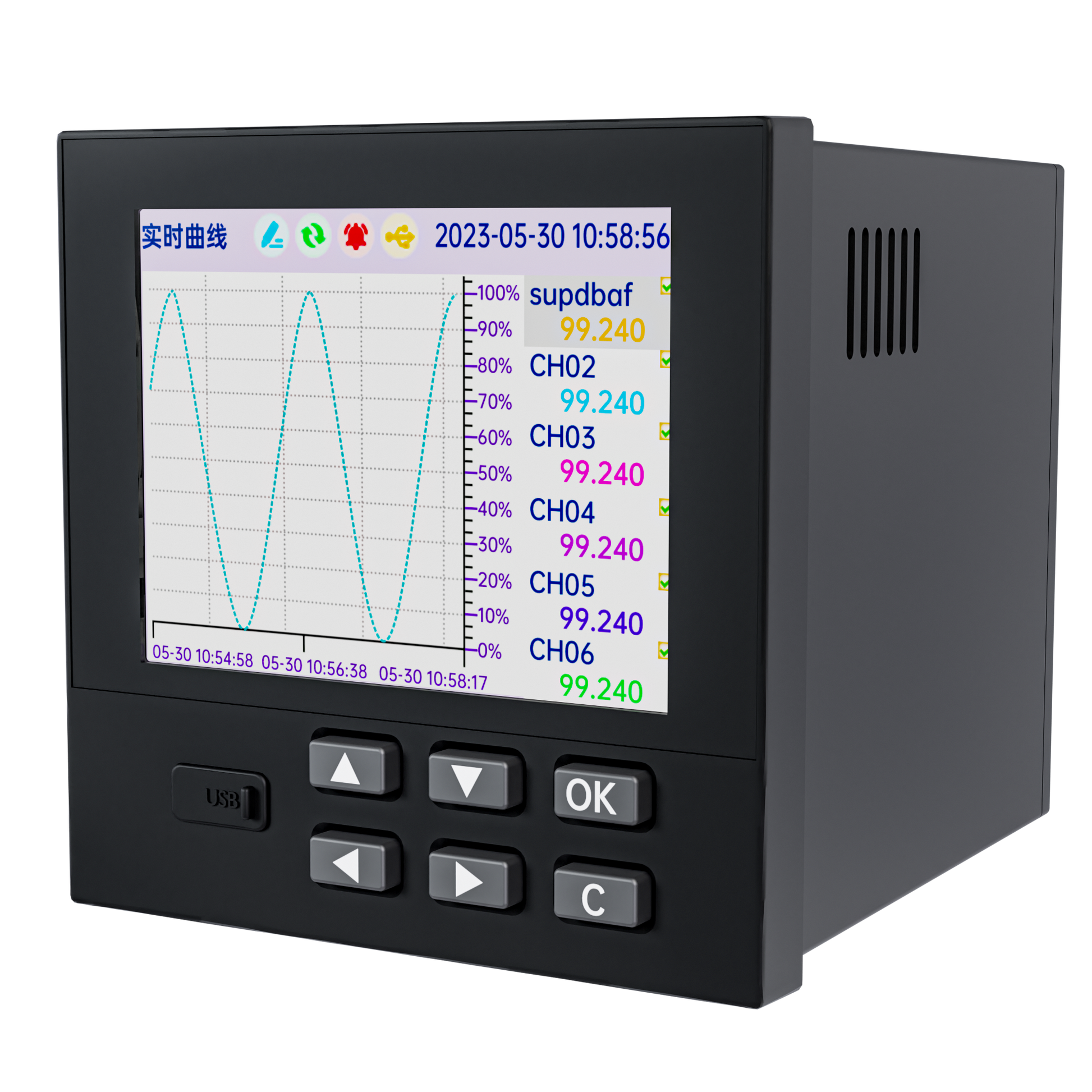

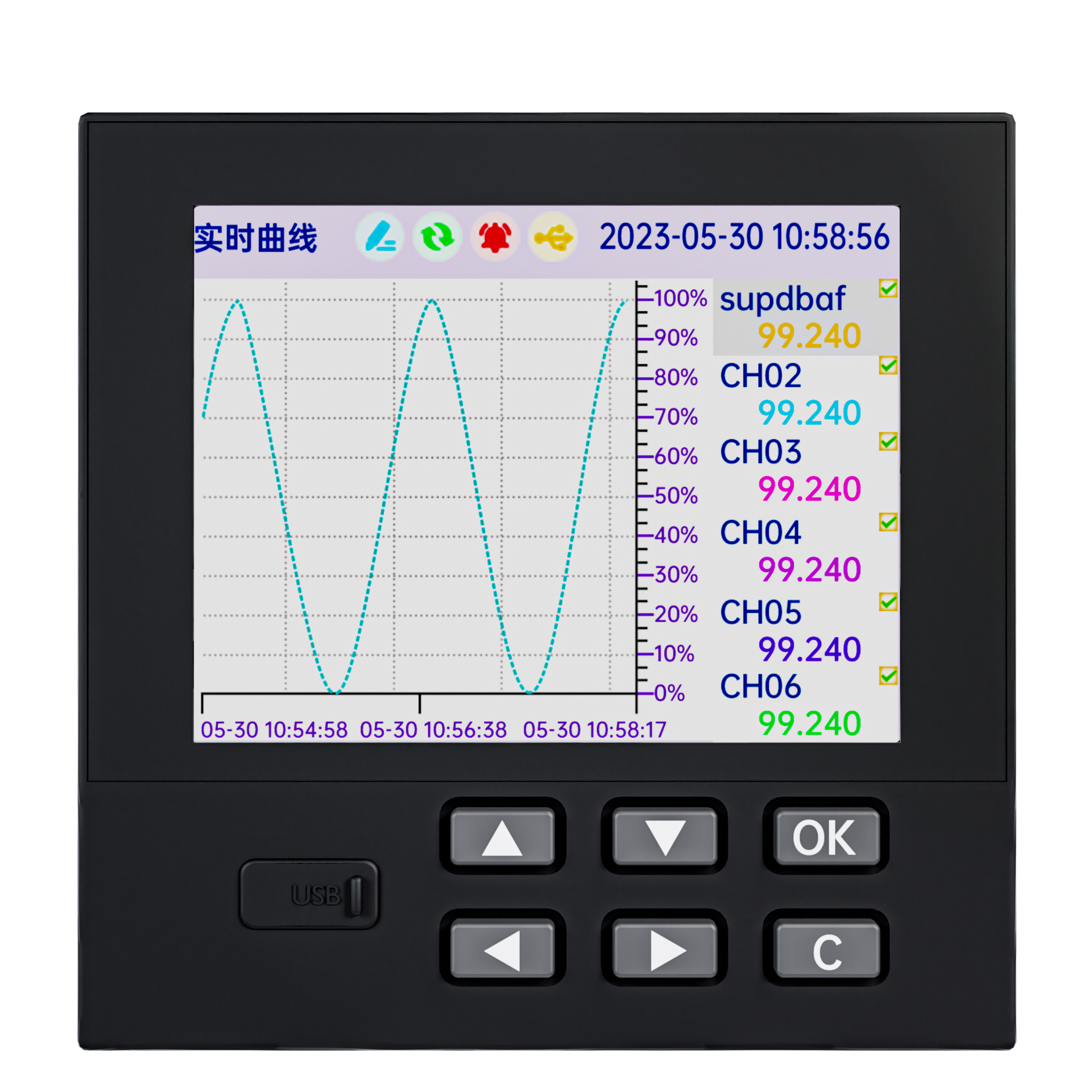

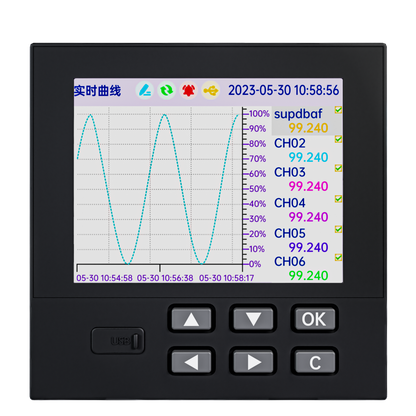

  • Features a 3.5-inch TFT true-color LCD display with 320 × 240 resolution and LED backlight for clear visualization.
  • Supports relay alarm outputs for process limit monitoring and equipment protection.
  • Built-in RS485 communication interface supports Modbus communication protocol for industrial system integration.
  • Supports USB flash drive data transfer for convenient data backup and analysis.

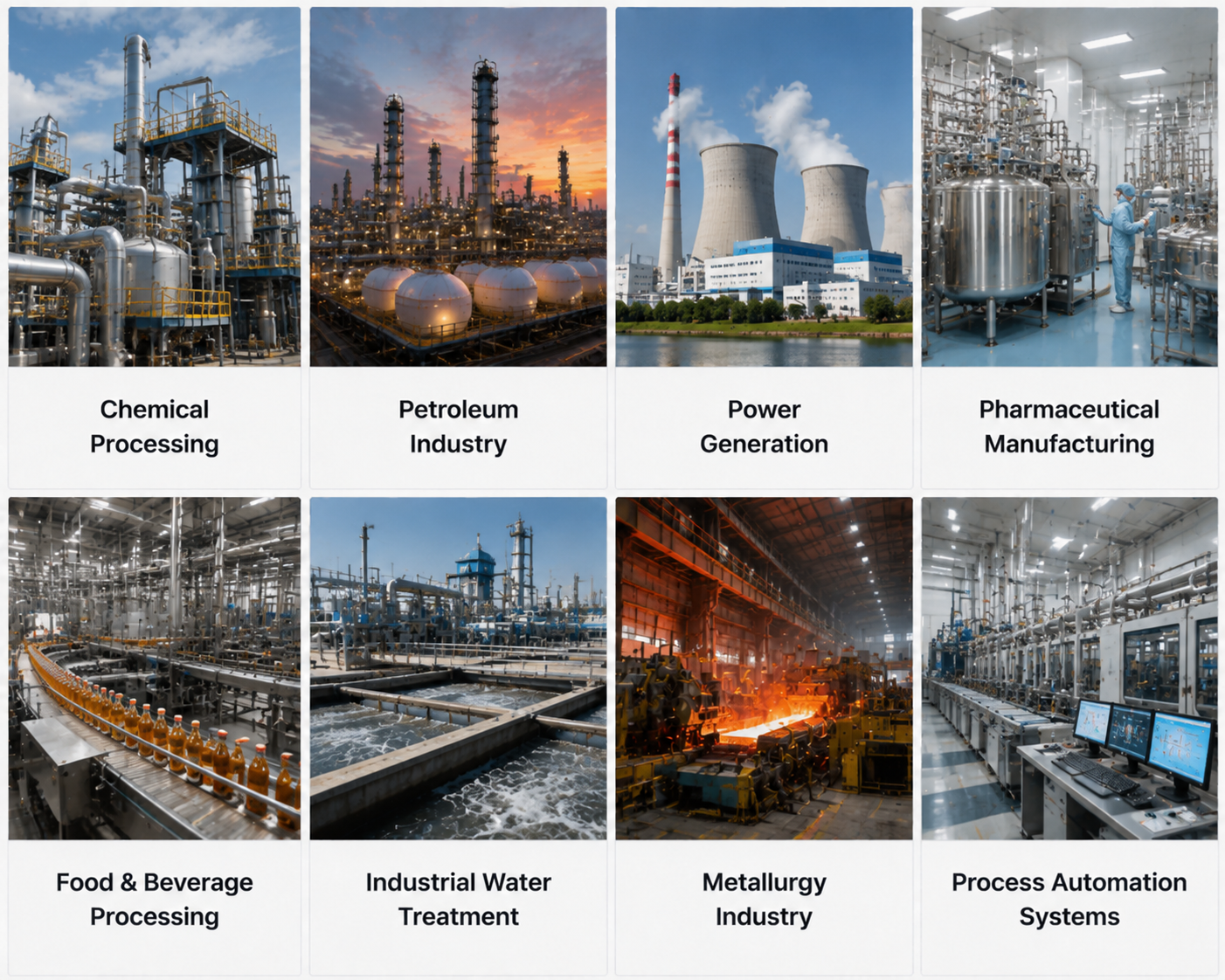

Applications

Technical Specifications

Display 3.5-inch TFT True-Color LCD
Resolution 320 × 240 pixels
Input Channels Up to 18 analog input channels
Input Signals Current, Voltage, Thermocouple, RTD
Alarm Output Up to 4 Relay Outputs
Relay Capacity 2 A, 110 VAC
Communication RS485 Modbus RTU
Data Storage Internal Flash Memory
External Storage USB 2.0 Interface
Power Supply 85–264 VAC, 47–63 Hz (Optional 24 VDC)
Operating Temperature 32–122°F (0–50°C)
Dimensions 3.78 × 3.78 × 3.94 in (96 × 96 × 100 mm)

Downloads

User Manual
Datasheet

FAQ

What signals can the RN3000 Paperless Recorder measure?

The RN3000 supports multiple industrial signals including current, voltage, thermocouples, and RTD inputs for monitoring temperature, pressure, level, flow, and other process variables.

Does RN3000 support data storage?

Yes. The recorder stores historical data through internal Flash memory and supports USB data export.

Can RN3000 monitor flow measurement data?

Yes. With compatible configuration, it supports flow display, flow accumulation, and flow temperature/pressure compensation functions.

Is RN3000 suitable for outdoor installation?

The manual specifies indoor installation. It should be installed in a ventilated environment without condensation, corrosive gases, or flammable gases.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
