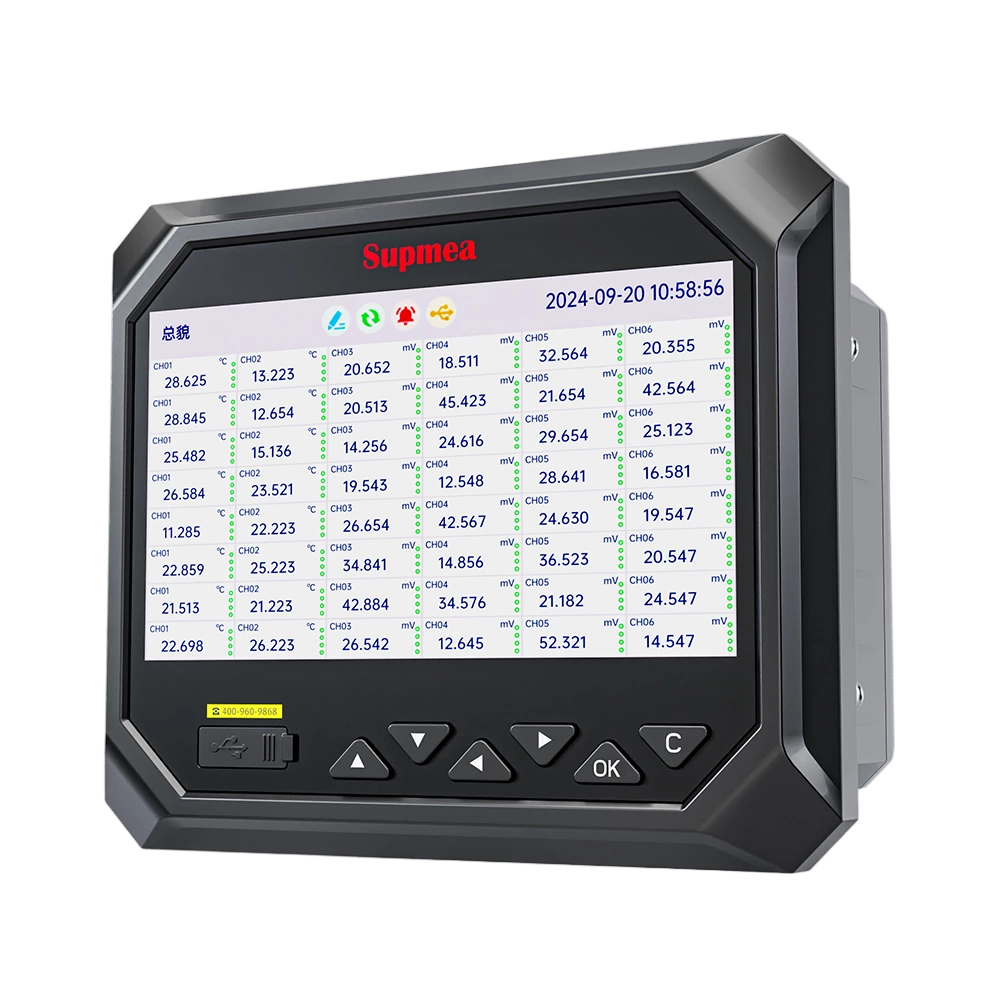

Supmea RN6500 48-Channel (Analog & RS485) Paperless Recorder

Supmea RN6500 48-Channel (Analog & RS485) Paperless Recorder

US$1,321.00
US$1,321.00
Sale Sold out
Prices Shown Include Delivery.

Low stock: 10 left • Lead Time: 2-4 Weeks
View full details

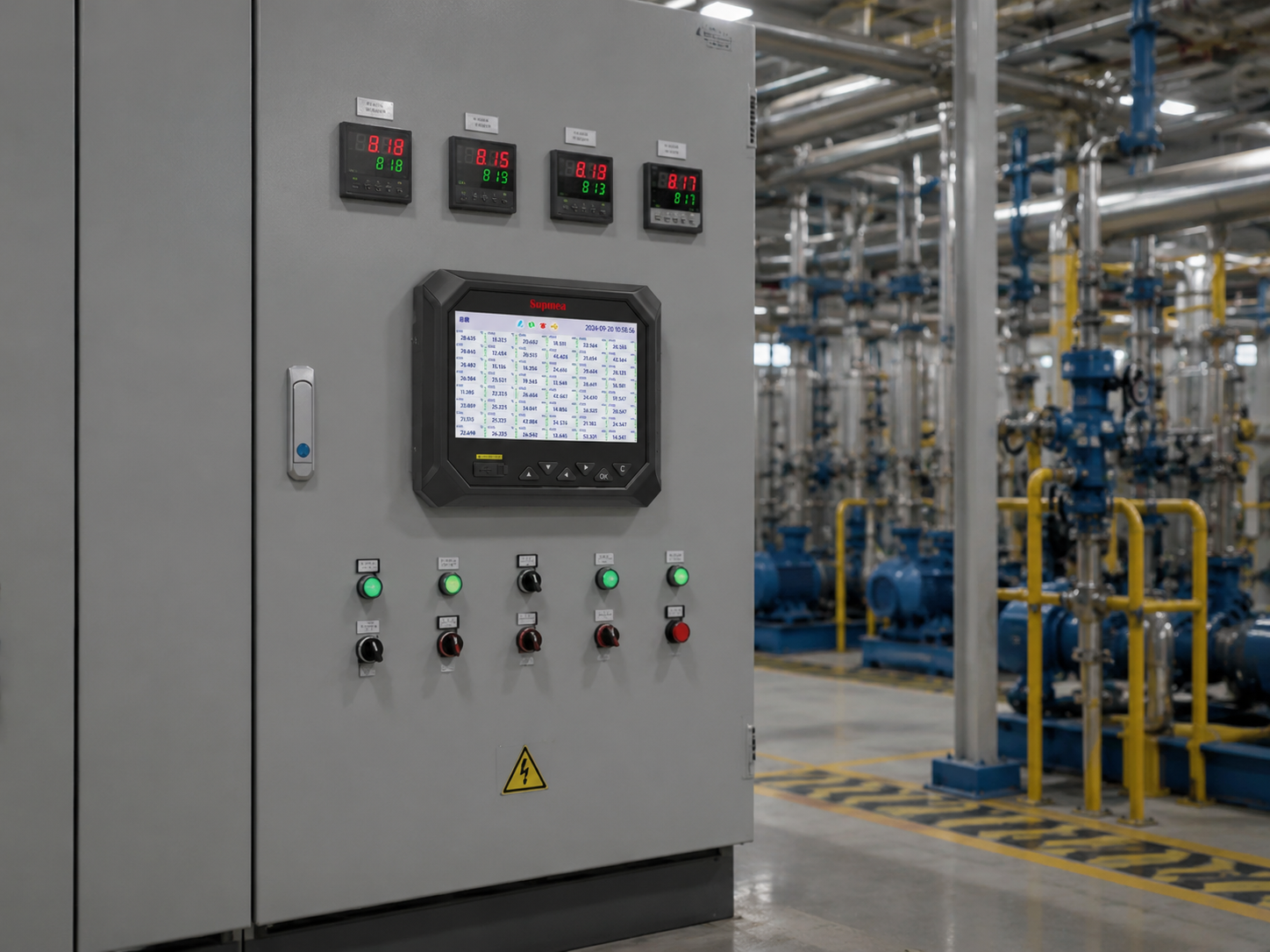

Product Overview

The RN6500 Paperless Recorder is an advanced industrial data acquisition and recording instrument featuring a 7-inch TFT full-color high-contrast LCD display with 1024 × 600 resolution. It integrates multiple industrial standard signal inputs, including current, voltage, thermocouples, thermistors, resistors, and customizable frequency inputs.The recorder provides real-time display, historical data recording, limit monitoring, report generation, data communication, signal transmission, flow accumulation, and flow temperature/pressure compensation functions for industrial process applications.

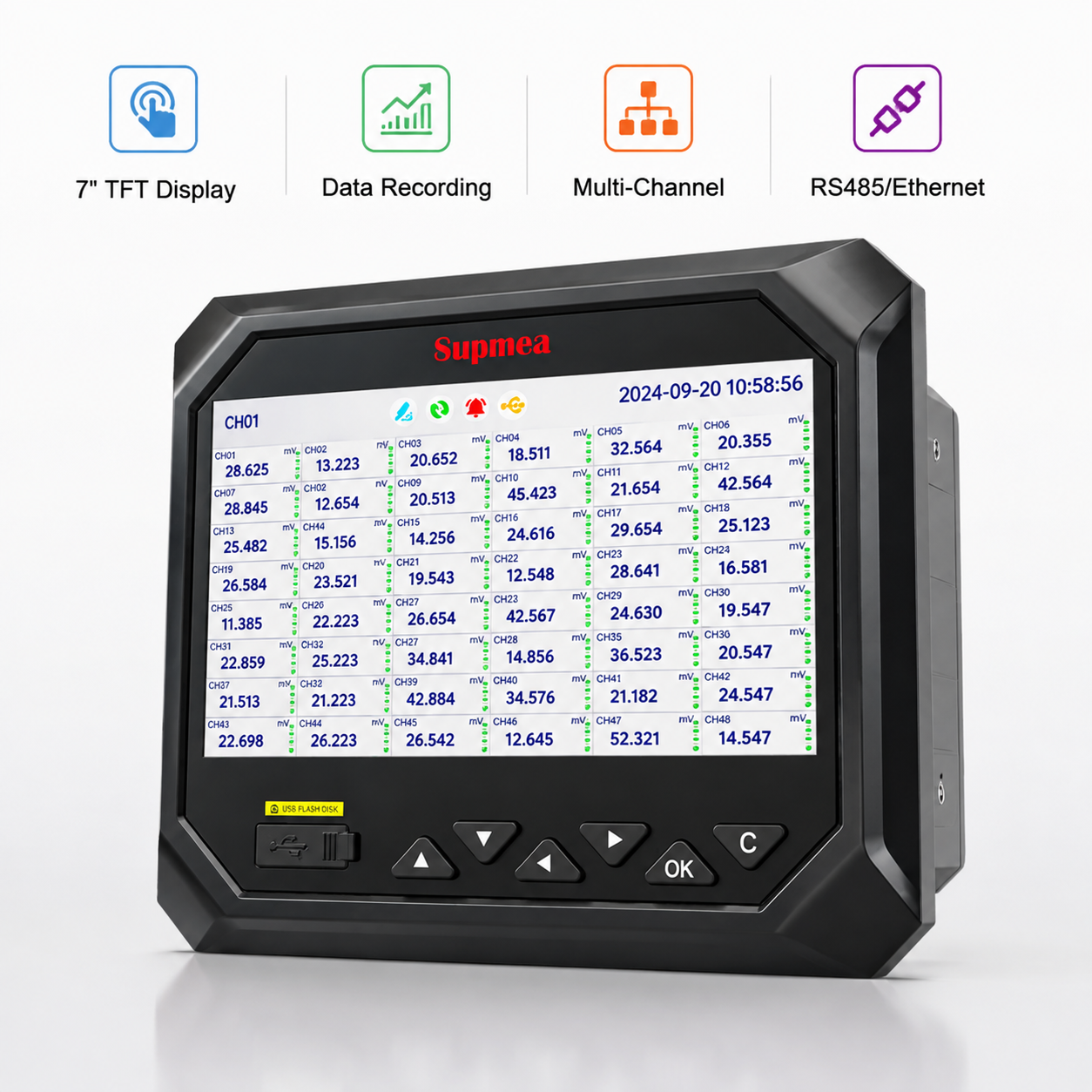

Key Features

  • Equipped with a 7-inch TFT full-color high-contrast display with 1024 × 600 resolution, providing clear visualization of measurement data and trends.
  • Integrates measurement, recording, monitoring, reporting, communication, and signal transmission functions in one device.
  • Supports current, voltage, thermocouple, thermistor, resistor, and customizable frequency inputs for various industrial measurement applications.
  • Supports flow accumulation and flow temperature/pressure compensation for advanced flow monitoring applications.
  • Built-in 128 MB internal storage and USB flash drive support for convenient data backup and transfer.
  • Designed for stable operation in industrial environments with strong interference resistance.

Applications

Technical Specifications

Display 7-inch TFT Full-Color LCD
Resolution 1024 × 600 pixels
Input Signals Current, Voltage, Thermocouple, Thermistor, Resistor, Frequency
Communication RS485 Modbus RTU / Ethernet Modbus TCP
Internal Storage 128 MB
External Storage USB Flash Drive (USB 2.0)
Sampling Period 1 second
Power Supply 85–264 VAC, 50/60 Hz / 24 VDC ±10%
Power Consumption ≤20 W
Operating Temperature 32–122°F (0–50°C)
Relative Humidity 10–85% RH (Non-condensing)

Downloads

User Manual
Datasheet

FAQ

What is the RN6500 Paperless Recorder used for?

The RN6500 is used for industrial data acquisition, recording, monitoring, and communication in process automation systems.

Does RN6500 support flow measurement?

Yes. The RN6500 supports flow accumulation and flow temperature/pressure compensation functions when configured for flow applications.

How does RN6500 store data?

The recorder stores data internally with 128 MB memory and supports USB flash drive data transfer.

Is RN6500 suitable for hazardous areas?

No. The user manual specifies that this product is not intended for explosion-proof applications.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
