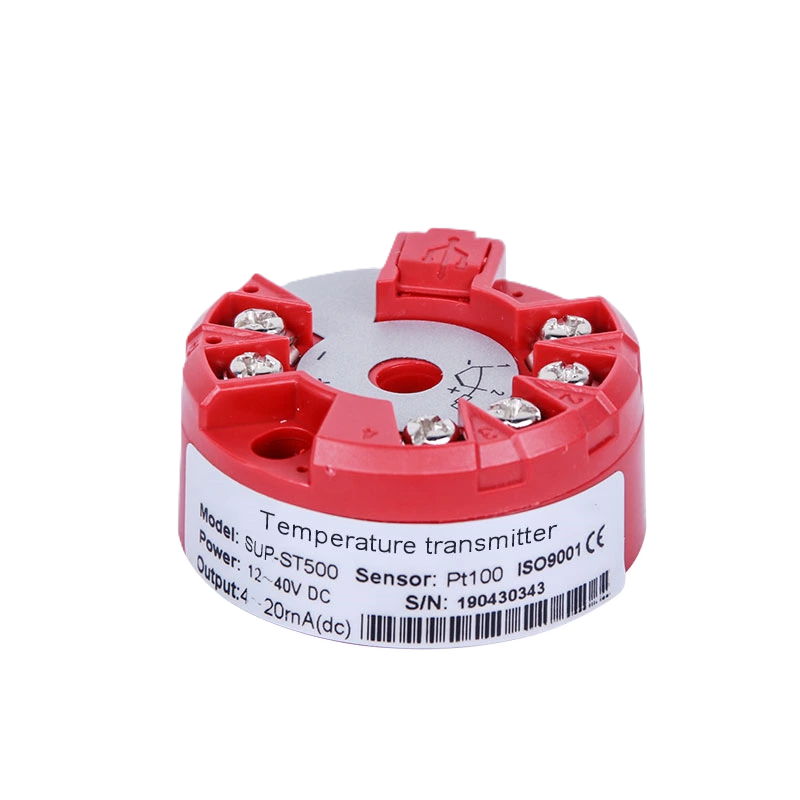

Supmea ST500 Temperature Module

Supmea ST500 Temperature Module

US$38.00
US$38.00
Sale Sold out
Prices Shown Include Delivery.

20 in stock • Lead Time: 2-4 Weeks
View full details

Product Overview

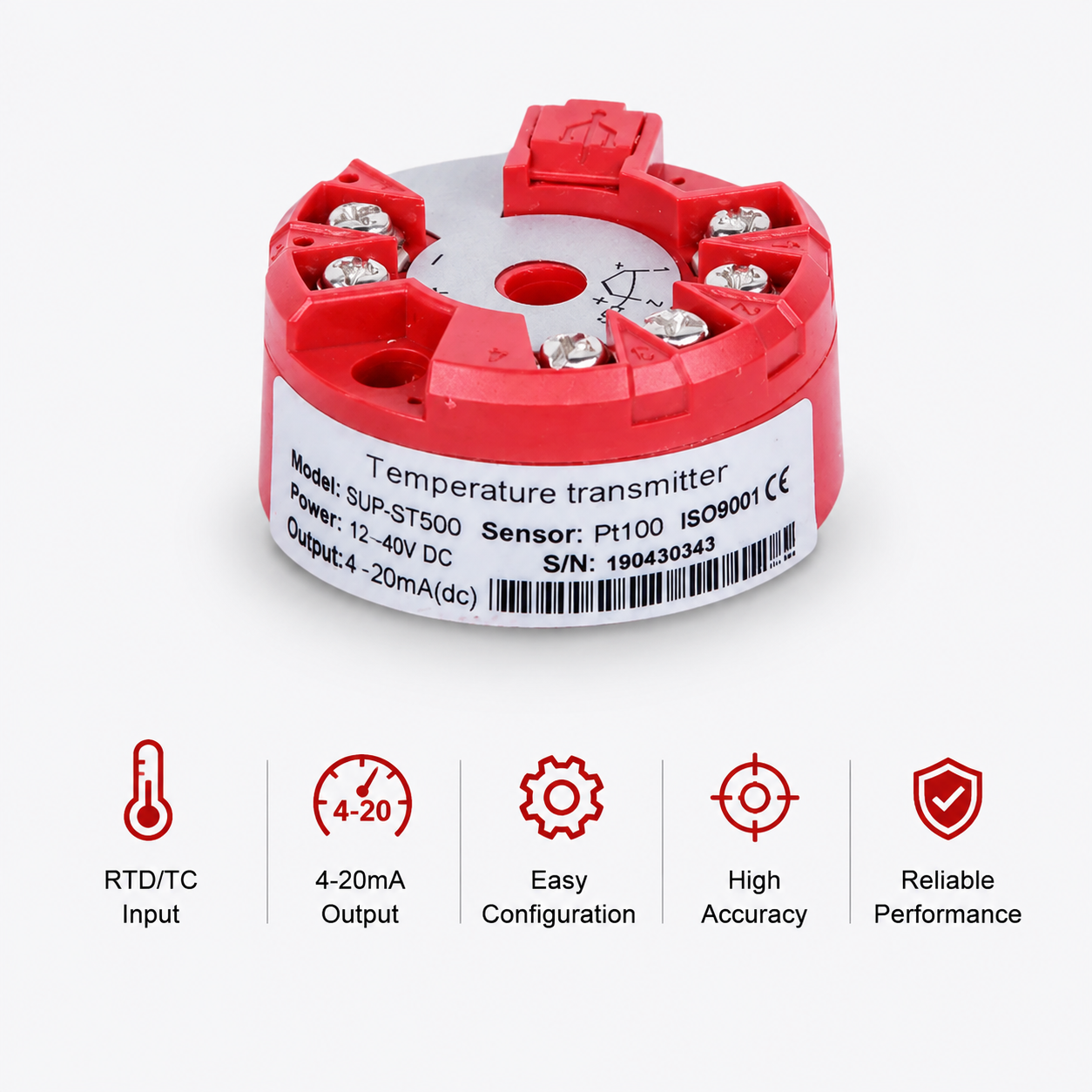

The SUP-ST500 is an intelligent head-mounted temperature transmitter designed for RTD, thermocouple (TC), resistance, and voltage signal inputs. It converts various temperature signals into a standard 4–20 mA output for industrial process monitoring. With PC/PDA configuration, built-in cold junction compensation, and flexible sensor compatibility, it provides reliable temperature signal transmission for automation systems.

Key Features

  • Supports RTD, thermocouple, resistance, and voltage signal inputs, allowing flexible integration with different temperature sensors.
  • Converts various temperature inputs into industrial standard 4–20 mA signals for easy connection with PLC, DCS, and control systems.
  • Supports parameter configuration through PC or PDA, including sensor type, temperature unit, and measurement range settings.
  • Provides integrated cold junction compensation for thermocouple measurement applications.

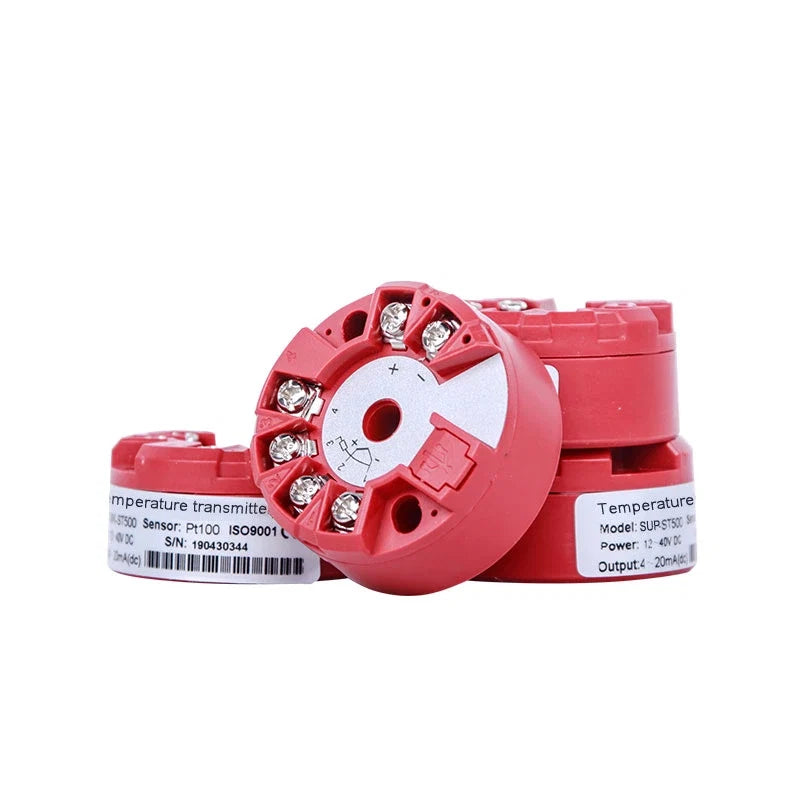

  • Round card structure designed for installation inside Form B sensor heads, saving space and simplifying system integration.
  • Provides transmission accuracy up to 0.1% FS with low temperature drift for reliable long-term operation.

Applications

Technical Specifications

Input Signal RTD / Thermocouple (TC) / Linear Resistance
RTD Input Pt100: -328 to 1562°F (-200 to 850°C) Cu50: -58 to 302°F (-50 to 150°C)
Output Signal 4–20 mA
Power Supply 12–40 VDC
Accuracy ±0.1% F.S.
Temperature Drift 0.01% F.S./°C
Response Time ≤1s (90% final value)
Cold Junction Compensation Built-in (-4 to 140°F / -20 to 60°C)
Configuration PC or PDA
Operating Temperature -40 to 176°F (-40 to 80°C)
Installation Type B-type head mount installation

Downloads

User Manual
Datasheet

FAQ

What type of sensors can SUP-ST500 support?

SUP-ST500 supports RTD, thermocouple, resistance, and voltage signal inputs.

Does SUP-ST500 support thermocouple measurement?

Yes. The transmitter supports multiple thermocouple types and includes built-in cold junction compensation.

Can the transmitter be configured after installation?

Yes. Parameters can be configured through PC or PDA software.

Where is SUP-ST500 installed?

It is designed for B-type sensor head installation as a head-mounted temperature transmitter.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
