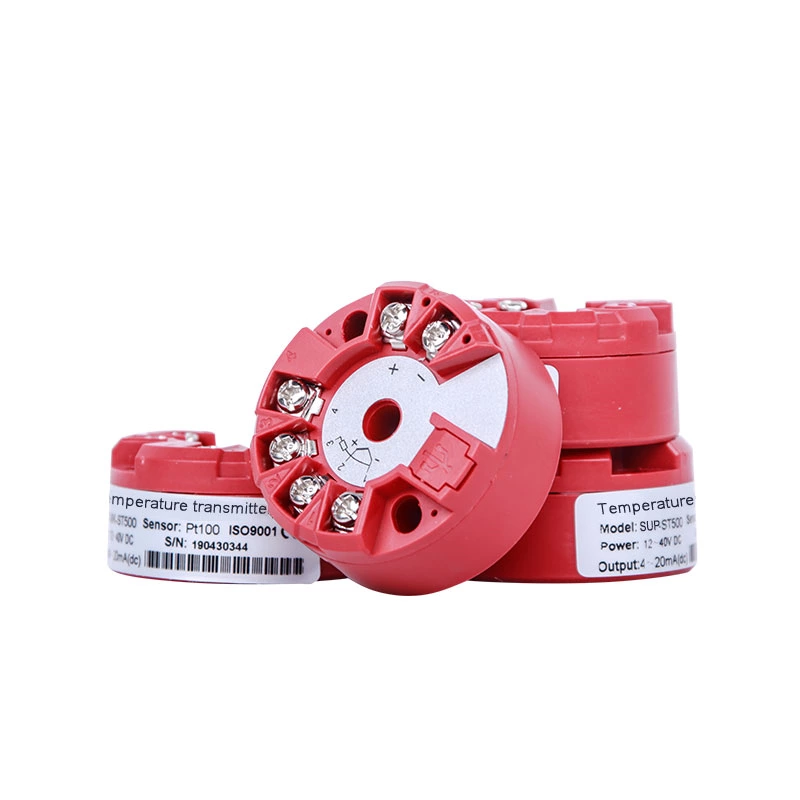

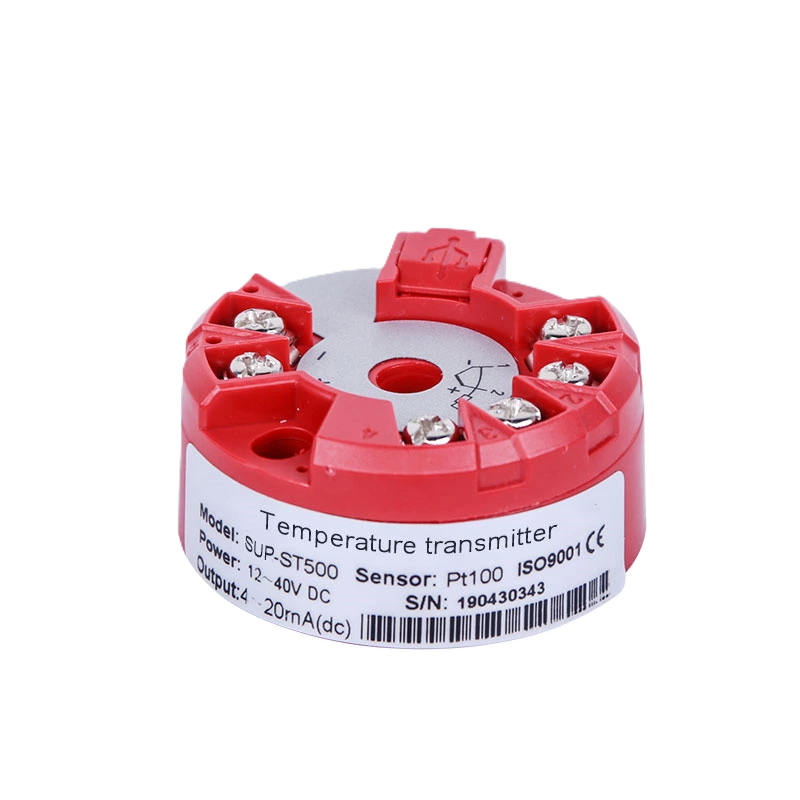

Temperature transmitter programmable ST500

Temperature transmitter programmable ST500

$39.00 USD
$39.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Introduction

Head Mounted Smart Temperature transmitter can be used with multiple sensor type [Resistance Thermometer(RTD),Thermocouple (TC)] inputs, is simple to install with improved measurement accuracy over wire-direct solutions.

Specification

  • Input signal Resistance temperature detector (RTD), thermocouple (TC), and linear resistance.
  • Cold-junction compensation temperature scope -20~60℃ (-4°F~140°F)
  • Output signal 4-20mA
  • Load resistance RL ≤ (U-10)/0.021
  • Output current of upper and lower limit overflow alarm IH = 21 mA, IL = 3.8 mA
  • Power supply (12-40)VDC
  • Response time Reach to 90% of the final value for 1s
  • Used environmental temperature -40~80℃ (-40°F~176°F)
  • Storage temperature -40~100℃ (-40°F~212°F)
  • Vibration resistance 4g/2~150Hz
  • Electromagnetic compatibility Conform to GB/T18268 industrial equipment application requirements (IEC 61326-1)

Features and advantages

High accuracy

Temperature transmitters offer highly accurate temperature measurement, often with an accuracy of ±0.1°C or better.

Remote sensing

Temperature transmitters can be used to measure temperature remotely, allowing them to be used in hazardous or hard-to-reach areas.

Digital communication

Many temperature transmitters offer digital communication protocols such as HART, Foundation Fieldbus, or Profibus, allowing for easy integration with process control systems.

Self-diagnostic capabilities

Some temperature transmitters have self-diagnostic capabilities that can detect issues such as sensor drift or signal degradation, alerting operators to potential problems before they cause significant issues.

Flexibility

Temperature transmitters can be used in a wide range of applications, including in harsh environments or those requiring high accuracy or precision.

Application

  • Chemical processing plants, refineries, and petrochemical facilities.
  • Food and beverage industry, including in brewing, distilling, and baking applications.
  • Pharmaceutical manufacturing, including in drug production and storage.
  • HVAC systems, including in buildings, hospitals, and laboratories.
  • Temperature measurement and control in power generation plants, including in turbines and boilers.

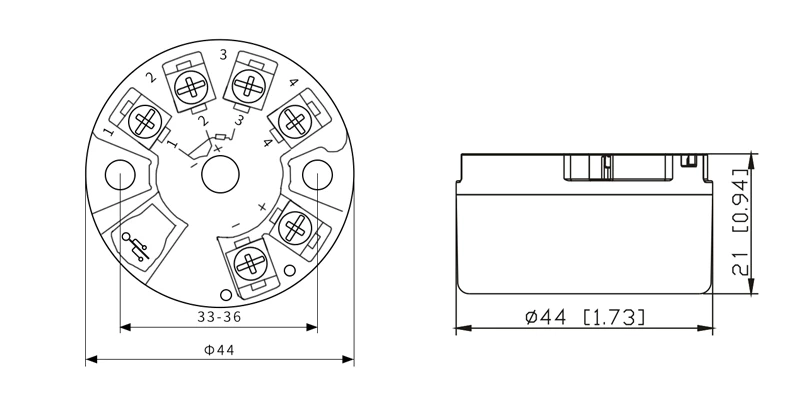

Dimension
