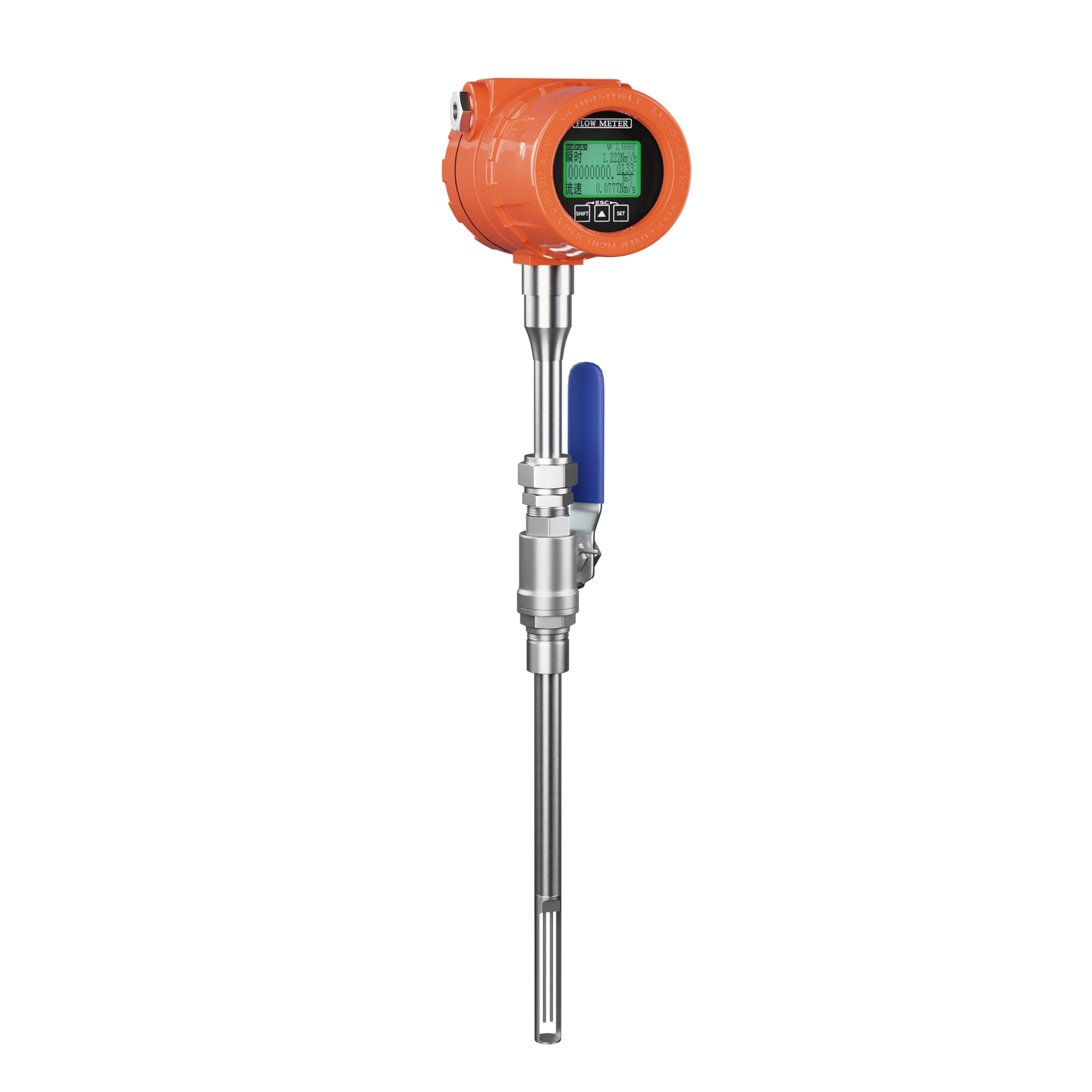

Thermal mass flowmeter MF

Thermal mass flowmeter MF

$3,322.00 USD
$3,322.00 USD
Sale Sold out
This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.
View full details

Introduction

The thermal mass flow meter is designed based on the principle of thermal diffusion. The instrument uses the constant temperature difference method to accurately measure the gas. It has the advantages of small size, high degree of digitization, convenient installation and accurate measurement. Reduce your energy costs and increase your sustainability. Monitor your consumption and analyze your leakage flows with just one measuring device.

Specification

  • Type Insertion
  • Medium Steady-state gases (except unstable media as acetylene and boron trichloride etc.)
  • Diameter DN65~DN1000 (2.56" to 39.37")
  • Flow rate 0.1~100 Nm/s (0.1~100 Normal cubic meters per second)
  • Accuracy ±2.5%
  • Working Temperature Sensor: -40~+300℃ (-40°F~572°F) Converter: -20~45℃ (-4°F~113°F)
  • Working pressure ≤2.5 MPa (≤362.6 psi)
  • Power supply 220VAC; 24VDC, 18W
  • Signal output 4~20mA, RS485 communication (Modbus RTU)
  • Ingress protection IP65
  • Body Materials Stainless shell
  • Relay 1~2 relay optional
