Thermocouples sensors with mineral insulated WRNK

Thermocouples sensors with mineral insulated WRNK

$66.00 USD
$66.00 USD
Sale Sold out
Shipping calculated at checkout.

Lead Time: 2-4 Weeks
View full details

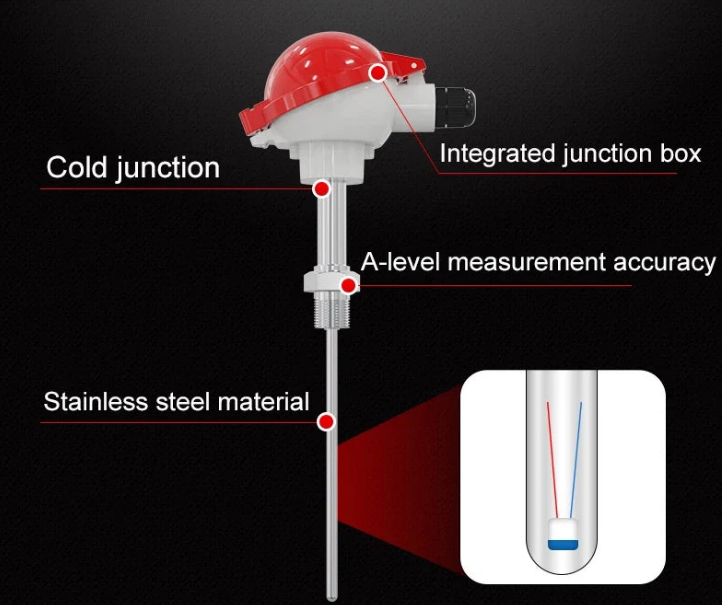

Product Overview

The WRNK mineral insulated thermocouple sensor is designed for fast and reliable temperature measurement in high-temperature and demanding industrial environments. With thermocouple wires insulated by compacted magnesium oxide (MgO) and protected by a durable metal sheath, it provides excellent mechanical strength, vibration resistance, and rapid thermal response. The flexible mineral insulated structure allows easy installation in complex equipment configurations, while various thermocouple types and customizable probe dimensions provide solutions for different process requirements. WRNK is ideal for high-temperature applications such as industrial furnaces, heat treatment systems, chemical processing, power generation, and industrial process control.

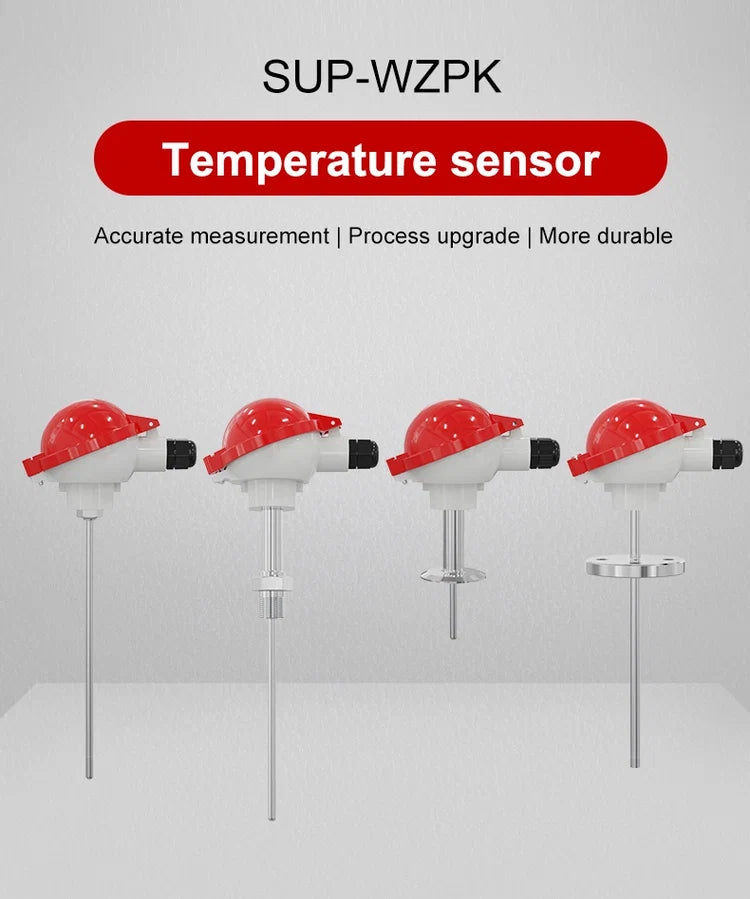

Key Features

  • Supports a wide temperature range from -200°C to +1850°C, suitable for high-temperature industrial measurement applications.
  • Designed for high-temperature applications including furnaces, boilers, heat treatment equipment, and industrial heating systems.
  • The small sheath diameter and low thermal mass enable rapid response to temperature changes, making WRNK suitable for dynamic heating processes.
  • The mineral insulated construction allows flexible bending installation, making it suitable for complex installation environments.
  • The thermocouple wires are insulated with chemically stable magnesium oxide (MgO), providing excellent insulation performance and extended service life.
  • The compact mineral insulated structure provides strong vibration resistance and reliable operation in harsh industrial environments.

Applications

Technical Specifications

Sensor Type Mineral Insulated Thermocouple Sensor
Input Element Thermocouple Type K / J / E / T / N / R / S / B
Temperature Range -328 to 3362°F (-200 to 1850°C)
Output Signal Thermocouple mV Signal / 4–20 mA (Optional)
Power Supply 12–40 VDC (with transmitter output)
Accuracy According to thermocouple class
Response Time Fast Response (≤1s depending on configuration)
Sheath Diameter 0.01 to 0.5 in (Φ0.25–12.7 mm)
Probe Length Customizable, up to 1312 ft (400 m)
Sheath Material Stainless Steel / Heat Resistant Alloy
Installation Flexible Bending Installation / Threaded Connection

Downloads

User Manual
Datasheet

FAQ

What is the difference between WRNK and RTD temperature sensors?

WRNK uses thermocouple technology and is mainly designed for high-temperature applications, while RTD sensors are typically selected for higher accuracy temperature measurement.

What is the advantage of a mineral insulated thermocouple?

The mineral insulated structure provides fast response, strong mechanical protection, and reliable performance in demanding industrial environments.

Can WRNK be installed in narrow or complex locations?

Yes. The flexible mineral insulated design allows bending installation for difficult installation conditions.

Does WRNK support transmitter output?

Yes. WRNK can be configured with a temperature transmitter to provide a standard 4–20 mA output.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
