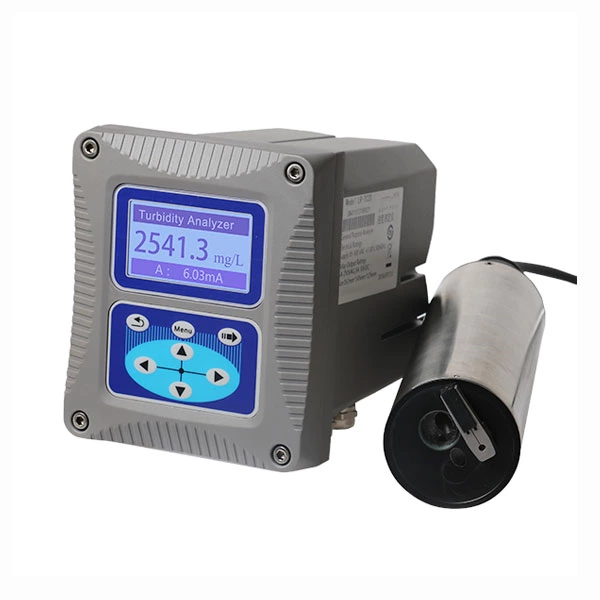

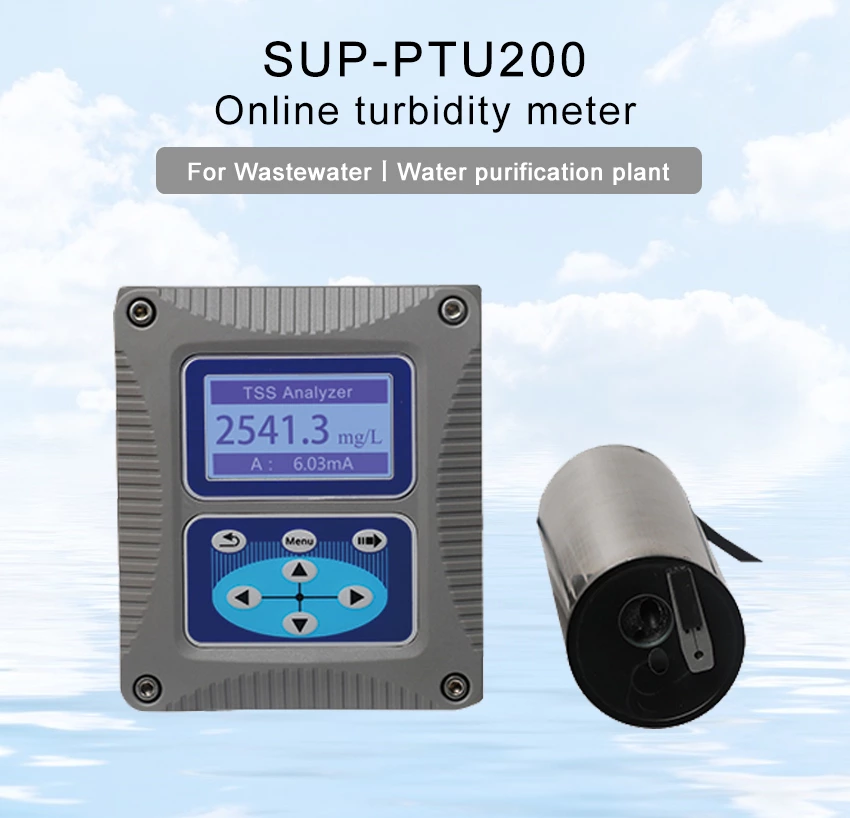

Turbidity meter SUP-PTU200

Turbidity meter SUP-PTU200

Regular price $1,039.50 USD
Regular price $2,079.00 USD Sale price $1,039.50 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Introduction

The turbidity meter based on the infrared absorption scattered light method and combined with the application of ISO7027 method, can guarantee the continuous and accurate detection of turbidity. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of turbidity value. According to the usage environment, self-cleaning function can be equipped with. It assures the stability of data and reliability of performance; with the built-in self-diagnosis function, it can make sure the accurate data be delivered; besides, the installation and calibration is quite simple.

Specification

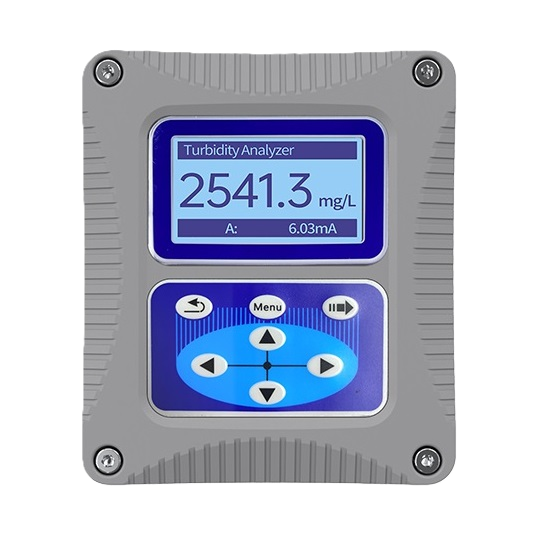

Display 128 × 64 dot matrix LCD with LED backlight, which can be operated under direct sunlight

Power supply AC: 85~500V, 50Hz/60Hz; DC: 9~36VDC

Output Three-way analog output 4-20mANote: The maximum load is 500 ohms

Relay Three-way relay can be set up

Digital communication MODBUS RS485 communication function, which can transmit real-time measurements

Warranty period 1 year

Material of outside shell

  • Lower casing: Aluminum with powder covering
  • Cover: PA66+GF25+FR

Storage temperature -20~70℃ (-4°F~158°F)

Operation temperature -15~60℃ (5°F~140°F)

Ingress protection IP65/NEMA4XSize145 × 125 × 162 mm (L × W × H)5.71" × 4.92" × 6.38" (L × W × H)

Weight 1.35 kg (2.98 lbs)

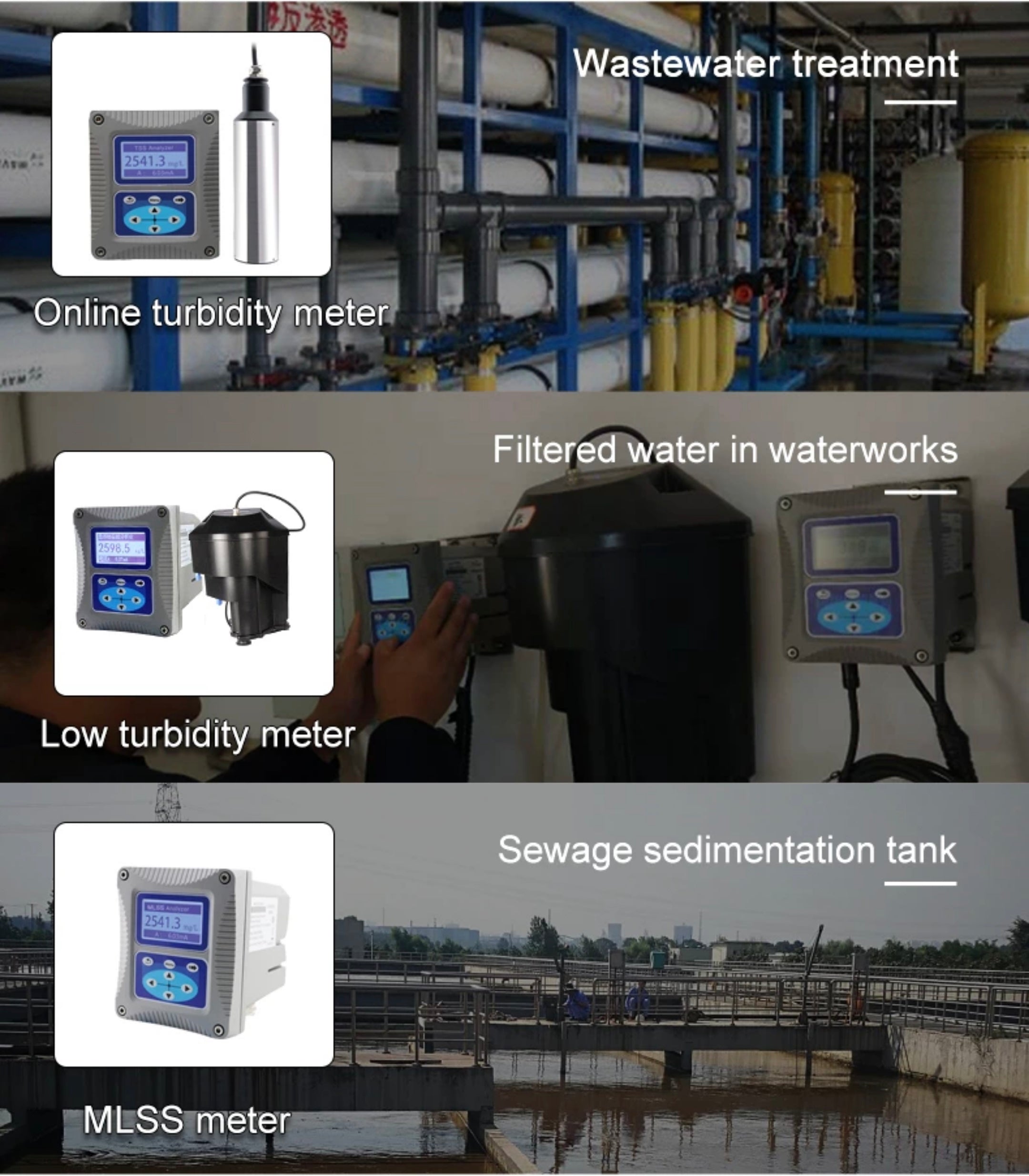

Application
