BayMeters

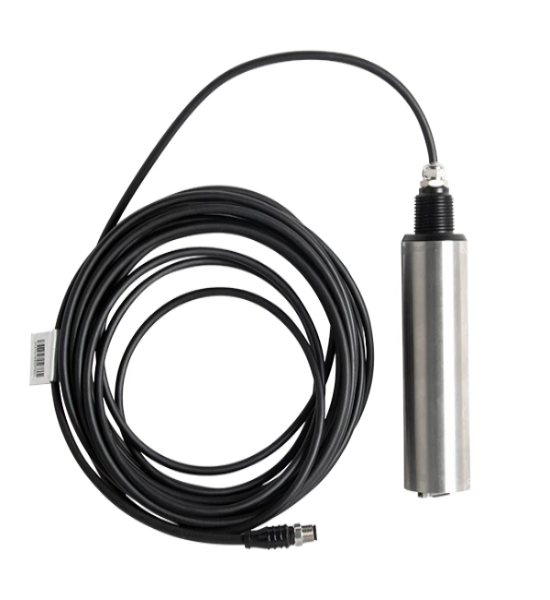

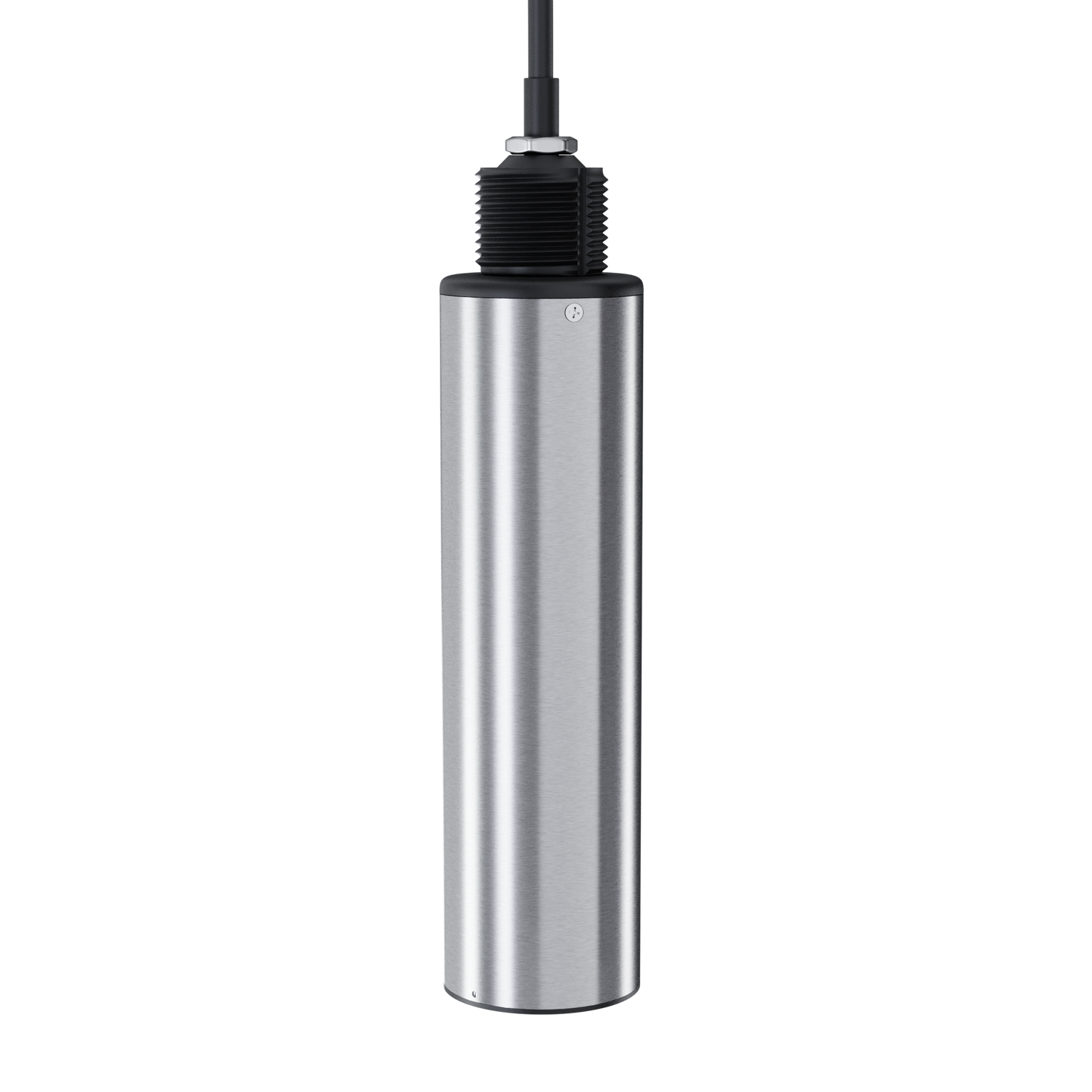

Sludge Concentration Sensor SUP-PSS9011

Sludge Concentration Sensor SUP-PSS9011

Regular price $1,934.50 USD
Regular price $3,869.00 USD Sale price $1,934.50 USD
Sale Sold out
Shipping calculated at checkout.
Cable Length
View full details

Introduction

The turbidity meter based on the infrared absorption scattered light method and combined with the application of ISO7027 method, can guarantee the continuous and accurate detection of turbidity. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of turbidity value. According to the usage environment, self-cleaning function can be equipped with. It assures the stability of data and reliability of performance; with the built-in self-diagnosis function, it can make sure the accurate data be delivered; besides, the installation and calibration is quite simple.

Specification

Measure range 0-20g/L

Indication resolution Less than ±2% of the measured value, or ±0.1 NTU (Maximum criterion)

Pressure range ≤0.4 MPa (≤58 psi)

Flow velocity ≤2.5 m/s (≤8.2 ft/s)

Environment temp 0~45℃ (32°F~113°F)

Calibration Sample Calibration, Slope Calibration

Cable length Standard 10-Meter Cable (32.8 ft), Max Length: 100 Meters (328.1 ft)

High voltage baffle Aviation Connector, Cable Connector

Main materials

  • Main Body: SUS316L (Ordinary Version)
  • Titanium Alloy (Seawater Version)
  • Upper and Lower Cover: POM
  • Cable: PUR

Ingress protection IP68/NEMA6P‘

Weight 1.65 KG (3.64 lbs)
