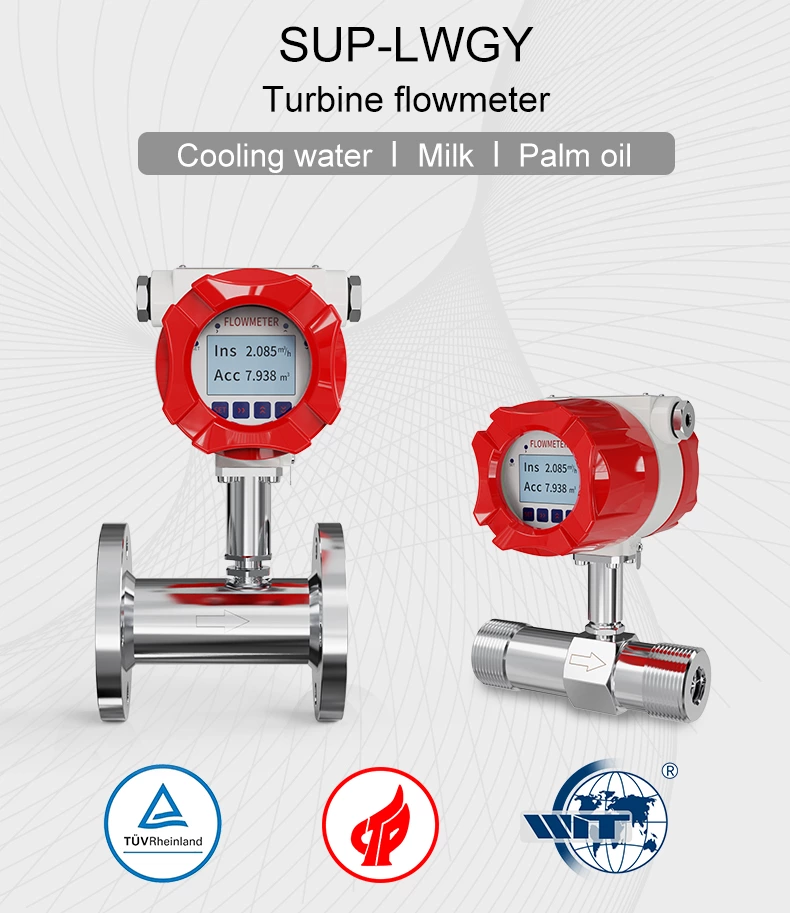

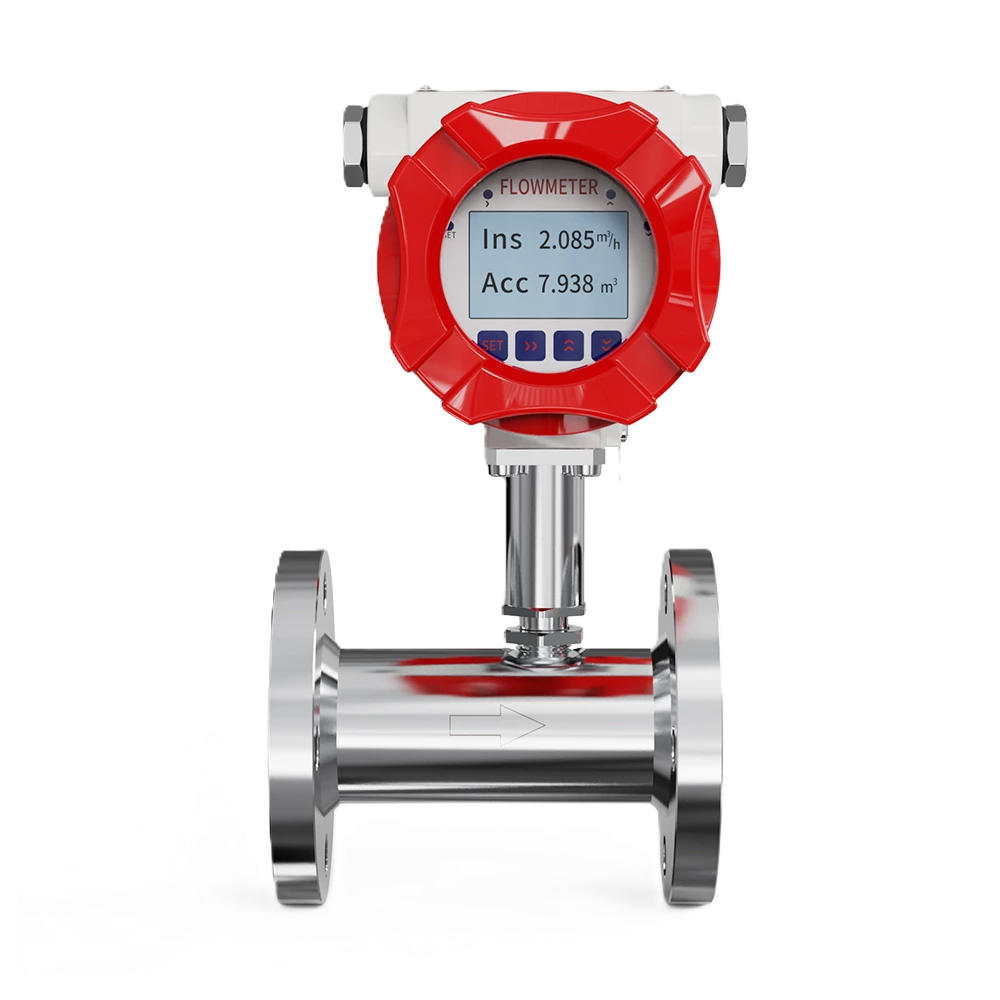

Turbine flowmeter flange connection LWGY

Turbine flowmeter flange connection LWGY

$1,768.00 USD
$1,768.00 USD
Sale Sold out
This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.
Diameter
View full details

Introduction

Liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe. In the petroleum, chemical, metallurgy, water supply, paper and other industries with a wide range of applications.

Specification

Diameter Nominal
DN6(1/8”)~DN200(8")

Nominal Pressure
1.0 MPa~6.3 MPa (145 psi~914 psi)

Accuracy
0.5%R, 1.0%R

Medium Viscosity
Less than 5×10⁻⁶ m²/s (for the liquid with >5×10⁻⁶ m²/s, the flowmeter needs to be calibrated before using)

Medium Temperature
-20℃～＋120℃ (-4℉~248℉)

Power Supply

  • 3.6 V lithium battery
  • 12 VDC
  • 24 VDC

Output Signal
Pulse, 4-20 mA, RS485 Modbus

Ingress Protection
IP65
