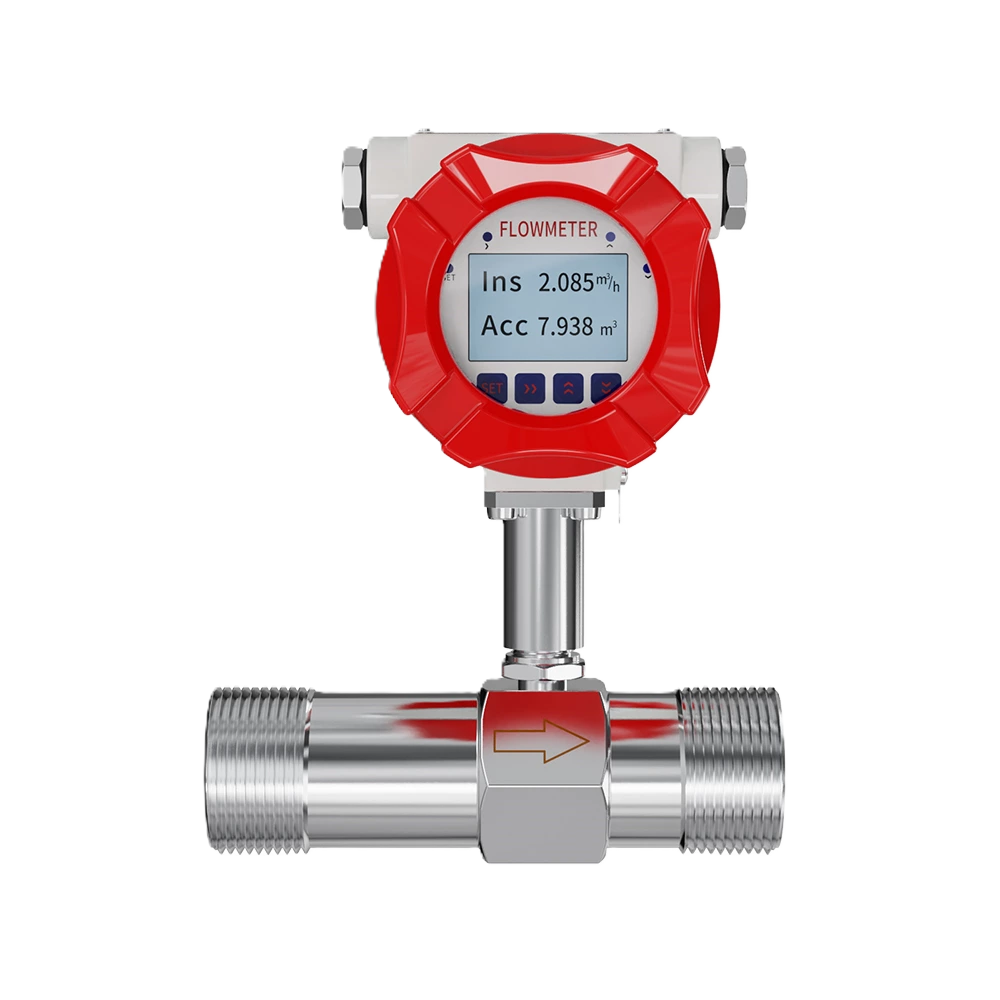

Turbine flowmeter thread connection LWGY

Turbine flowmeter thread connection LWGY

$1,179.00 USD
$1,179.00 USD
Sale Sold out
Shipping calculated at checkout.
Diameter
View full details

Introduction

Liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe. Threaded type, simple to install and maintain, usually used for small diameter flow measurements: Male:DN4~DN100; female:DN15~DN50

Specification

  • Diameter Nominal DN4~DN100 (1/2" to 4")
  • Nominal Pressure 6.3 MPa (913.9 psi)
  • Accuracy 0.5%R, 1.0%R
  • Medium viscosity Less than 5×10⁻⁶ m²/sFor the liquid with >5×10⁻⁶ m²/s, the flowmeter needs to be calibrated before using.
  • Medium Temperature -20℃～+120℃ (-4°F to +248°F)
  • Power Supply 3.6V lithium battery; 12V DC; 24V DC
  • Output Signal Pulse, 4-20mA, RS485, Modbus
  • Ingress protection IP65

Application
