BayMeters

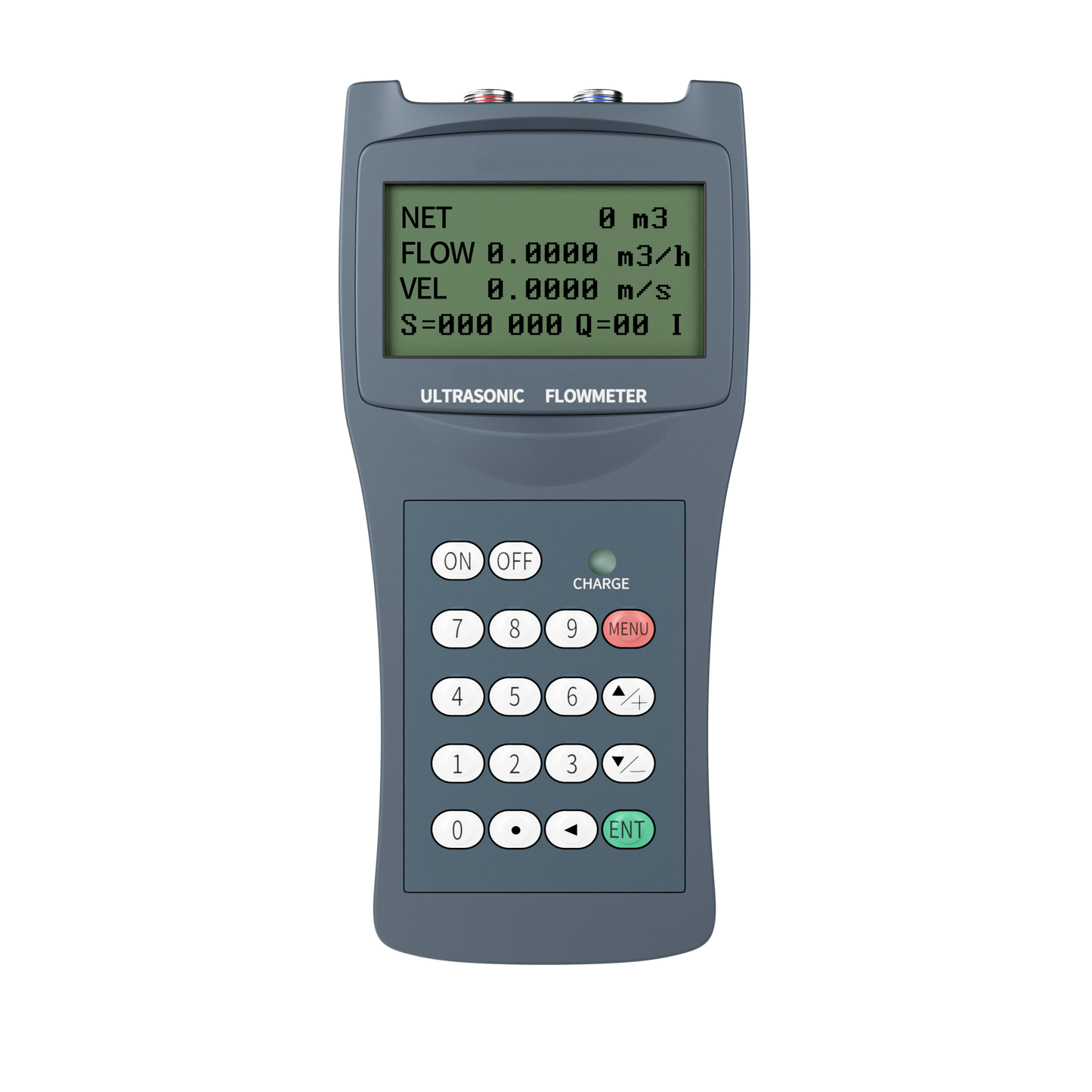

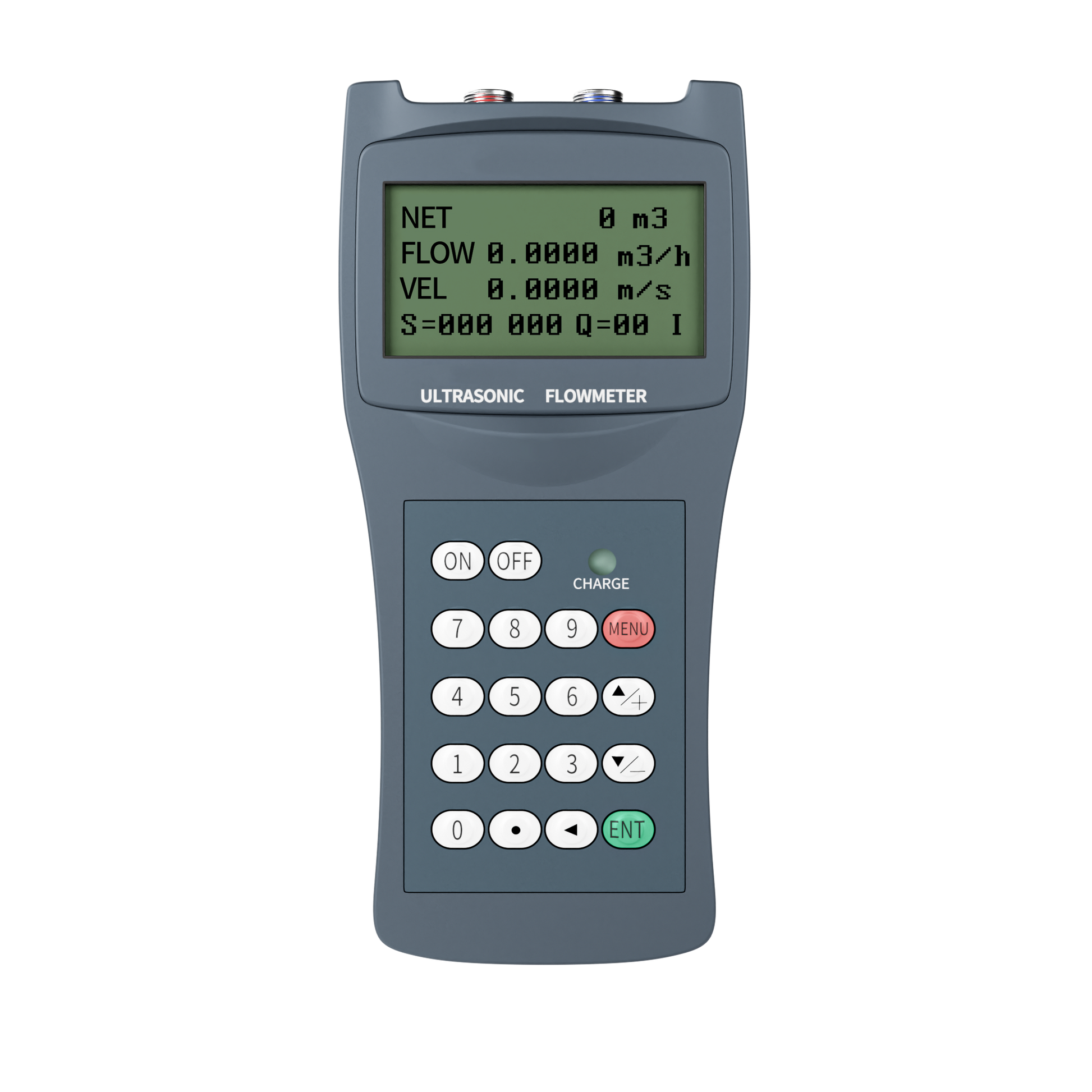

Handheld ultrasonic flowmeter 2100H

$2,101.00 USD

Sale Sold out

Sensor Type Small clamp type (1in-4in) Medium clamp type (2in-28in) Large clamp type (12in-47in) Small bracket type (8in-4in) Medium bracket type (2in-12in) Extended bracket type (12in-28in)

View full details

Introduction

Ultrasonic flow meter uses advance circuit design,coupled with excellent hardware designed in English and can be switched surfaces.It is easy to operate and with stable performance.

Specification

Pipe Size
DN50 (2'')

Accuracy
±1%

Totalizer
7-digit totals for net positive and negative flow respectively

Liquid Types
Virtually all liquids

Working Temperature

Convertor: -20~60℃ (-4~140℉)
Flow Transducer: -30~160℃ (-22~320℉)

Working Humidity

Convertor: 85% RH
Flow Transducer: IP67

Display
4×8 Chinese characters or 4×16 English letters

Power Supply
3 AAA built-in Ni-H batteries

Data Logger
Built-in data logger can store over 2000 lines of data

Case Material
ABS

Dimension
2009332mm (Convertor) (7.873.661.26 inches)

Handset Weight
500g with batteries (1.10 lbs with batteries)
