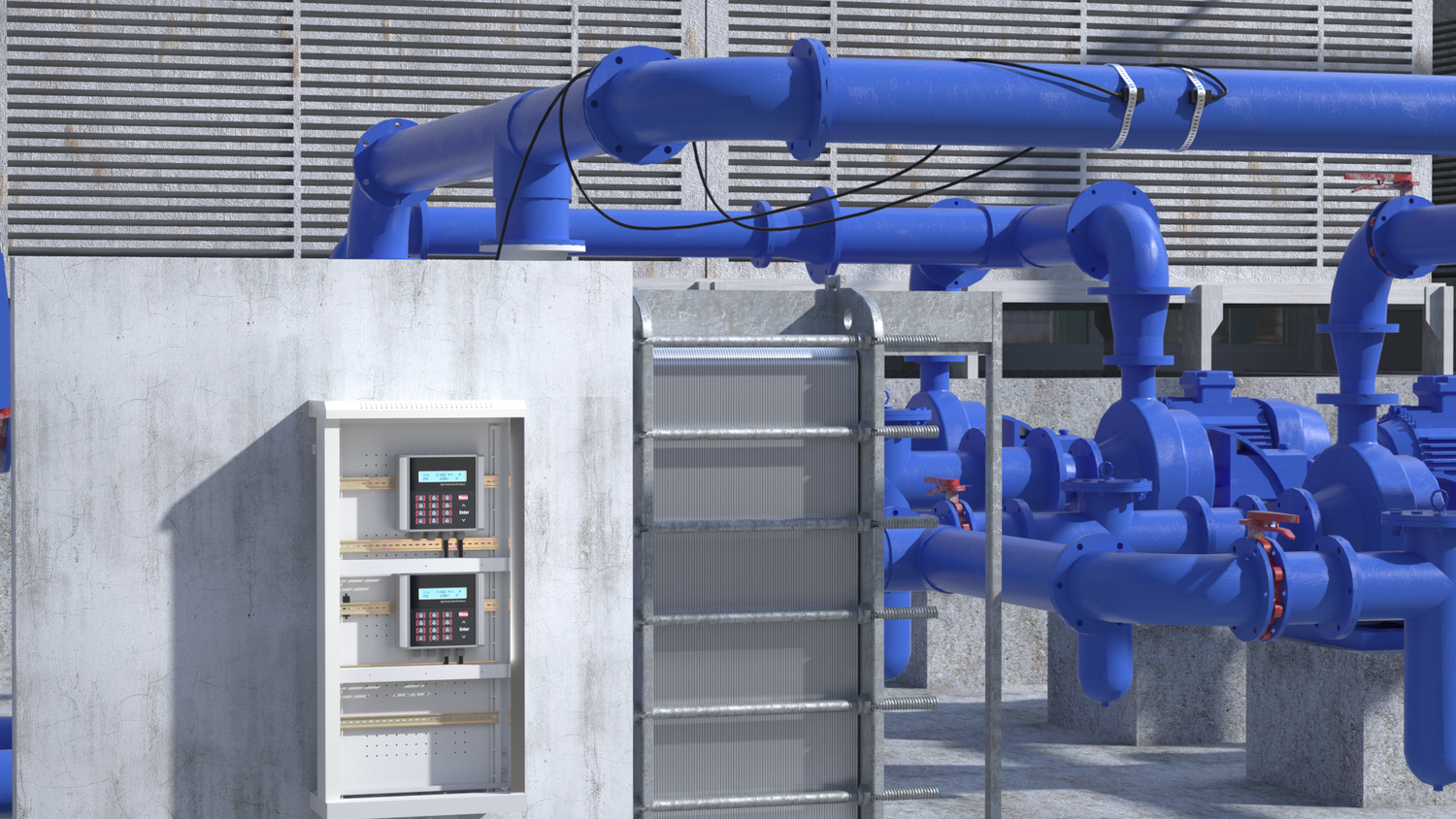

Wall mounted clamp on ultrasonic flow meter uses advance circuit design,coupled with excellent hardware designed in English and can be switched surfaces.It is easy to operate and with stable performance.
Specification
Pipe Size DN50: 2"
Accuracy ±1%
Signal Output
1 way 4-20 mA output
1 way OCT pulse output
1 way relay output
Interface RS485, support MODBUS
Liquid Types Virtually all liquids
Working Temperature
Convertor: -20~60℃ (-4~140℉)
Flow Transducer: -30~160℃ (-22~320℉)
Working Humidity Convertor: 85% RH
Power Supply
DC 8~36 V
AC 85~264 V (optional)
Data Logger Built-in data logger can store over 2000 lines of data
