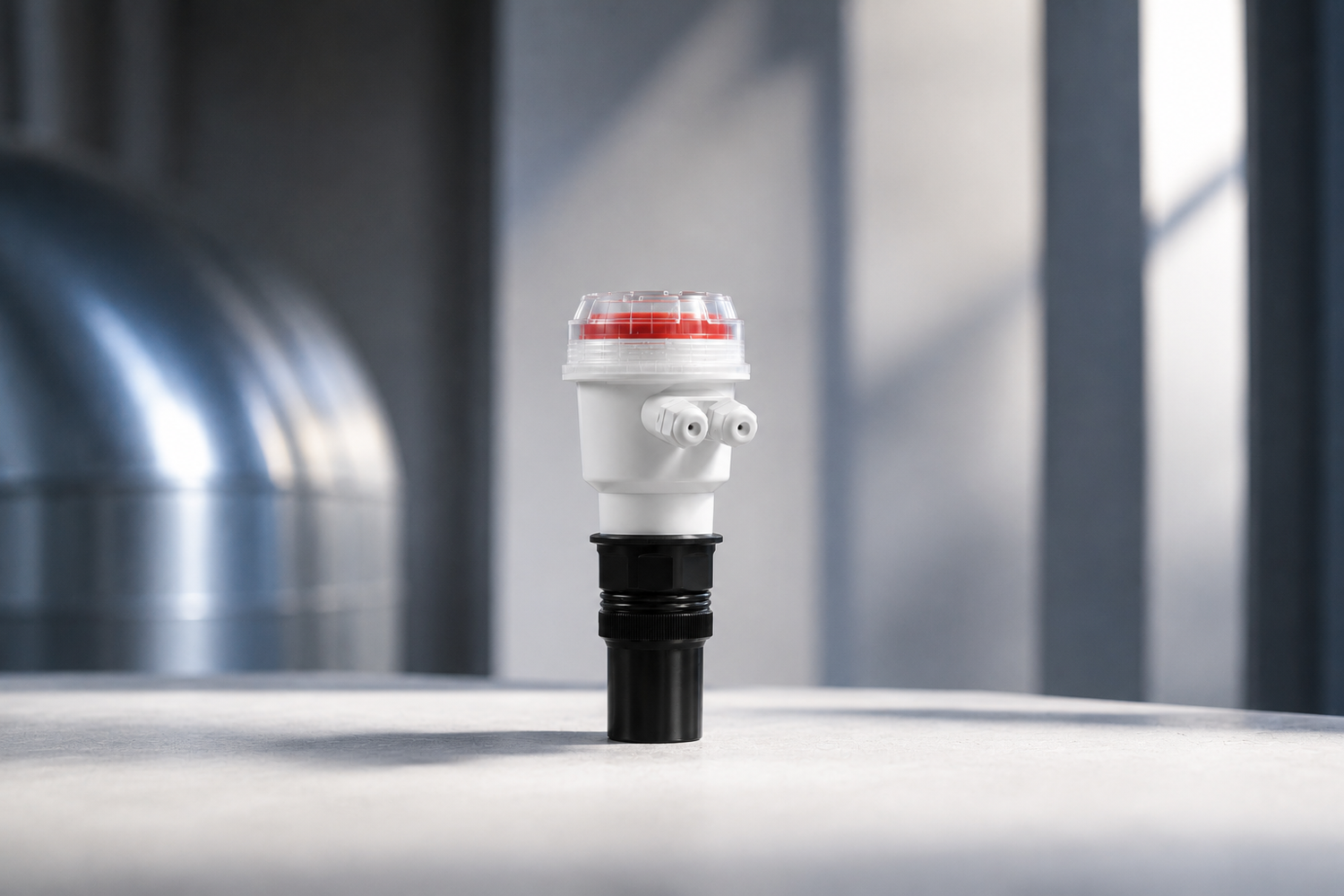

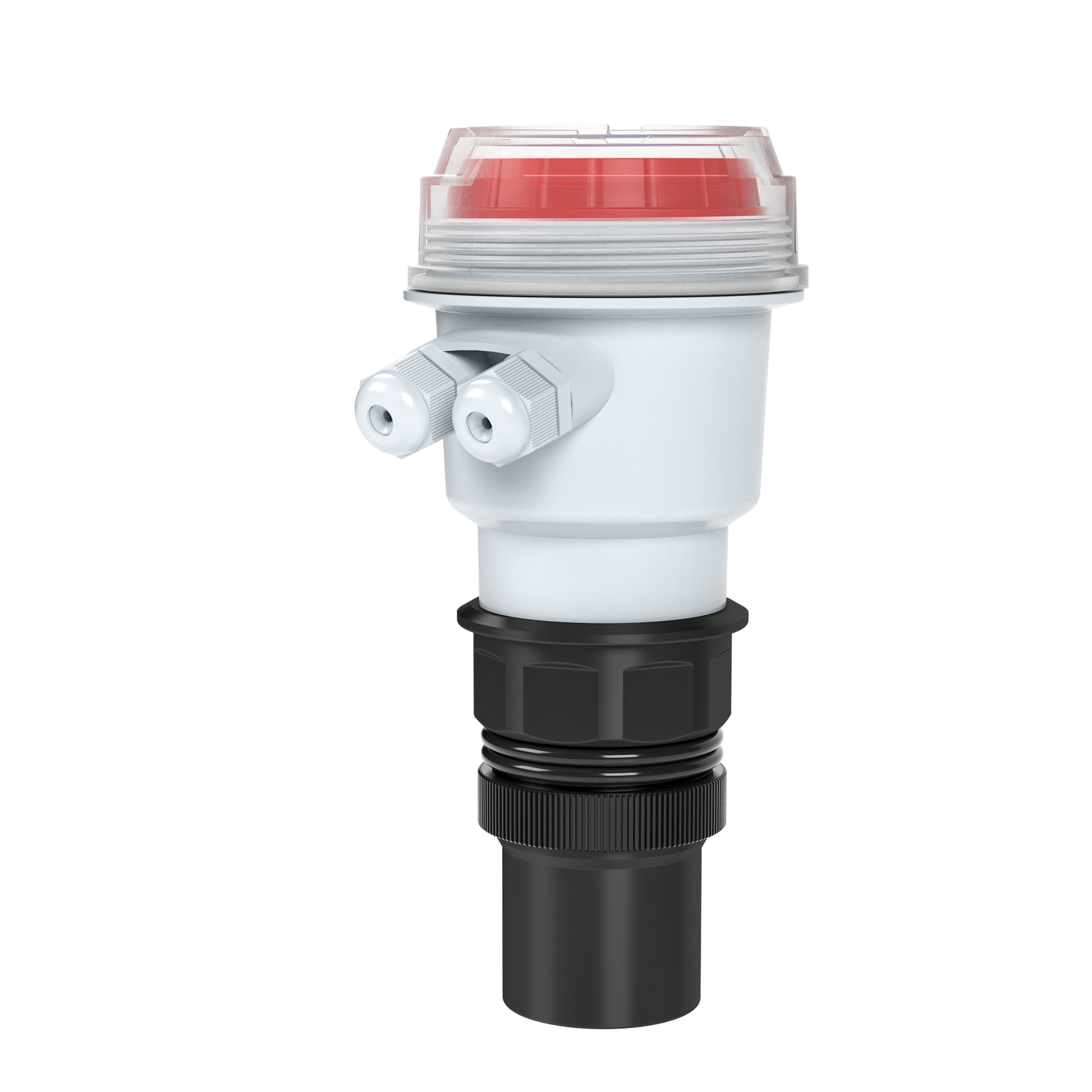

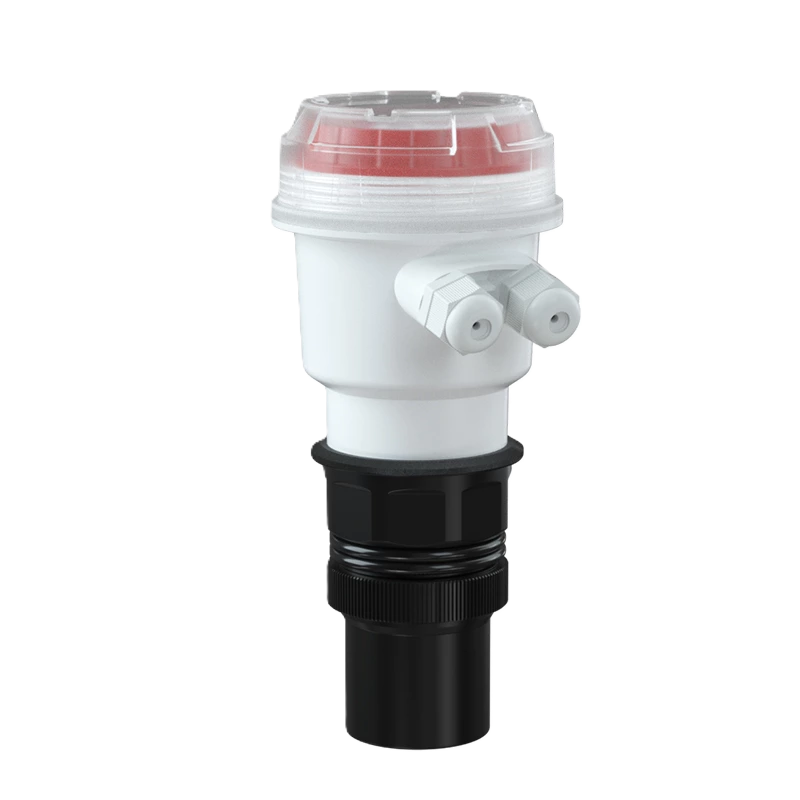

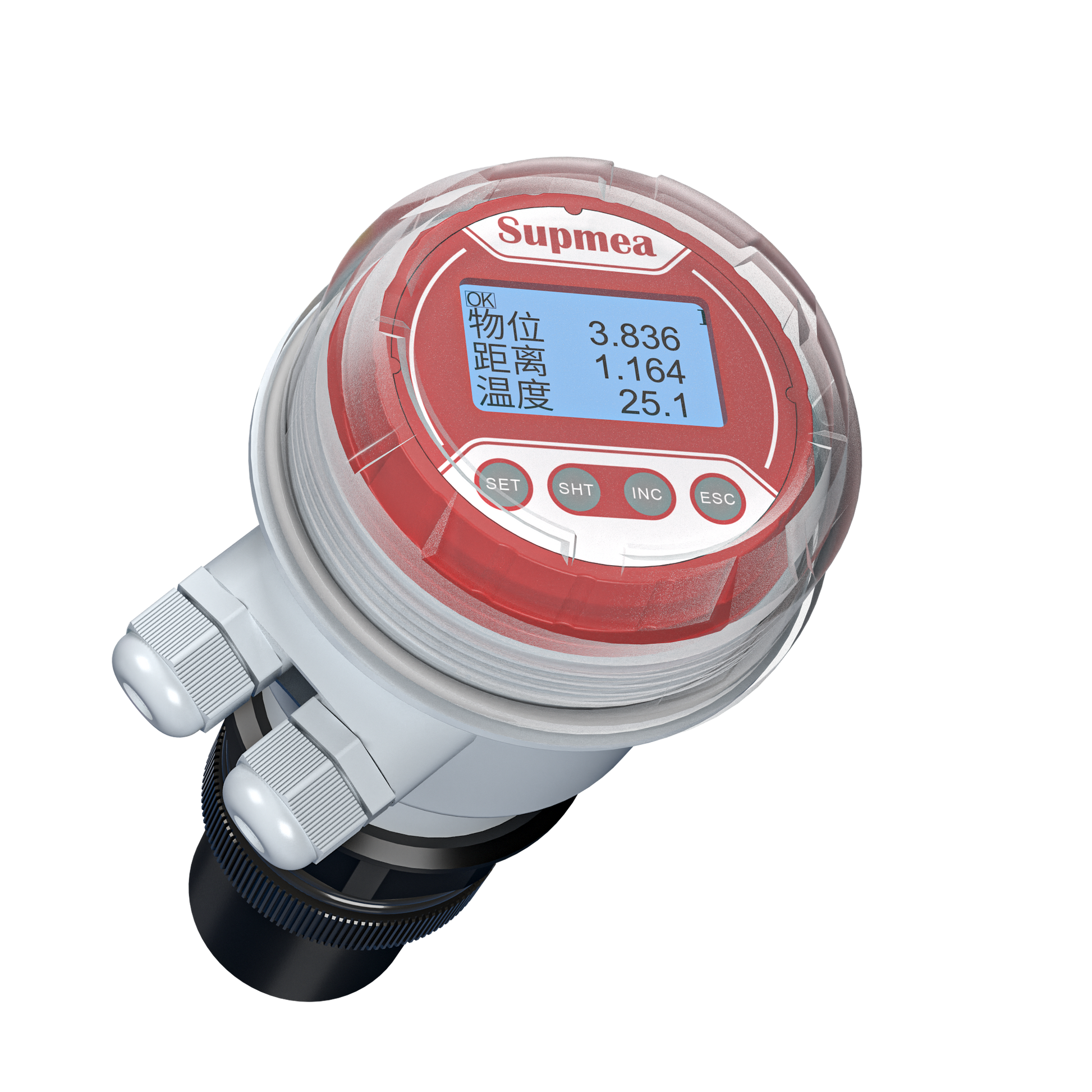

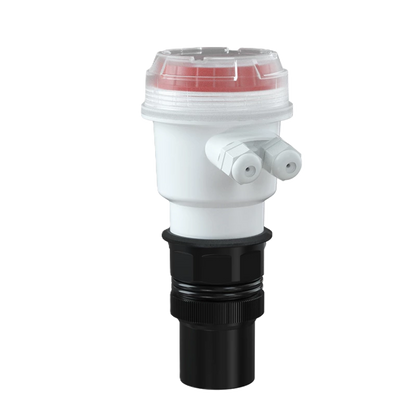

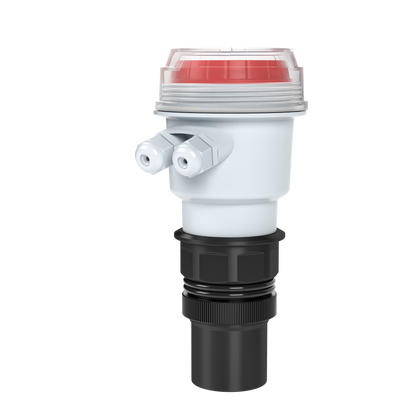

Ultrasonic level transmitter SUP-MP-C

$584.00 USD

Sale Sold out

Shipping calculated at checkout.

3-Year-Limited-Warranty

Low stock: 2 left • Ships in 3-5 business days

View full details

Product Overview

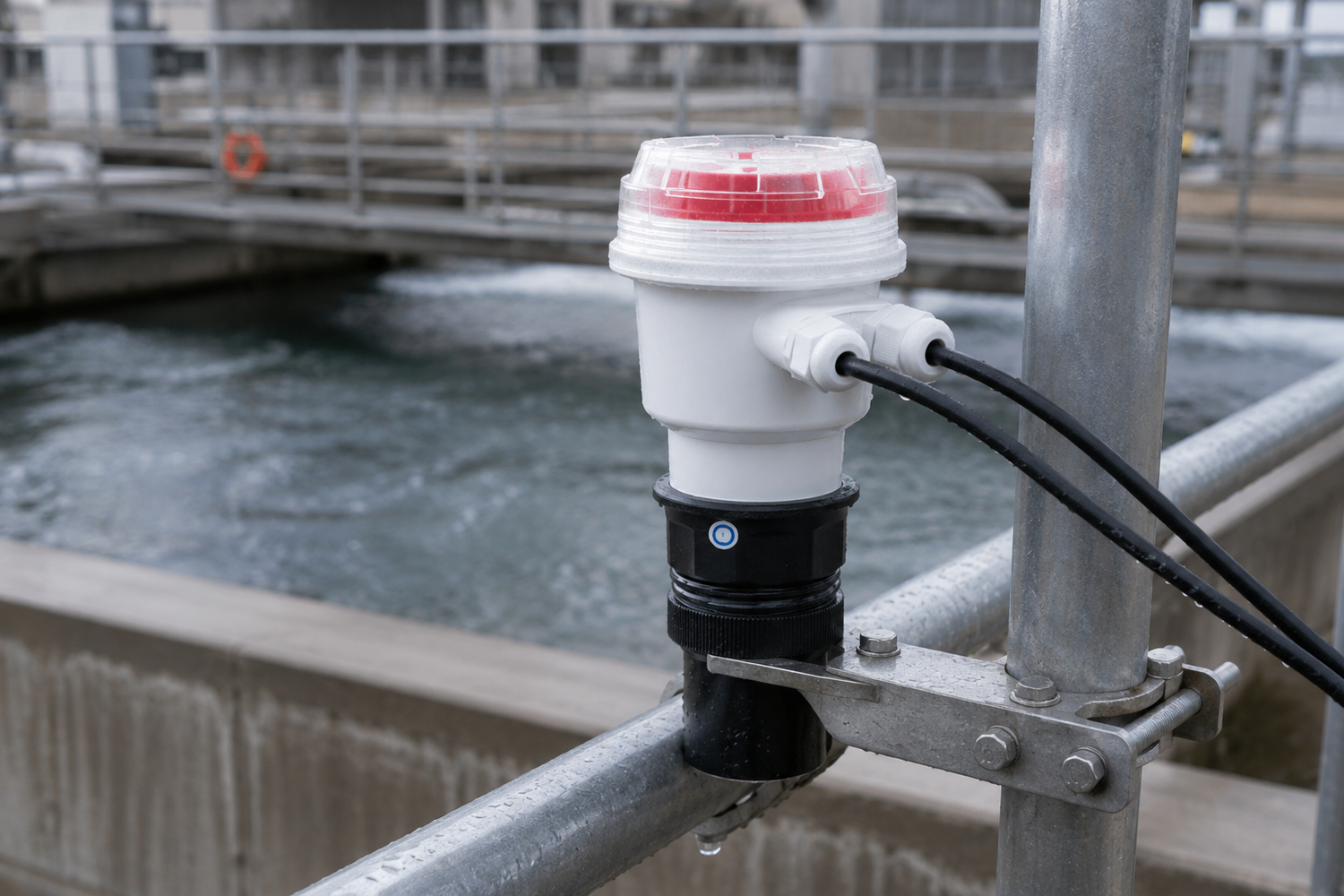

The SUP-MP-C Ultrasonic Level Transmitter is a non-contact level measurement instrument designed for continuous monitoring of liquids in tanks, reservoirs, sumps, and open channels. Using advanced ultrasonic pulse technology, it delivers reliable level measurement without contacting the medium, making it ideal for corrosive, dirty, or wastewater applications.
Its integrated digital signal processing provides stable measurement performance while supporting flexible analog output configuration and serial communication for industrial automation systems. The instrument is suitable for municipal water treatment, environmental monitoring, chemical processing, and general industrial storage applications.

Key Features

Quickly save and restore configuration parameters for faster commissioning and maintenance.
Supports flexible analog output range configuration for different process requirements.
Compatible with industrial communication systems for easy PLC and SCADA integration.
Supports optional incremental or differential distance measurement modes.
Automatically adjusts ultrasonic pulse intensity according to working conditions for improved measurement stability.
Digital signal processing improves stability in industrial environments.

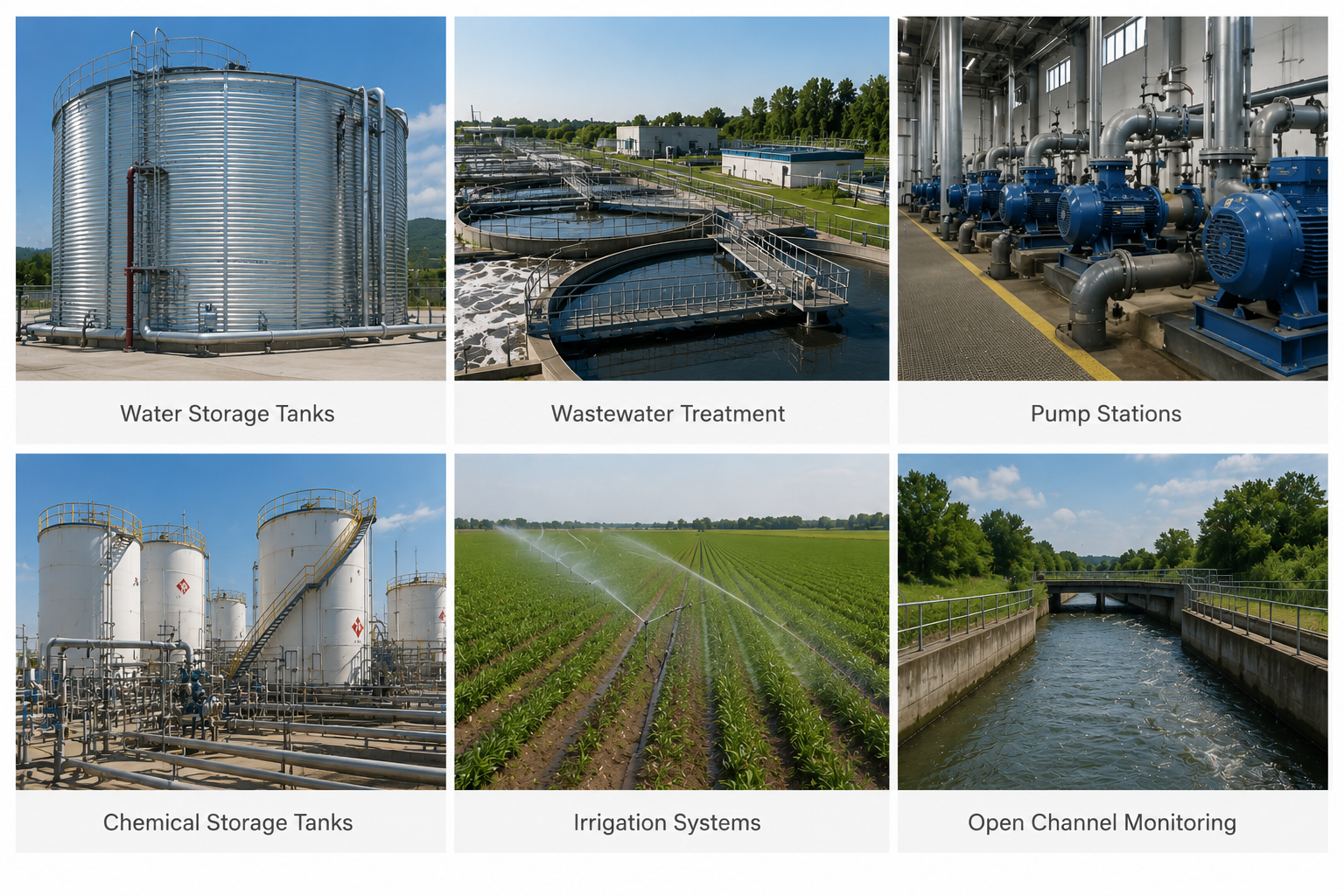

Applications

Technical Specifications

Model	SUP-MP-C
Measuring Range	0–49 ft (0–15 m)
Accuracy	±0.5% FS
Output Signal	4–20 mA
Power Supply	14–28 VDC
Temperature Compensation	≤ ±0.01% FS/°C
Medium Temperature	-4 to 158°F (-20 to 70°C)
Operating Temperature	Converter: -4 to 140°F (-20 to 60°C)
Protection Rating	IP65
Relay Output	2 × Relay Outputs (250VAC)
Communication	RS485 (Optional)
Process Connection	Thread

Downloads

User Manual

Datasheet

FAQ

What is the SUP-MP-C ultrasonic level transmitter used for?

It is designed for continuous non-contact level measurement in tanks, reservoirs, wastewater treatment facilities, rivers, pump stations, and industrial liquid storage applications.

When should I choose an ultrasonic level transmitter?

Ultrasonic level transmitters are ideal for non-contact measurement of liquids where the medium is corrosive, contaminated, or difficult to access. They are best suited for applications without heavy foam, excessive vapor, or strong turbulence.

Can it be used outdoors?

Yes. With an IP65 enclosure, it is suitable for outdoor industrial environments when installed according to the recommended guidelines.

Does it support PLC or SCADA systems?

Yes. The transmitter supports 4–20 mA analog output and optional RS485 communication, making it compatible with most industrial automation systems.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
