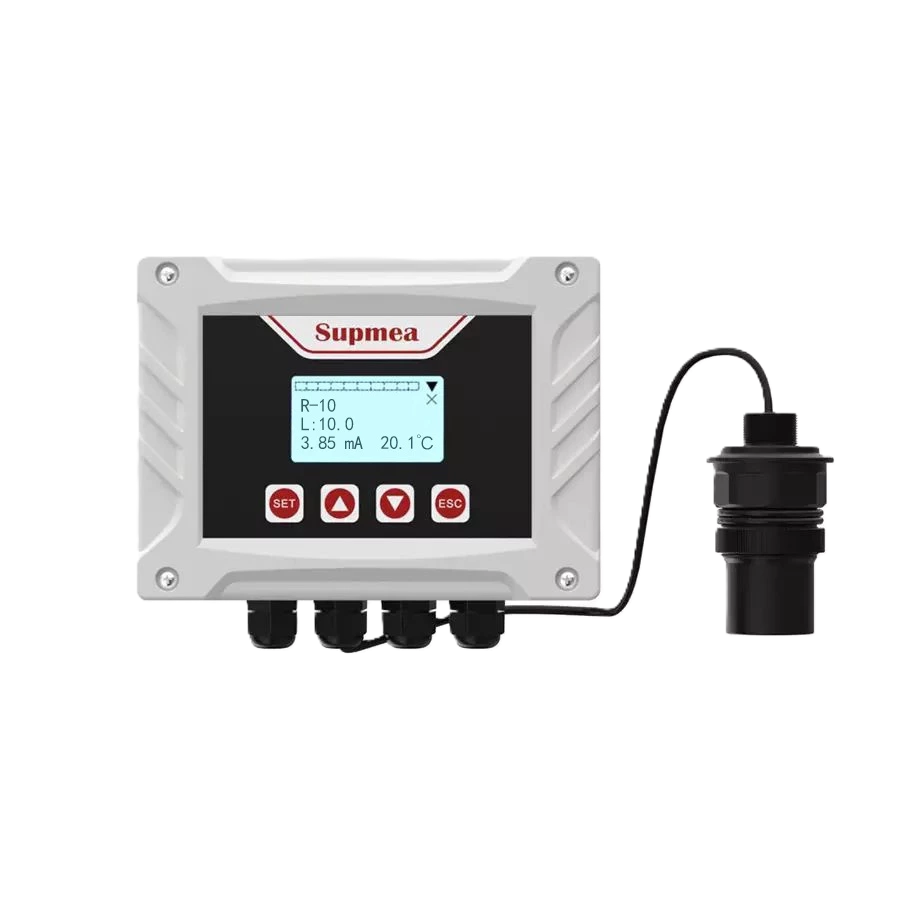

Ultrasonic level transmitter ULS-B

$859.00 USD

Sale Sold out

This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.

Measuring Range and Process Connection 16.4ft G2 thread 32.8ft G2 thread 49.2ft M78*2 thread

Probe Material ABS PTFE

Cable Length 32.8ft 49.2ft

View full details

Introduction

The ultrasonic level transmitter taking the advantages of various many level measuring instruments, is a universal one characterized by total digitalized and humanized design. It has perfect level monitoring, data transmission and man-machine communication.

Specification

Measure range 0-5m, 0-10m, 0-15m (optional) 0-16.4 ft, 0-32.8 ft, 0-49.2 ft (optional)
Blind zone ≤0.3m (range 5m) ≤0.98 ft (range 16.4 ft) ；≤0.35m (range 10m) ≤1.15 ft (range 32.8 ft) ；≤0.5m (range 15m) ≤1.64 ft (range 49.2 ft)
Accuracy ±0.3%FS, ±0.5%FS
Display Monochrome LCD screen
Output (optional) Isolated, 4-20mA
Output precision: ±0.5%FS, RL≤500Ω
Measuring variable Level/Distance
Power supply 100-240 VAC, 5W MAX, 50/60Hz18-28 VDC
Temperature range Converter: -20-60℃ (-4°F-140°F)Sensor: -20-80℃ (-4°F-176°F)
Humidity range 10%-85% RH (no condensation)
Ingress protection Converter: IP65Sensor: IP68
Cable 10m (Standard), 30m MAX (optional)32.8 ft (Standard), 98.4 ft MAX (optional)
Alarm 2 relays
Capacitance AC250V/3A (Standard)4 relays (optional)
Installation Wall-mounted
Communication Isolated RS485, Modbus-RTU

Features

Convenient operation
Fault self-diagnosis technology
A variety of working conditions algorithm selection
Fast response time
Automatic temperature compensation
High precision
